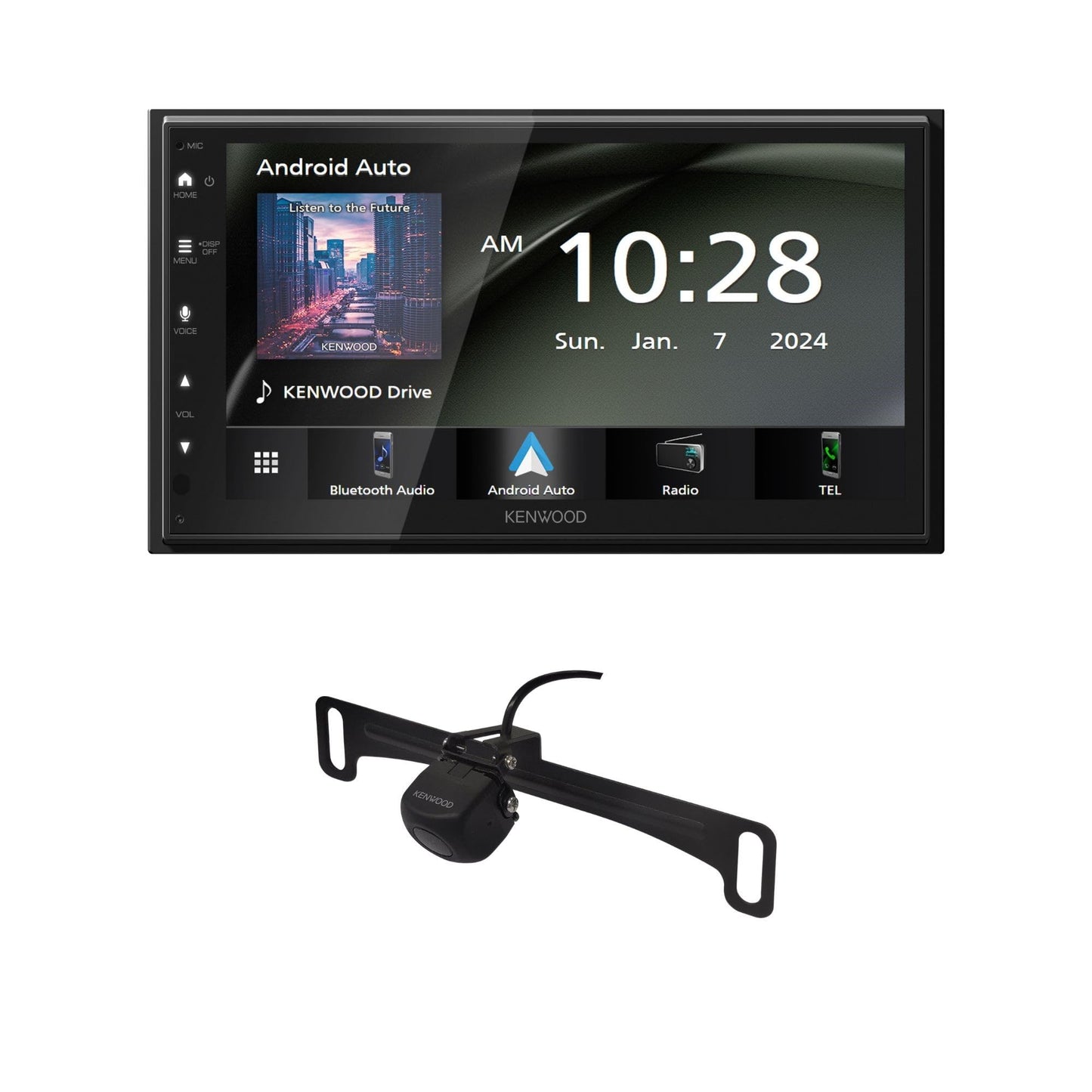

Kenwood DMX40S 6.8" Bluetooth Car Stereo – Mechless AM/FM Receiver + CMOS-230LP Backup Camera

This Kenwood DMX40S + CMOS-230LP bundle pairs a 6.8" WSVGA capacitive touchscreen multimedia receiver with a compact rear-view backup camera for a clean factory-radio replacement that adds modern smartphone control and a wide-angle rear camera view.

The DMX40S is a mechless (no CD) receiver with wired Apple CarPlay and wired Android Auto via USB, built-in Bluetooth for calling/streaming, and a short-chassis design for easier installation space. The included CMOS-230LP camera adds a waterproof, wide-angle image and includes a license-plate mounting attachment.

Key Features

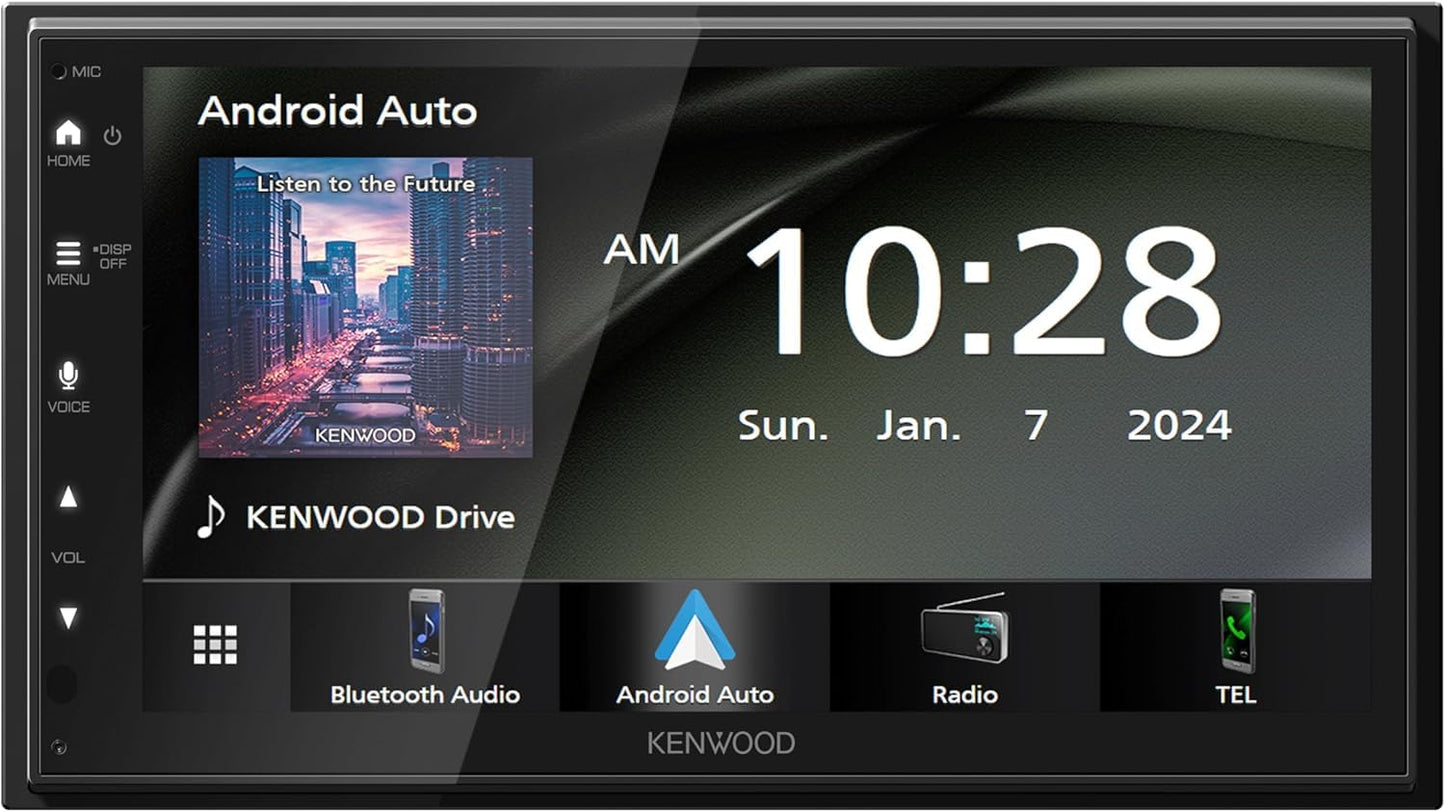

• 6.8" WSVGA (1024 x 600) capacitive touchscreen multimedia receiver
• Wired Apple CarPlay and wired Android Auto (USB connection)
• Built-in Bluetooth for hands-free calling and audio streaming
• Rear-view camera input with adjustable parking guidelines
• 13-band EQ and Digital Time Alignment
• Short chassis design (mechless / no CD)

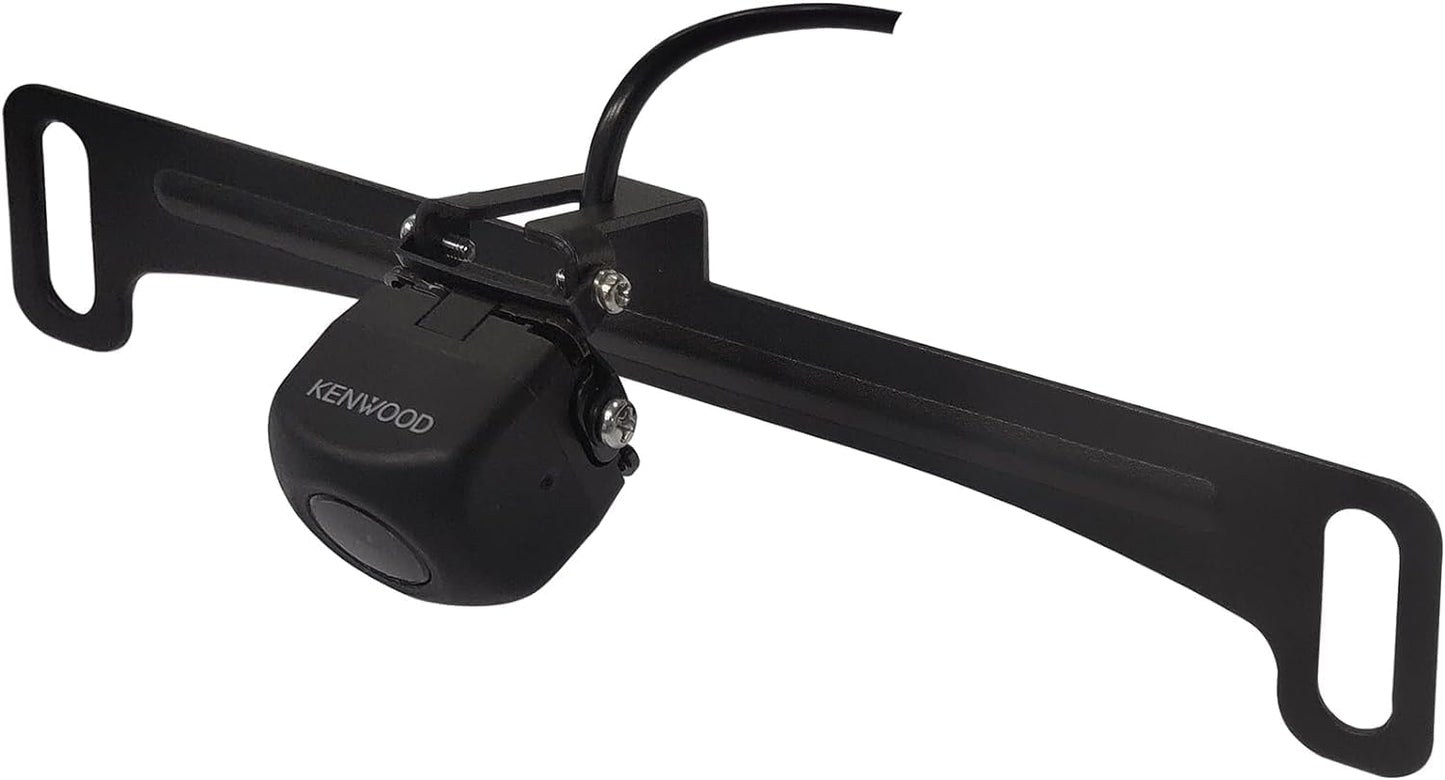

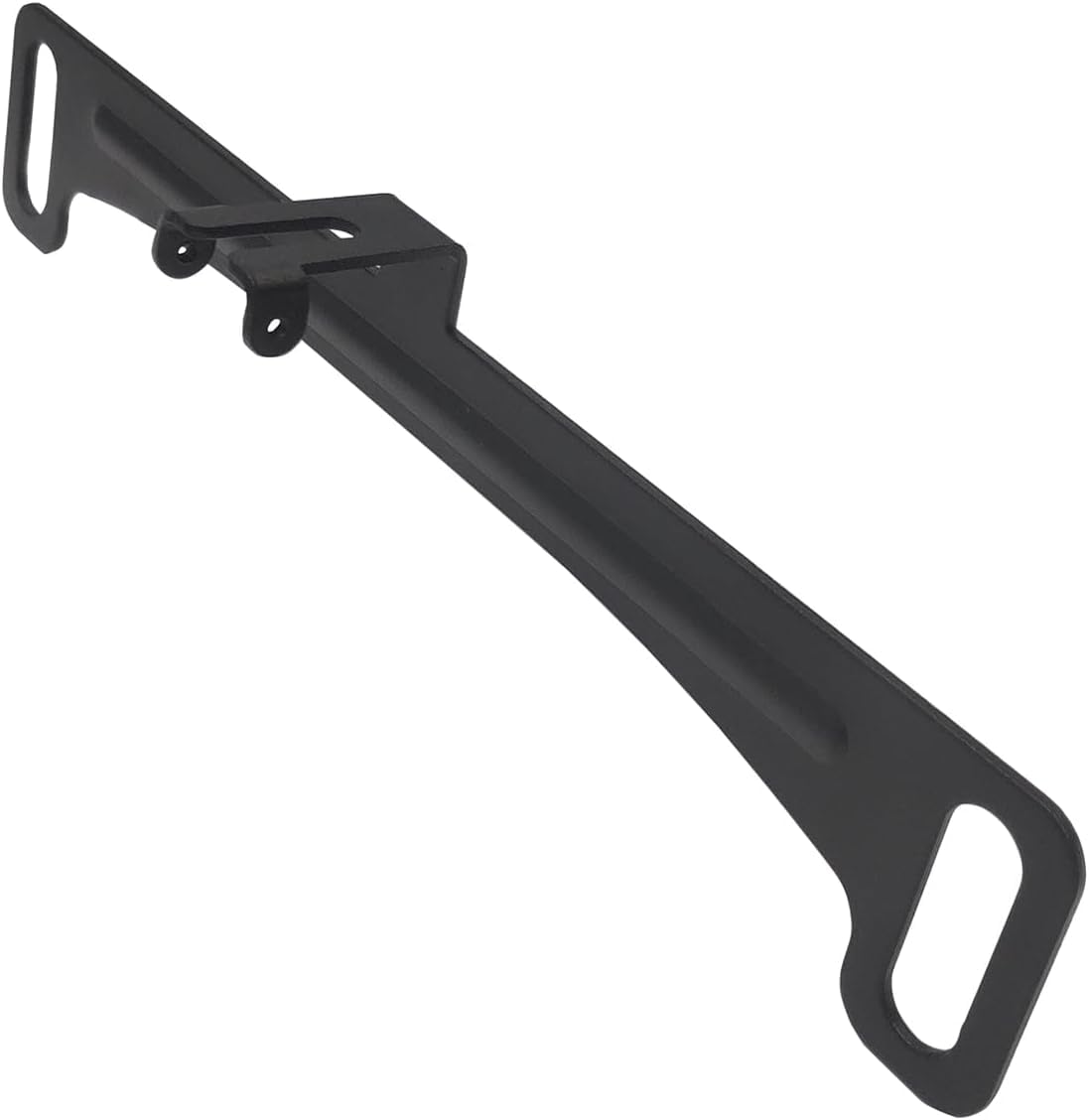

• Included Kenwood CMOS-230LP rear-view camera with license-plate mounting attachment

Connectivity & Integration

• Apple CarPlay: Wired (USB)
• Android Auto: Wired (USB)
• USB: Rear USB input; max supply current DC 5V / 2.1A
• Bluetooth: Built-in (hands-free calling + audio streaming)
• Rear camera: Rear-view camera input with parking guidelines
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner
• Kenwood camera links:  CMOS-230LP

Audio & System Control

• EQ: 13-band graphic EQ
• Time alignment: Digital Time Alignment
• Preamp outputs: 6-channel preouts (front/rear/sub)
• Preout voltage: 3.7V (front/rear/sub)

Installation & Fitment Notes

• Mounting type: In-dash (Single-DIN short-chassis receiver with 6.8" screen)
• Parking brake: Connection required to access certain settings/video functions (install dependent)
• Factory integration: iDatalink Maestro Ready (Maestro RR/RR2 module and vehicle-specific harness required; vehicle dependent)
• Dash kits, wiring interfaces, antenna adapters, and vehicle-specific integration parts are required and sold separately

Technical Specifications

• Receiver model: DMX40S
• Screen size: 6.8" capacitive touchscreen
• Screen resolution: 1024 x 600 (WSVGA)
• Smartphone integration: Wired Apple CarPlay (USB); wired Android Auto (USB)
• USB power: DC 5V / 2.1A (max)
• Camera input: 1 rear-view camera input with parking guidelines
• Preouts: 6-channel (front/rear/sub), 3.7V
• Camera model: CMOS-230LP
• Camera sensor: 1/3.6" color CMOS; effective 330,000 pixels
• Camera angle of view: Approx. 128° horizontal / 103° vertical
• Camera design: Waterproof
• Camera dimensions (W x H x D): 15/16" x 15/16" x 15/16" (23.4 x 23.4 x 23.9mm)

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX40-230LP
• UPC: 019048241061
• Sold As: Each (bundle)
• Included Components: DMX40S receiver (as packaged by Kenwood); CMOS-230LP camera with license-plate mounting attachment (as packaged by Kenwood)

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Specialists in vehicle-specific integration (dash kits, interfaces, and factory-feature retention)
• Support for selecting compatible parts and configuring a clean, reliable install

What's Included

• Kenwood DMX40S receiver
• CMOS-230LP backup camera

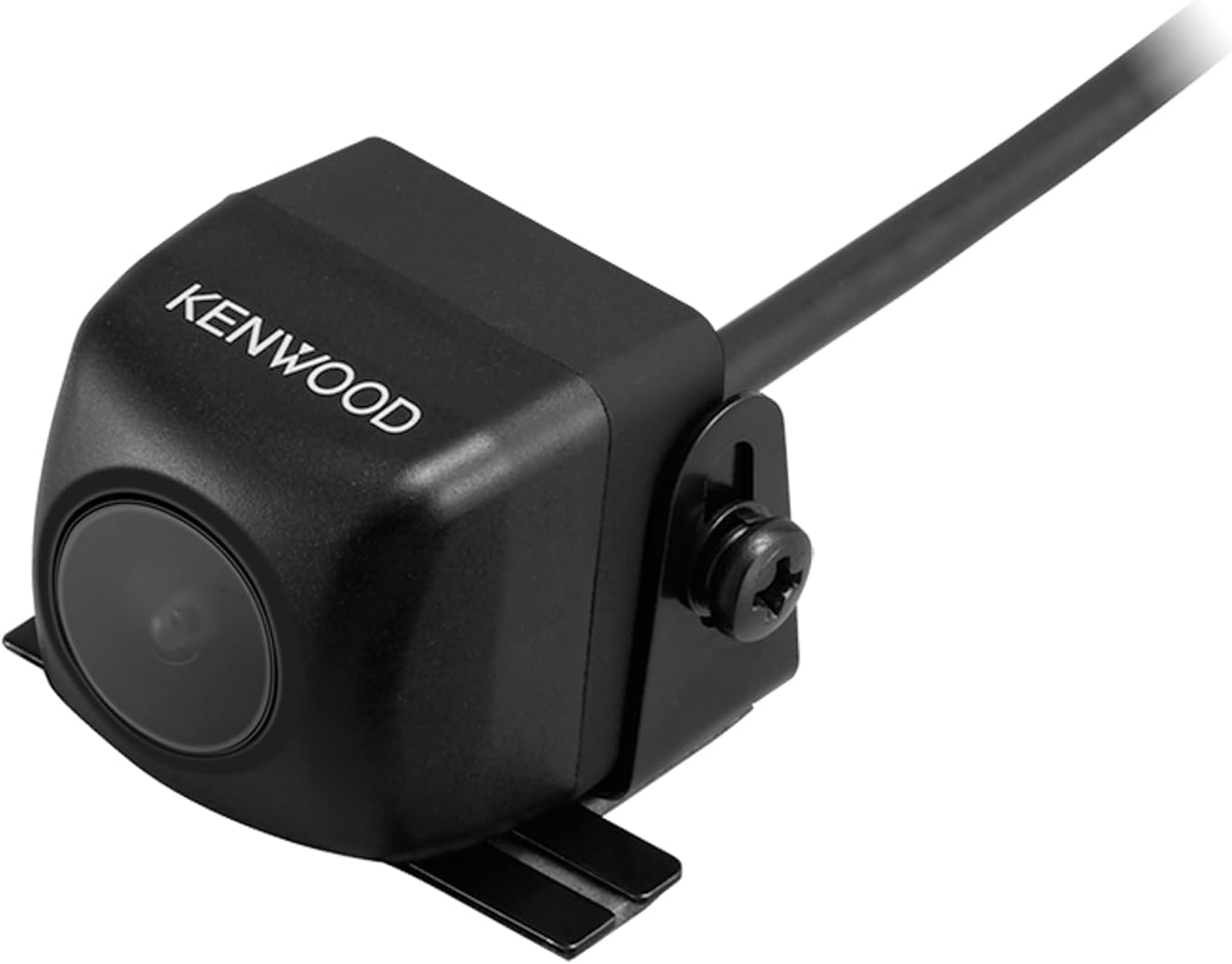

• CMOS-230 rear-view camera

Bundle Benefit

This Kenwood bundle pairs the radio with a compatible Kenwood backup camera, making it easier to build a complete receiver-and-camera upgrade in one purchase. Vehicle-specific installation parts may still be required.

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.
