Kenwood DMX129BT 6.8" Touchscreen Bluetooth Android USB Mirroring Double-DIN Receiver

The Kenwood DMX129BT is a 6.8" digital multimedia receiver built for drivers who want a straightforward double-DIN touchscreen upgrade with Bluetooth, AM/FM radio, and Android USB mirroring without paying for features they do not need.

Its short-chassis design helps in tighter dash cavities, while the capacitive touchscreen, rear camera input, and clean tuning controls make it a practical fit for factory radio replacement in daily-driven cars, trucks, and SUVs.

Key Features

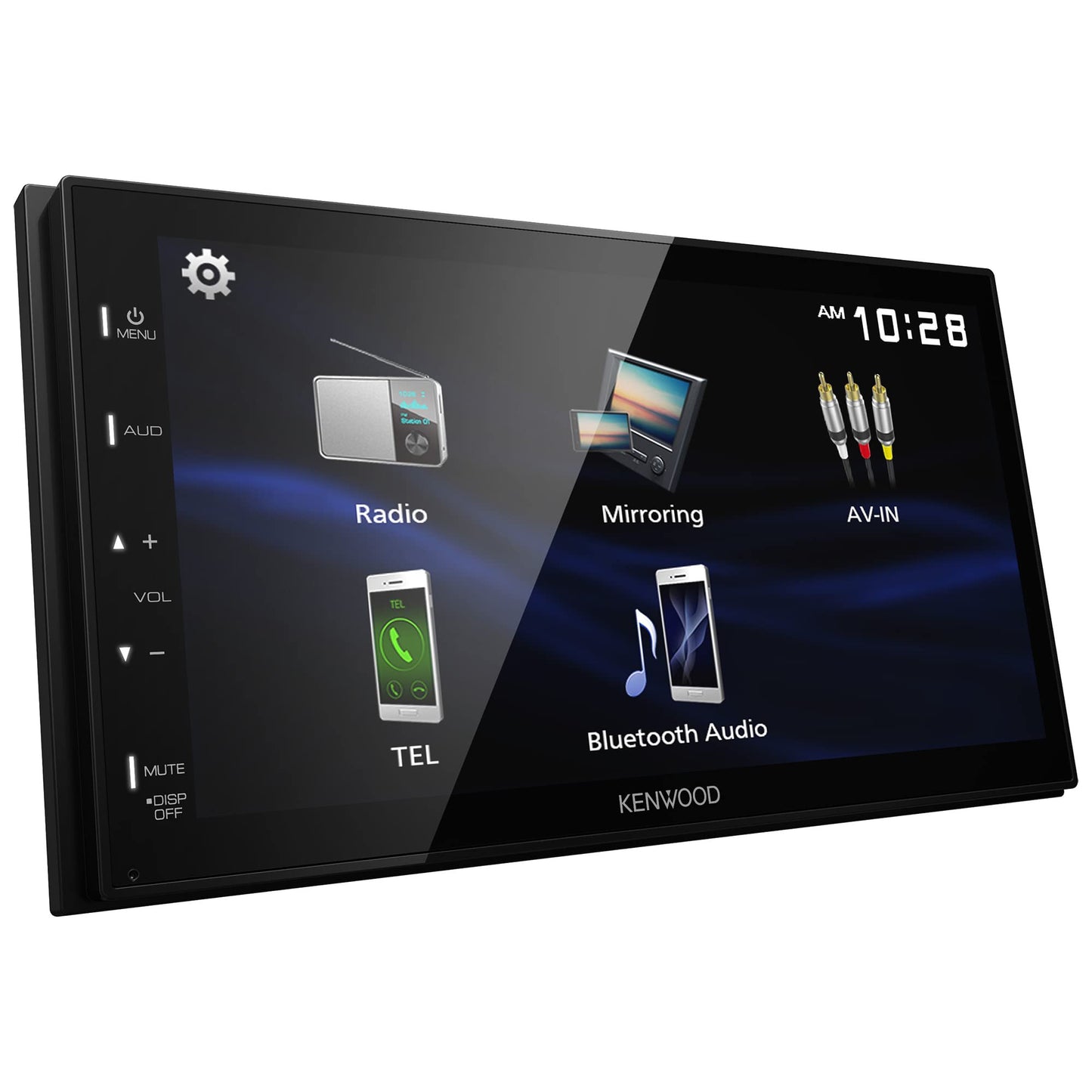

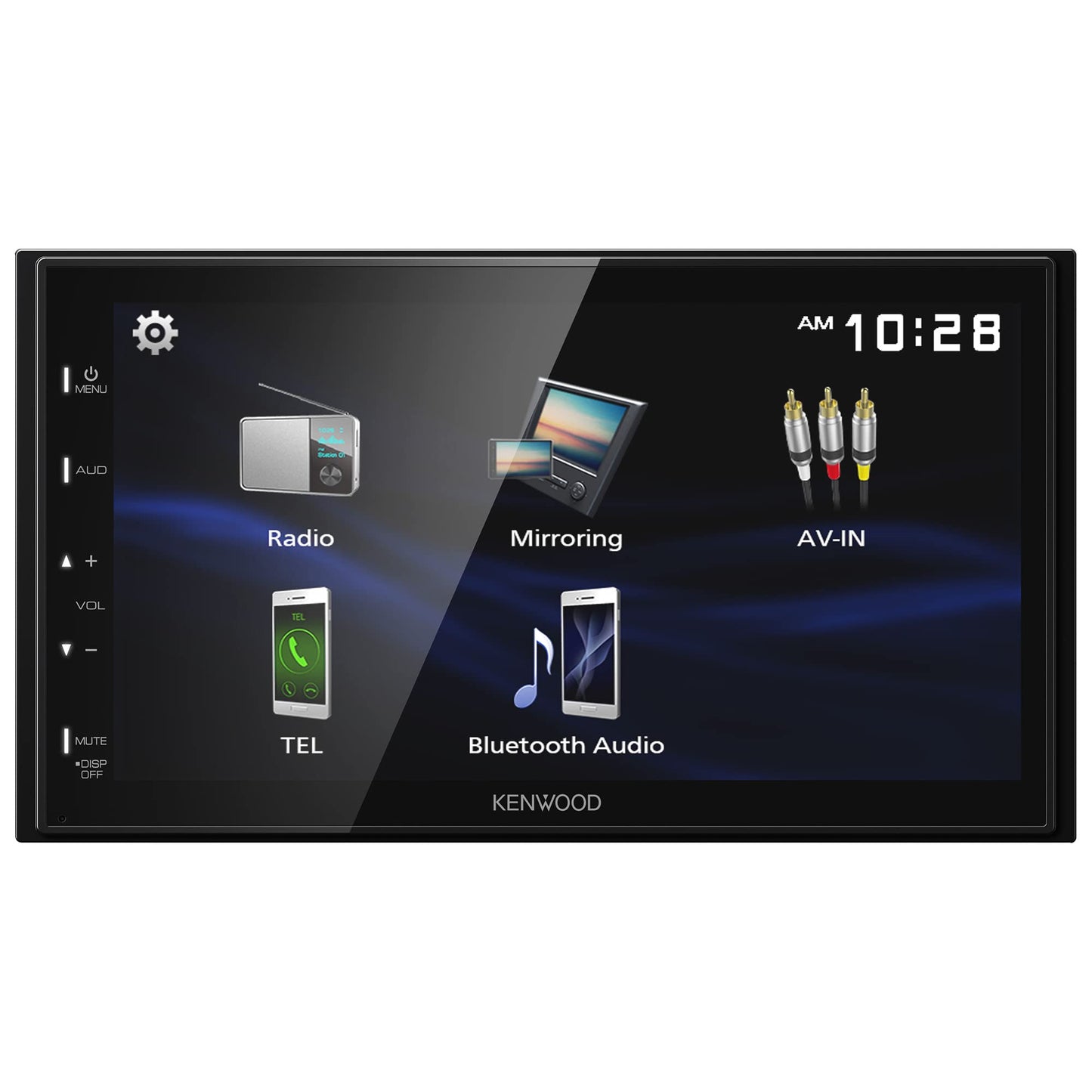

• 6.8" WVGA capacitive touchscreen display
• Built-in Bluetooth for hands-free calling and audio streaming
• Android USB Mirroring with 2-way touch control on compatible devices
• AM/FM tuner
• 13-band EQ with digital time alignment
• Rear-view camera input with parking guidelines
• 2 preouts (2V) with subwoofer out
• Short-chassis design for easier installation

Connectivity & Integration

• Android USB Mirroring: Supported on compatible Android devices using USB and Bluetooth with the Mirroring OB for KENWOOD app
• Bluetooth: Built-in for hands-free calling and wireless audio streaming

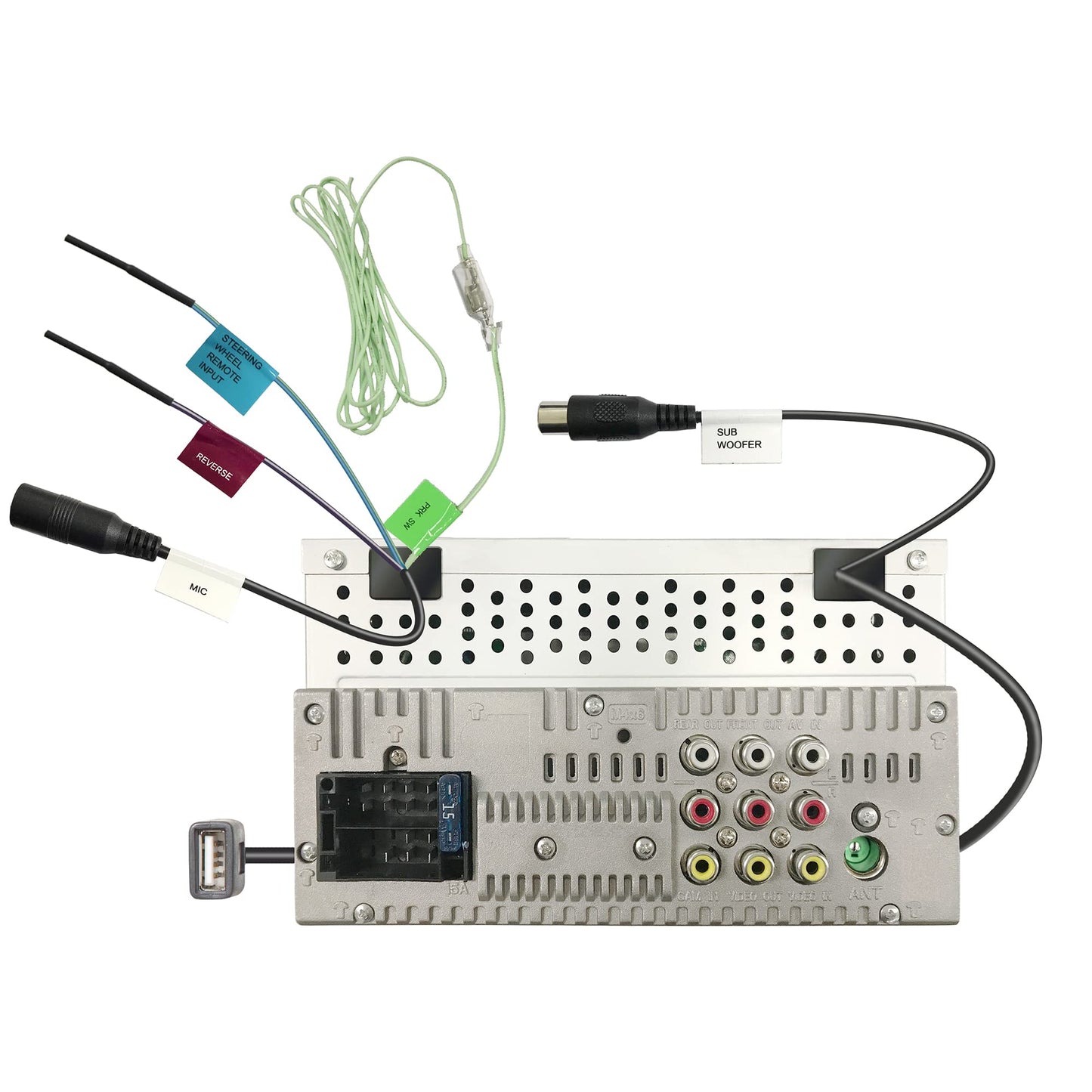

• USB: Rear USB 2.0 input, up to 1.5A charging
• Camera Input: Rear-view camera input with parking guidelines
• A/V Input: Rear A/V input
• Kenwood camera links CMOS-230LP

Audio & System Control

• 13-band graphic EQ for more precise tuning
• Digital time alignment for better staging and listening-position correction
• 2 preouts rated at 2V with dedicated subwoofer output
• Built-in amplifier rated at 16 watts RMS x 4
• Supports playback of USB audio and video files in multiple formats

Installation & Fitment Notes

• Chassis type: Double-DIN digital multimedia receiver
• Short chassis design: Approx. 2-15/16" mounting depth for more flexible fitment

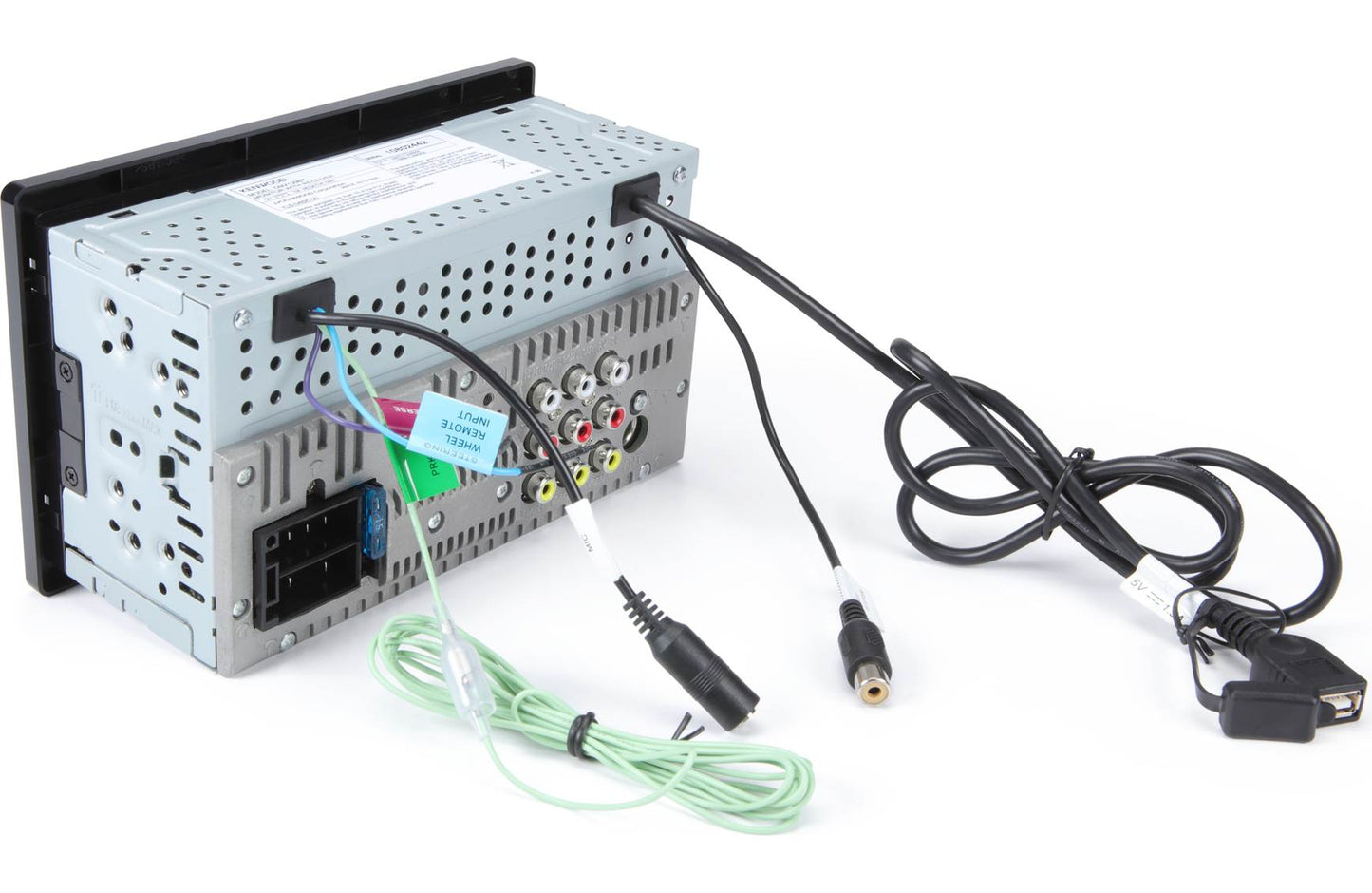

• Rear USB connection routes behind the dash during installation
• Parking brake connection is required to access certain setup and video functions
• Dash kit, wiring harness, antenna adapter, steering wheel control interface, and other vehicle-specific installation parts are sold separately
• This is a mechless digital multimedia receiver and does not play CDs or DVDs

Technical Specifications

• Receiver model: DMX129BT
• Screen size: 6.8" WVGA capacitive touchscreen
• Smartphone integration: Android USB Mirroring
• Bluetooth: Built-in Bluetooth 5.0
• USB: Rear USB 2.0, up to 1.5A
• Radio: AM/FM tuner
• Preamp outputs: 2 preouts, 2V, with subwoofer out
• EQ / tuning: 13-band EQ with digital time alignment
• Camera input: Rear-view camera input with parking guidelines
• A/V input: Rear A/V input
• Chassis type: Short-chassis double-DIN
• Disc support: None

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX129BT
• UPC: 019048238214
• Sold As: Each

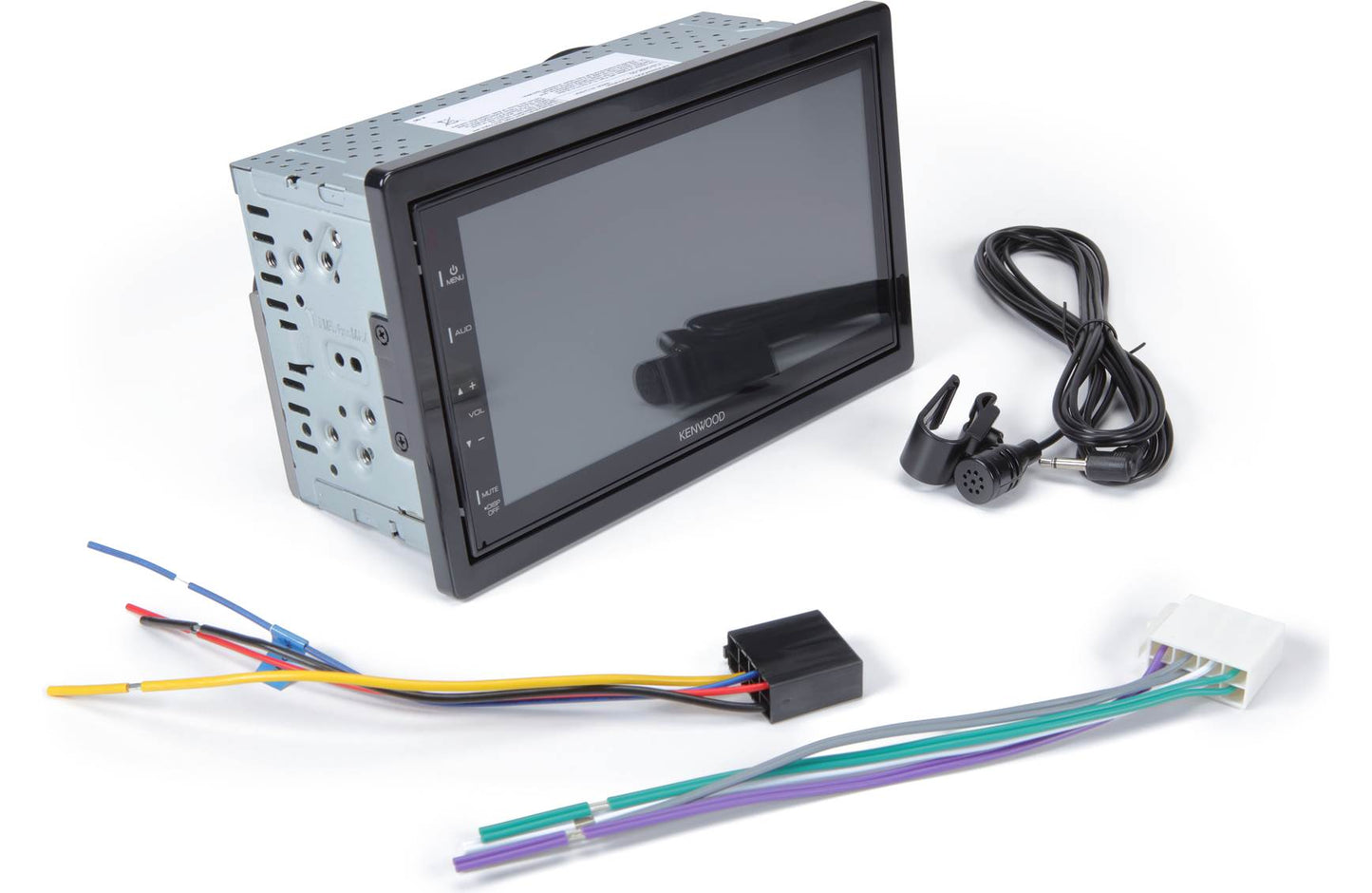

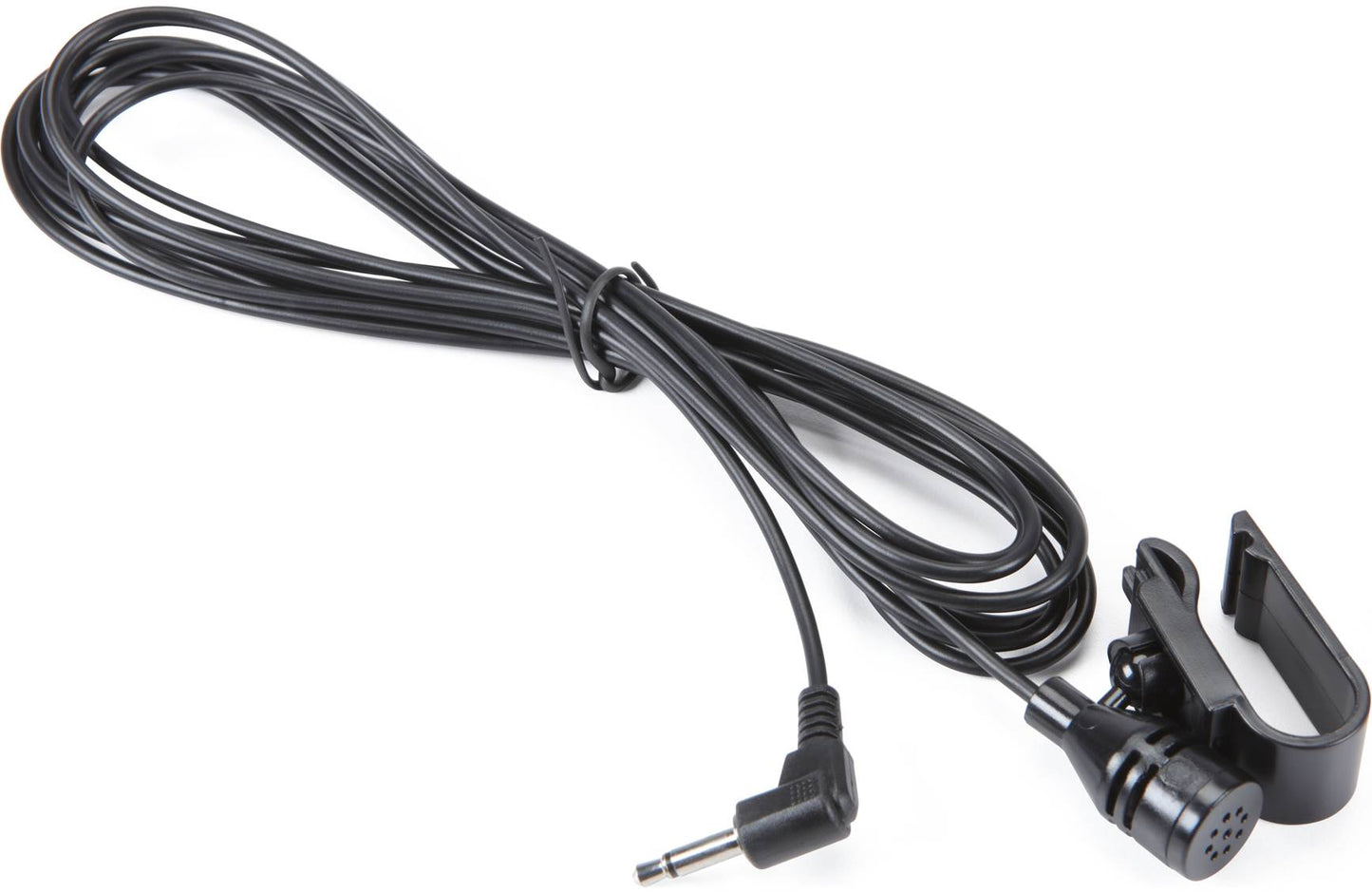

• Included Components: DMX129BT receiver, wiring harness, trim ring, mounting hardware, and documentation

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Specialists in vehicle-specific integration, dash kits, wiring interfaces, and backup camera add-ons
• Support for choosing the right install parts for a clean, reliable fit

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.
