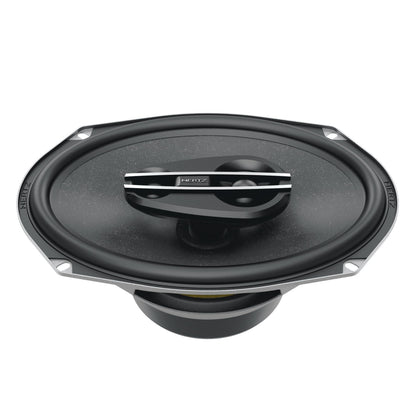

Hertz Cento Series CX 690 6" x 9" Three-Way Coaxial Speakers - Pair

Hertz Cento CX 690 is a 6x9-inch 3-way coaxial speaker designed for high output and balanced tonality in horizontal 6x9 locations (rear deck, rear doors). It combines a semi-pressed paper + mica woofer cone (SPP-M) with a 40 mm (1.58") dome tweeter and a 20 mm (0.8") supertweeter to extend top-end response while maintaining strong midbass.

Rated at 100W RMS and 300W peak at 4 ohms, the CX 690 is built to handle real power and deliver strong SPL, with geometry optimized for off-axis listening common in factory-style 6x9 placements.

Key Performance Features

• 3-way 6x9" coaxial for full-range coverage from a single speaker location
• SPP-M cone (semi-pressed paper + mica) for a balance of damping and rigidity
• Wide rubber surround designed for long excursion and controlled output

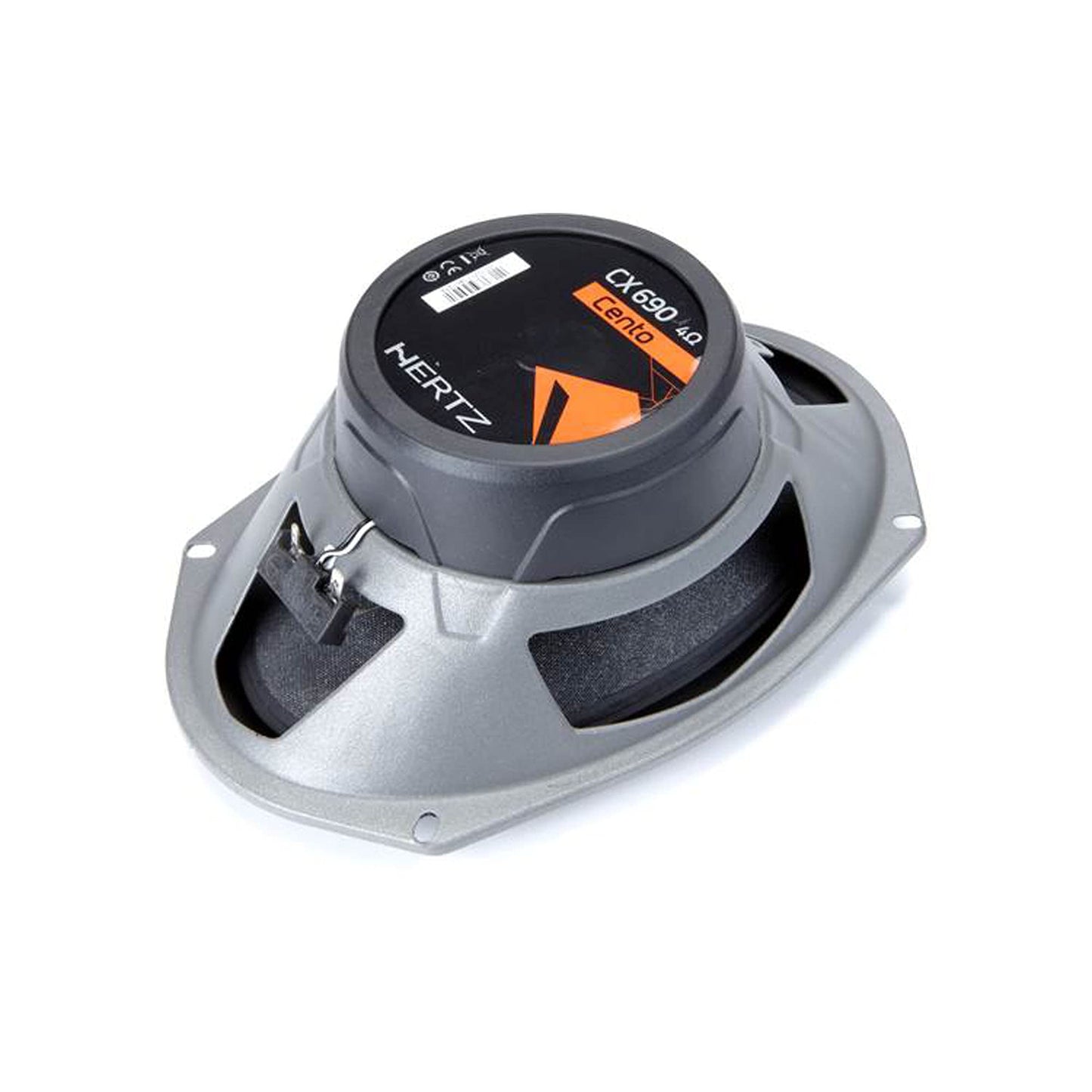

• High-density ferrite woofer motor with low-carbon pole plates to help reduce distortion at higher power
• 40 mm dome tweeter for efficient mid/high reproduction
• 20 mm dome supertweeter to extend very high frequencies (especially helpful in horizontal installs)

Technical Specifications

• Series: Hertz Cento
• Model: CX 690
• Speaker Type: 3-Way Coaxial
• Size: 6" x 9"
• Power Handling (Continuous): 100 W
• Power Handling (Peak): 300 W
• Impedance: 4 Ω
• Frequency Response: 40 Hz – 23 kHz
• Sensitivity: 93.5 dB (SPL)
• Woofer Voice Coil Diameter: 30 mm (1.2")
• Tweeter Voice Coil Diameter: 28 mm (1.1")
• Tweeter Diaphragm: 40 mm (1.58")
• Woofer Magnet: High density flux ferrite
• Tweeter Magnet: Neodymium
• Cone Material: Semi-pressed paper + mica
• Tweeter Dome Material: PEI
• Xmech: 5.5 mm (0.22")
• Weight (each): 1.55 kg (3.42 lb)

Ideal Applications

• Rear deck 6x9 upgrades where speakers fire upward (horizontal mounting)
• Rear door 6x9 locations needing higher output with better top-end extension
• Factory system upgrades where you want fuller bandwidth from a single speaker position
• Aftermarket systems that can use real power (100W RMS class)

What’s Included

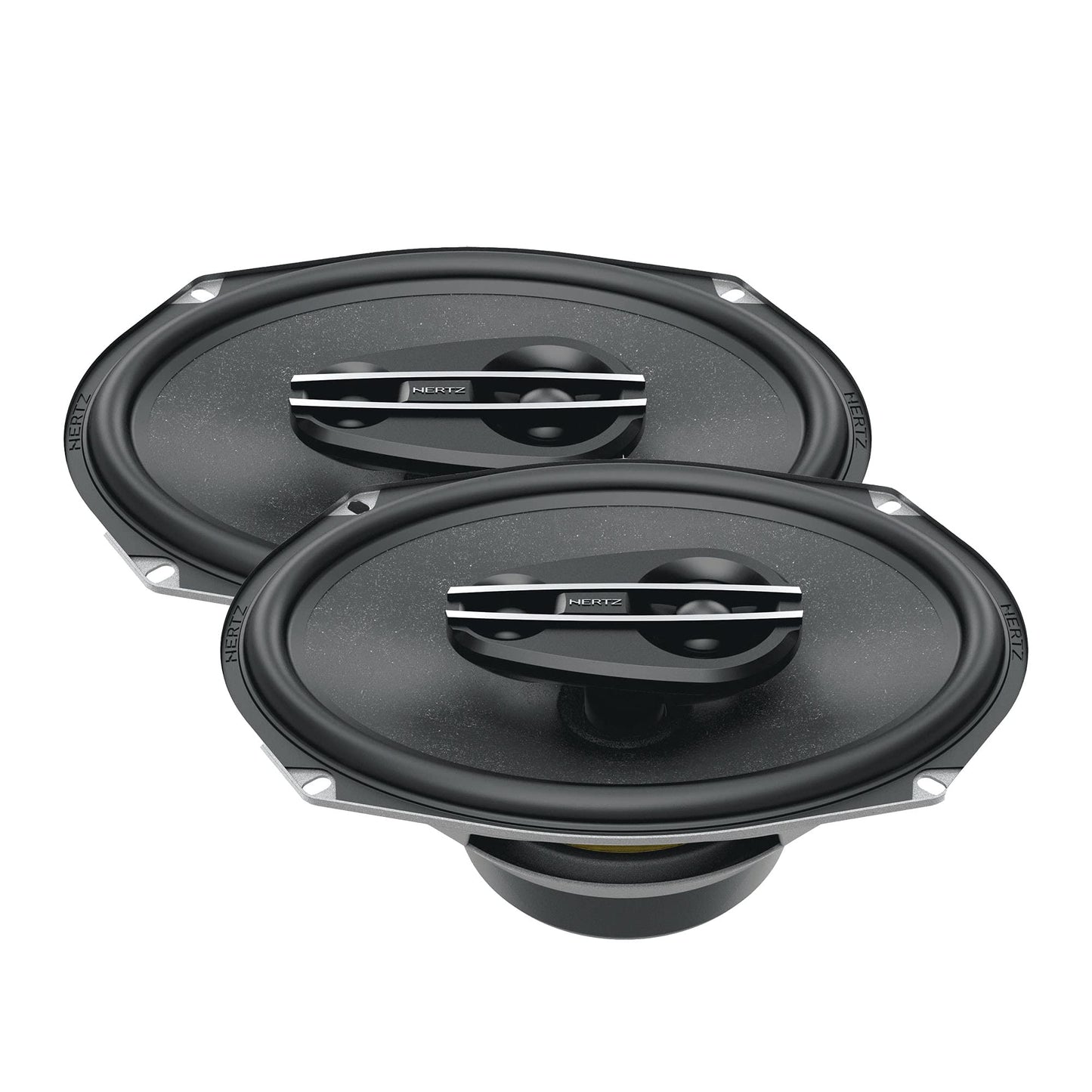

• (2) Hertz CX 690 6x9" 3-way coaxial speakers
• (2) Speaker grilles (CG 690)
• Documentation (as supplied by manufacturer)
