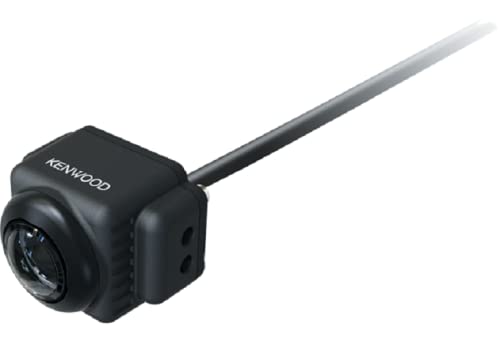

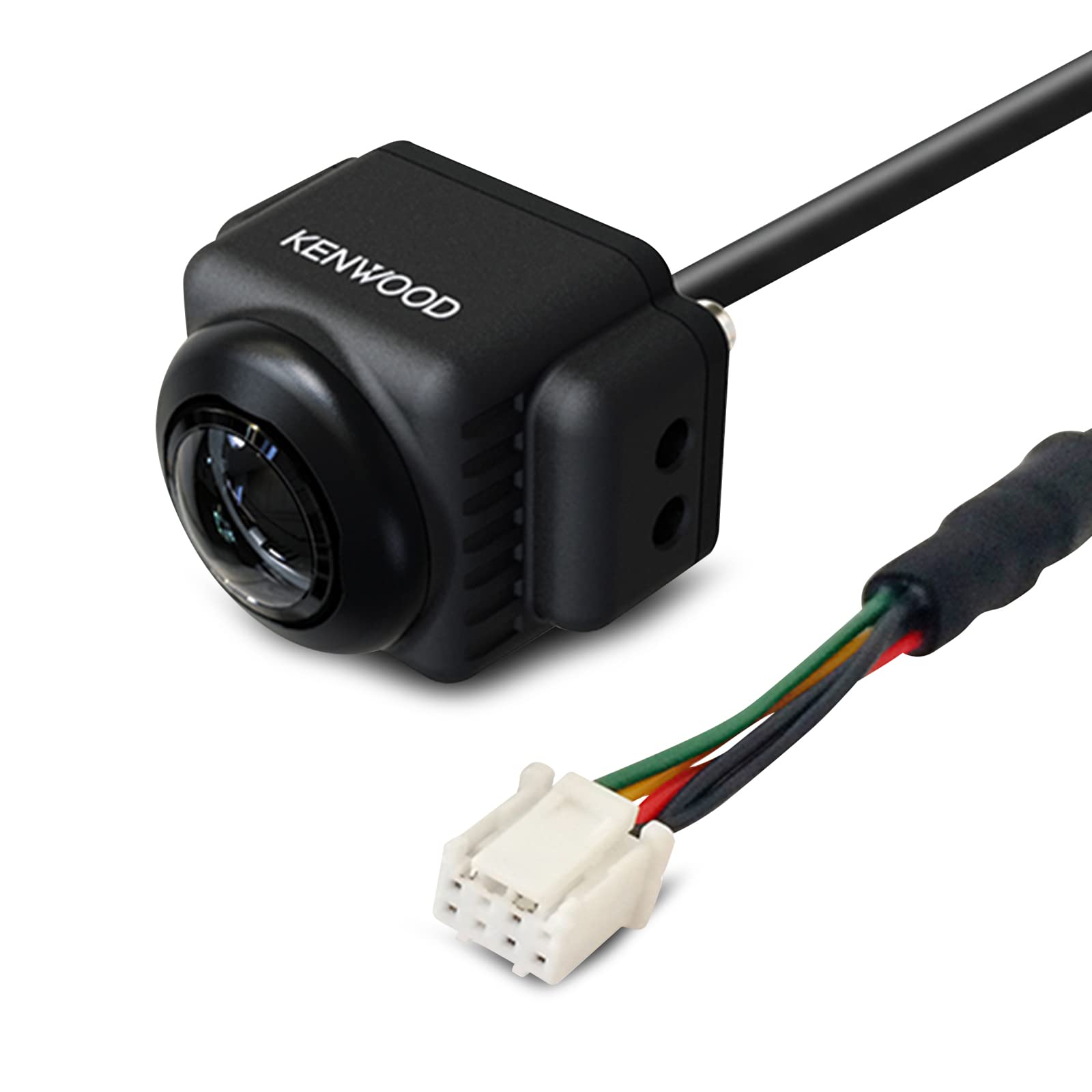

Kenwood Excelon CMOS-740HD High Definition Reverse Rear Backup Camera

The Kenwood eXcelon CMOS-740HD is a high-definition rear backup camera package that combines the CMOS-740HD camera with Kenwood’s CA-LPM10 license plate mounting attachment. It is built for drivers who want a cleaner factory-style rear camera solution with sharper image quality than a standard analog backup camera.

This camera is designed for use with select Kenwood receivers that support an HD camera input. It delivers up to 720p image output, a very wide horizontal viewing angle, HDR image processing, and an IP67 waterproof design for dependable daily-use rear visibility.

Key Features

• High-definition rear backup camera package with included license plate mounting bracket
• Compatible with select Kenwood receivers that support HD camera input
• Up to 1280 x 720 (720p) HD image output
• 1/3.8-inch color CMOS sensor with 1.3 megapixels
• Approx. 180° horizontal viewing angle and 103° vertical viewing angle
• HDR image processing for improved visibility in high-contrast conditions
• IP67 waterproof design

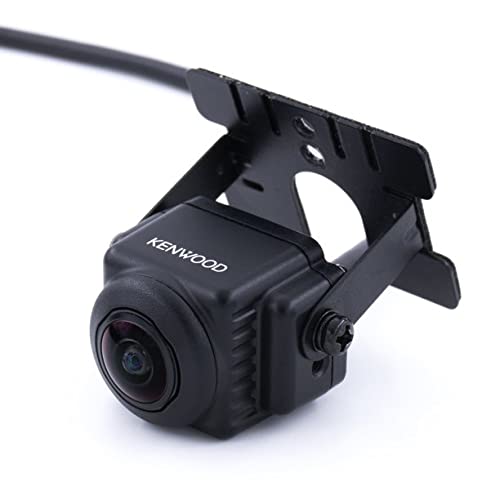

• Includes CA-LPM10 license plate mounting attachment and universal mounting hardware

Connectivity & Integration

• Receiver compatibility: Requires a compatible Kenwood receiver with HD camera input
• Camera type: Rear-view backup camera
• Mounting option: Includes license plate mounting attachment for a clean rear-install solution
• Universal install support: Includes universal mounting hardware in addition to the plate bracket
• Use case: Designed for reverse rear-view camera applications

Image & System Performance

• HD image output provides noticeably higher detail than standard low-resolution rear cameras when used with a compatible HD-capable Kenwood receiver
• HDR processing helps improve image clarity when bright daylight and shadowed areas appear in the same scene
• Wide-angle lens improves rearward field of view for parking and backing maneuvers
• Rated for low-light performance down to 1.0 lux

Installation & Fitment Notes

• Camera type: Rear-view camera
• Bracket style: License plate mounting attachment included
• Compatibility note: This camera is not for universal display compatibility; it requires a Kenwood receiver with HD camera input support
• Camera dimensions: 31.1 x 23.0 x 25.2mm
• Bracket dimensions: 179 x 35 x 29mm
• Camera cord length: 9.84 ft (3m)
• Power cable length: 19.69 ft (6m)
• Vehicle-specific routing, mounting position, and receiver compatibility should be confirmed before purchase

Technical Specifications

• Model: CMOS-740HD
• Camera included: CMOS-740HD
• Mount included: CA-LPM10 license plate mounting attachment
• Camera sensor: 1/3.8-inch color CMOS
• Resolution: Up to 1280 x 720 (720p)
• Megapixels: 1.3 megapixels
• Viewing angle: Approx. 180° horizontal / 103° vertical
• Minimum illumination: 1.0 lux
• Image processing: HDR
• Water resistance: IP67 waterproof design
• Camera dimensions: 31.1 x 23.0 x 25.2mm

Identifiers & Packaging

• Manufacturer Part Number (MPN): CMOS-740HD
• UPC: 019048230782
• Sold As: Each

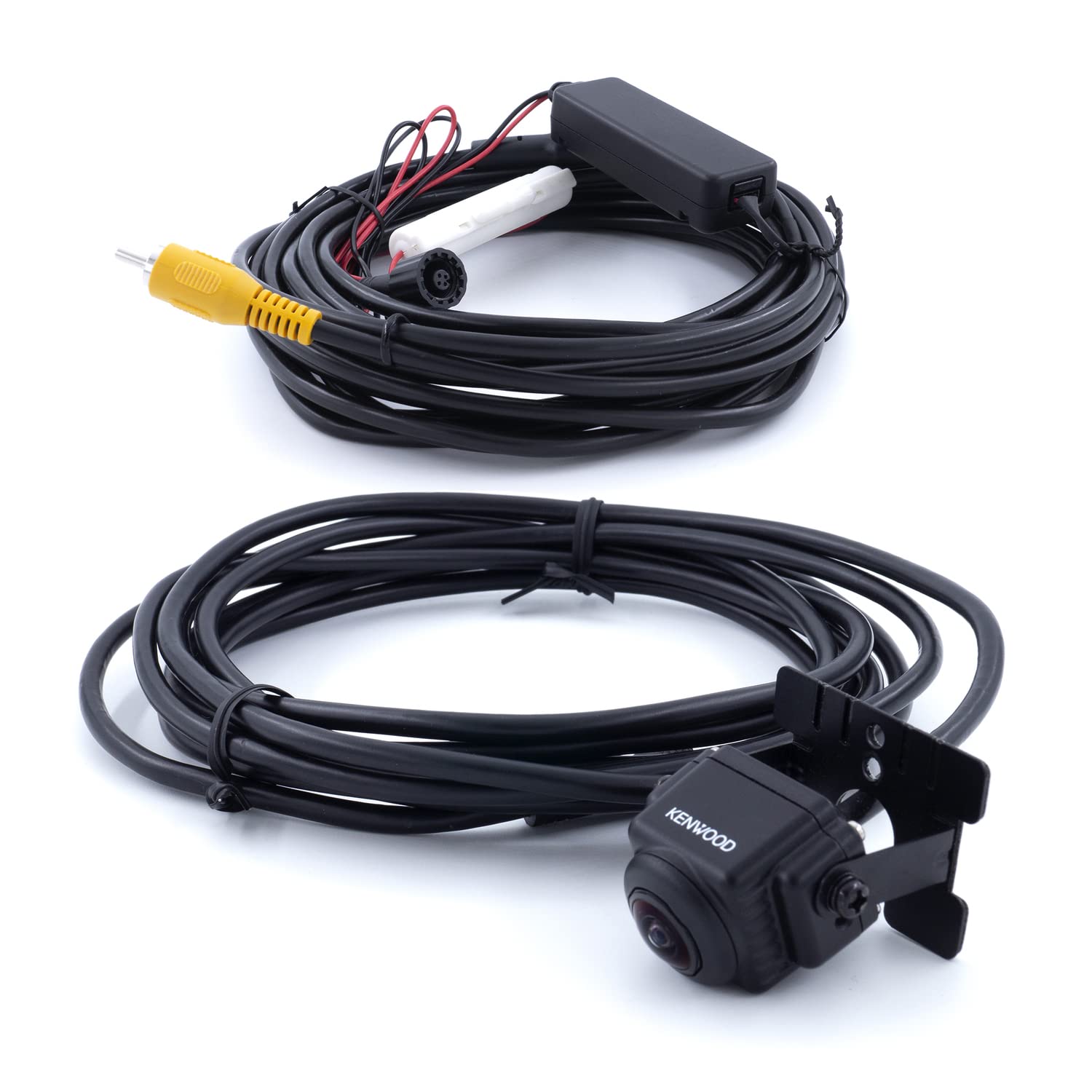

• Included Components: CMOS-740HD rear camera, CA-LPM10 license plate mounting attachment, universal mounting hardware, camera cord, power cable, and documentation

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Specialists in vehicle-specific integration, receiver compatibility, and clean camera installation solutions
• Support for selecting the right Kenwood receiver and install parts for a reliable setup

Camera Fitment & Installation Notes

• Use the MCOR Automotive Vehicle Fit Guide to start with your vehicle details, or contact MCOR Automotive through the chat button for help confirming camera compatibility with your receiver and installation plan.
• Camera installation requirements vary by vehicle, radio model, mounting location, and whether you are adding a new camera or integrating with factory camera features.
• Vehicle-specific camera retention interfaces, wiring adapters, and installation parts are sold separately unless specifically listed.
