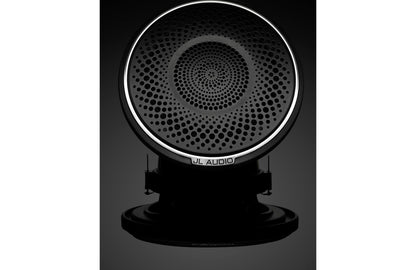

JL Audio C7-350cm 3.5" Component Midrange Speaker (Single) 99758
JL Audio C7-350cm 3.5" Component Midrange Speaker (Single) 99758
Couldn't load pickup availability
PART NUMBER 010-03127-00
***This item requires 3 days handling time*** |
THE ULTIMATE IN AUTOMOTIVE AUDIO FIDELITY

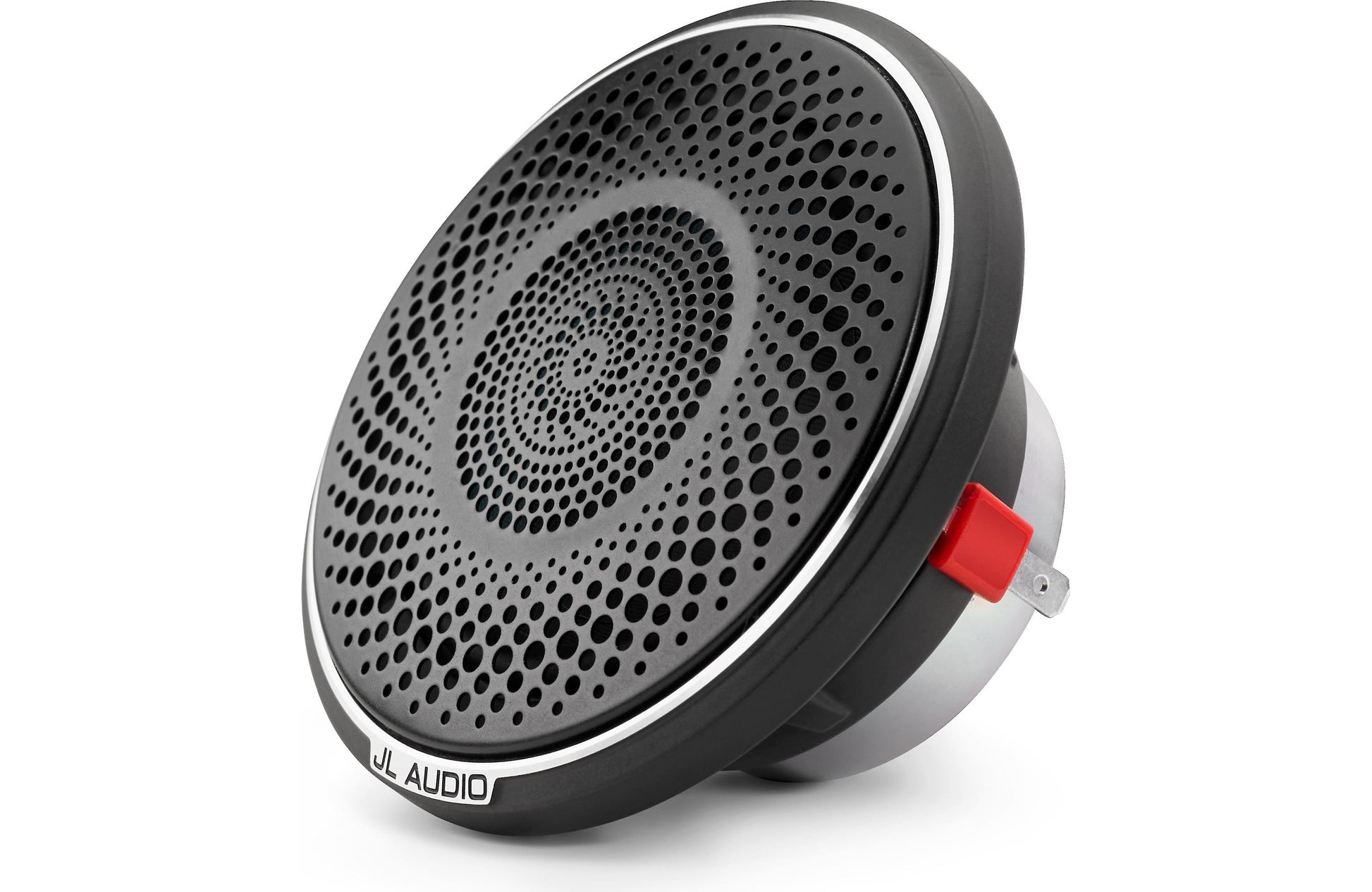

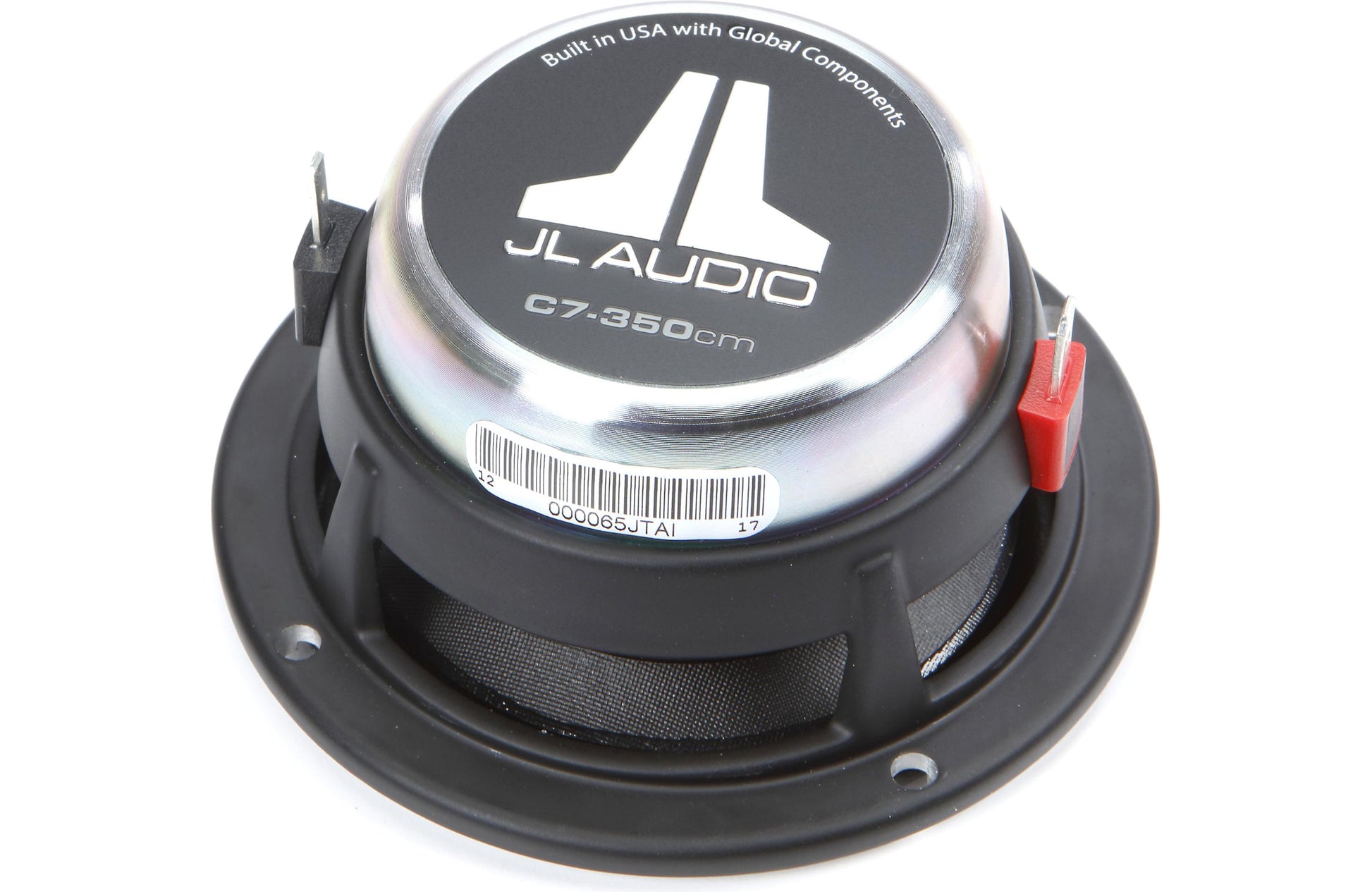

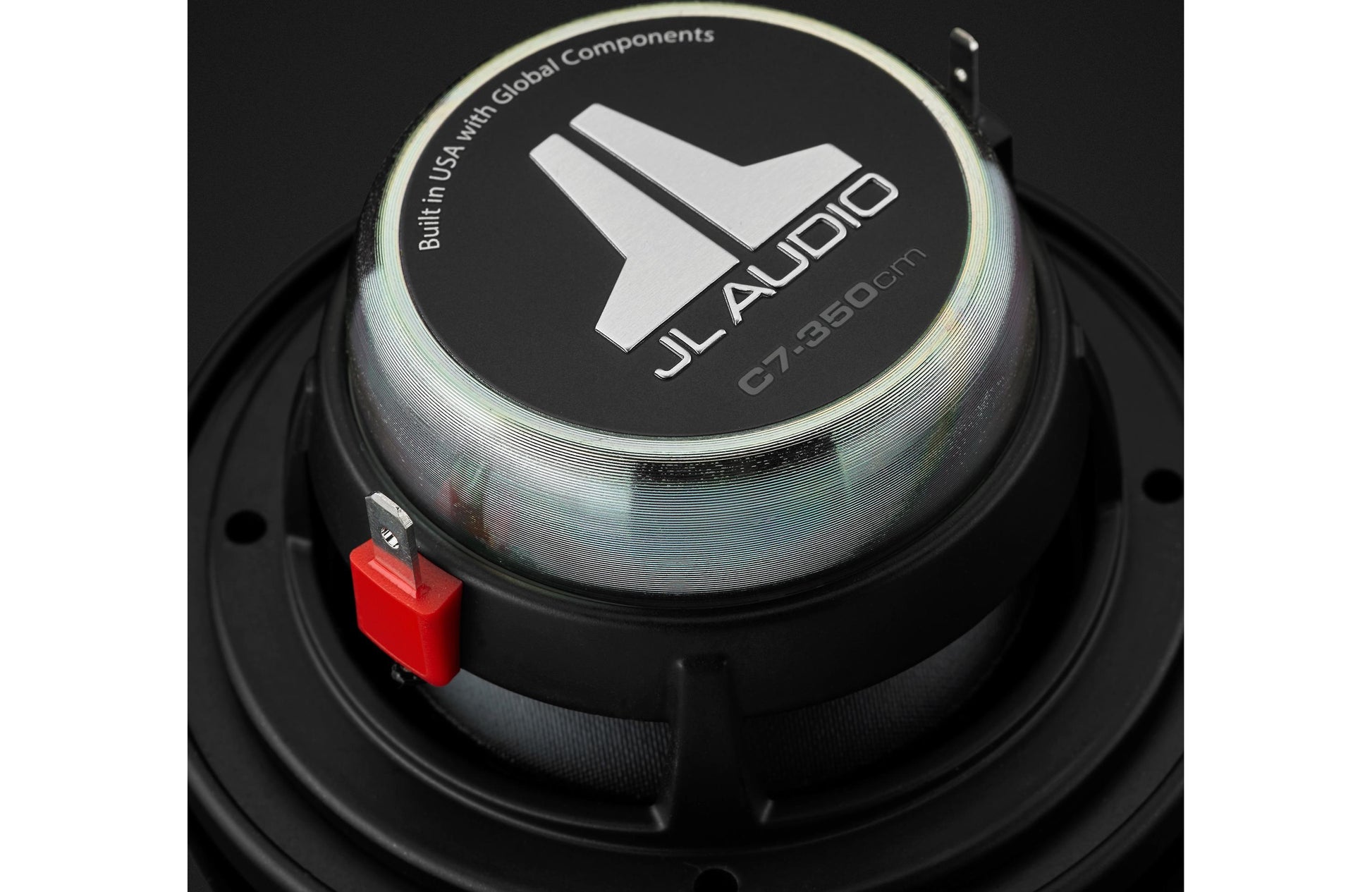

Built from the ground up to exceed the highest standards, JL Audio C7 speakers make no compromises in delivering a pure and precise audio experience. A 3.5-inch midrange speaker offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural midrange reproduction.
ELEVATED FRAME COOLING

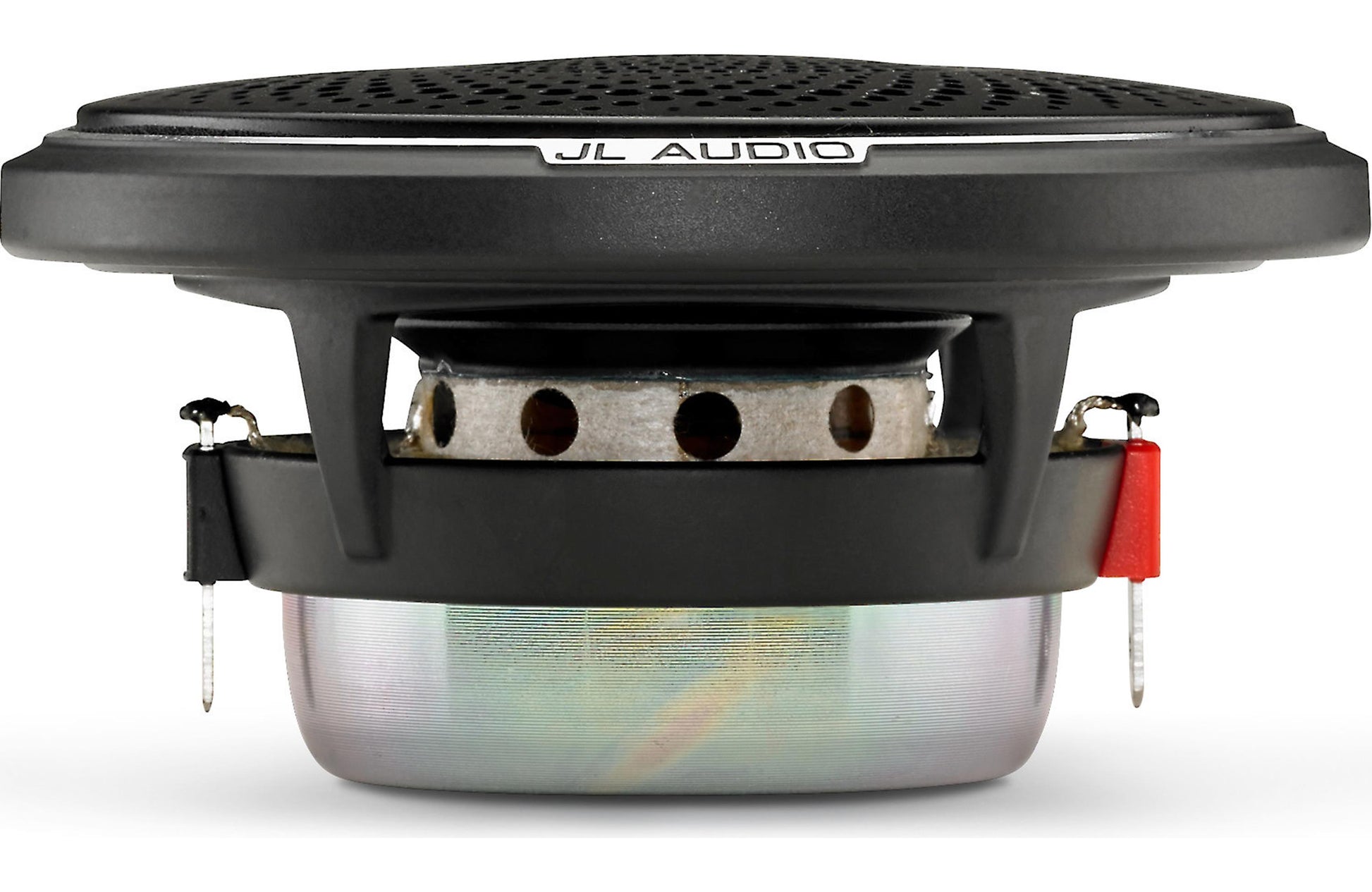

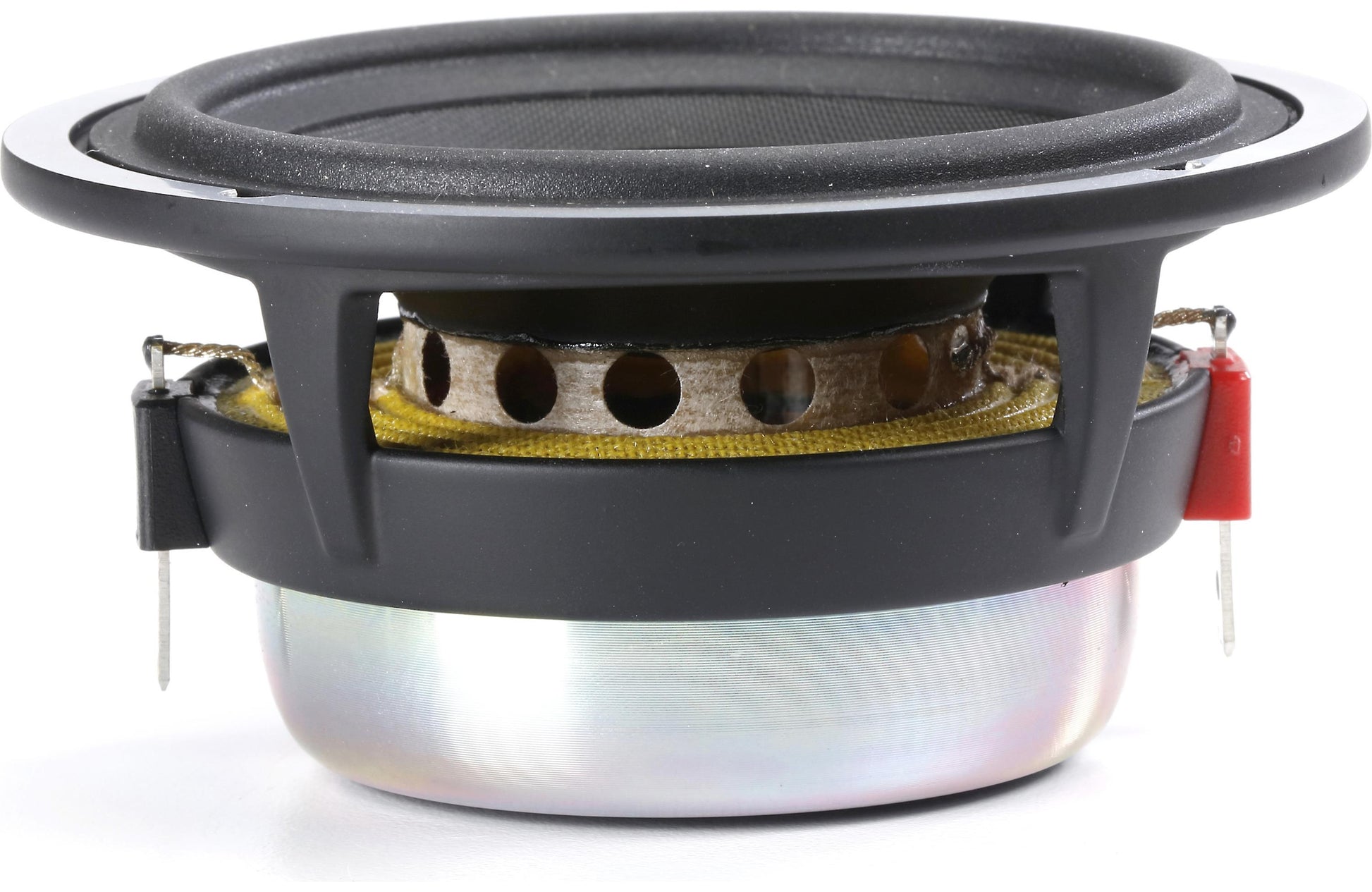

The patented Elevated Frame Cooling™ design by JL Audio delivers cool air through slots directly above the top plate to the voice coil of the speaker. This enhances power handling as well as sound quality by minimizing dynamic parameter shifts and power compression.
GRILLE OPTIONS

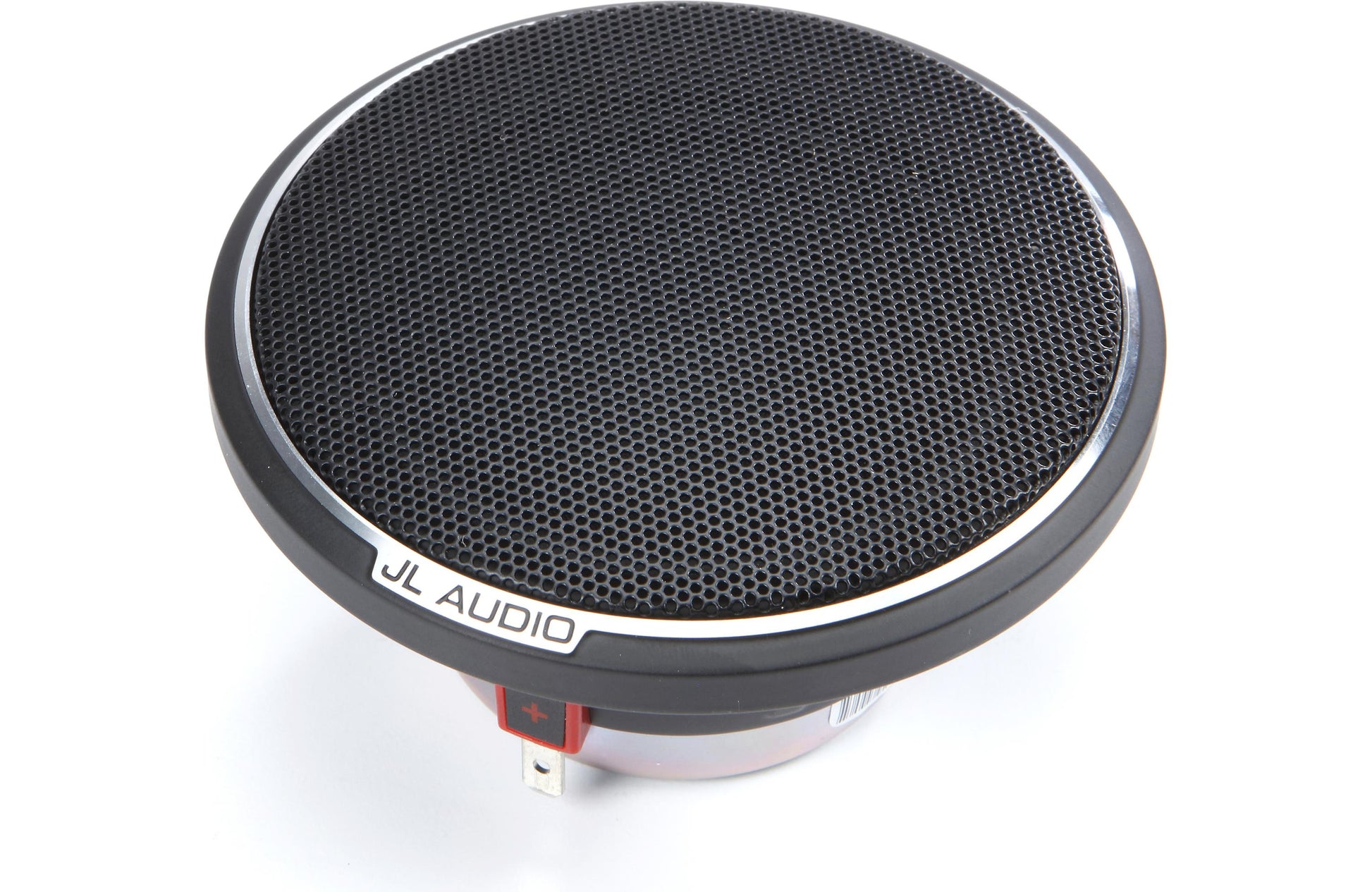

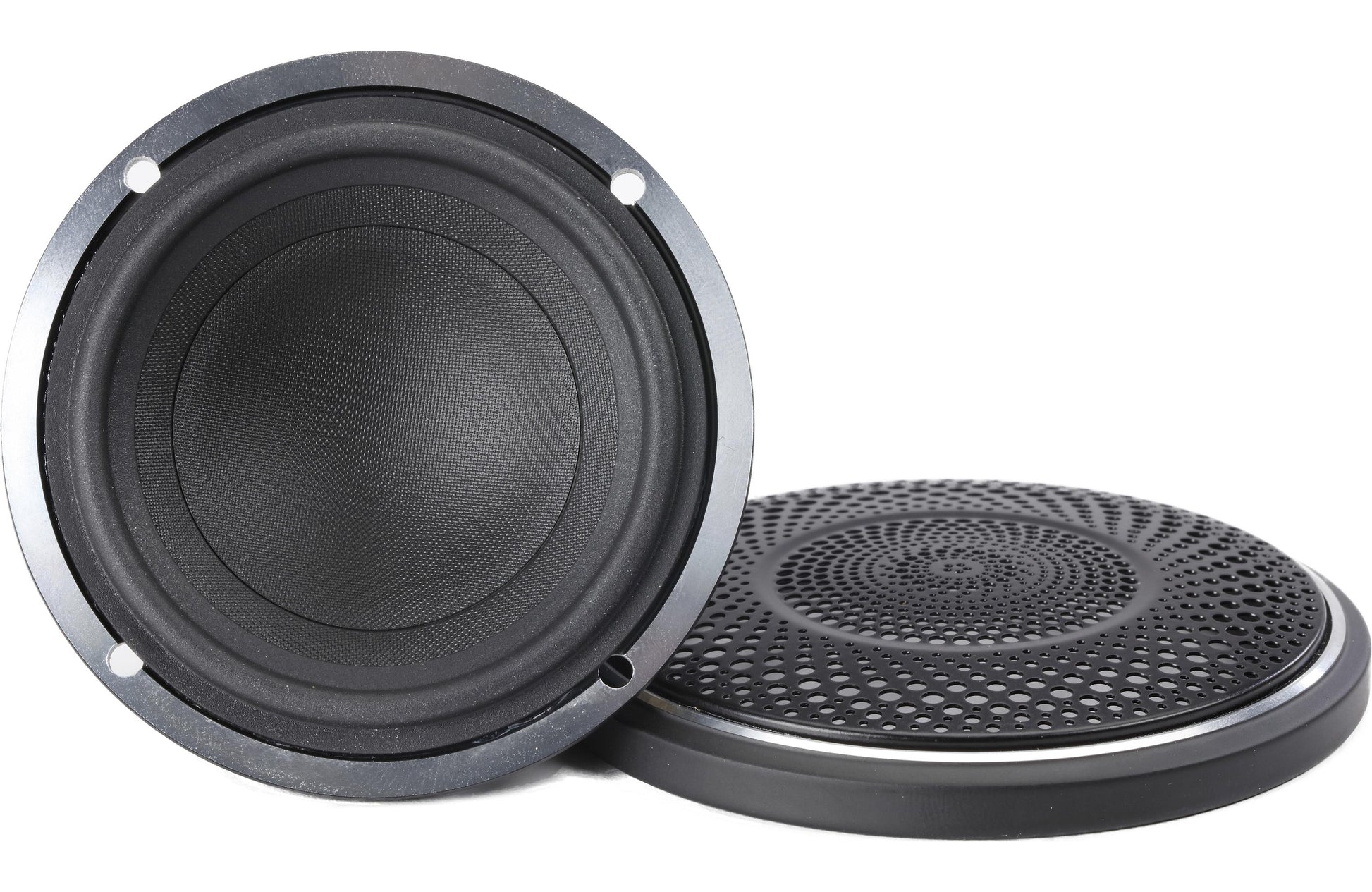

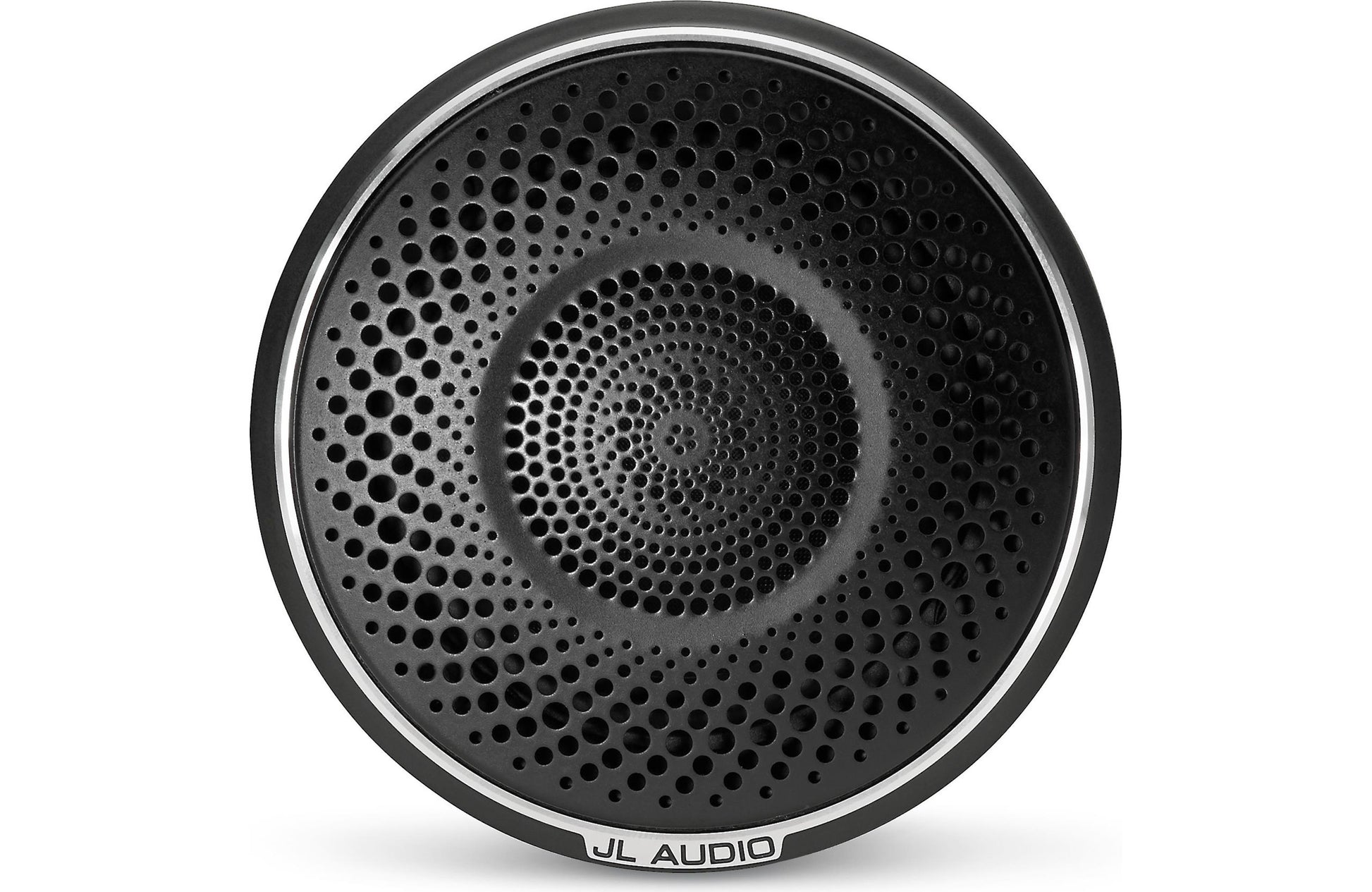

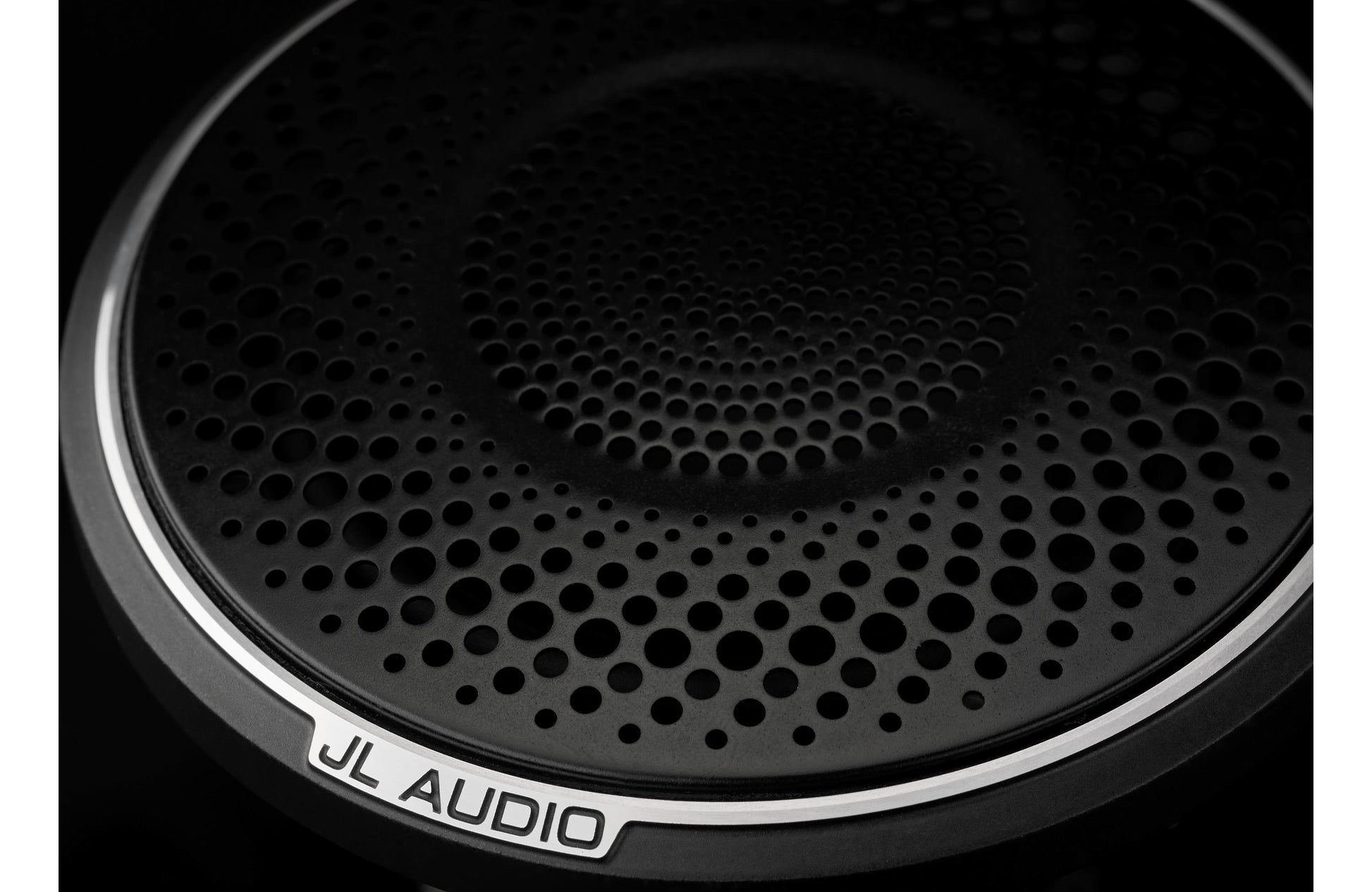

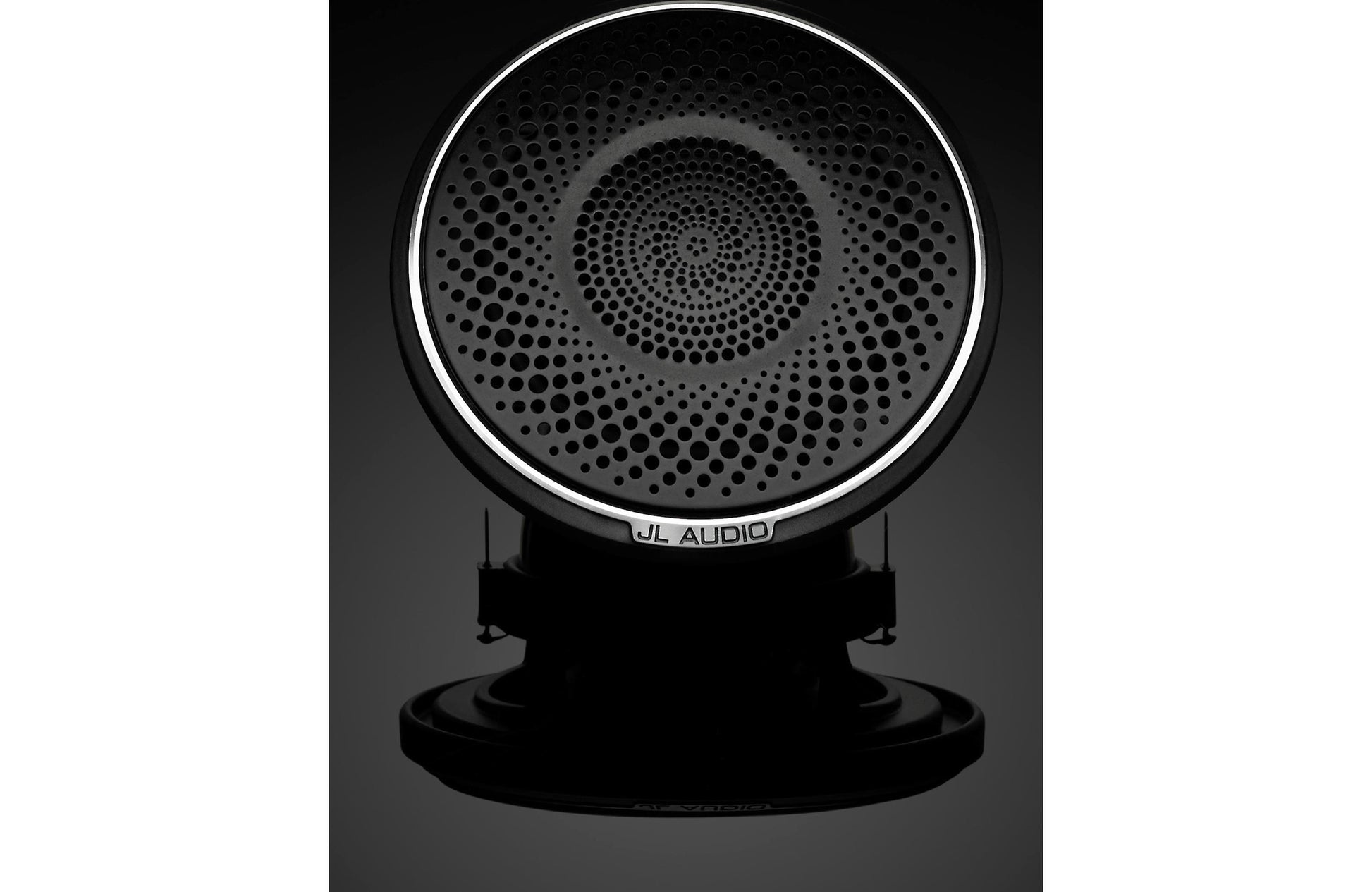

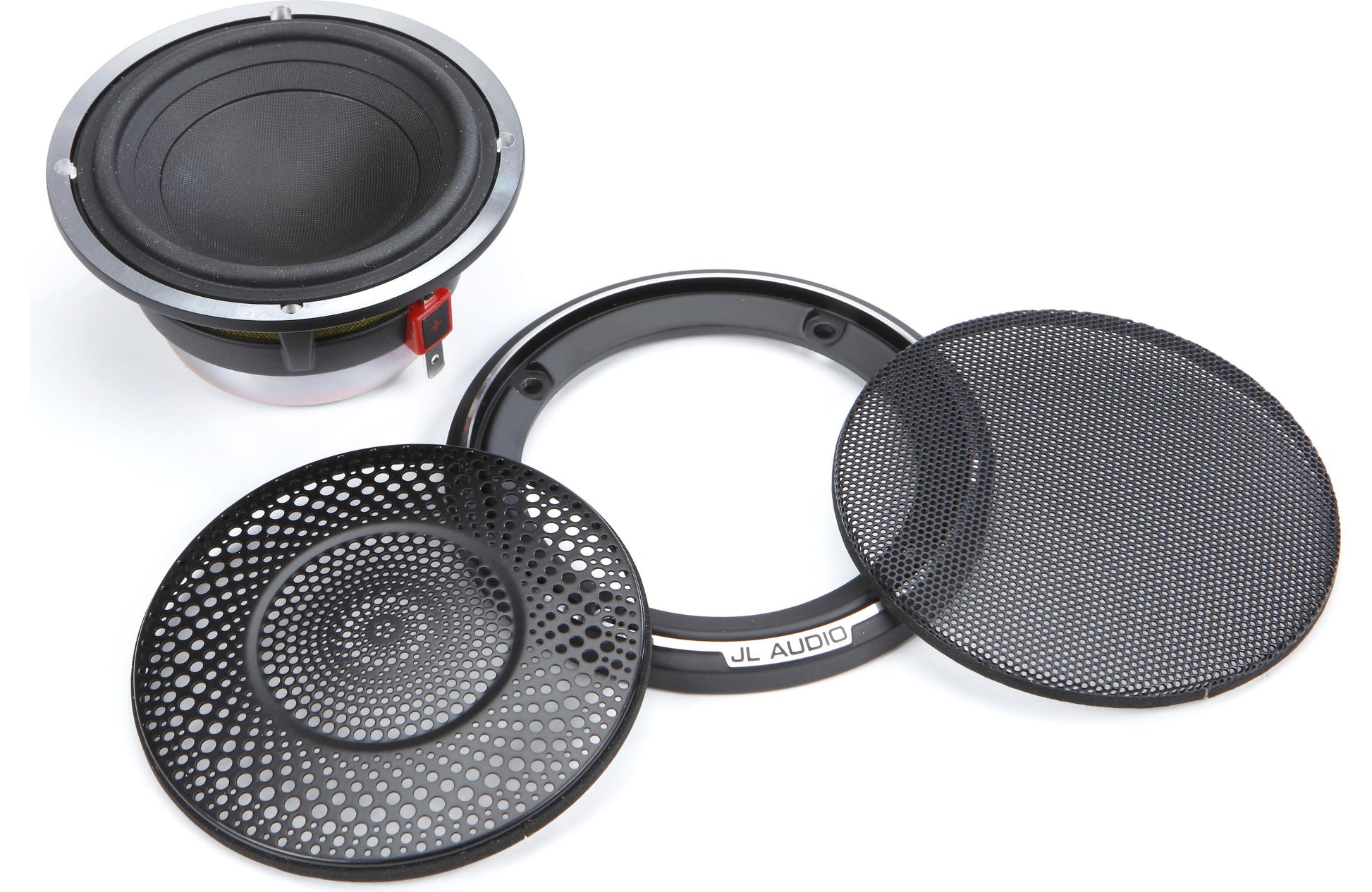

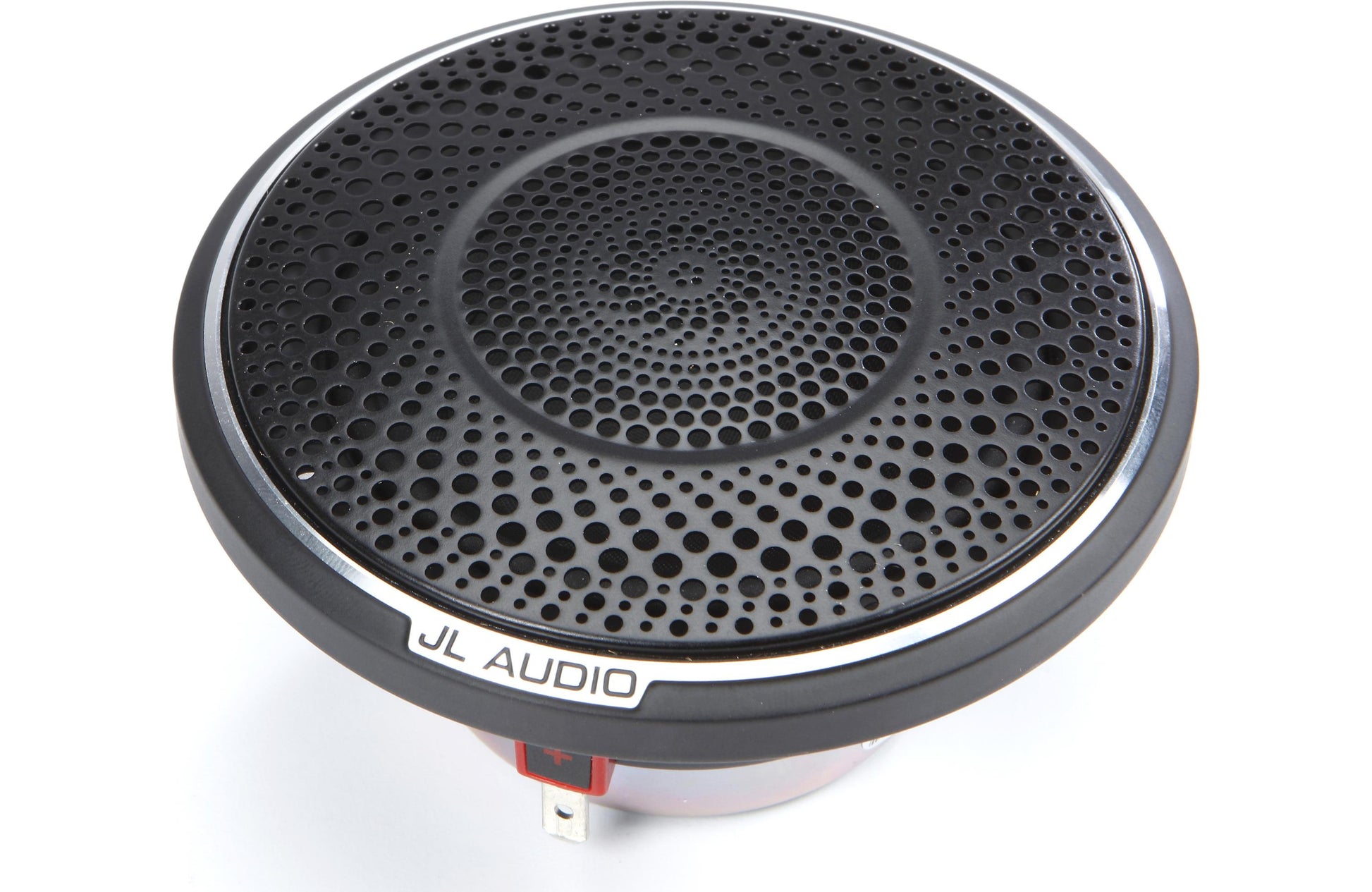

C7-350cm speakers each include a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert.
FINITE ELEMENT ANALYSIS (FEA) MOLDED DRIVERS
C7 design solutions were created and refined by using powerful mechanical and FEA modeling systems from JL Audio, including their proprietary dynamic motor analysis software. These studies led to innovative motor and suspension solutions, which were key to meeting the C7 design goals for smooth off-axis response, dynamic stability and low distortion.
What's in the Box:
- One 3.5" midrange speaker
- One 0.185" male crimpable connectors
- One 0.110" male crimpable connectors
- Four 1-1/4" mounting screws
- One grille frame, fine mesh grille and spiral grille
General |
|
| Sizes | 1"/3.5"/6.5" |
|---|---|
| Continuous power handling (RMS) | 1"/3.5": 100 W 6.5": 125 W |
| Sensitivity (SPL @ 1 W/1 m) | 1"/3": 86.5 dB 6.5": 87 dB |
| Sensitivity (SPL @ 2.83 V/1 m) | 1"/3": 89.5 dB @ 2.83 V/1 m 6.5": 90 dB @ 2.83 V/1 m |
| Frequency response (+/- 3 dB) | 1": 3 kHz-30 KHz 3": 300 Hz-10 KHz 6.5": 50 Hz-5 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 1"/3.5": 50-150 W/Channel 6.5": 50-175 W/Channel |
| Voice coil diameter | 3.5": 1.42" (36 mm) 6.5": 1.27" (32 mm) |
| Cone material | Vacuum-formed, mineral-filled polypropylene |
| Tweeter type | Corundum ceramic-coated, aluminum dome |
| Tweeter size | 1" (25 mm) |
| Grille(s) included | |
| Warranty | 1 year |
Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 3.5": 3.45" (88 mm) 6.5": 6.5" (165 mm) |
|---|---|
| Mounting depth clearance | 3.5": 1.46" (37 mm) 6.5": 2.77" (70 mm) |
| Frontal grille protrusion | 3.5": 0.58" (15 mm) 6.5": 0.98" (25 mm) |
| Mounting hole | 3.5": 2.87" (73 mm) 6.5": 5.56" (141 mm) |
| Grille tray outer diameter | 3.5": 3.95" (100 mm) 6.5": 7.20" (183 mm) |
| Bolt hole circle | 3.5": 3.15" (80 mm) 6.5": 6.12" (155 mm) |
| Motor outer diameter | 3.5": 2.36" (60 mm) 6.5": 3.94" (100 mm) |
Parameters |
|
| Free Air Resonance (FS) | 1": 1450 Hz 3": 156.9 Hz 6.5": 54.5 Hz |
|---|---|
| Electrical “Q” (Qes) | 3.5": 0.59 6.5": 0.669 |
| Mechanical “Q” (Qms) | 3.5": 6.454 6.5": 6.265 |
| Total “Q” (Qts) | 3.5": 0.541 6.5": 0.605 |
| Equivalent Compliance (Vas) | 3.5": 0.015 cu ft (0.430 L) 6.5": 0.461 cu ft (13.05 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 3.5": 1 mm 6.5": 5 mm |
| Reference Efficiency (NO) | 1": 0.267% 3": 0.27% 6.5": 0.304% |
| Moving mass (Mms) | 3.5": 49 g 6.5": 17.679 g |
| Mechanical compliance (Cms) | 3.5": 0.000257 m/N 6.5": 0.000482 m/N |
| Magnetic strength (BL) | 3.5": 4.66 6.5": 5.31 |
| Effective piston area (SD) | 3.5": 5.31 in² (0.003426 m²) 6.5": 21.4 in² (0.013807 m²) |
| DC resistance (RE) | 1": 3.20 Ω 3": 3.245 Ω 6.5": 3.114 Ω |
