JL Audio

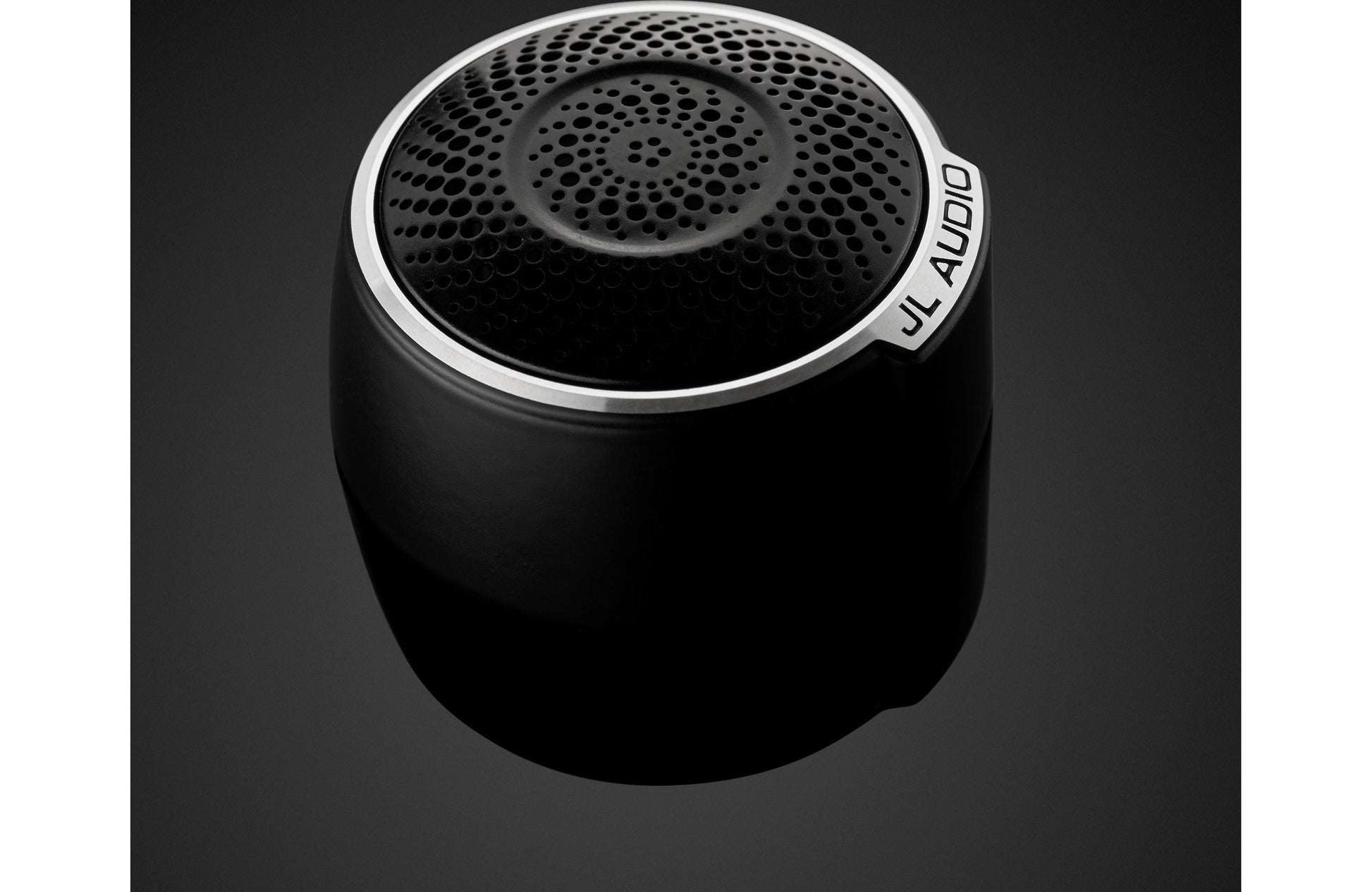

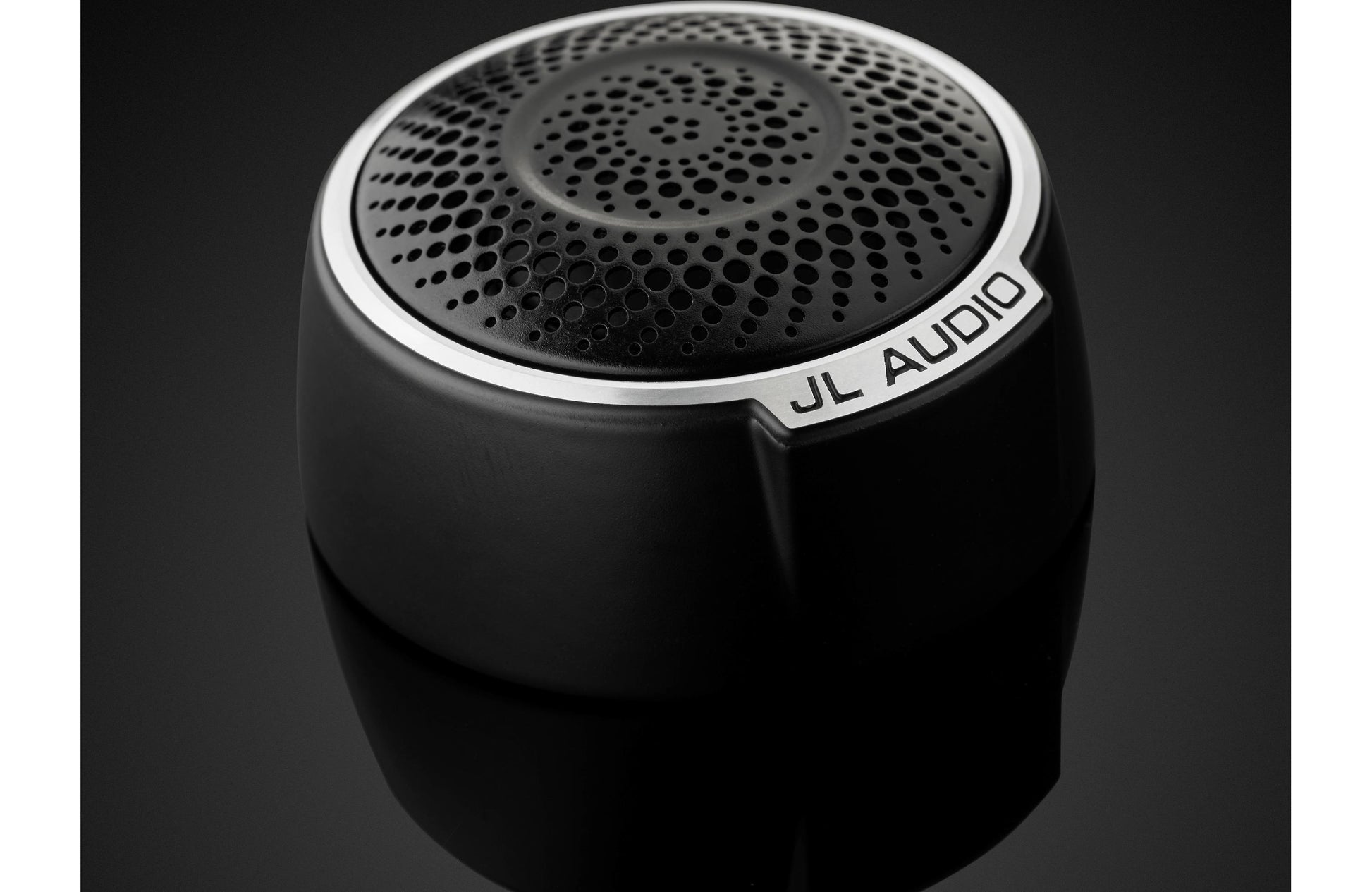

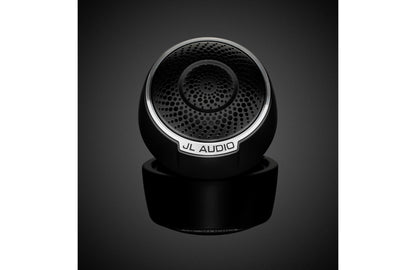

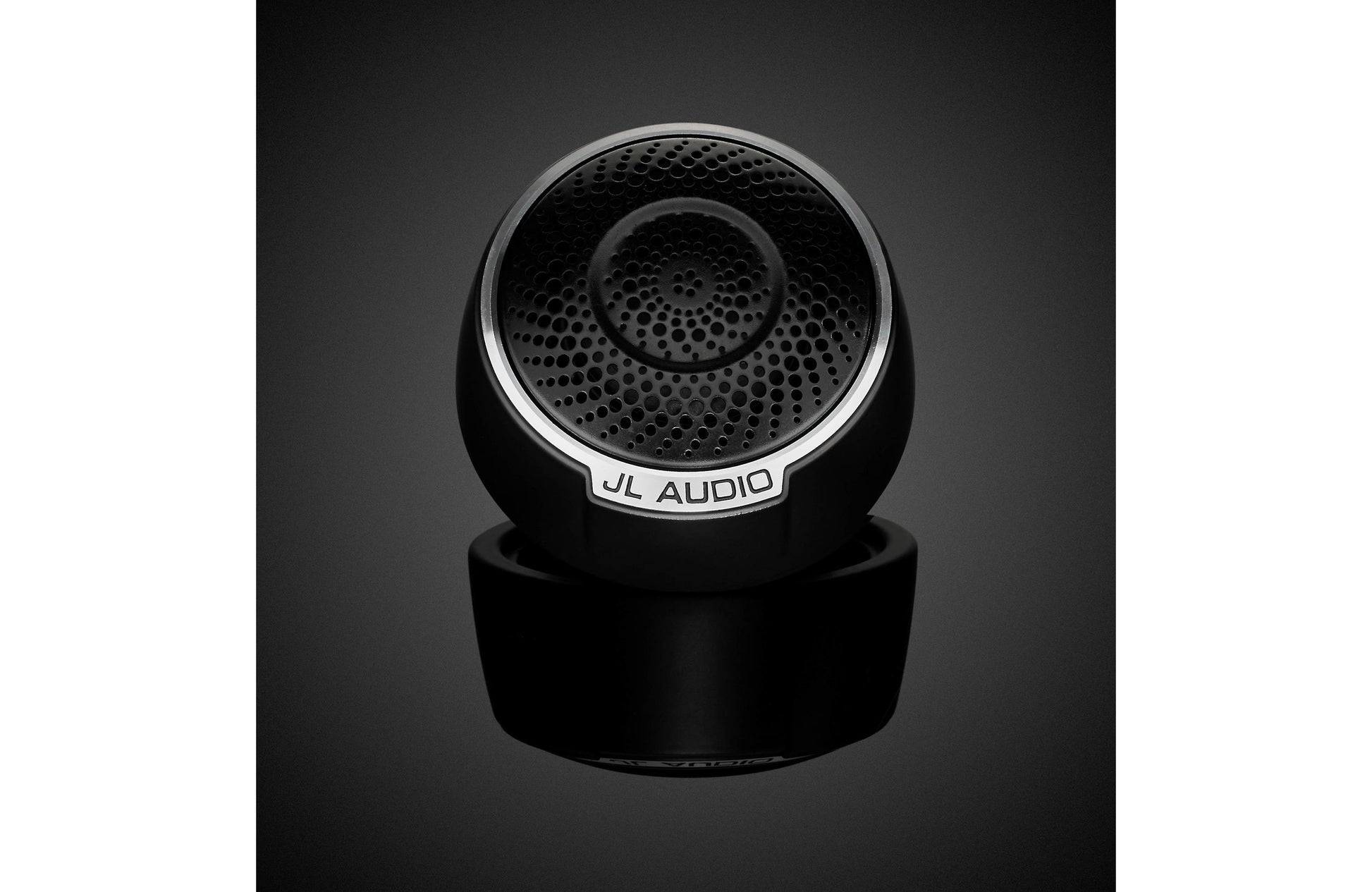

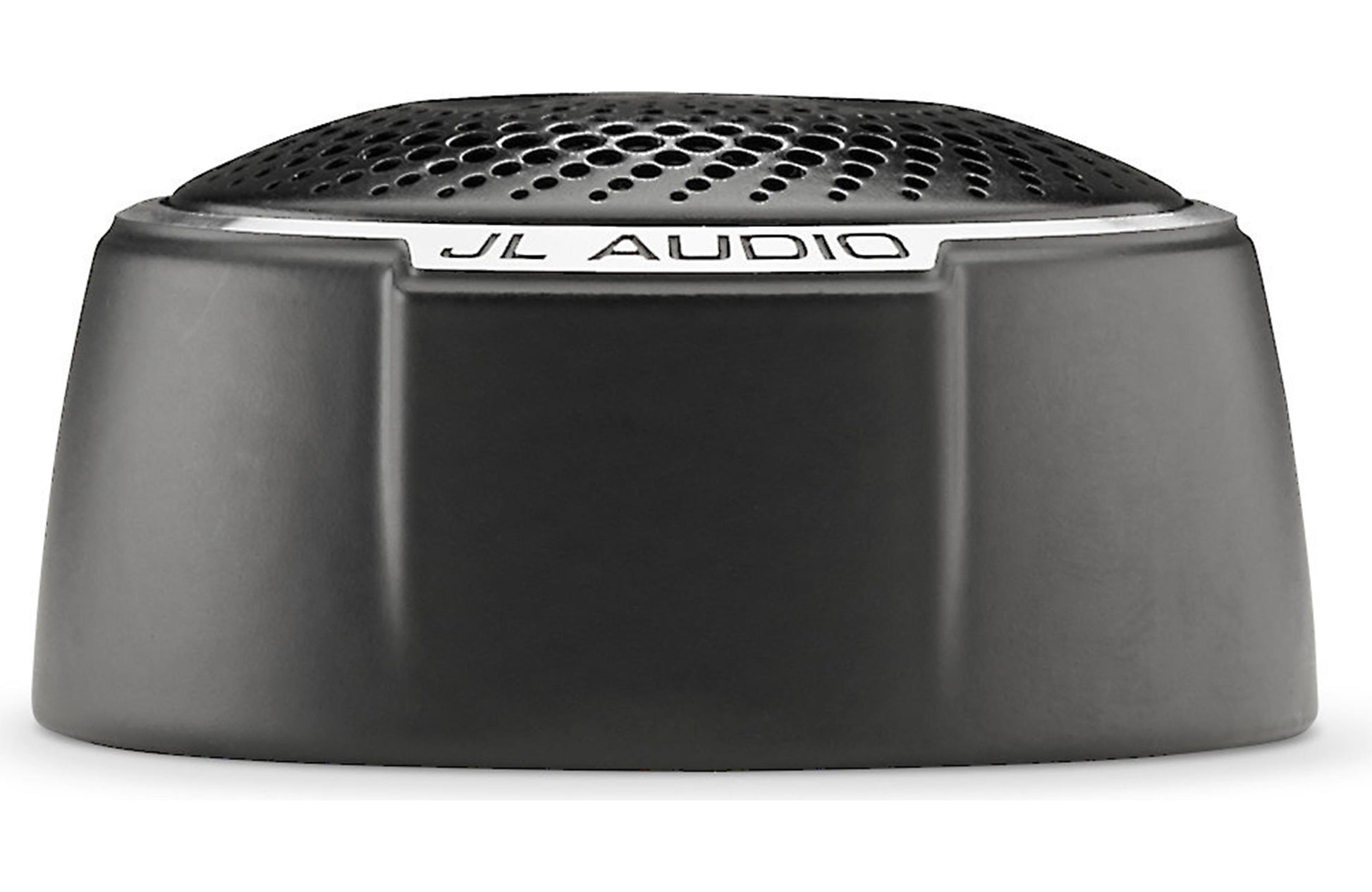

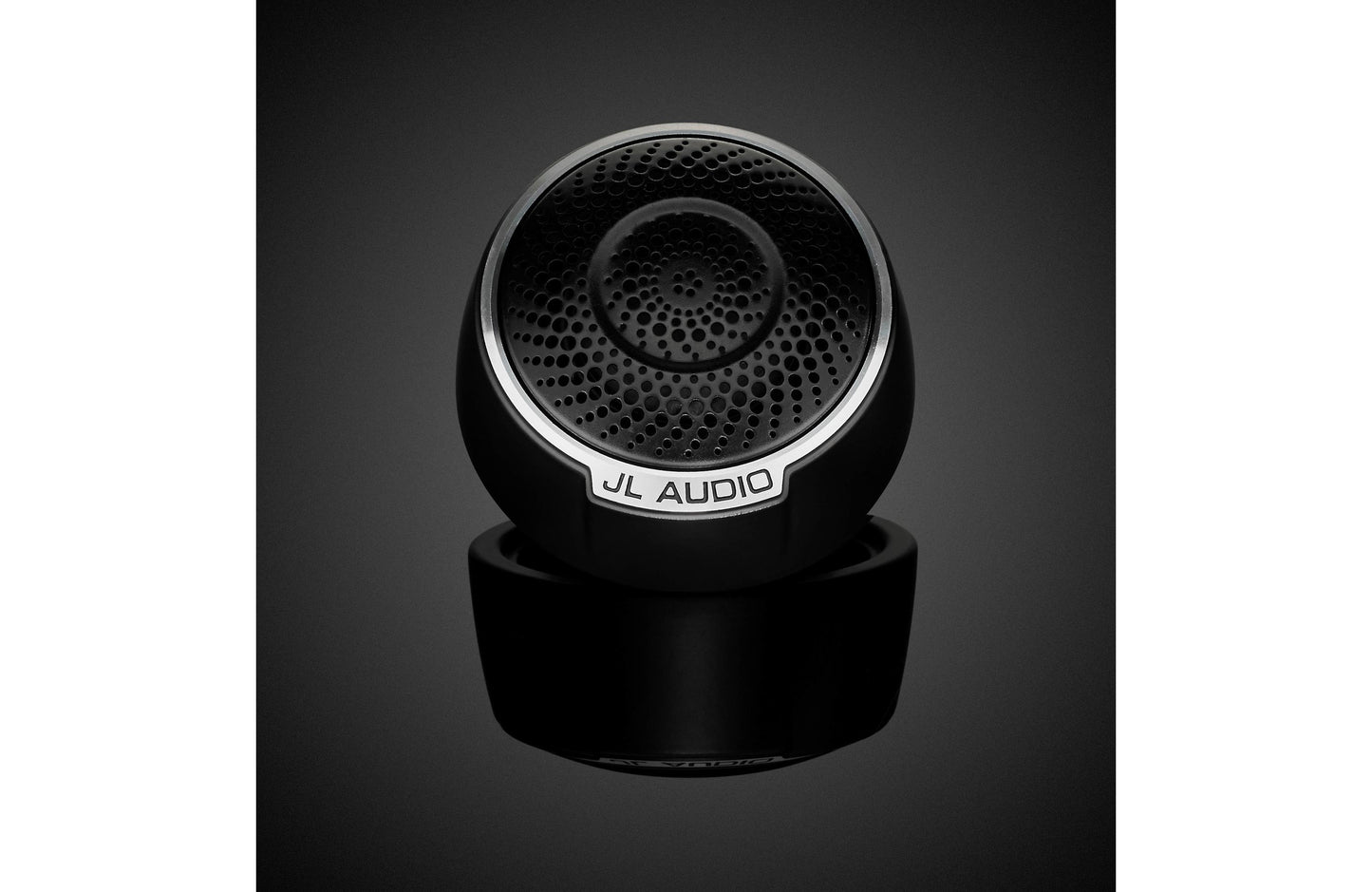

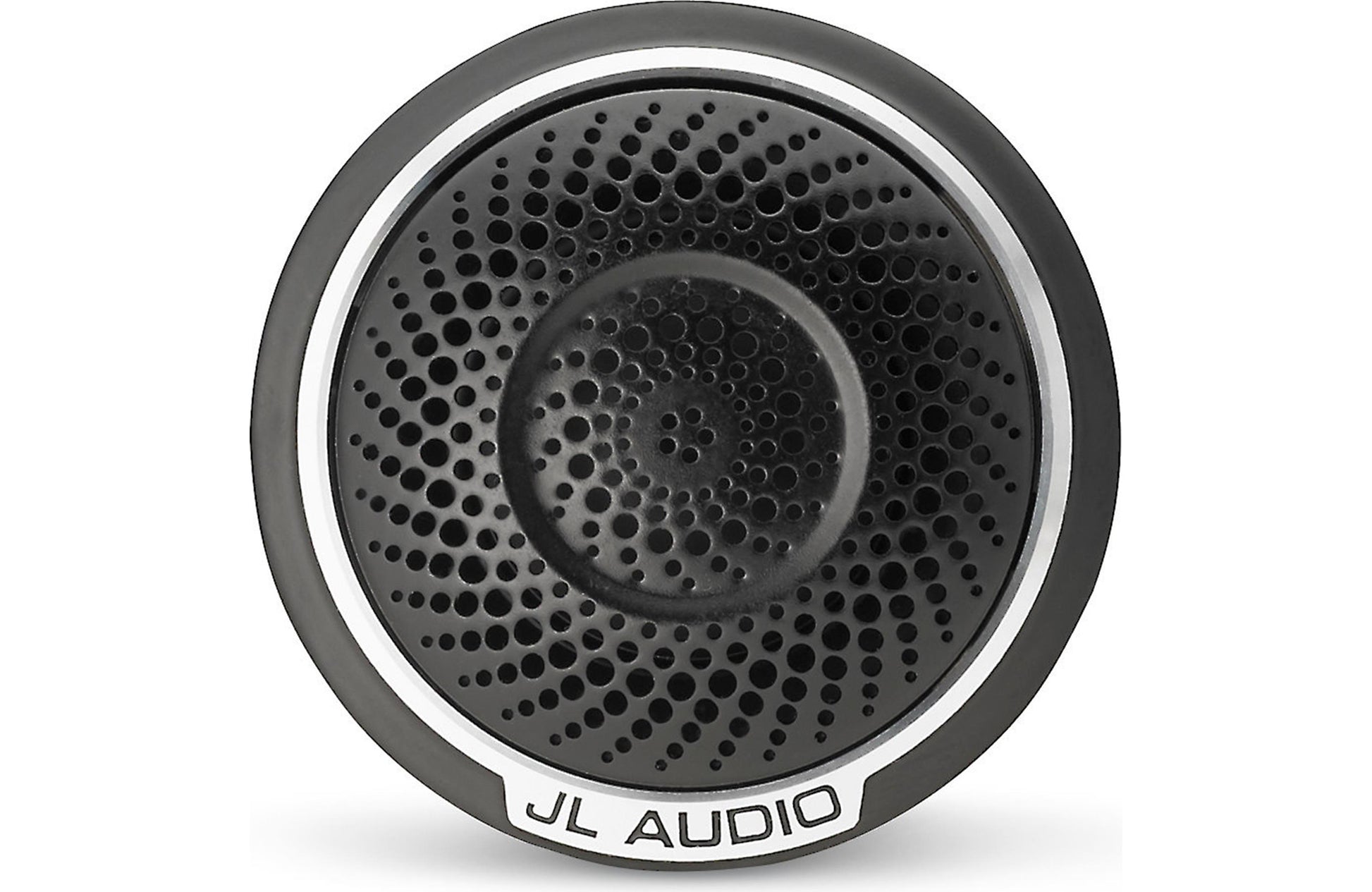

JL Audio C7-100ct 1" Aluminum Dome Tweeters (Single) 99759

JL Audio C7-100ct 1" Aluminum Dome Tweeters (Single) 99759

Regular price $299.99 USD
Regular price $299.99 USD Sale price $299.99 USD
Sale Sold out
Shipping calculated at checkout.

PART NUMBER 010-03128-00

***This item requires 3 days handling time***

THE ULTIMATE IN AUTOMOTIVE AUDIO FIDELITY

Built from the ground up to exceed the highest standards, JL Audio C7 speakers make no compromises in delivering a pure and precise audio experience.

ALUMINUM DOME TWEETER

Lightweight aluminum dome tweeters deliver sparkling high-frequency detail that extends well beyond the frequency response of typical human hearing. This premium tweeter features a ceramic-coated aluminum alloy diaphragm, dampened by a treated silk, s-roll surround. Acoustically designed housing boosts sensitivity in a controlled bandwidth area and helps flatten frequency response.


Component Tweeters (C7-100ct) include:

  • One tweeter
  • One 15 microfarad capacitor
  • One Speed clip
  • One 0.185" male crimpable connectors
  • One 0.110" male crimpable connectors
  • One 7/8" flat head screw
  • One Flush mount tweeter housing
  • One Surface mount tweeter housing
  • One metal spring clip (for flush mounting)
  • One M4x30mm machine screw


Tweeter Specifications

Flush mount fixture diameter 1": 2.13" (54 mm)
Surface mount fixture diameter 1": 2.16" (55 mm)
Flush mount mounting hole diameter 1": 1.88" (48 mm)
Flush mount mounting depth 1": 0.73" (19 mm)
Flush mount tweeter frontal protrusion 1": 0.33" (8 mm)
Surface mount tweeter frontal protrusion 1": 1.06" (27 mm)
