Part Number010-03389-00

General Description:

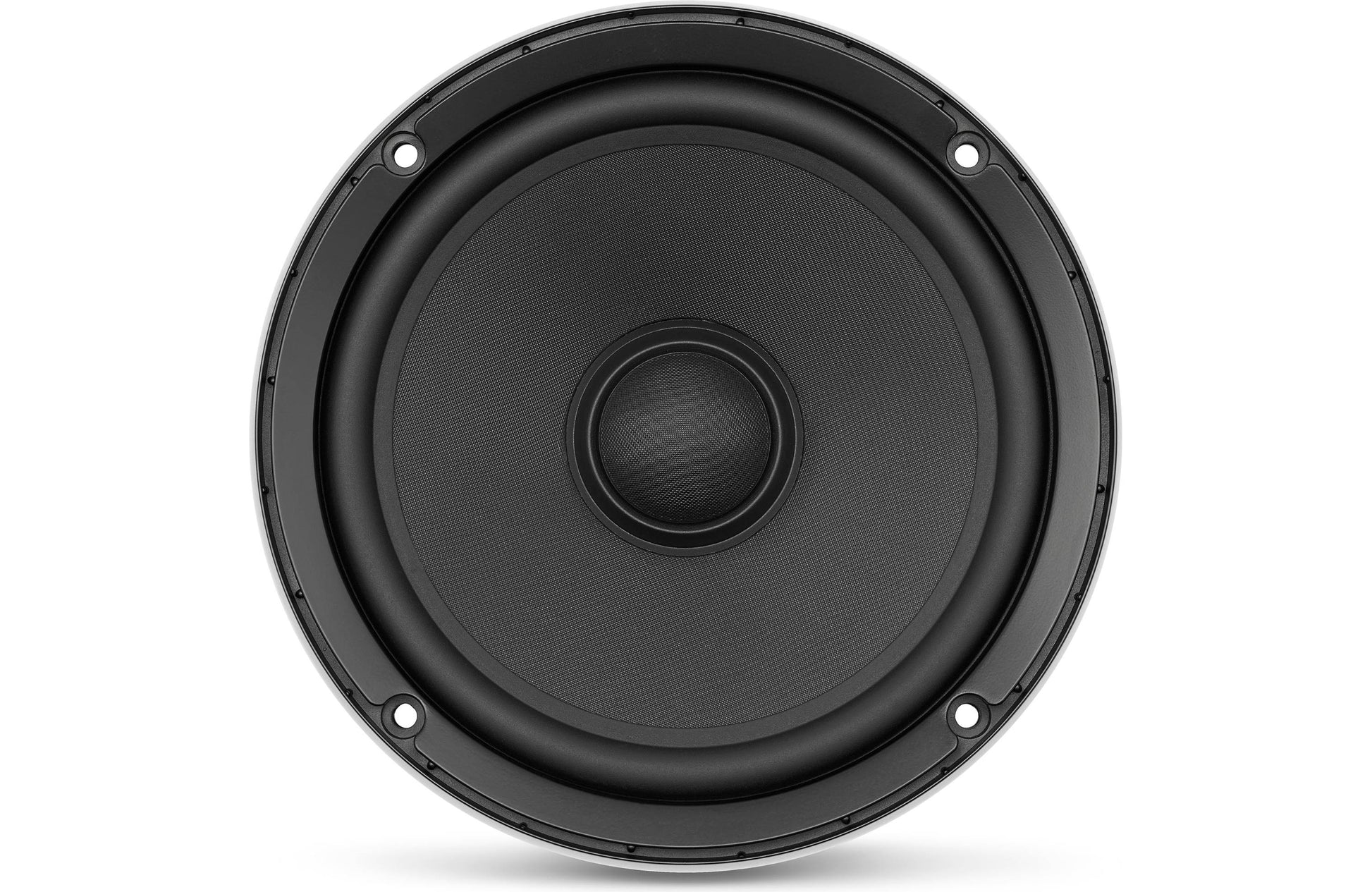

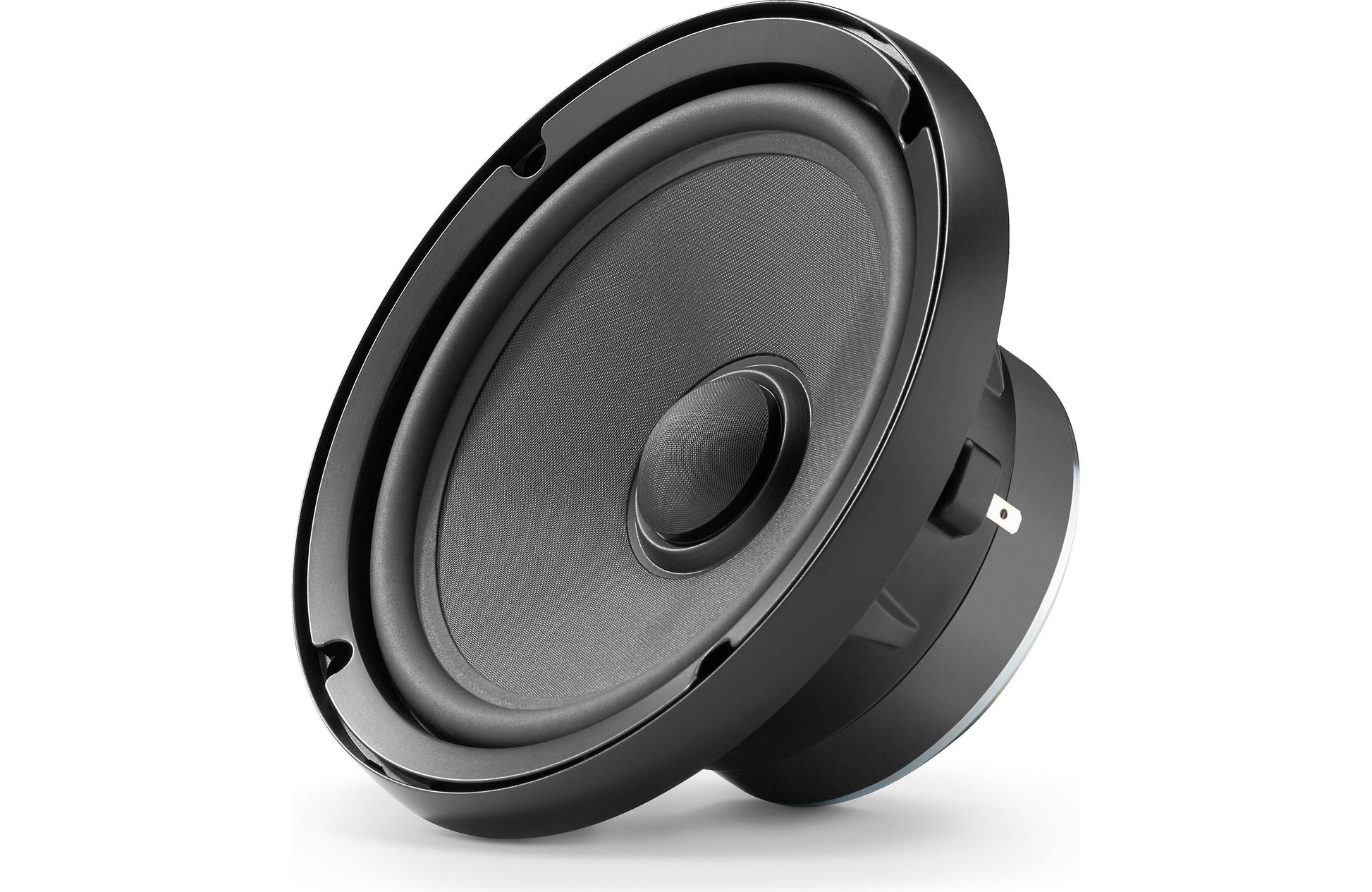

6.5" (165 mm) Component Woofer (with Grille)

Born from shared technologies used in our flagship C7 speakers, the C6-650cw component woofer benefits from vast woofer design experience and advanced modeling systems of JL Audio.

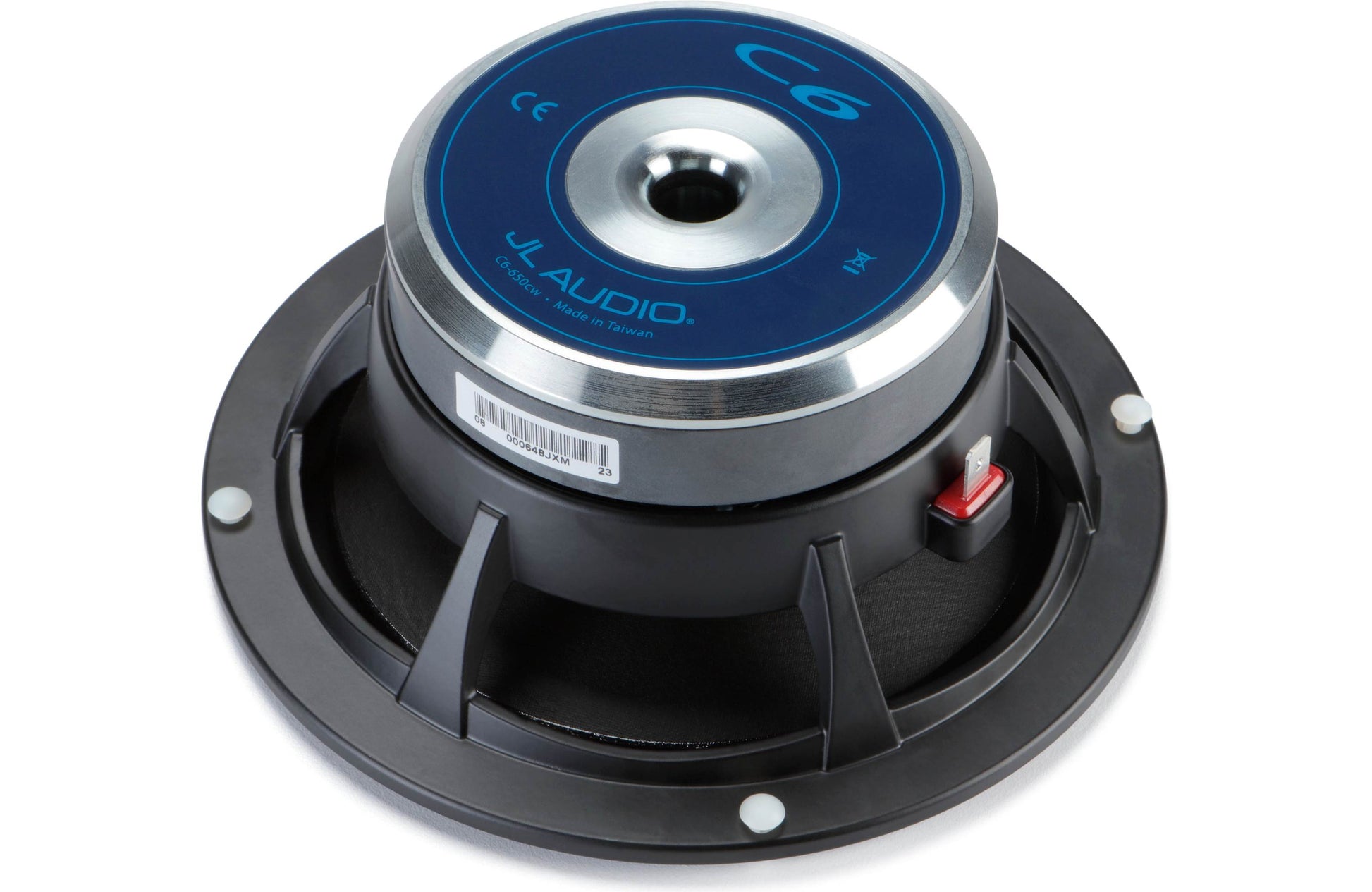

Ideal for active systems, the C6-650cw component woofer features a proprietary cast alloy frame outfitted with our Elevated Frame Cooling™ technology and a DMA-optimized motor system to generate outstanding midbass impact with ultralow distortion.

Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, we recommend a high-quality dedicated amplifier channel for each C6 loud speaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

C6-650cw Component Woofer Features:
• Forged and machined motor plates with DMA-optimizedgeometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
• Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
• Center cap designed to optimize the high-frequency responseof the woofer for seamless transition to a tweeter’s response
• Oversized voice coil for extended power handling capability, minimizingthermal compression and distortion at higher listening levels
• Cast alloy frame with our Elevated Frame Cooling feature

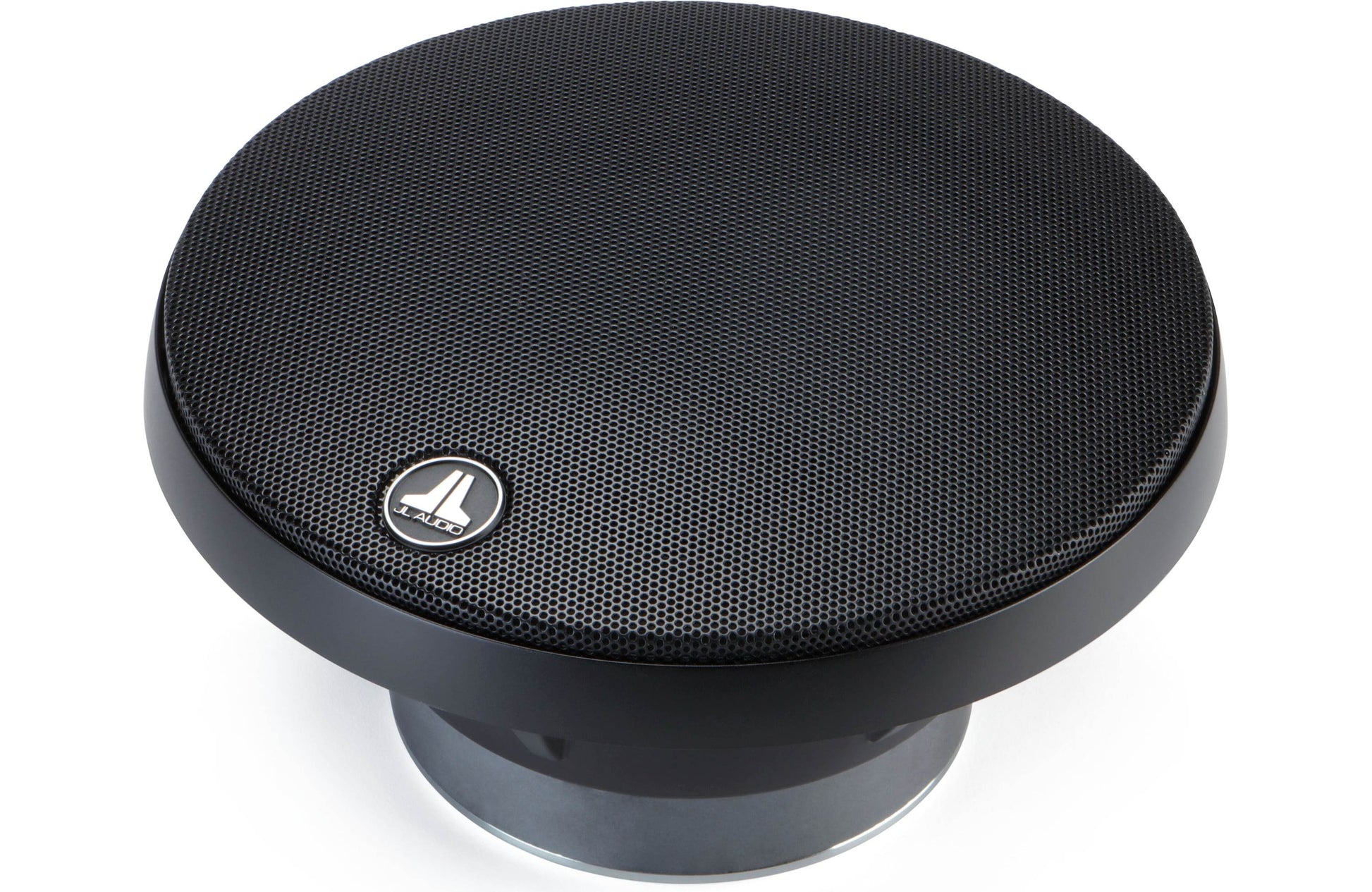

• Includes fine mesh grille

Design Bandwidth:
With 48 dB/octave filters: 55 Hz-6 kHz
With 24 dB/octave filters: 65 Hz-6 kHz
With 12 dB/octave filters: 80 Hz-6 kHz

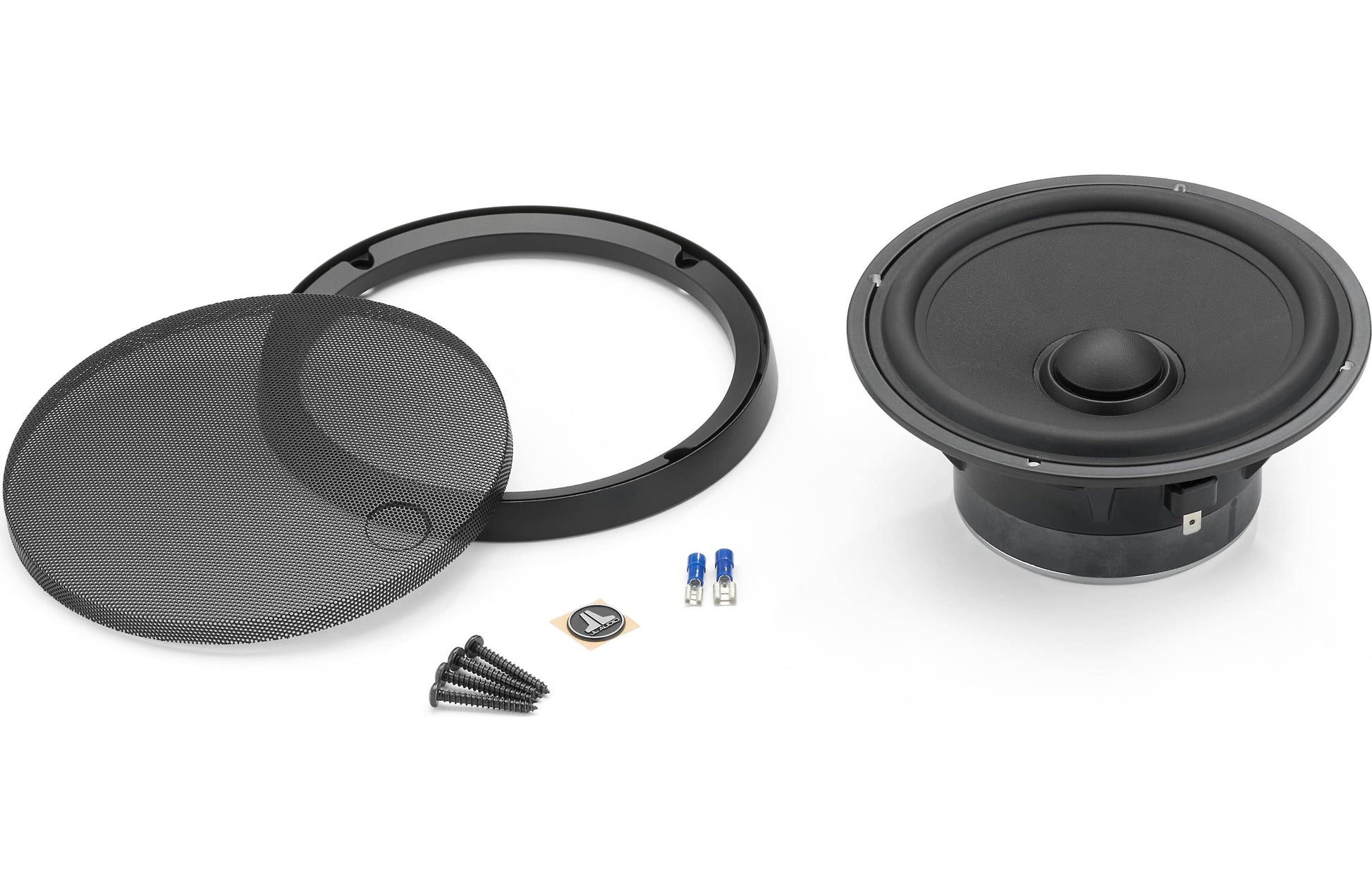

Component woofers are sold individually and include a plastic grille tray, one fine steel mesh grille and one electroformed JL Audio badge logo.

General Specifications

Woofer Physical Specifications

Frame Outer Diameter* (A)	6.50 in / 165 mm
Grille Tray Outer Diameter** (B)	6.76 in / 172 mm
Motor Outer Diameter (C)	3.54 in / 90 mm
Frontal Coaxial Tweeter Protrusion (D)	N/A

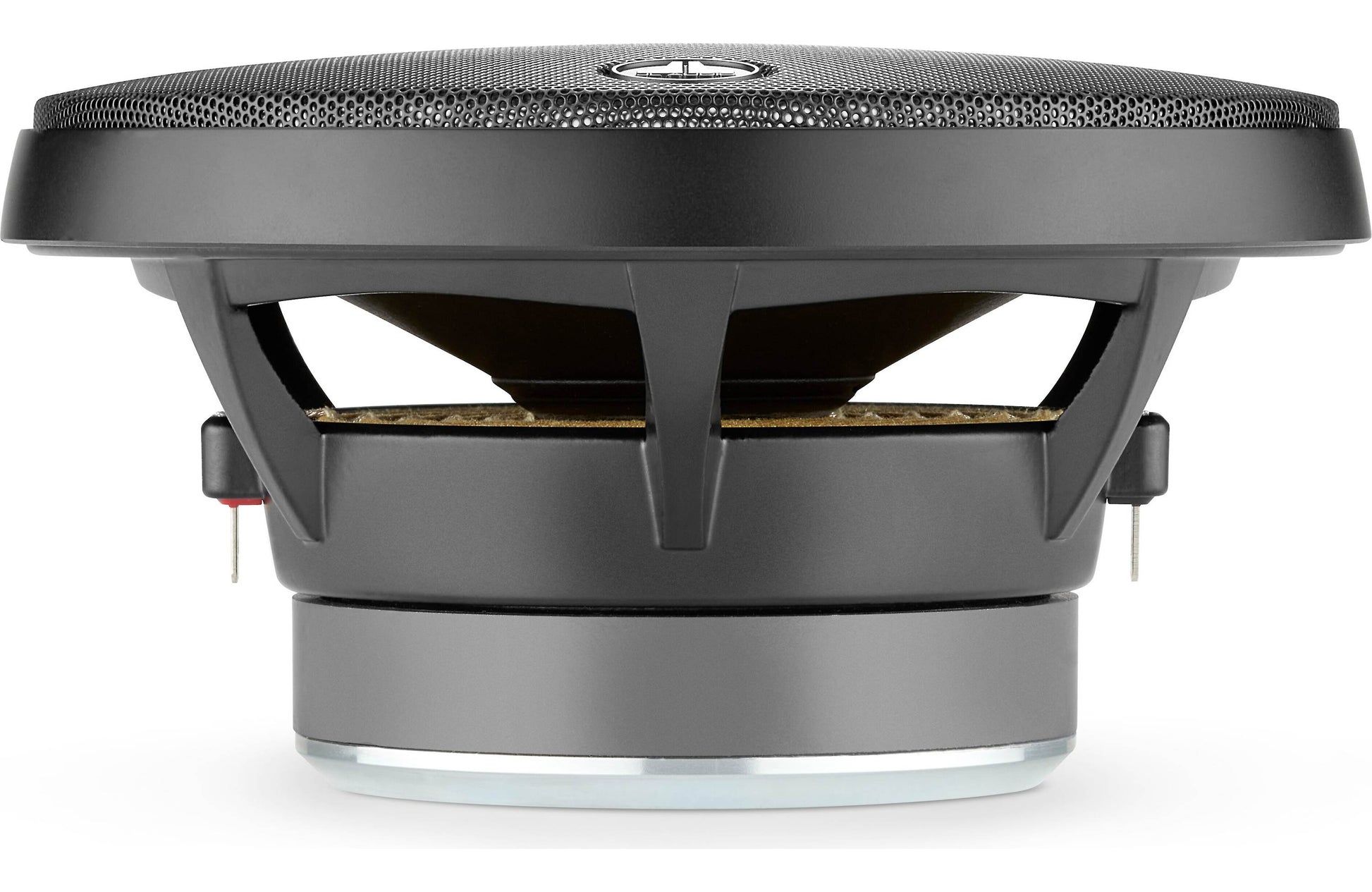

Frontal Grille Protrusion*** (E)	1 in / 25 mm
Mounting Hole Diameter (F)	5.46 in / 139 mm
Mounting Depth (G)	2.60 in / 66 mm
*Does not take into account mounting tabs **Does not take into account logo badge ***Frontal grille protrusion measured from mounting surface
