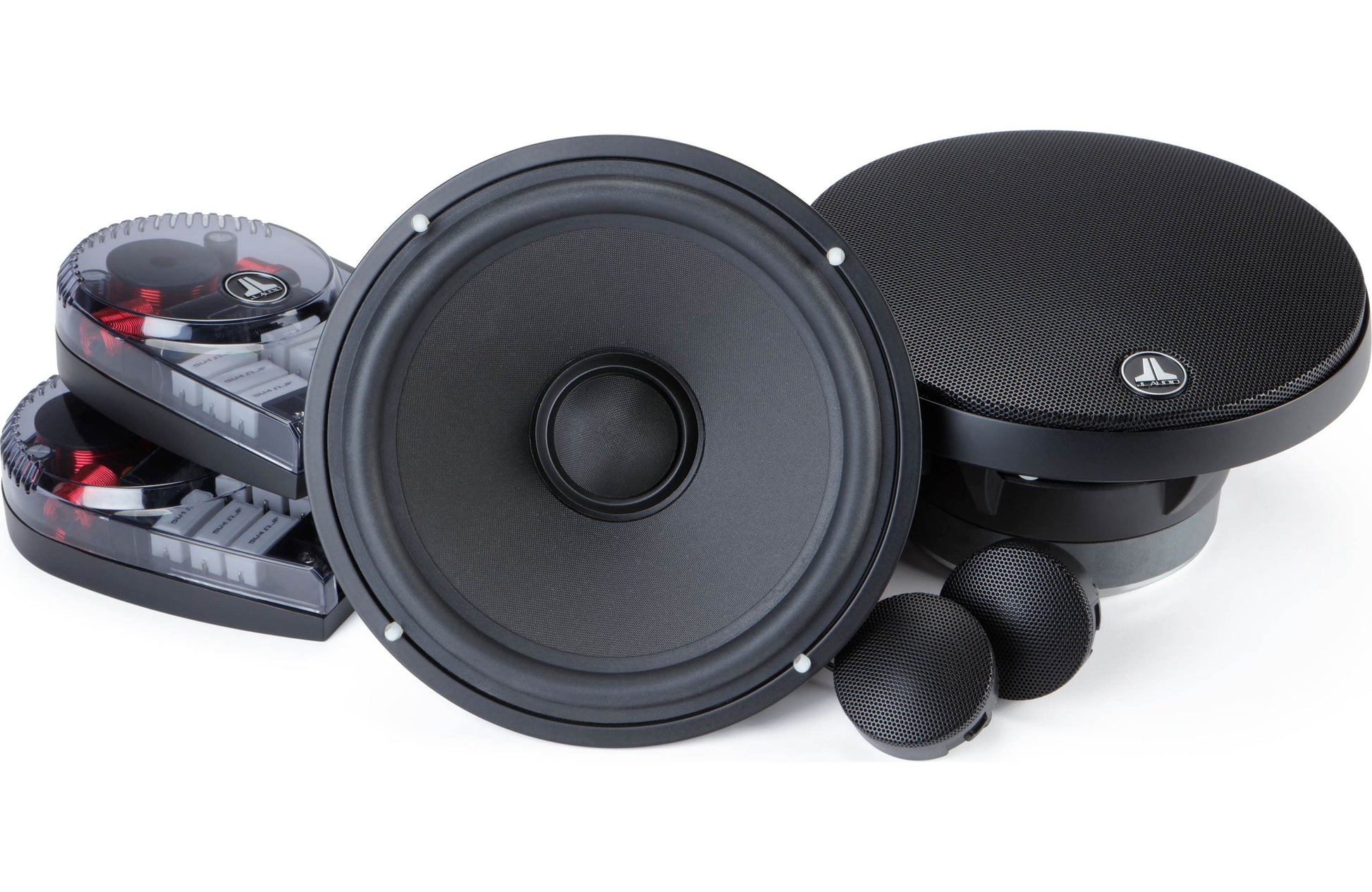

JL Audio C6-650 Component Speaker System – 6.5" Woofer + 1" Silk Dome Tweeter (Model 99133)
The JL Audio C6-650 is a premium 2-way component speaker system engineered for outstanding clarity, smoothness, and dynamic performance. Borrowing design elements from JL’s flagship C7 line, the C6-650 combines a high-end silk dome tweeter with a purpose-built 6.5" woofer to deliver an audiophile-level upgrade for any vehicle.

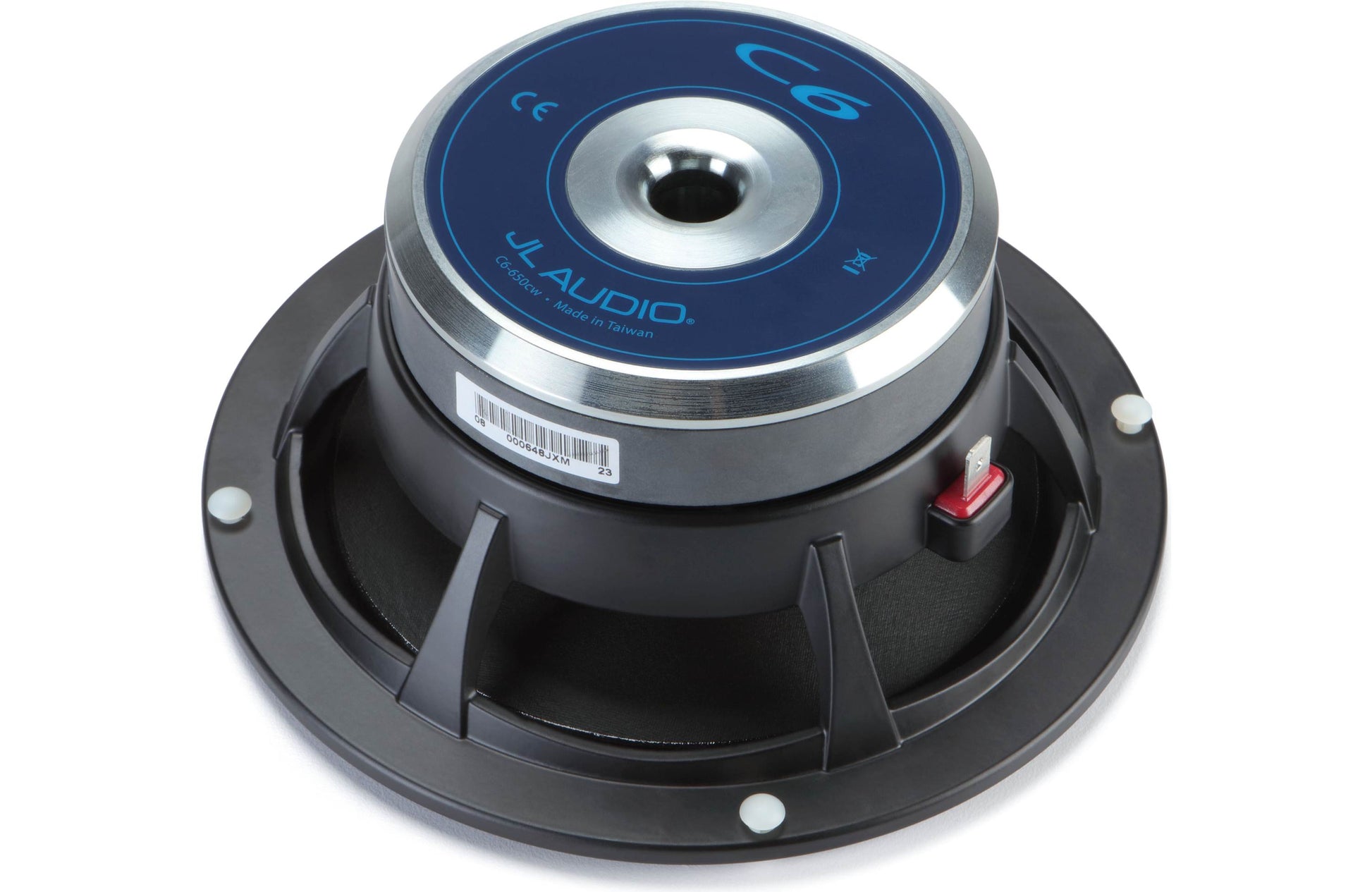

The 6.5" DMA-optimized woofers use forged and machined motor components, a large flat spider, an oversized voice coil, and JL’s Elevated Frame Cooling technology. The result: exceptional midbass impact, low distortion, and linear response even at high volumes.
The 1" silk dome tweeters use edge-driven diaphragms for smooth highs, excellent damping, and great off-axis response—crucial for real-world car installations. Neodymium motors and ferrofluid cooling maintain stability and reliability while allowing a compact design. Both flush-mount and surface-mount housings are included for flexible installation.

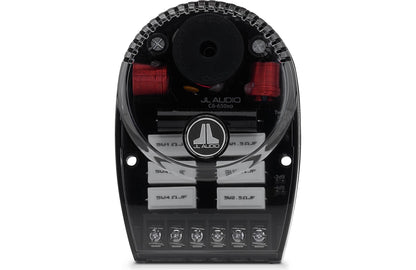

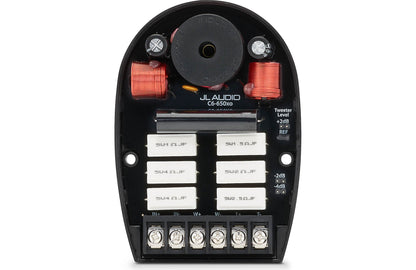

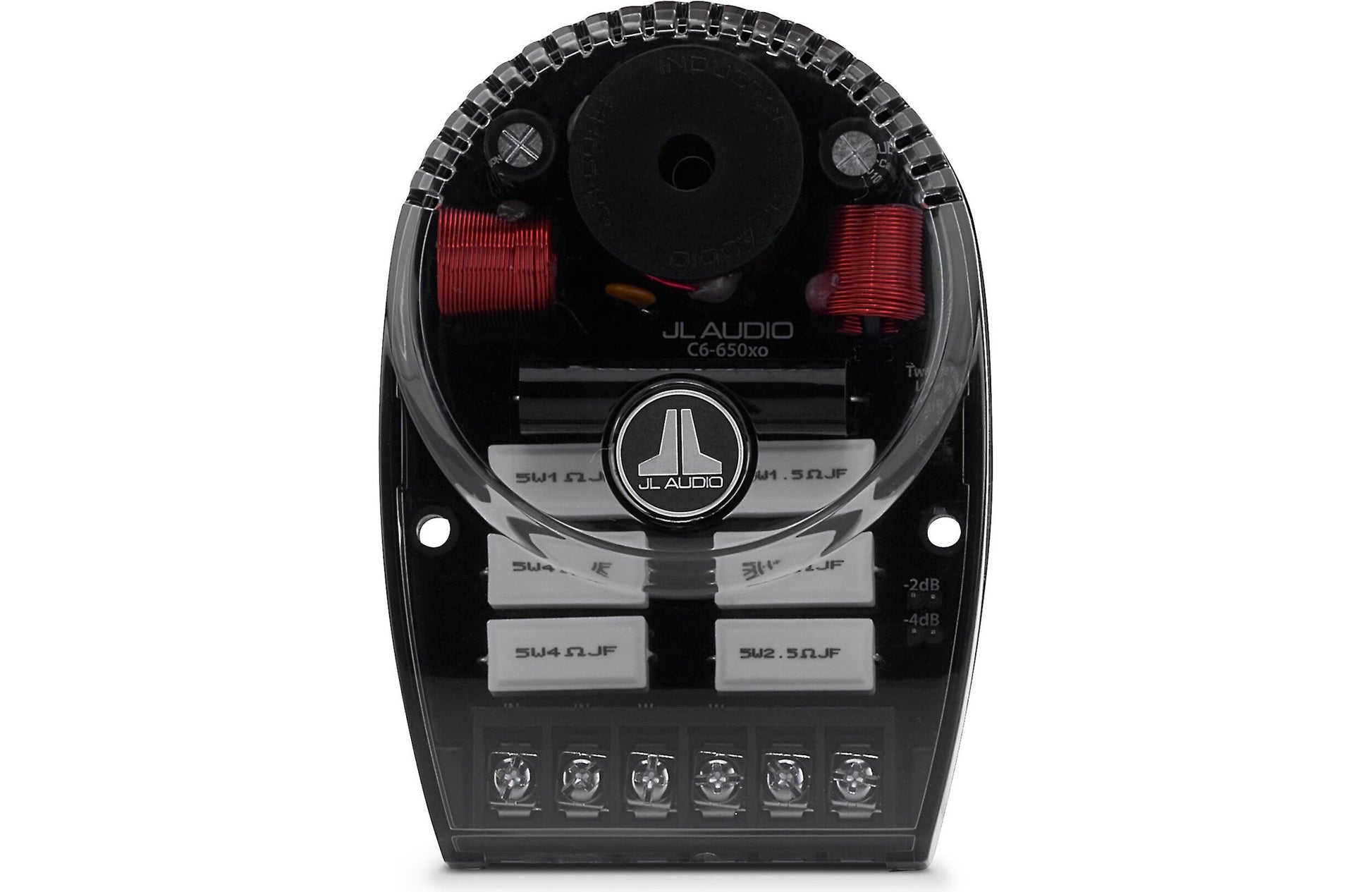

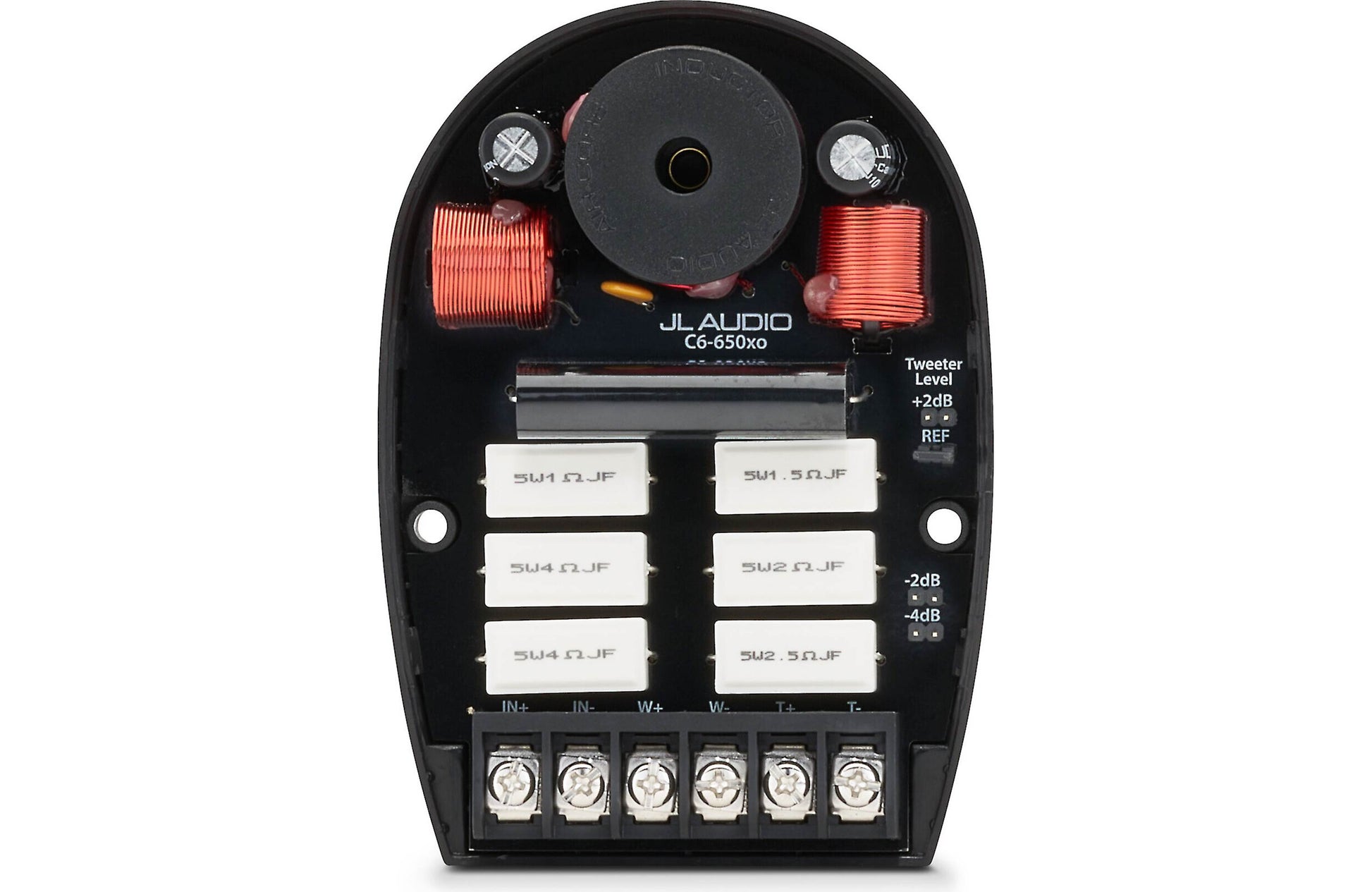

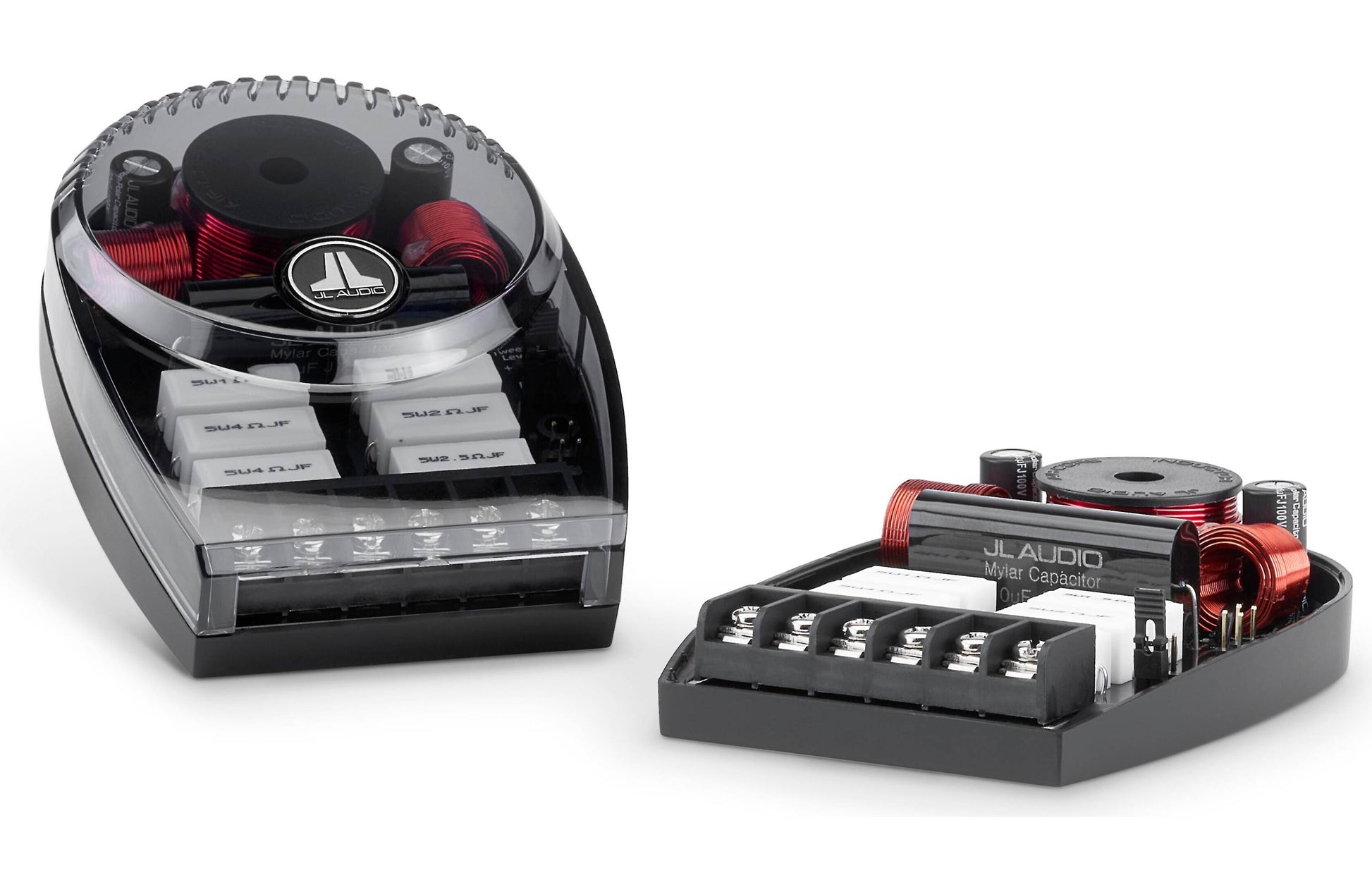

Premium external passive crossovers come standard with four tweeter level settings and high-quality internal components, including air-core inductors and polyester capacitors. An integrated tweeter protection circuit helps prevent damage during high-power playback.
This system is engineered to deliver a refined, dynamic, and immersive soundstage far beyond OEM capabilities.
C6 Woofer Features
• DMA-optimized forged/machined motor system for linear force and low distortion
• Large flat spider for excellent excursion and control
• Optimized center cap for smooth tweeter integration
• Oversized voice coil for improved power handling
• Cast alloy frame with Elevated Frame Cooling
• Includes fine mesh grilles
C6 Tweeter Features
• Edge-driven pure silk dome for smooth, detailed high frequencies
• Neodymium motor for high magnetic flux in a compact size
• Ferrofluid cooling and damping for reliability and clarity
• Includes flush-mount and surface-mount fixtures

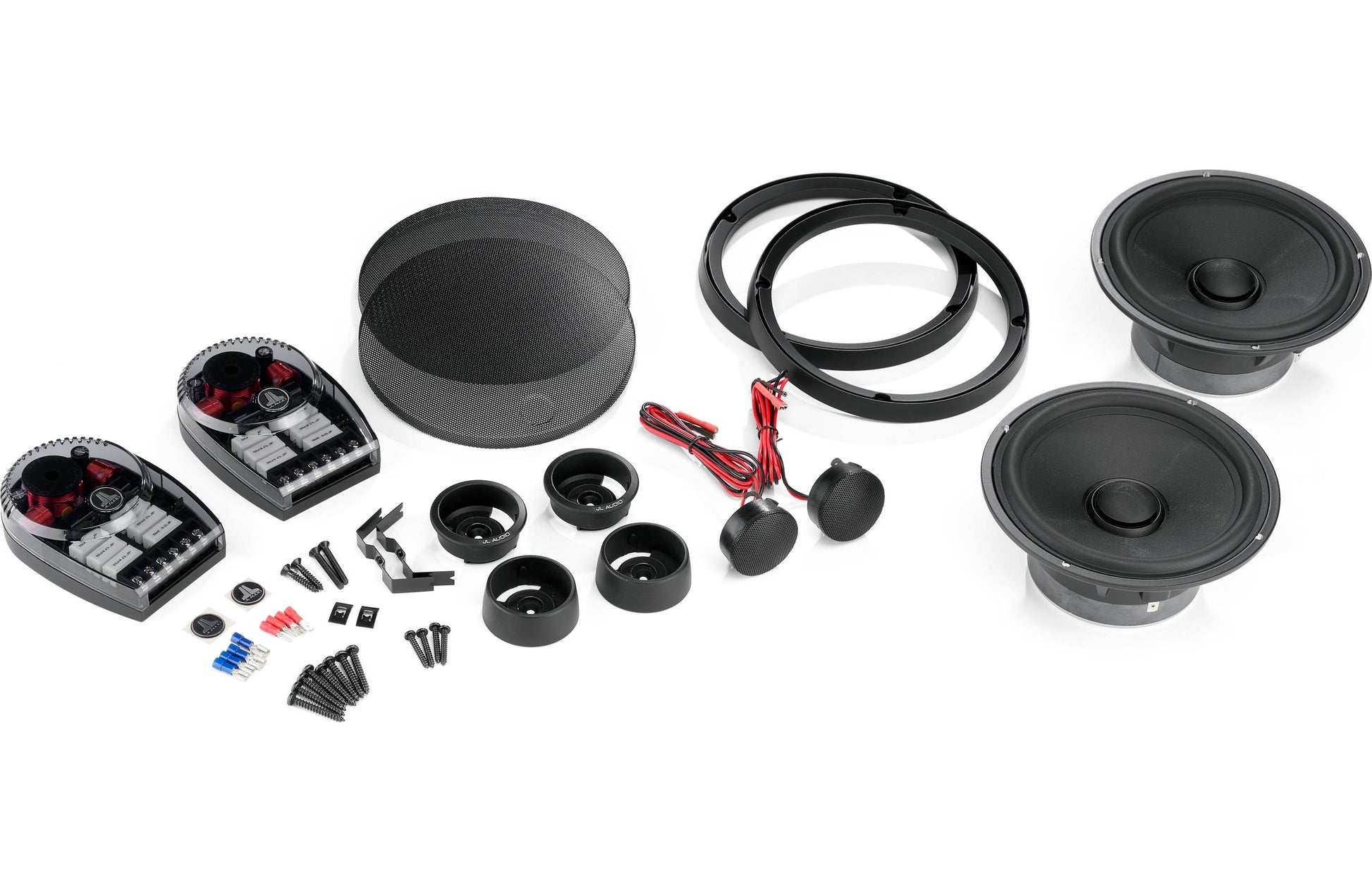

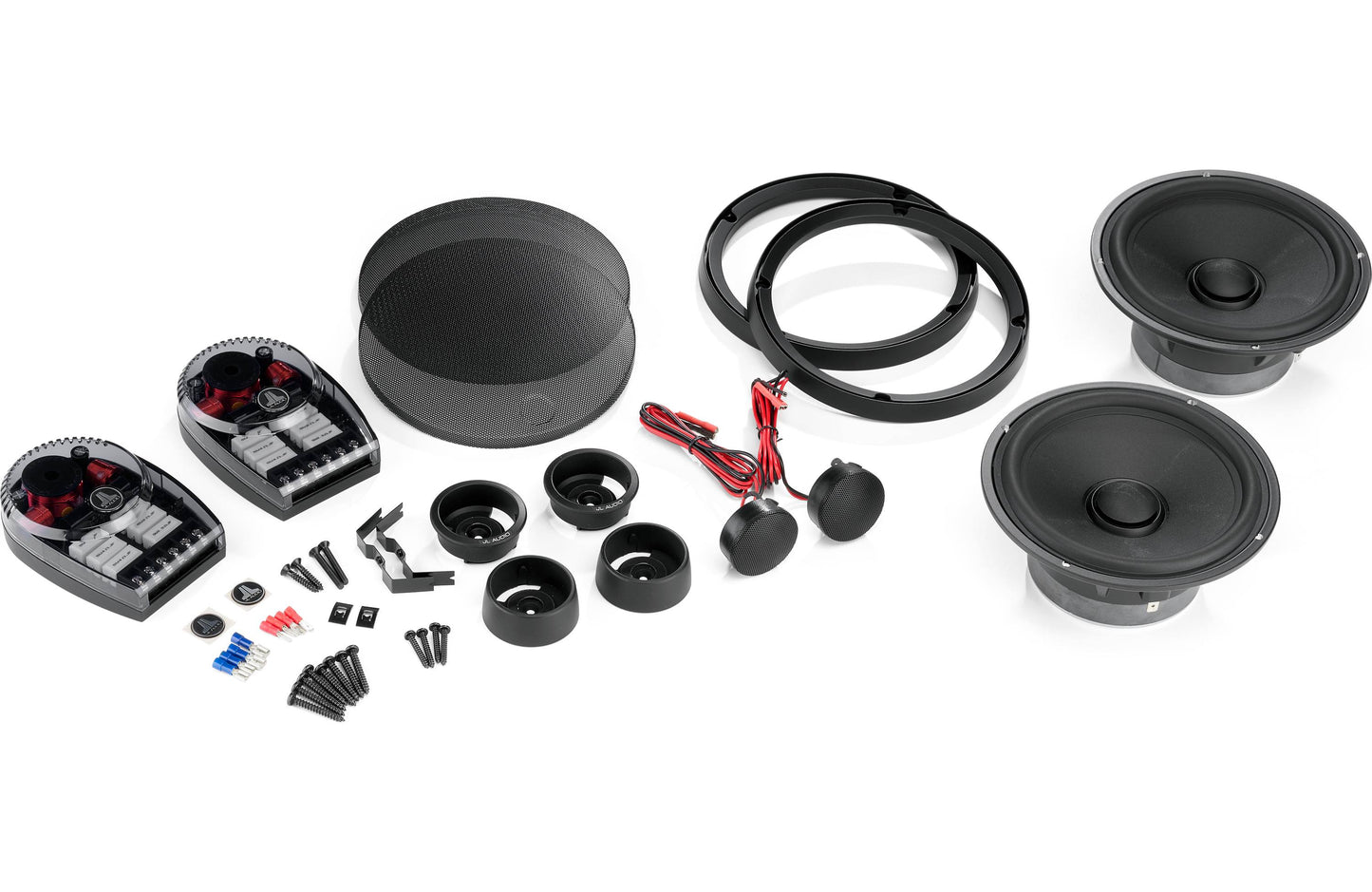

Included in the Box
• (2) 6.5" component woofers
• (2) 1" silk dome tweeters
• (2) Passive crossover networks
• Mounting hardware
• Woofer grilles (tray + steel mesh + JL badge)
• Tweeter flush and surface mount housings
Speakers are sold as a pair.
Technical Specifications
General Specifications
| Spec | Value |
|---|---|
| Continuous Power Handling (RMS) | 100 W |
| Recommended Power (RMS) | 25 – 150 W per channel |
| System Efficiency | 87.37 dB @ 1W/1m |
| Nominal Impedance | 4 Ω |
| Frequency Response | 53 Hz – 21 kHz (±3 dB) |
Woofer Physical Dimensions
| Measurement | Size |
|---|---|
| Frame Outer Diameter (A)* | 6.50 in / 165 mm |
| Grille Tray Outer Diameter (B)** | 6.76 in / 172 mm |
| Motor Outer Diameter (C) | 3.54 in / 90 mm |
| Frontal Grille Protrusion (E)*** | 1 in / 25 mm |
| Mounting Hole Diameter (F) | 5.46 in / 139 mm |
| Mounting Depth (G) | 2.60 in / 66 mm |
* Excludes mounting tabs
** Excludes logo badge
*** Measured from mounting surface
Tweeter Physical Dimensions
| Measurement | Size |
|---|---|
| Flush Mount Diameter (A1) | 2.13 in / 54 mm |
| Surface Mount Diameter (A2) | 2.11 in / 54 mm |
| Flush Mount Hole Diameter (B) | 1.85 in / 47 mm |
| Flush Mount Depth (C) | 1.85 in / 47 mm |
| Flush Mount Protrusion (D1) | 0.30 in / 8 mm |
| Surface Mount Protrusion (D2) | 1.04 in / 26 mm |
Crossover Physical Dimensions
| Measurement | Size |
|---|---|
| Width (W) | 3.36 in / 85 mm |
| Height (H) | 1.44 in / 37 mm |
| Depth (D) | 4.72 in / 120 mm |
