JL Audio C6-100ct 1" Silk Dome Tweeters, 75W RMS, 4Ω, Single 010-03390-00 (99050)
JL Audio C6-100ct 1" Silk Dome Tweeters, 75W RMS, 4Ω, Single 010-03390-00 (99050)
Couldn't load pickup availability
Part Number 010-03390-00
General Description:

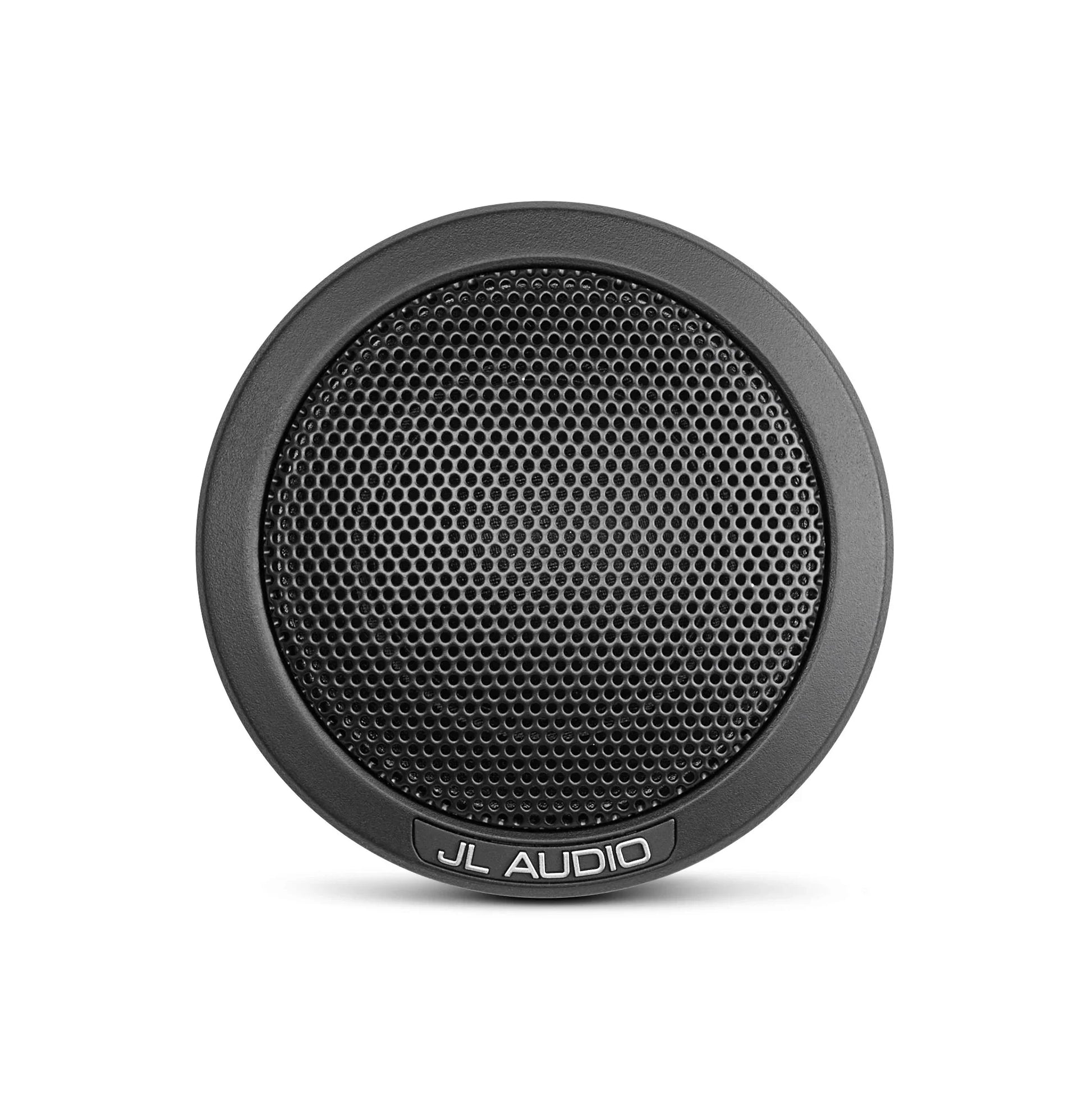

1" (25 mm) Silk Dome Component Tweeter
Born from shared technologies used in our flagship C7 speakers, the C6-100ct component tweeter benefits from vast speaker design experience and advanced modeling systems of JL Audio.
Ideal for active systems, the C6-100ct component tweeter features an edge-driven, pure silk dome diaphragm for smooth, high-frequency performance with remarkable off-axis response and damping. A neodymium motor and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.
Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, we recommend a dedicated amplifier channel for each C6 loud speaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
C6-100ct Component Tweeter Features:
• Edge-drivenpure-silk dome design delivers smooth high-frequencyperformance, with excellent off-axis response and damping
• Neodymium motor delivers high magnetic flux from a compact motor design
• Ferrofluid cooling and damping improves reliability and response smoothness

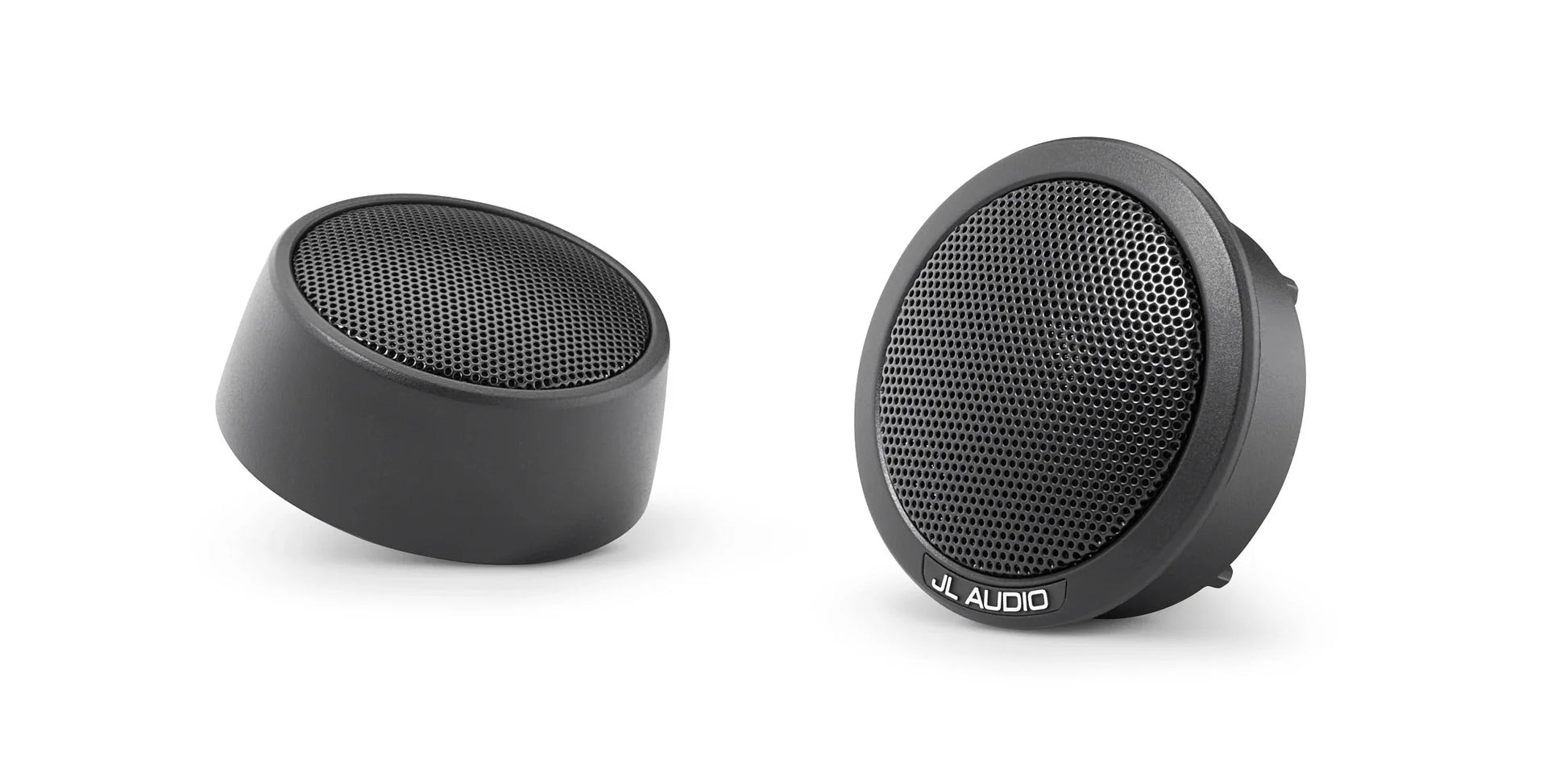

• Includes surface- and flush-mount fixtures
Design Bandwidth:
With 48 dB/octave filters: 3-21 kHz
With 24 dB/octave filters: 4-21 kHz
With 12 dB/octave filters: 5-21 kHz

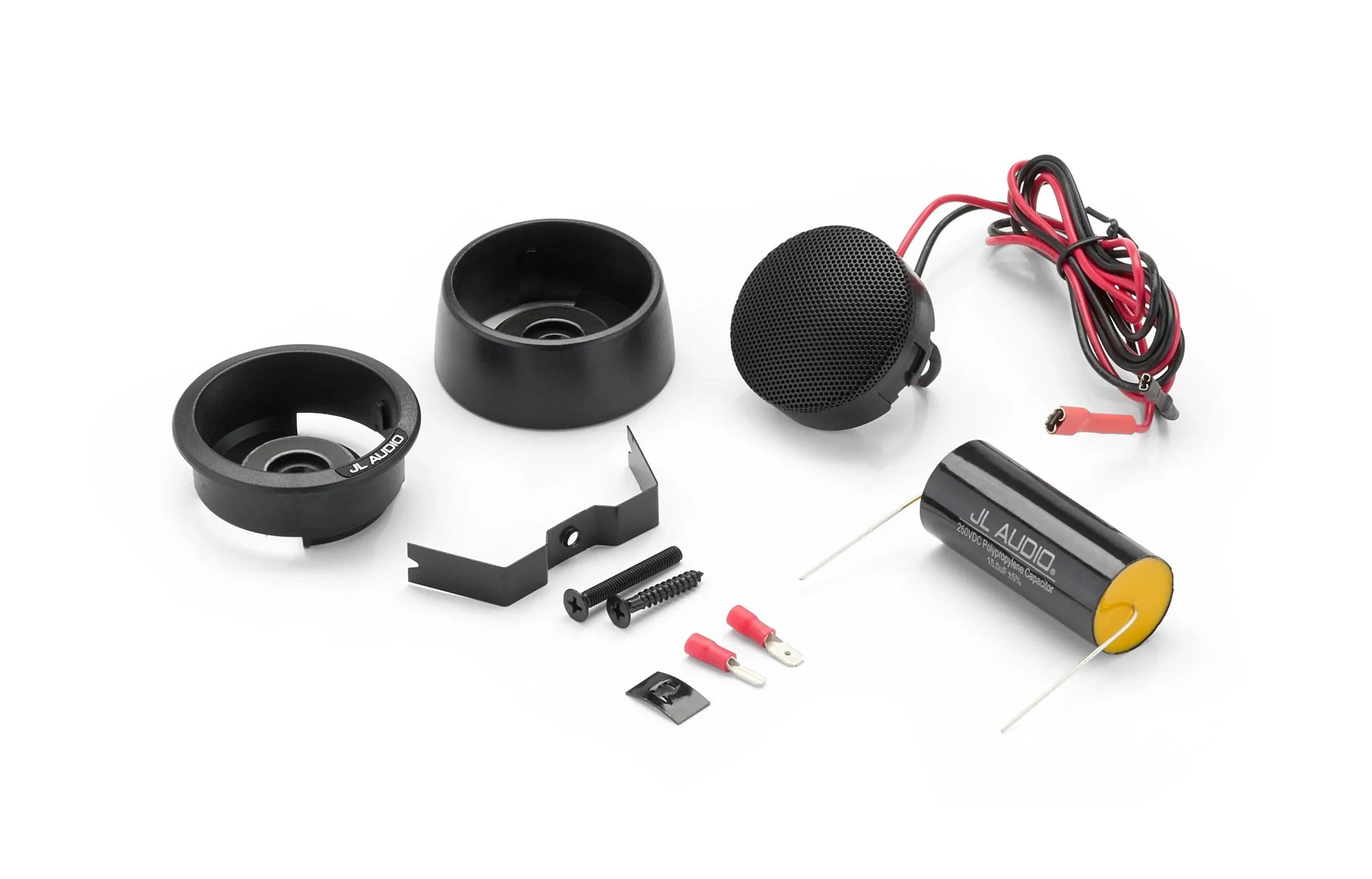

Component tweeters are sold individually and include surface- and flush-mount fixtures and hardware. One 15 μF tweeter protection capacitor is also included.
General Specifications
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 100 W / Ch. |
| Nominal Impedance | 4 Ω |
| Frequency Response | 3 kHz - 21 KHz ± 3 dB |
Parameters
| Voice Coil Resistance (Re) | 3.20 Ω |
| Free Air Resonance (Fs) | 1500 Hz |
| Reference Efficiency (no) | 0.602% |
| Efficiency | 90 dB @ 1W / 1m 96 dB @ 1W / 0.5m |
| Sensitivity | 93 dB @ 2.83V / 1m |
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A1) | 2.13 in / 54 mm |
| Surface Mount Fixture Diameter (A2) | 2.16 in / 55 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.88 in / 48 mm |
| Flush Mount Mounting Depth (C) | 0.73 in / 19 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.33 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 1.06 in / 27 mm |
