JL Audio C3-650 6.5" Convertible Component Car Speakers, 75W RMS, 4Ω, Pair 010-03172-00 (99022)
JL Audio C3-650 6.5" Convertible Component Car Speakers, 75W RMS, 4Ω, Pair 010-03172-00 (99022)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Build around your C3-650 speakers
Start with the speakers you need, then add amplification or bass when your system calls for it. These optional products are sold separately; this listing is one C3-650 left/right speaker set, not a complete vehicle-specific installation package.
- Add speaker amplification: the JL Audio RD400/4 four-channel amplifier is rated at 75 W RMS per channel into 4 ohms at 14.4 V. A conventional passive C3-650 pair uses two channels, one per included crossover network. Keep the supplied crossovers in the signal path to the woofers and tweeters.
- Plan front and rear: the RD400/4 can power two passive left/right speaker sets on four channels. A second C3-650 set is optional and requires separate confirmation of rear-door fit, depth and tweeter space; one set does not cover four doors.
- Add dedicated bass: explore the 10W3v3-2 raw subwoofer with a separate RD500/1 mono amplifier. The subwoofer needs its own correctly designed enclosure; neither amplifier, enclosure nor wiring is included with these speakers.
Keeping your factory radio?
Speaker size alone does not establish vehicle compatibility. Check mounting adapters, depth, tweeter placement and the factory amplifier or signal-processing requirements. A vehicle-specific interface or additional signal integration may be needed. You can upgrade in stages if your existing equipment is suitable; these add-ons are not mandatory.
Check the Vehicle Fit Guide or ask MCOR about your system before ordering. Amplifier gain, high-pass filtering and speaker protection must be set for the actual installation.
Part Number 010-03172-00

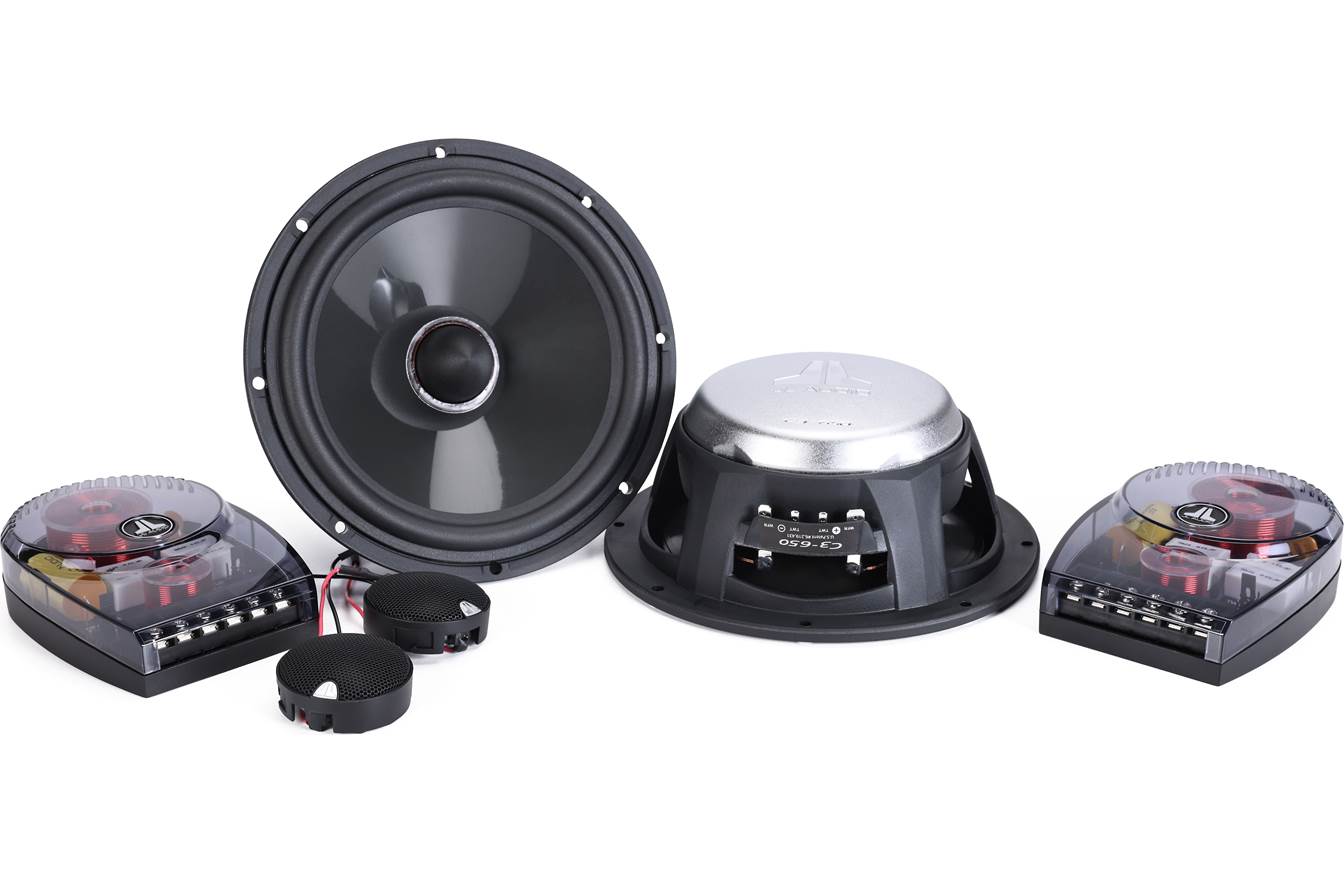

2-Way Convertible Component / Coaxial System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

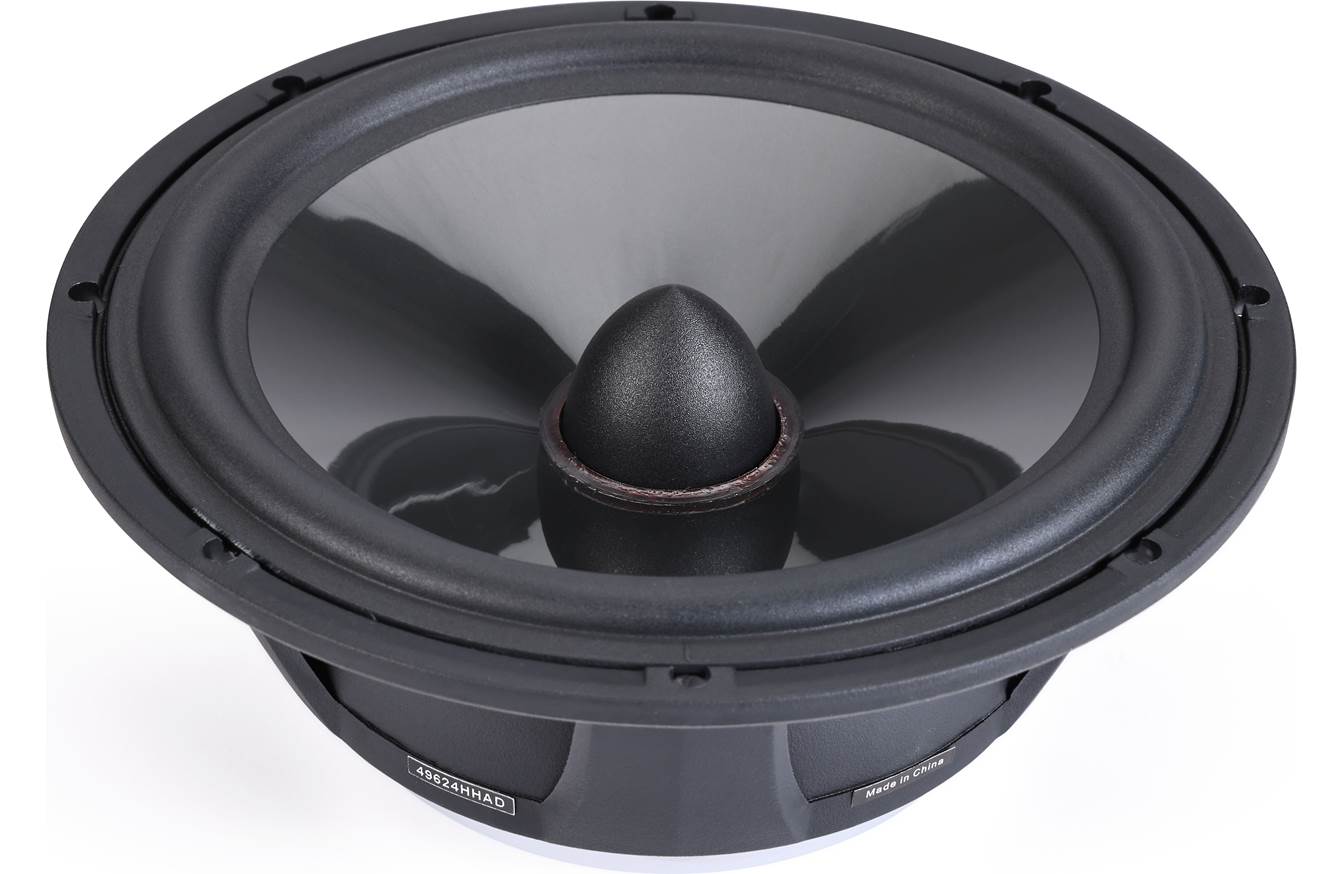

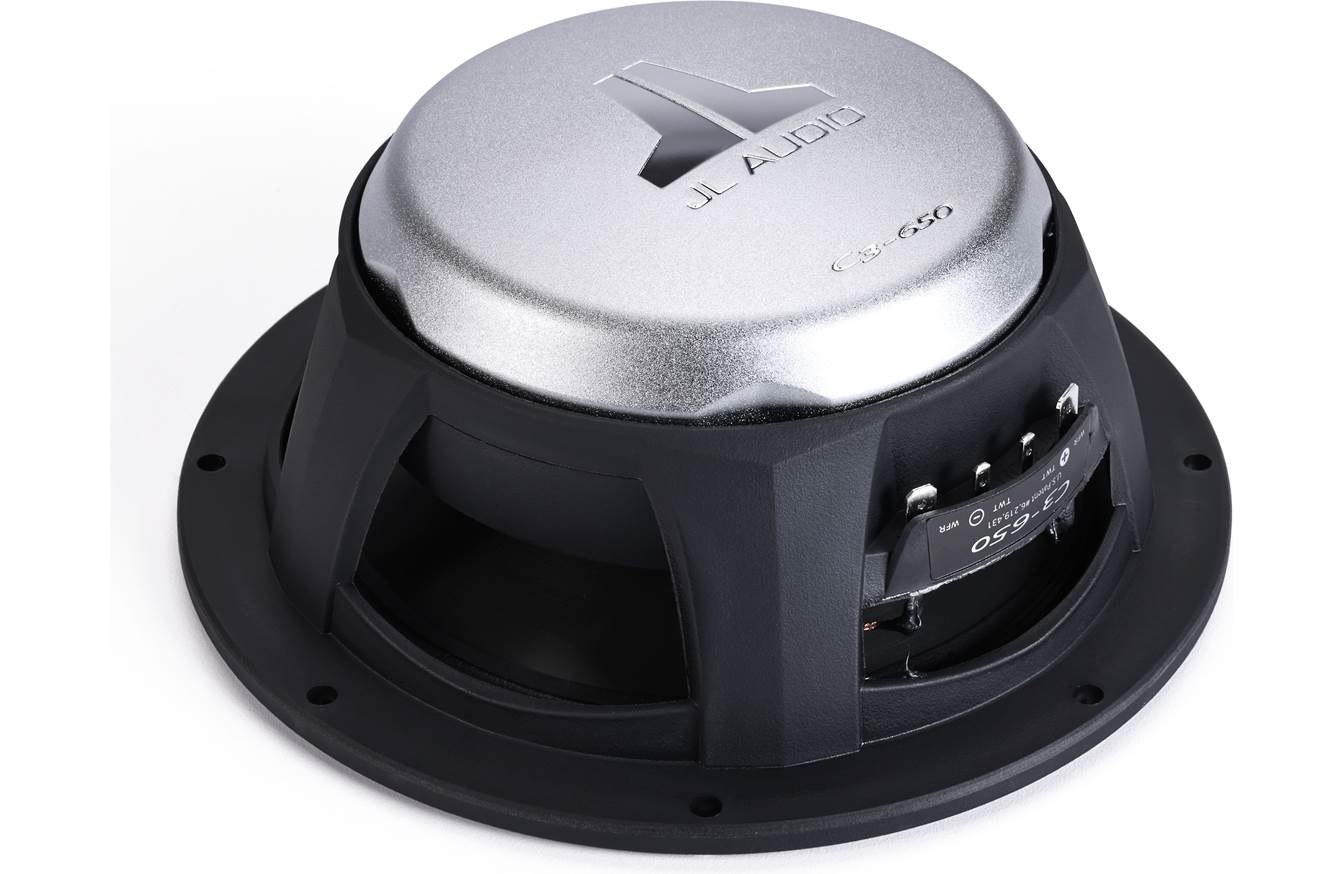

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

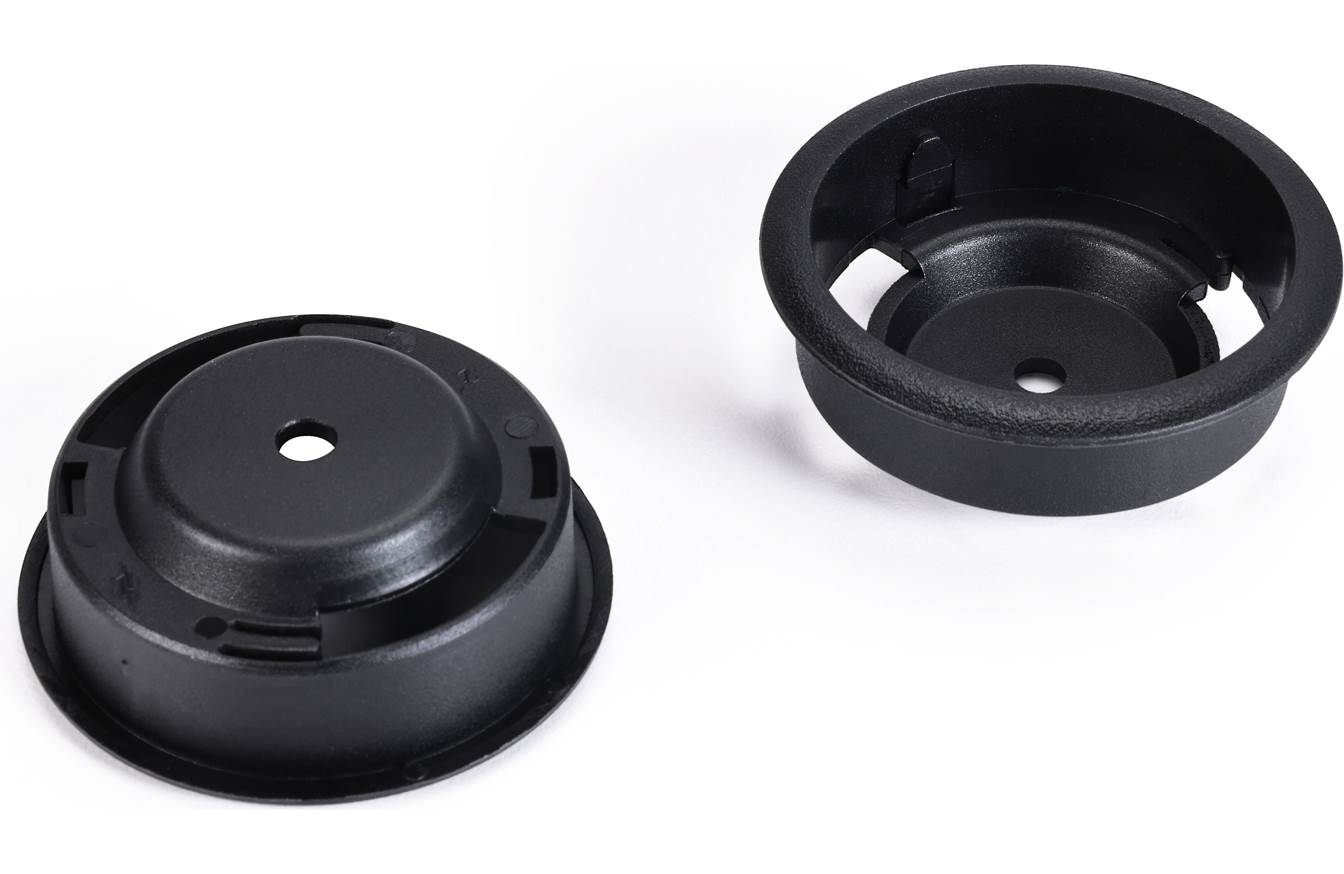

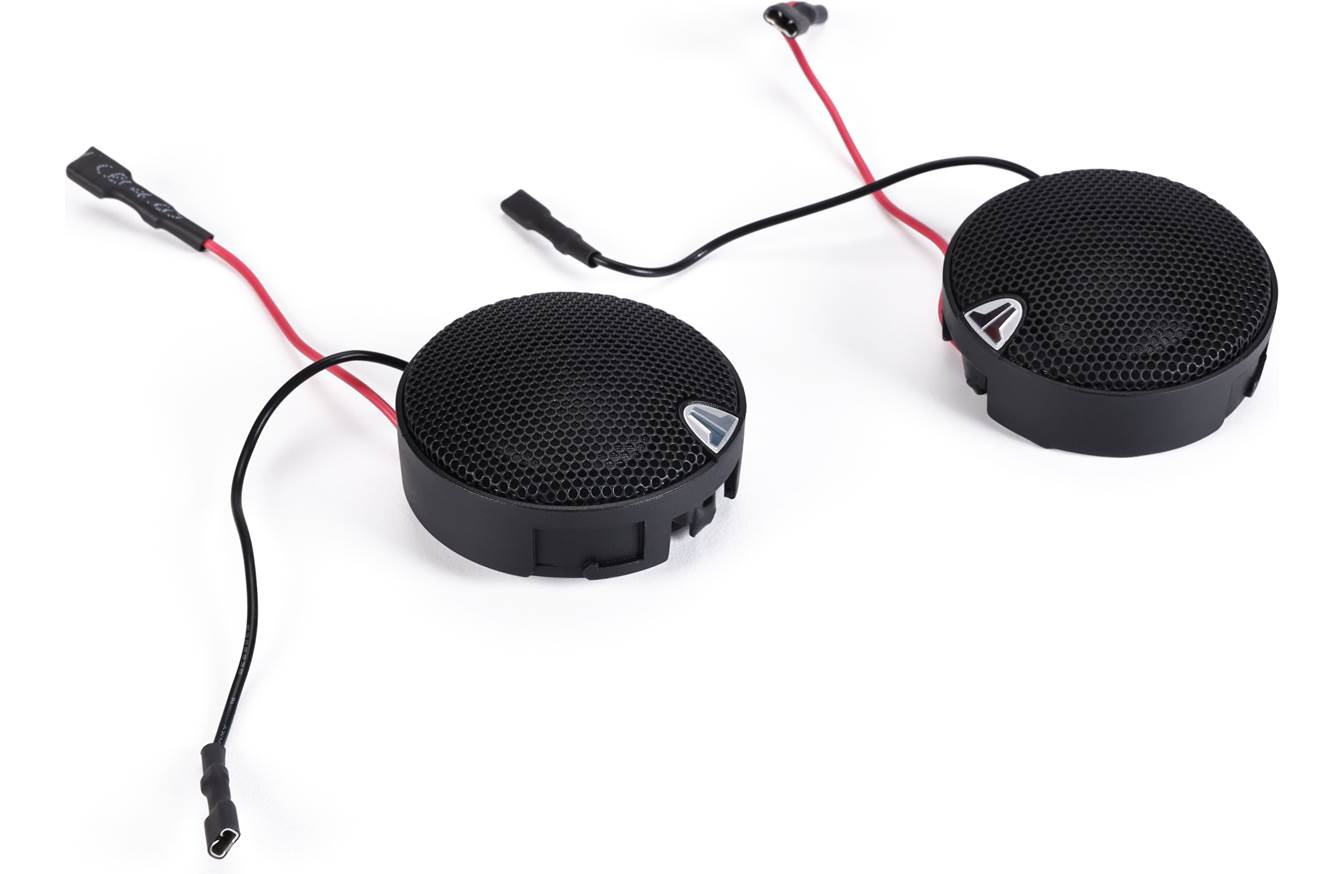

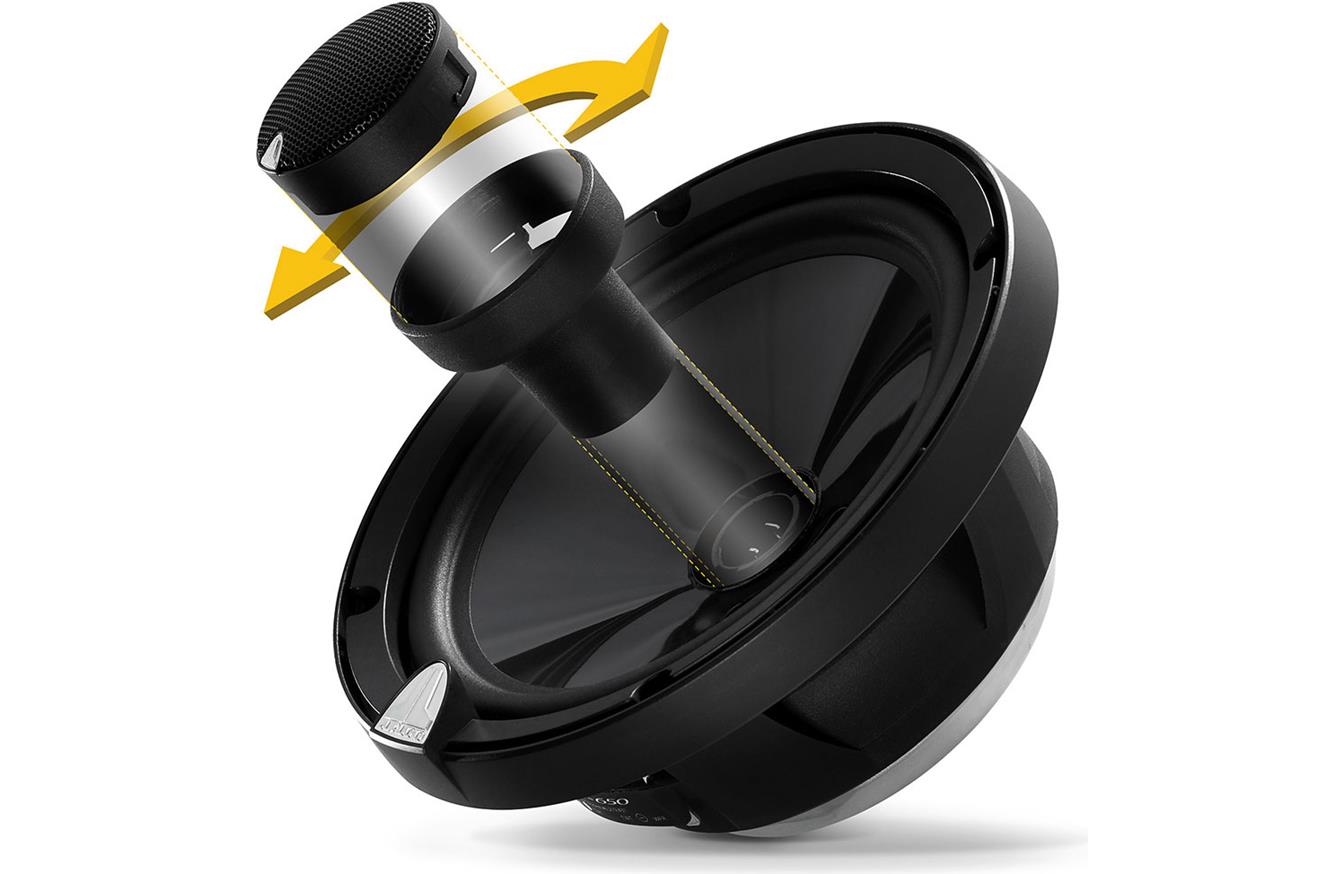

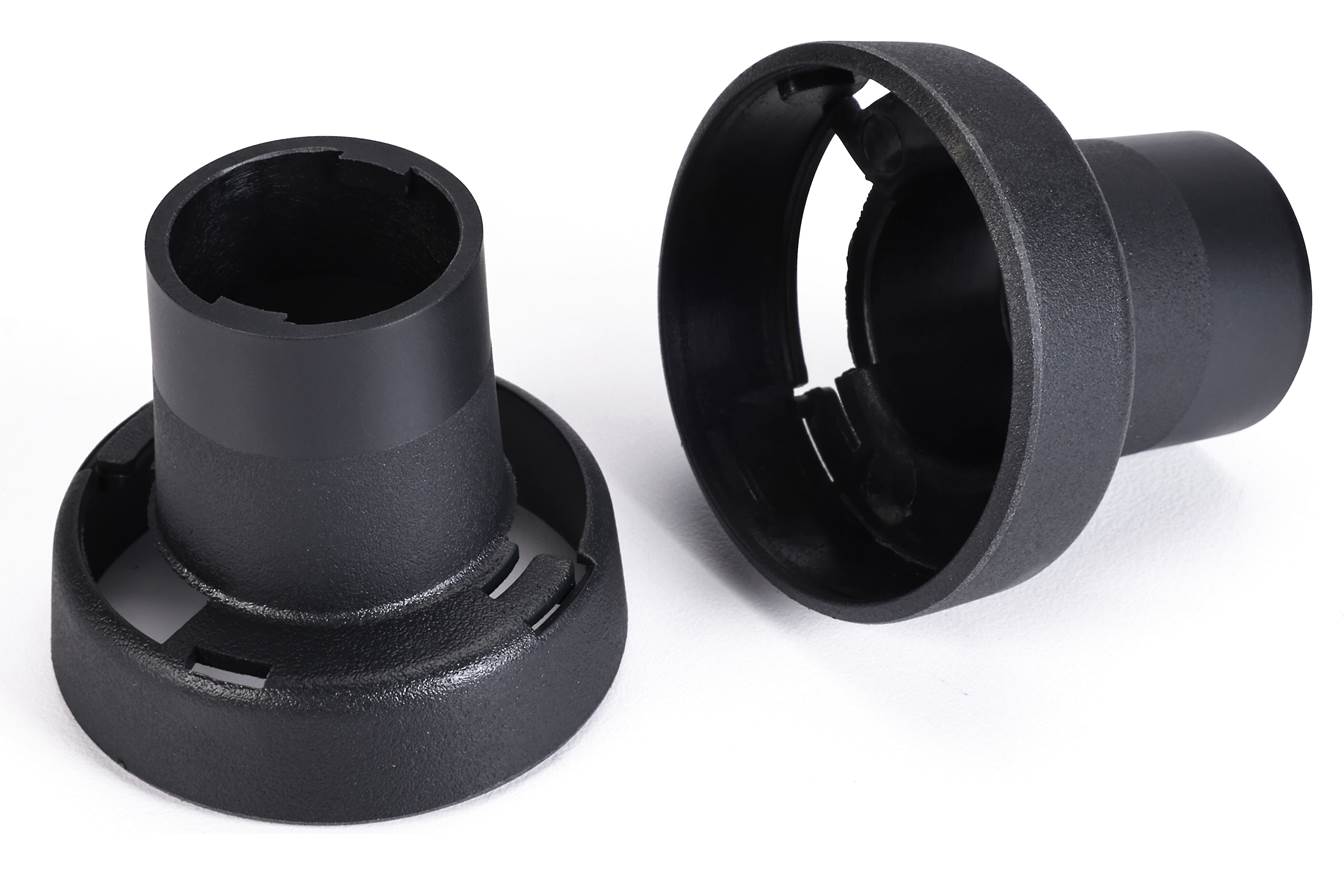

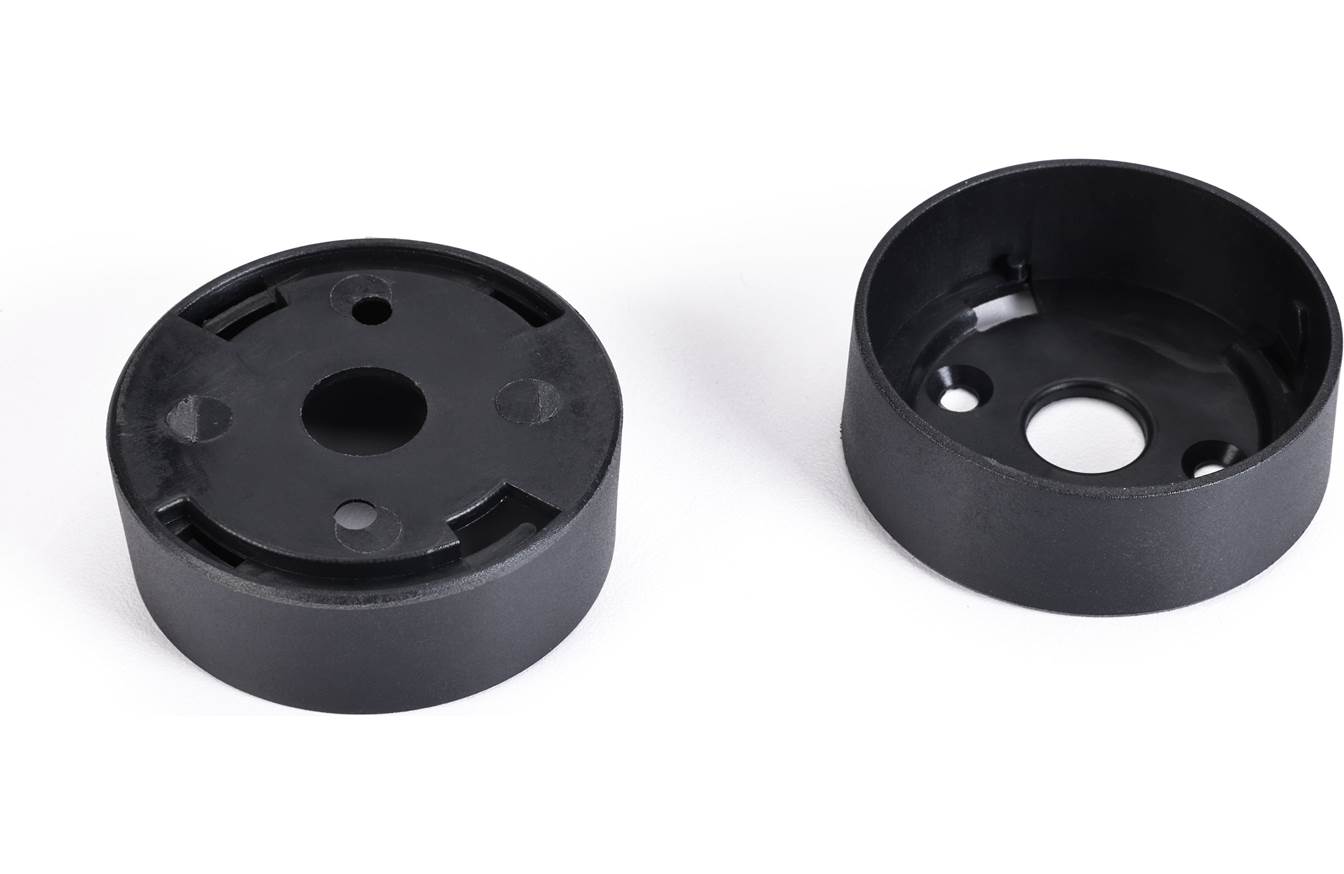

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

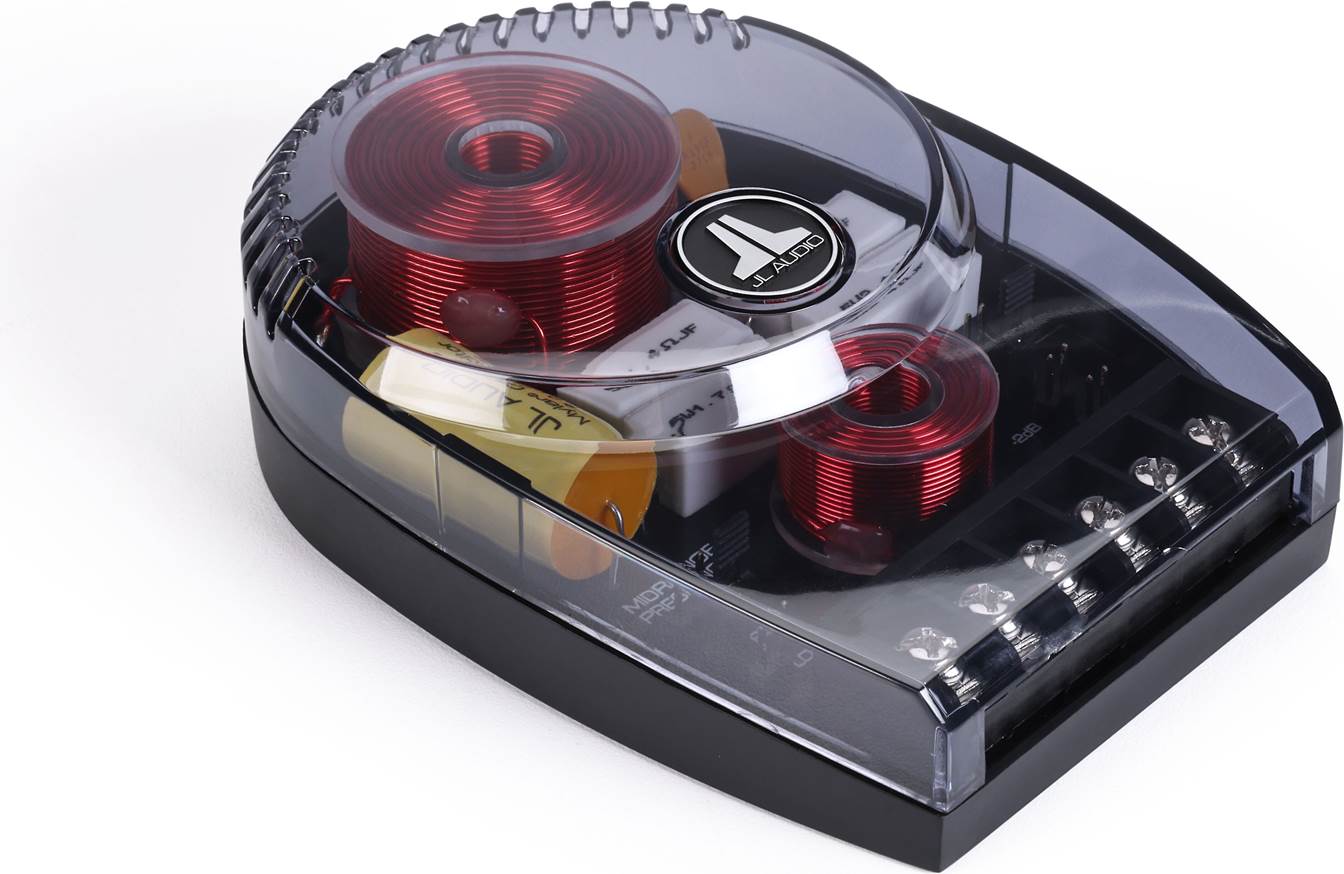

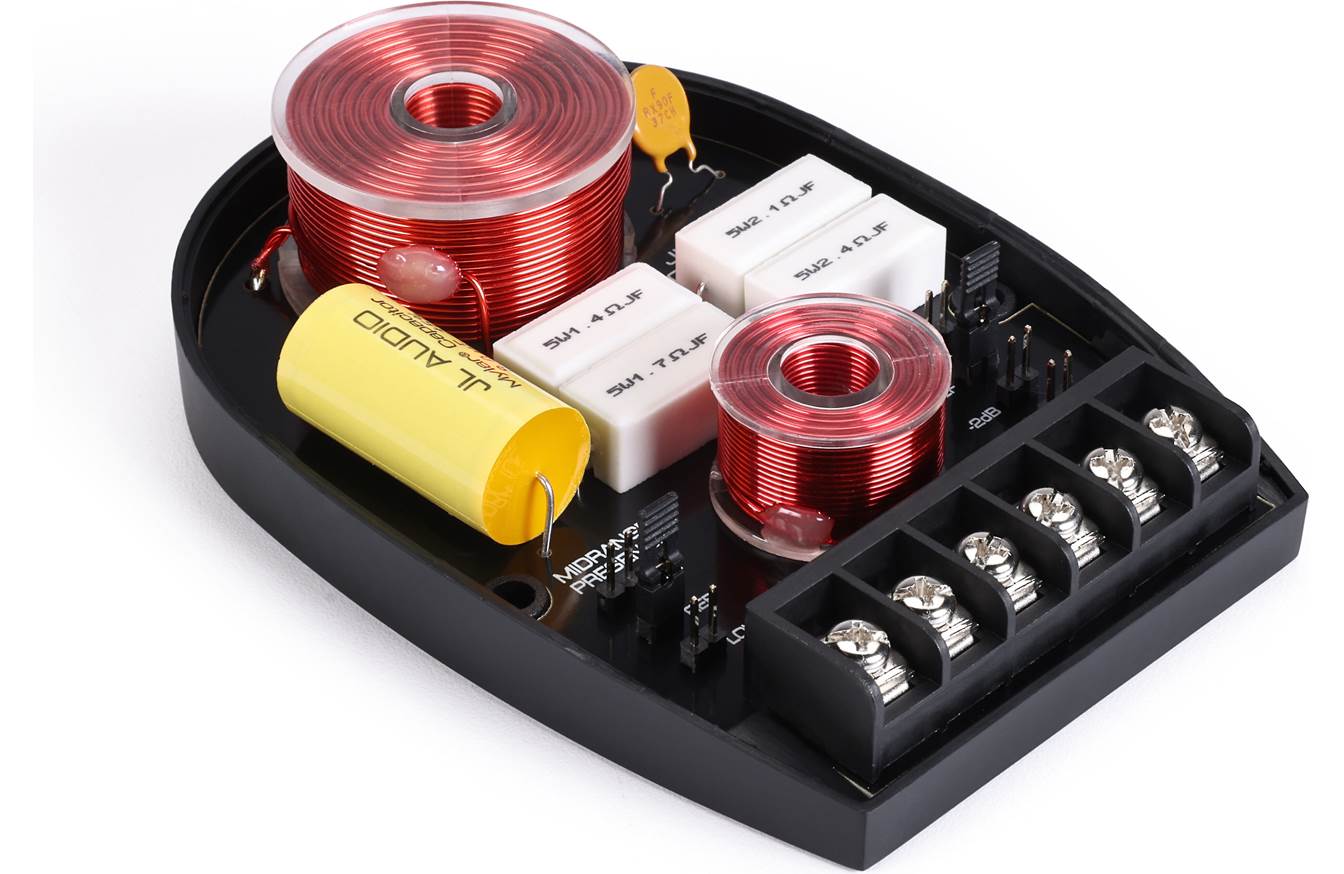

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

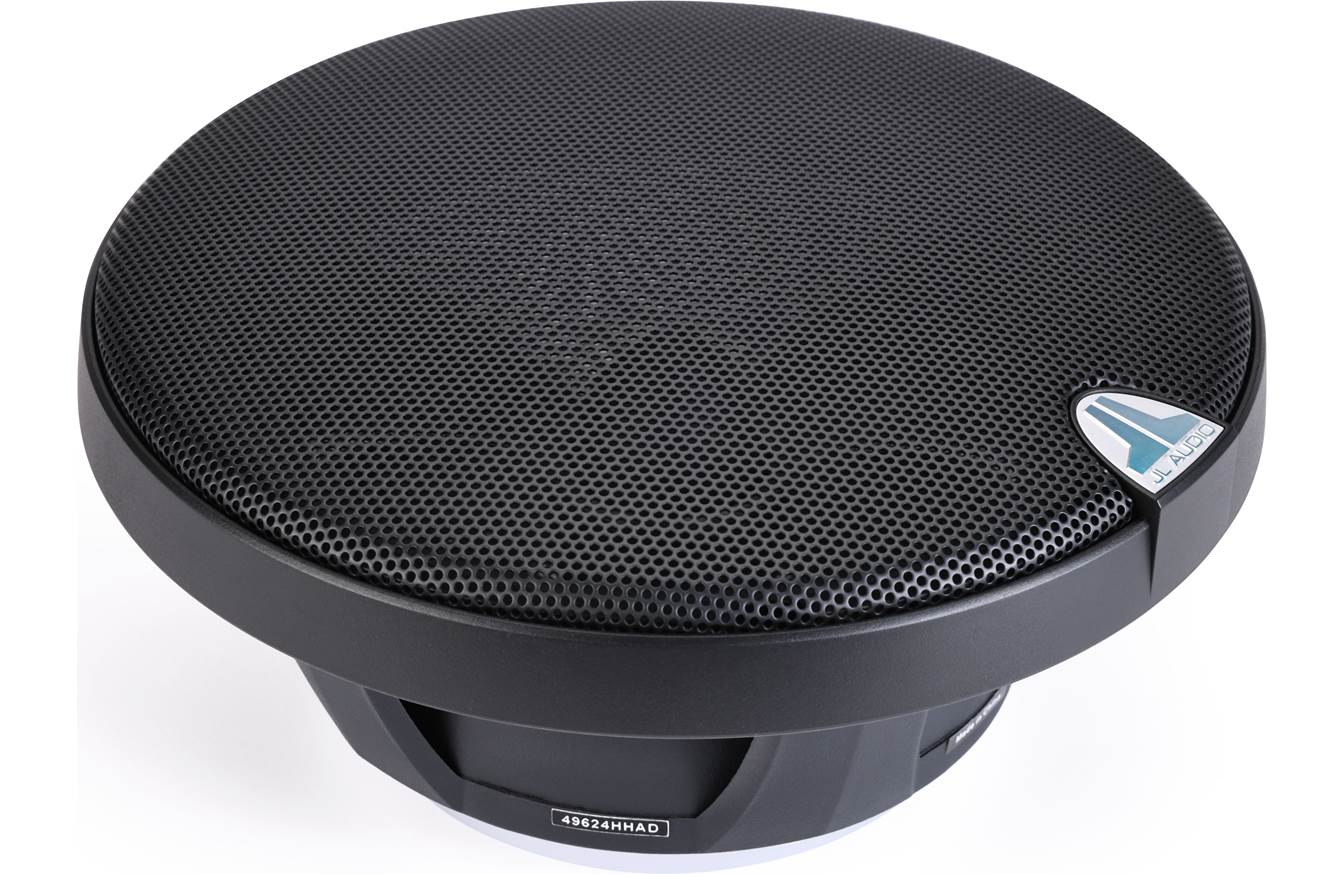

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 90.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 48 Hz - 25 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter (A) | 6.50 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.74 in / 171 mm |
| Motor Outer Diameter (C) | 4.08 in / 104 mm |
| Frontal Coaxial Tweeter Protrusion* (D) | 0.75 in / 19 mm |
| Frontal Grille Protrusion** (E) | 1.03 in / 26 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.55 in / 65 mm |
|
*Frontal coaxial tweeter protrusion measured from mounting surface |
|
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A1) | 2.12 in / 54 mm |
| Surface Mount Fixture Diameter (A2) | 1.93 in / 49 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.875 in / 48 mm |
| Flush Mount Fixture Mounting Depth (C) | 0.71 in / 18 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.32 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.95 in / 24 mm |
Crossover Physical Specifications
| Width (W) | 3.36 in / 85 mm |
| Height (H) | 1.44 in / 37 mm |
| Depth (D) | 4.72 in / 120 mm |
