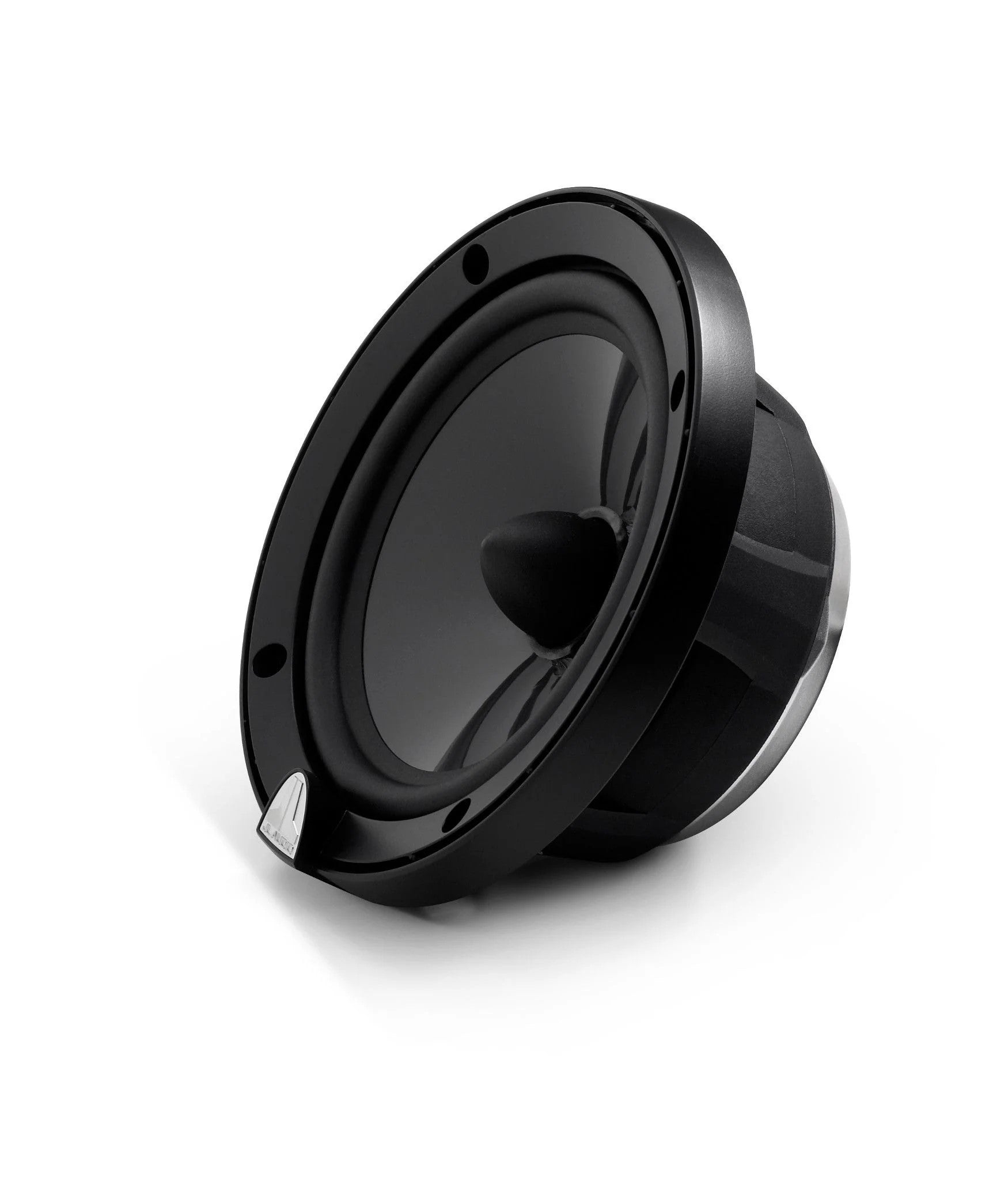

JL Audio C3-600cw 6" Car Speaker Single Woofer Only, 75W RMS, 4Ω 010-03843-00 (99033)
JL Audio C3-600cw 6" Car Speaker Single Woofer Only, 75W RMS, 4Ω 010-03843-00 (99033)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Part Number 010-03843-00

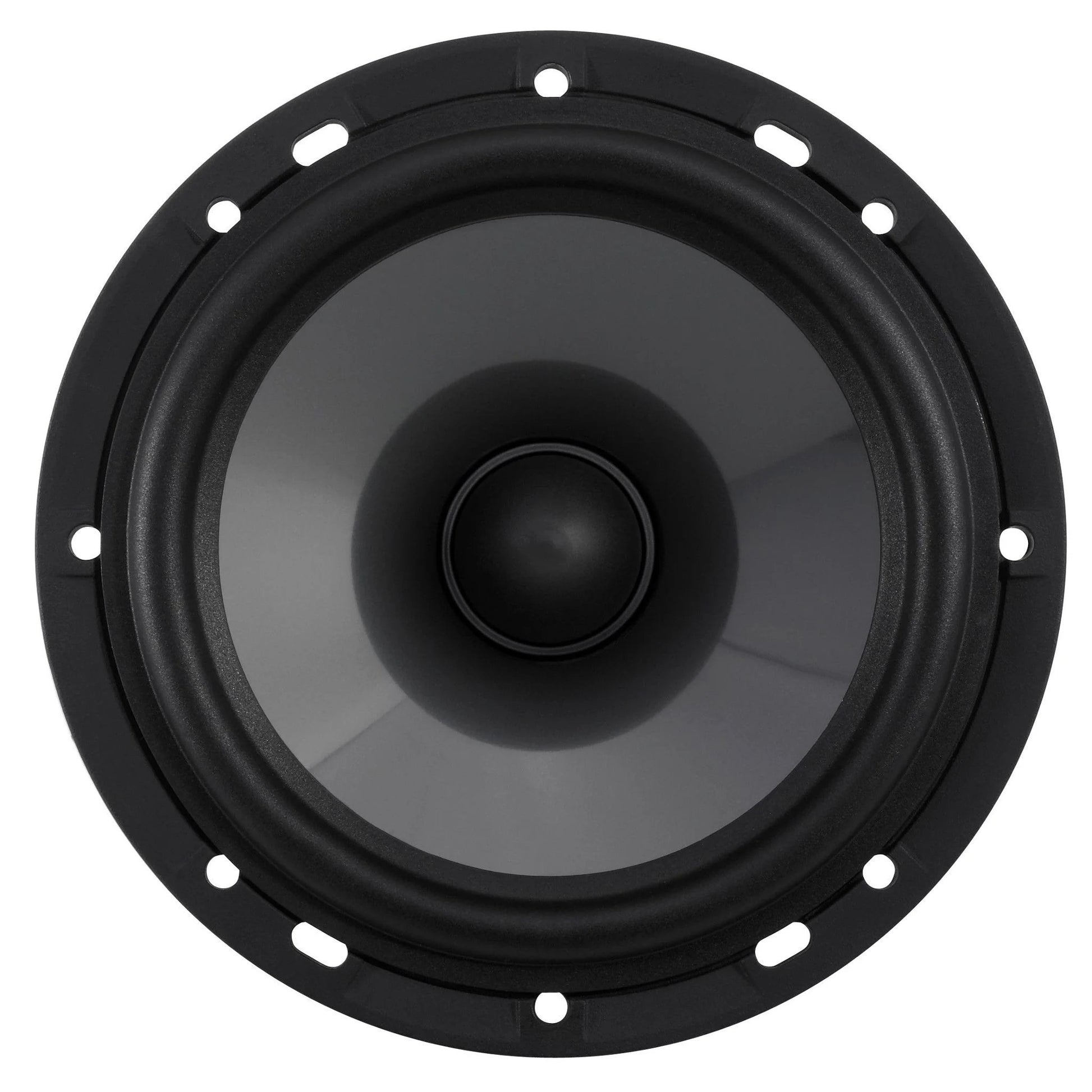

6-inch (150 mm) Convertible Component Woofer (Single)
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 50 Hz - 25 KHz ± 3 dB |
| Frame Outer Diameter (A) | 6.21 in. / 157.7 mm |
| Grille Tray Outer Diameter (B) | 6.46 in. / 164.1 mm |
| Motor Outer Diameter (C) | 4.08 in. / 103.6 mm |
| Frontal Coaxial Tweeter Protrusion* (D) | 0.81 in. / 20.6 mm |
| Frontal Grille Protrusion** (E) | 1.03 in. / 26.2 mm |
| Mounting Hole Diameter (F) | 5.00 in. / 127 mm |
| Mounting Depth (G) | 2.49 in. / 63 mm |
|
*Frontal coaxial tweeter protrusion measured from mounting surface |
|
