Part Number 010-03348-00

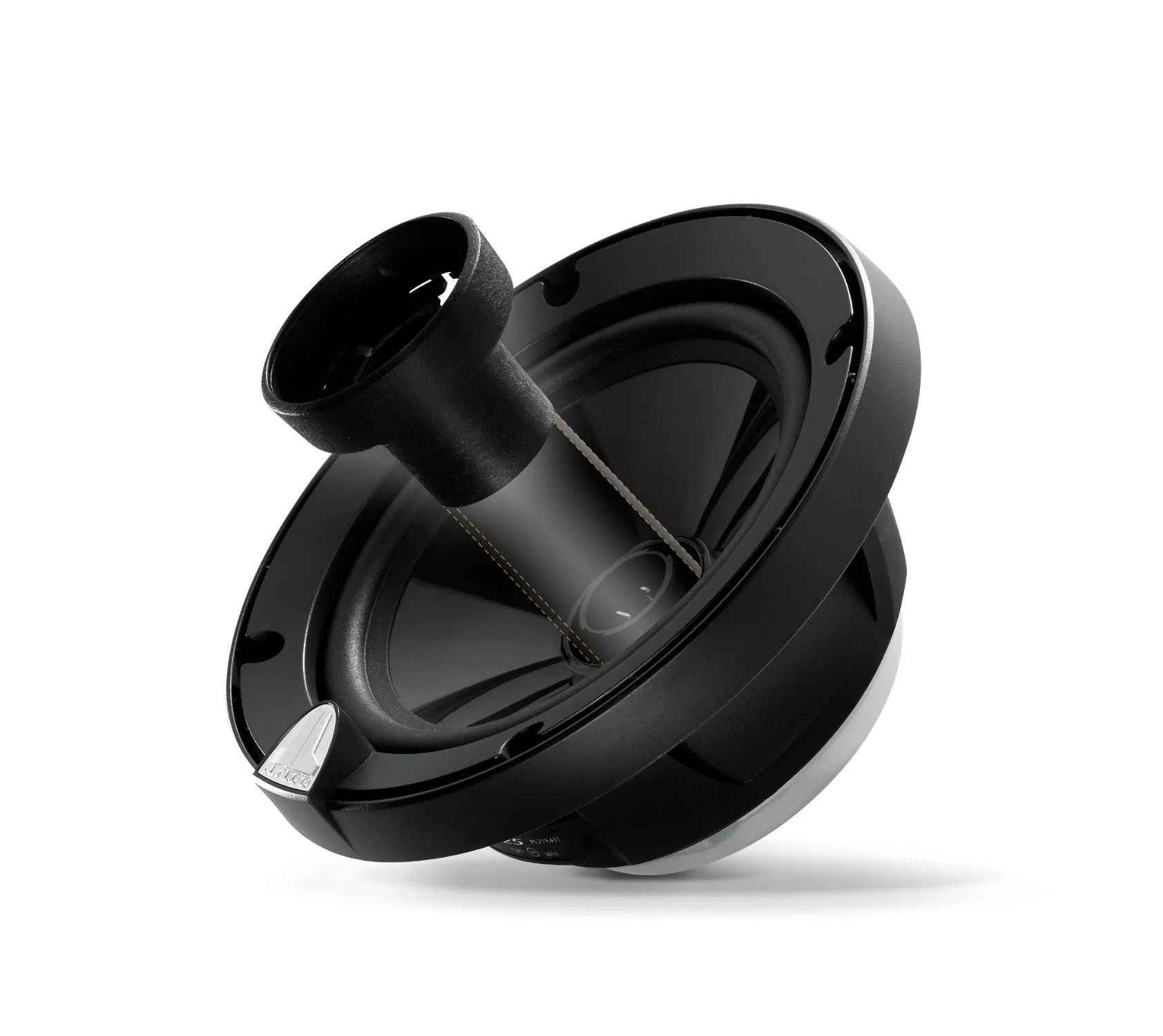

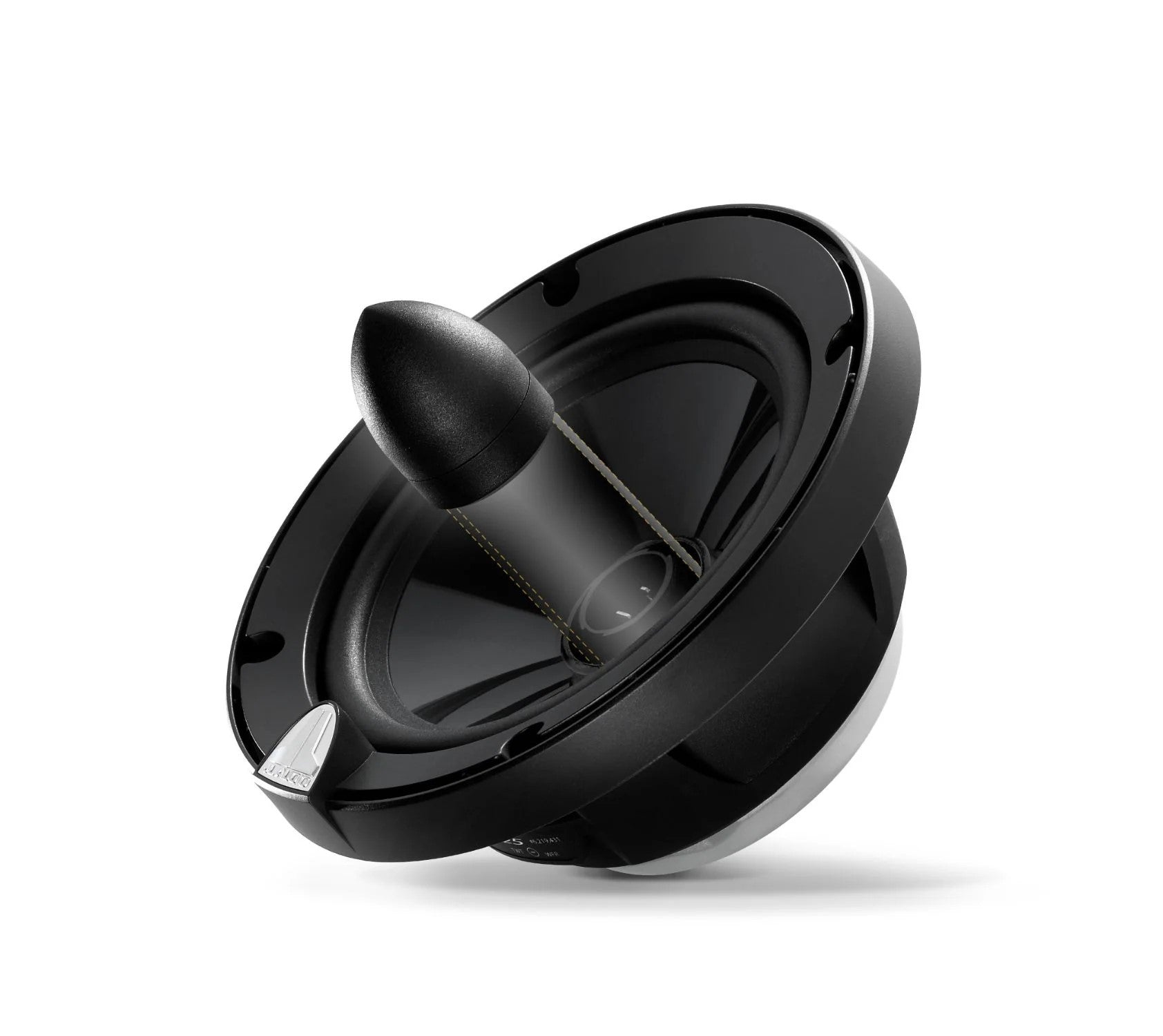

5.25-inch (130 mm) Convertible Component Woofer (Single)
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-525cw is a 5.25-inch (130 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 90.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 48 Hz - 25 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter* (A) | 5.80 in / 147 mm |
| Grille Tray Outer Diameter (B) | 6.00 in / 152 mm |
| Motor Outer Diameter** (C) | 3.38 in / 86 mm |
| Frontal Coaxial Tweeter Protrusion*** (D) | 0.69 in / 18 mm |
| Frontal Grille Protrusion**** (E) | 1.00 in / 25 mm |
| Mounting Hole Diameter (F) | 4.56 in / 116 mm |
| Mounting Depth (G) | 2.27 in / 58 mm |
|
*Does not take into account mounting tabs |
|
