JL Audio C3-525 5.25" Component Car Speakers, 75W RMS, 4Ω, Pair 010-03345-00 (99020)
JL Audio C3-525 5.25" Component Car Speakers, 75W RMS, 4Ω, Pair 010-03345-00 (99020)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Part Number 010-03345-00

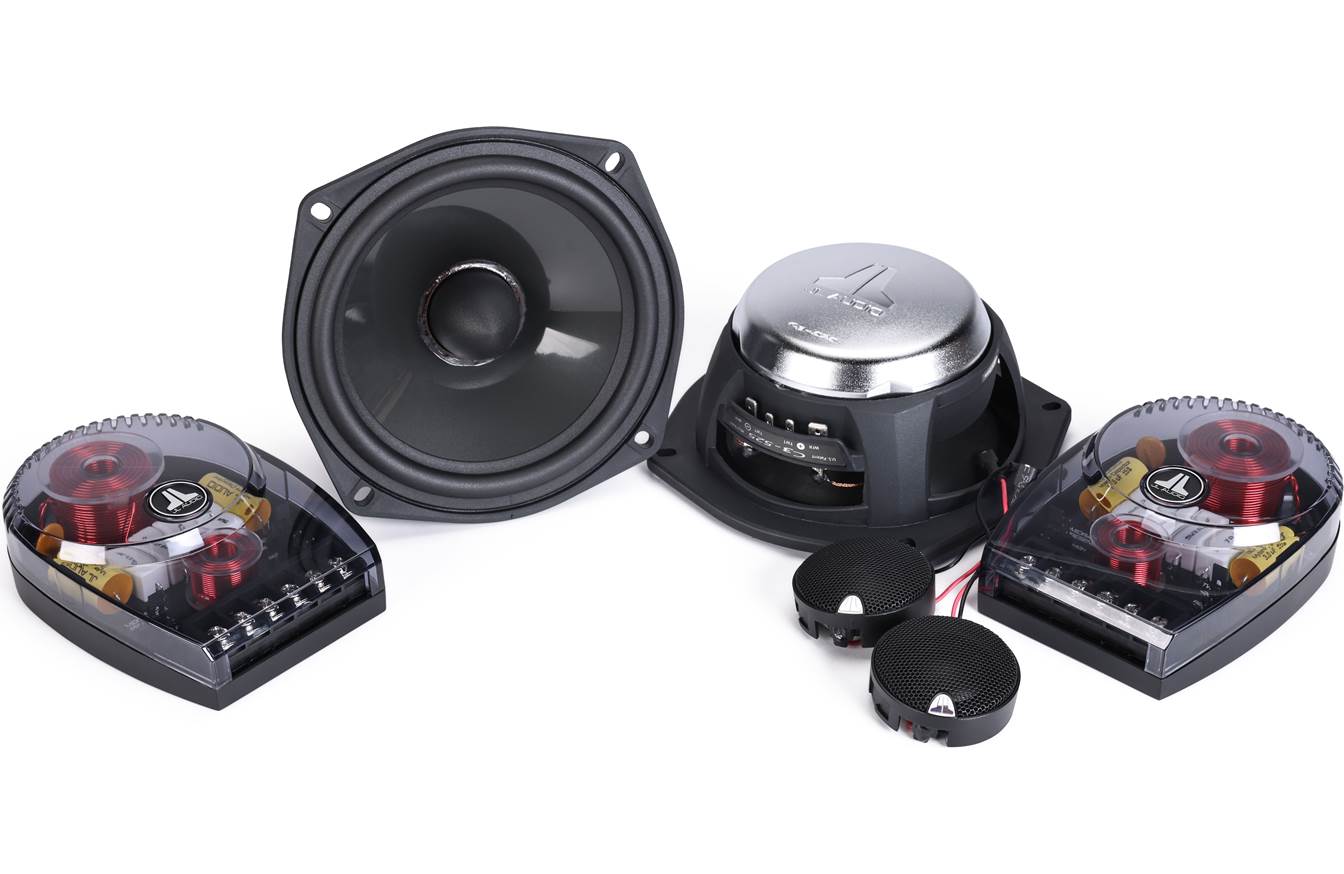

2-Way Convertible Component / Coaxial System: 5.25-inch (130 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

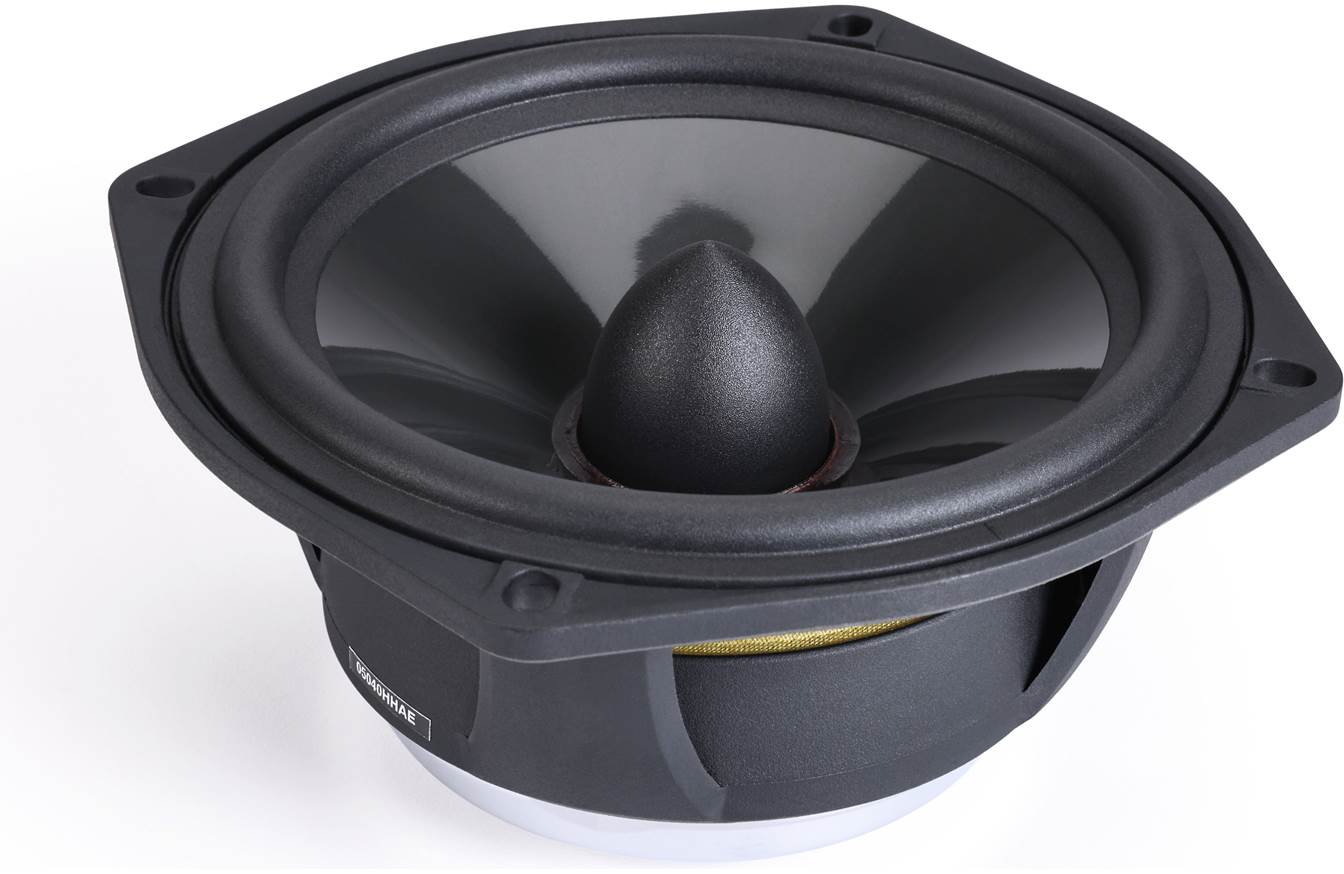

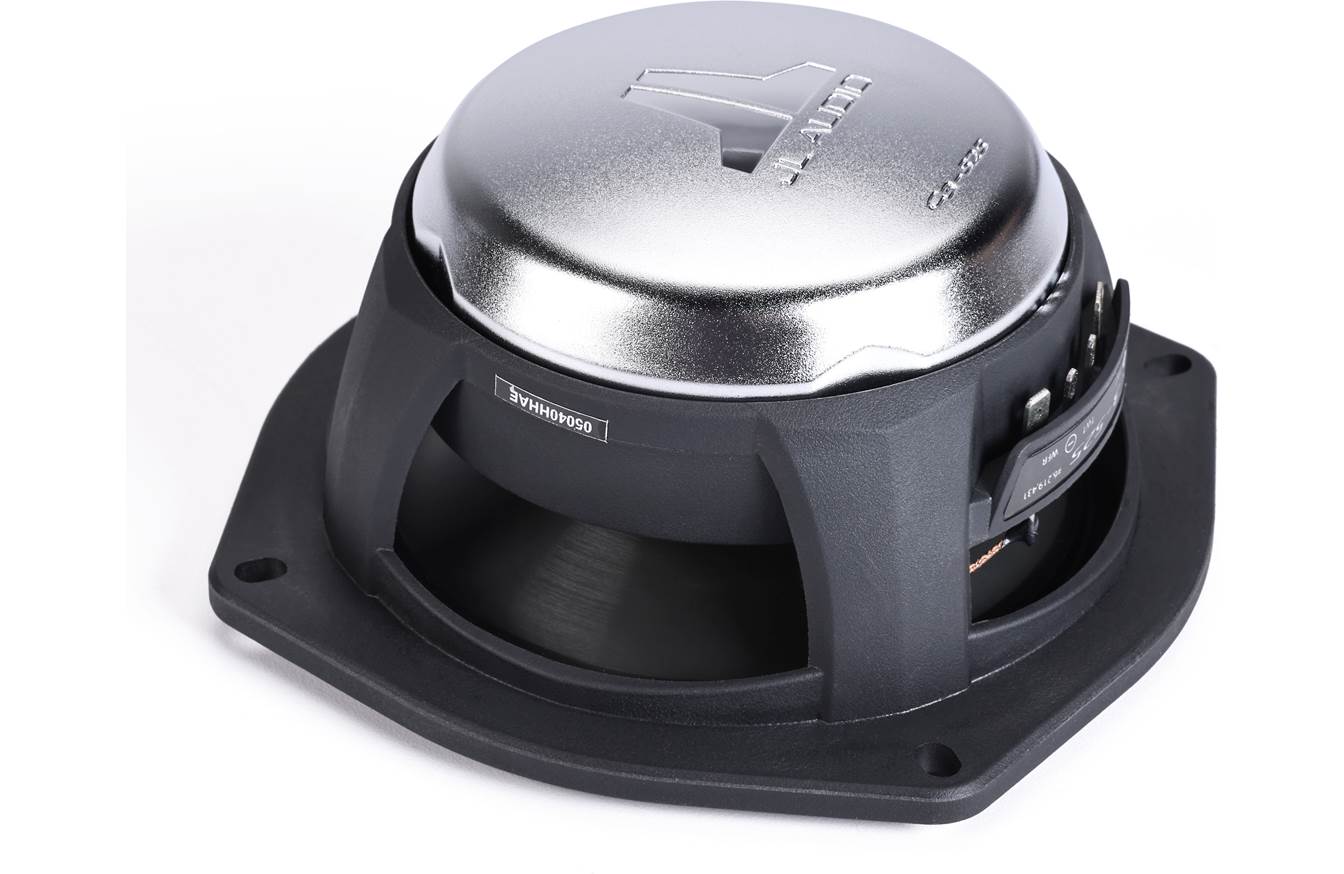

The C3-525 system features 5.25-inch (130 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

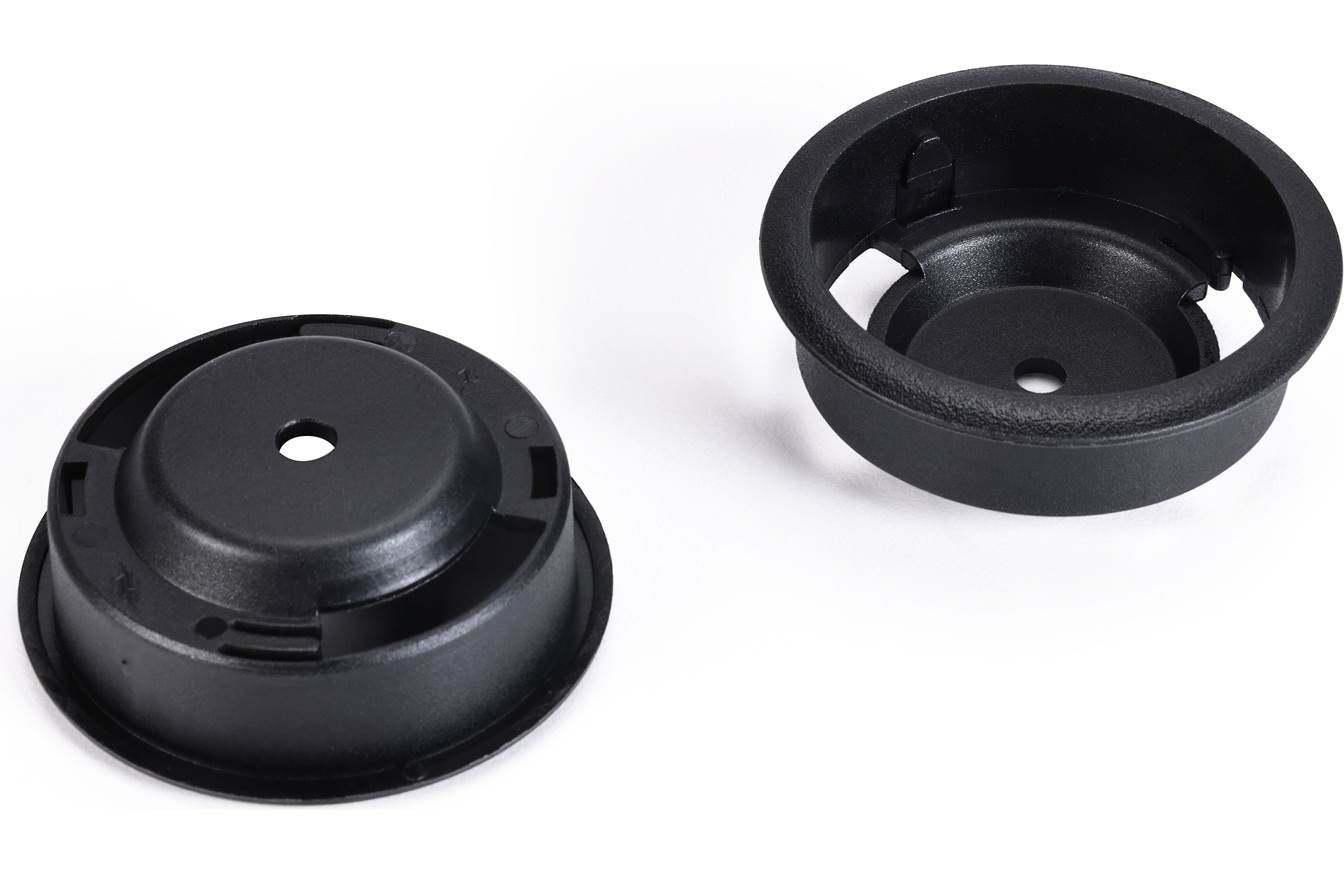

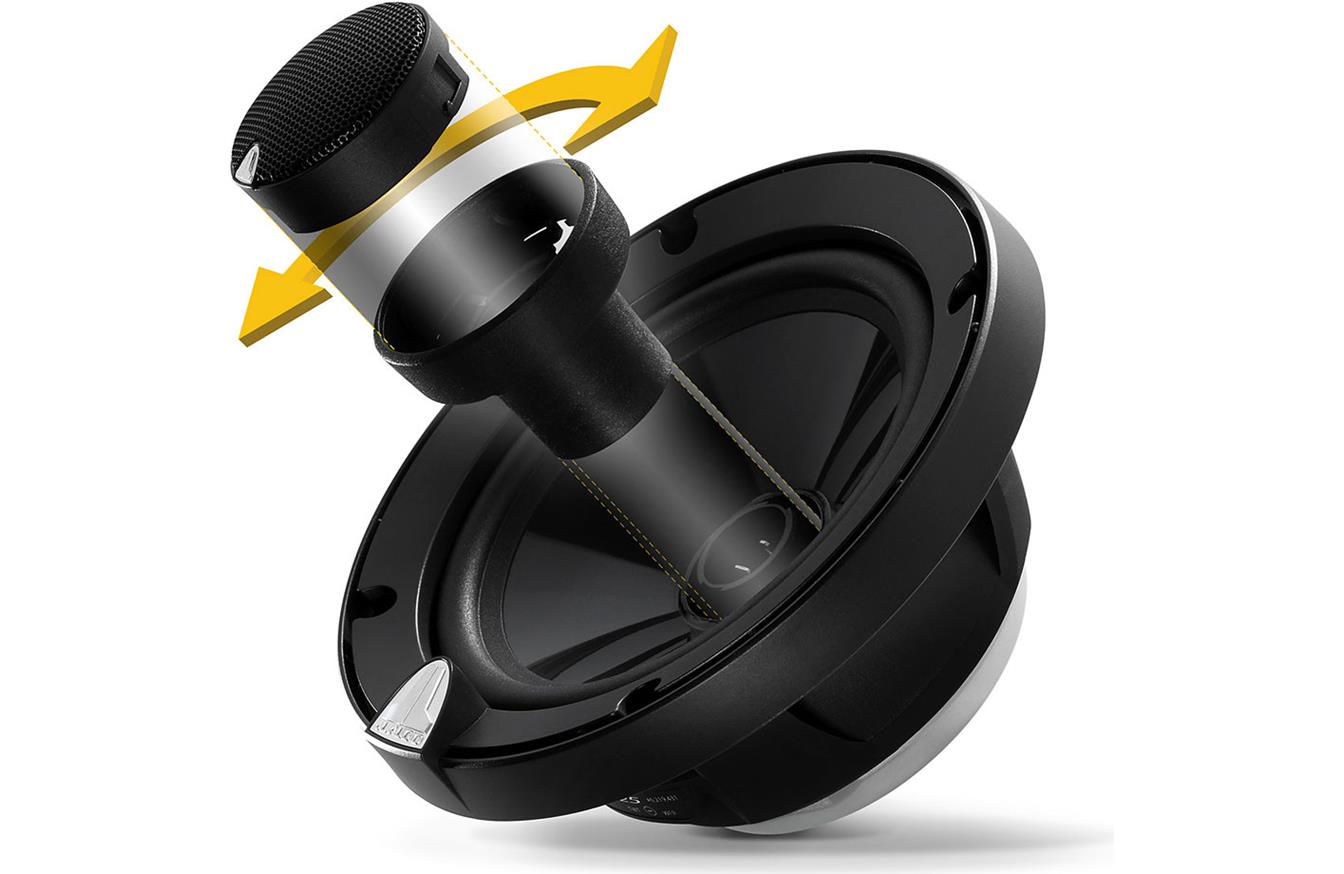

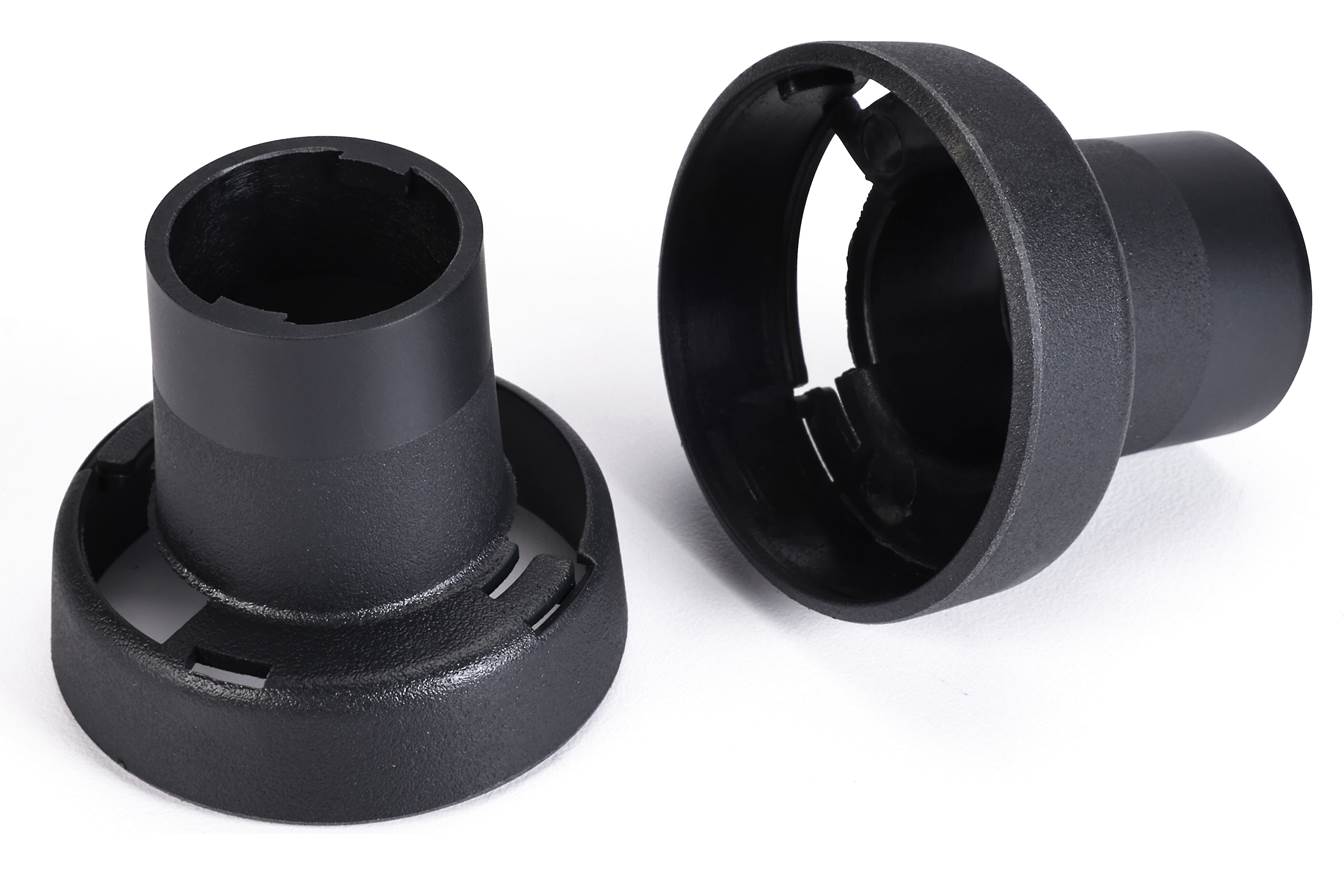

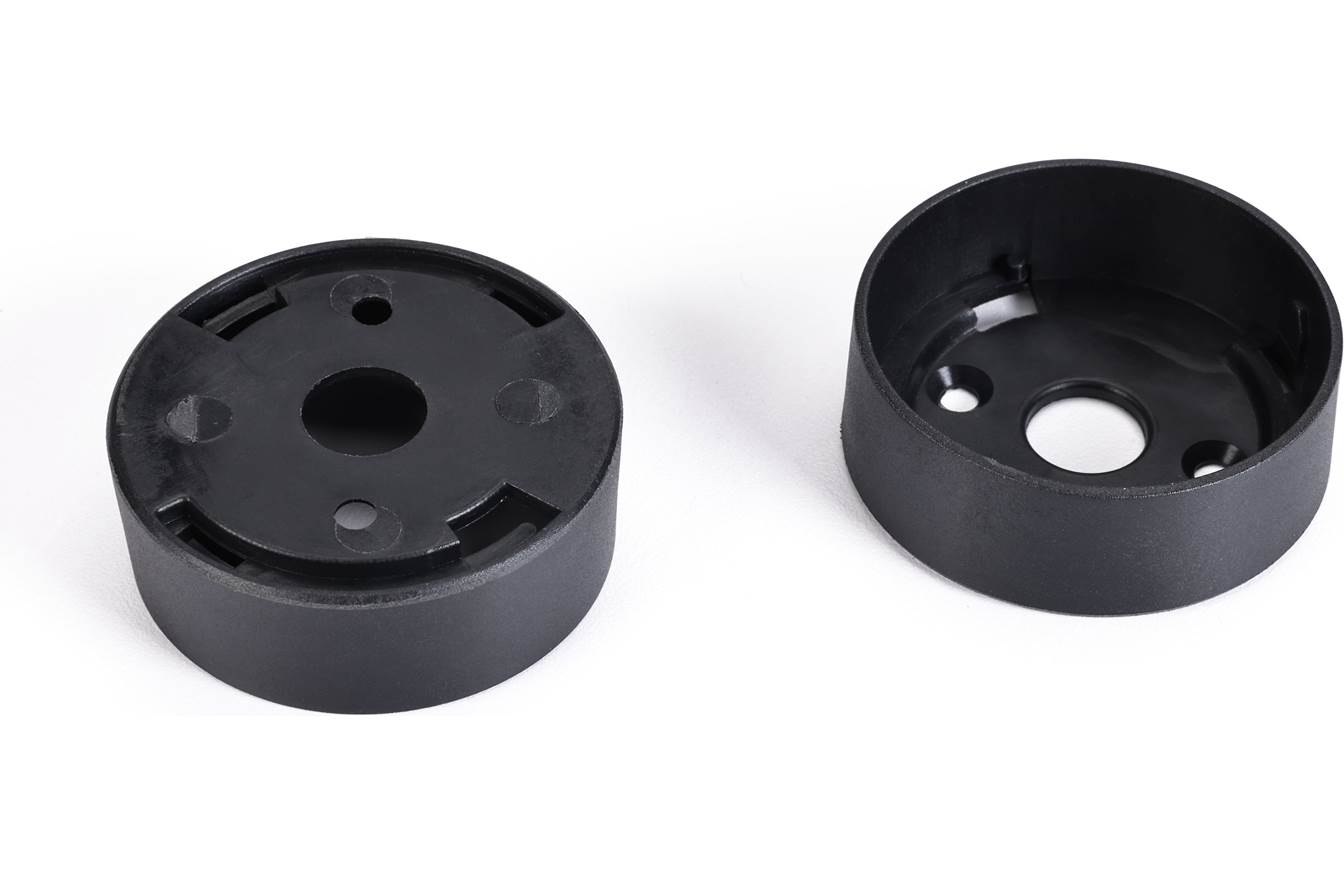

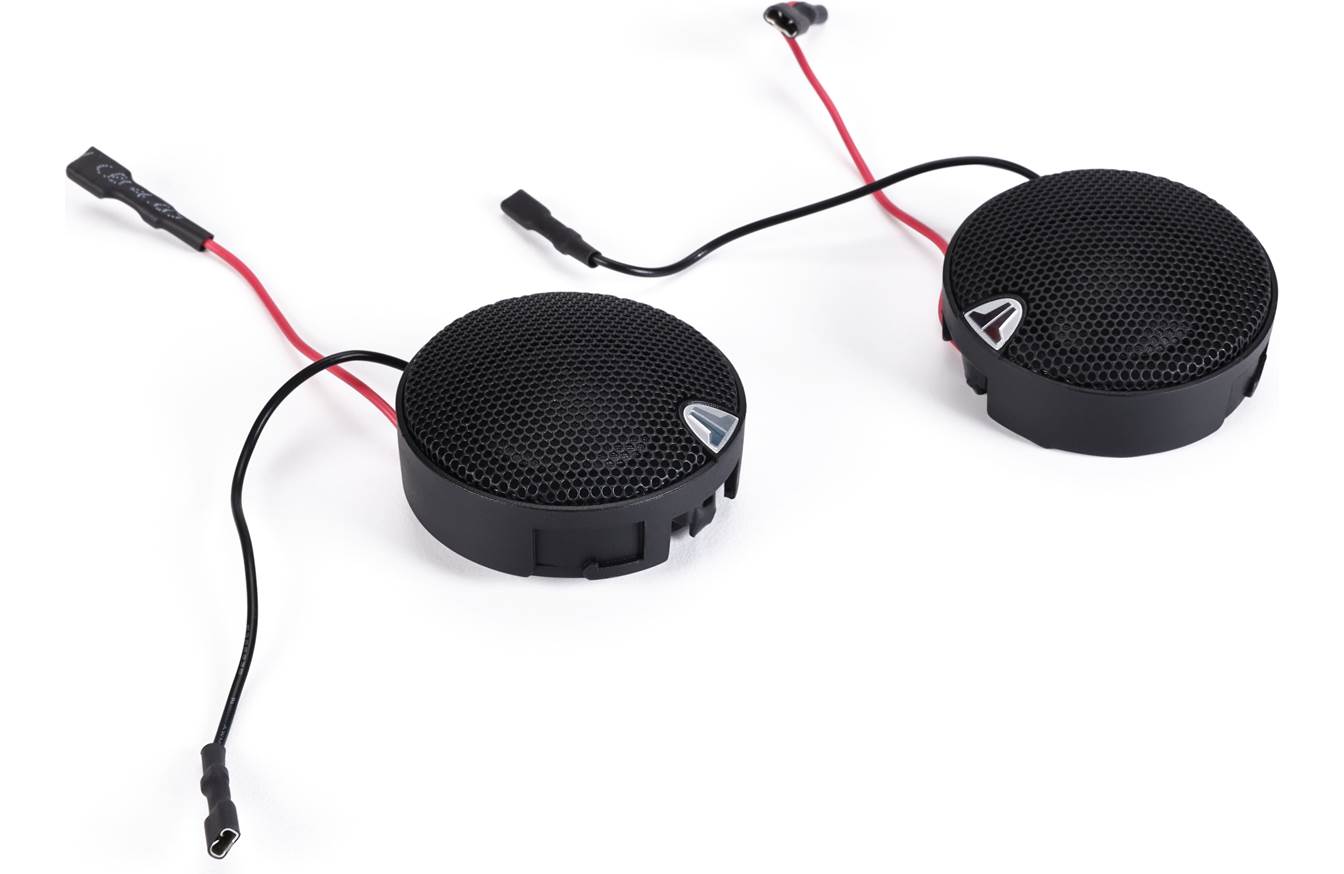

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

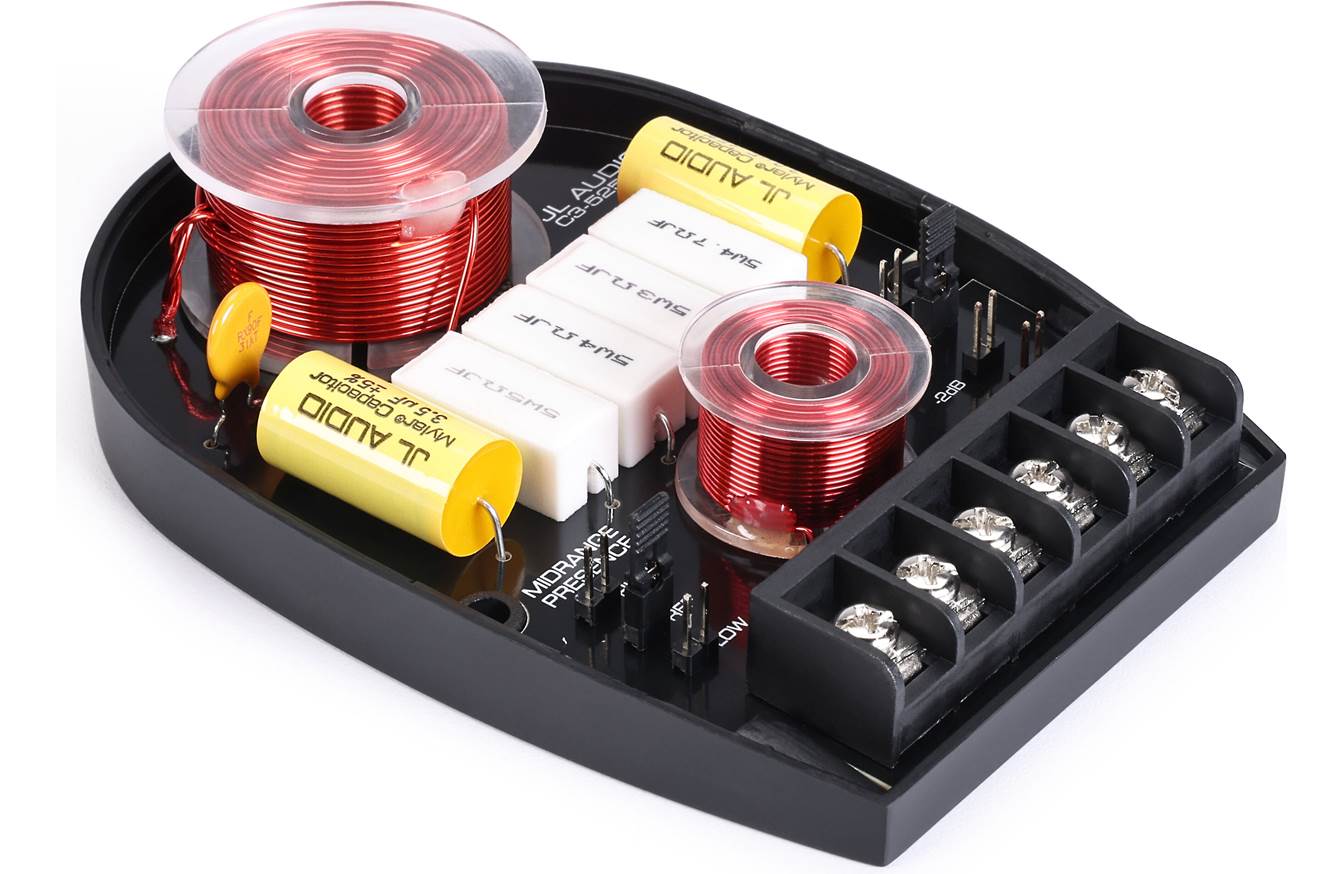

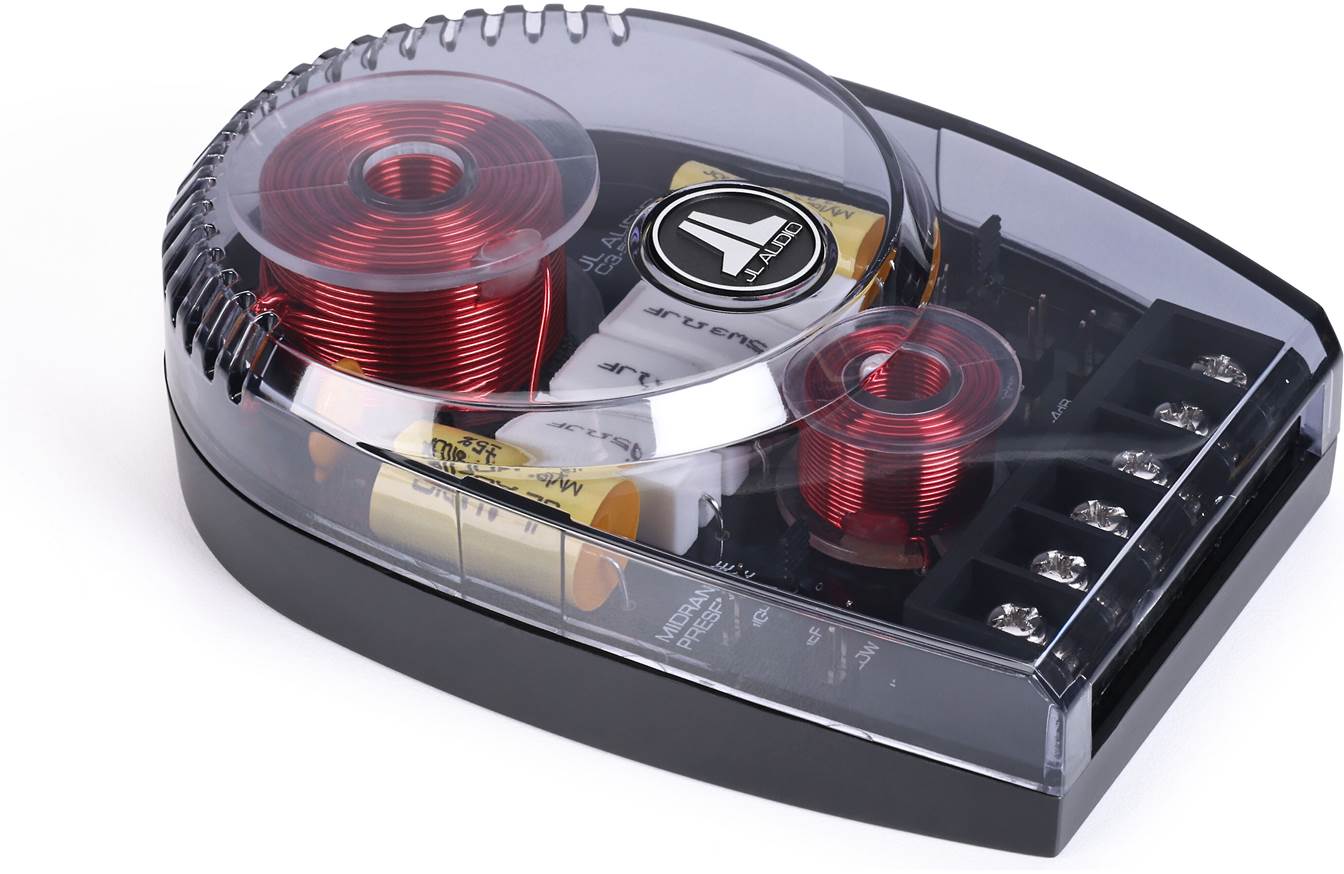

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

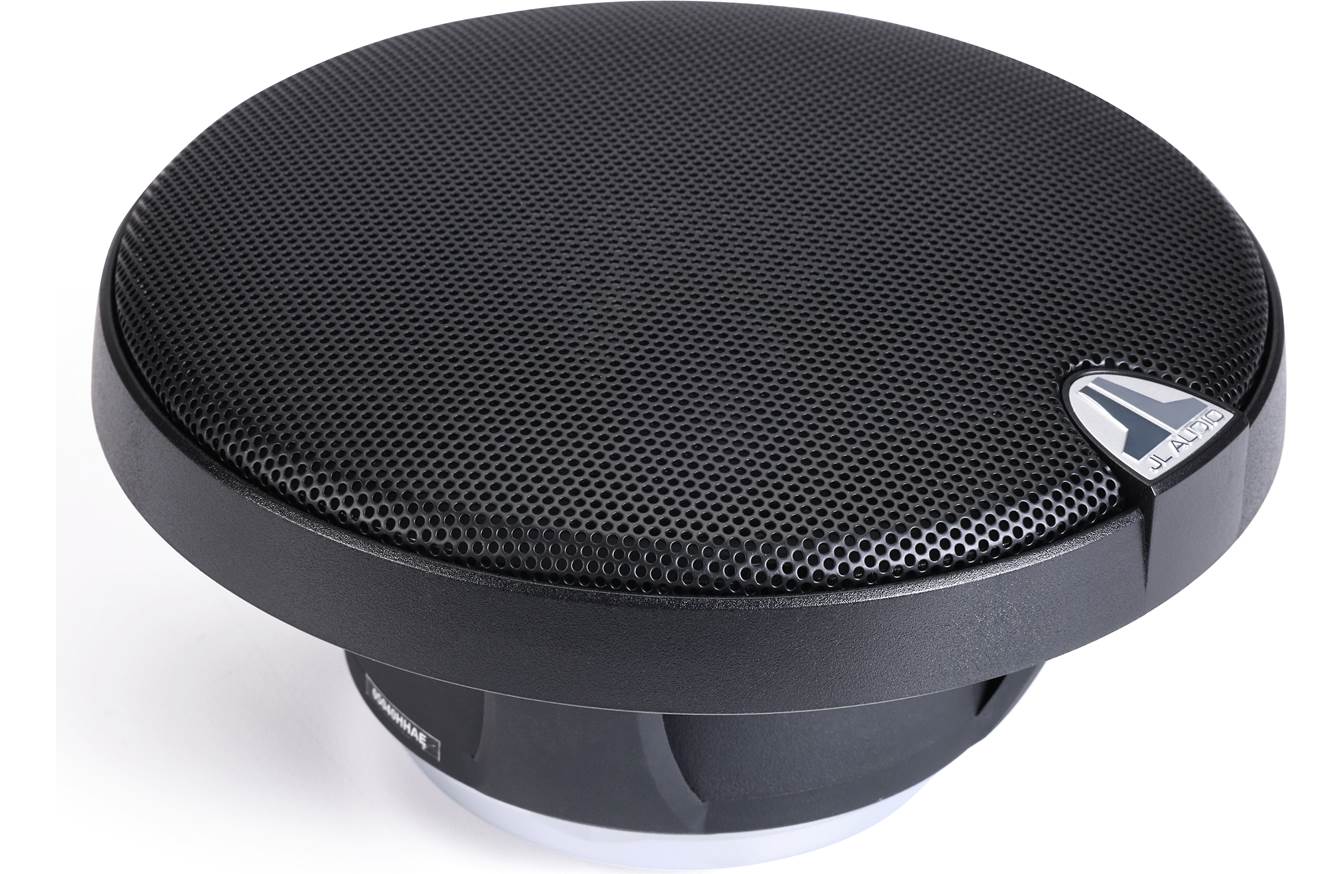

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 90.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 48 Hz - 25 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter* (A) | 5.80 in / 147 mm |
| Grille Tray Outer Diameter (B) | 6.00 in / 152 mm |
| Motor Outer Diameter** (C) | 3.38 in / 86 mm |
| Frontal Coaxial Tweeter Protrusion*** (D) | 0.69 in / 18 mm |
| Frontal Grille Protrusion**** (E) | 1.00 in / 25 mm |
| Mounting Hole Diameter (F) | 4.56 in / 116 mm |
| Mounting Depth (G) | 2.27 in / 58 mm |
|
*Does not take into account mounting tabs |
|
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A1) | 2.12 in / 54 mm |
| Surface Mount Fixture Diameter (A2) | 1.93 in / 49 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.875 in / 48 mm |
| Flush Mount Fixture Mounting Depth (C) | 0.71 in / 18 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.32 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) |
0.95 in / 24 mm |
Crossover Physical Specifications
| Width (W) | 3.36 in / 85 mm |
| Height (H) | 1.44 in / 37 mm |
| Depth (D) | 4.72 in / 120 mm |
