JL Audio C3-100ct 1" Silk Dome Tweeters, 75W RMS, 4Ω, Pair 010-03347-00 (99023)
JL Audio C3-100ct 1" Silk Dome Tweeters, 75W RMS, 4Ω, Pair 010-03347-00 (99023)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Part Number 010-03347-00
1-inch (25 mm) Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.

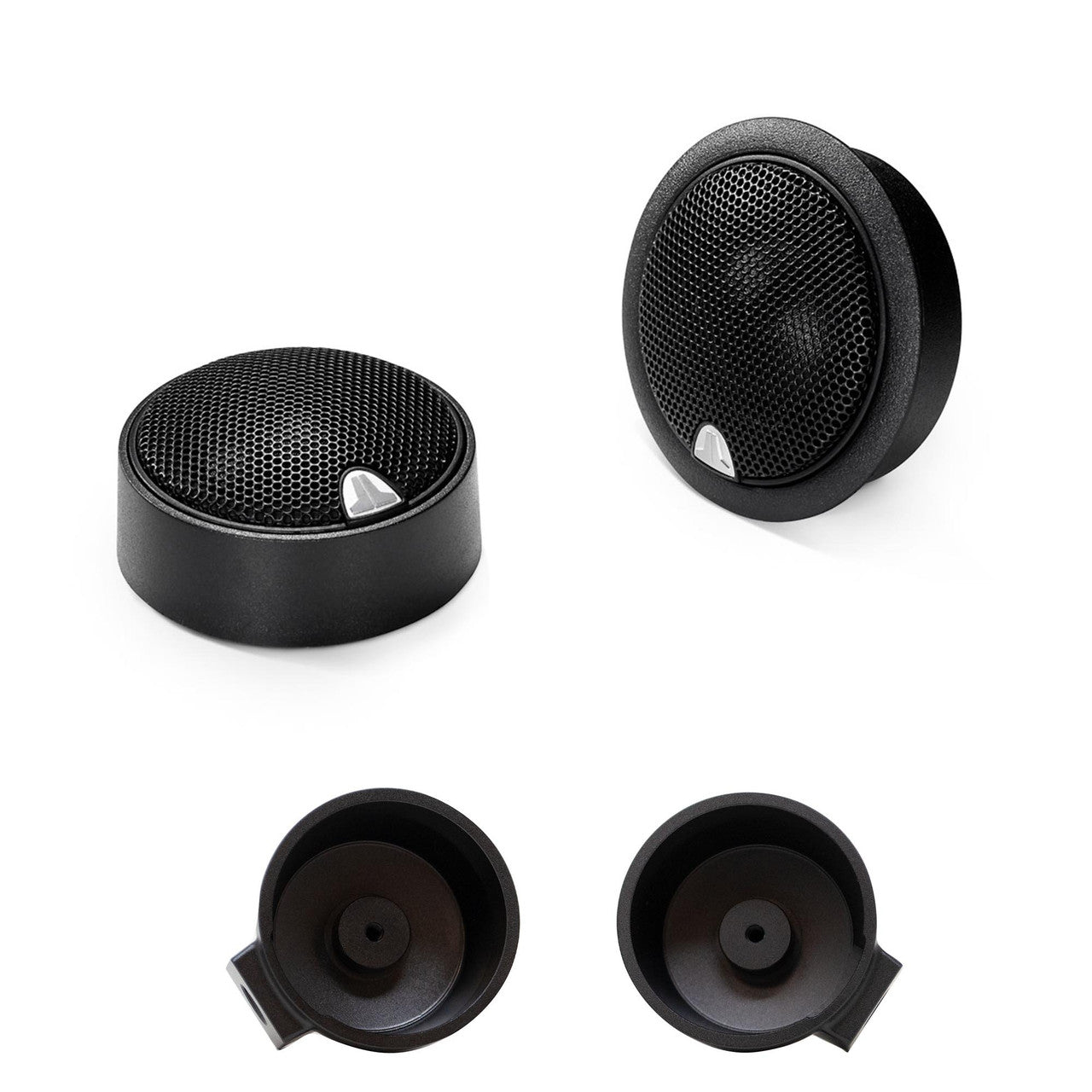

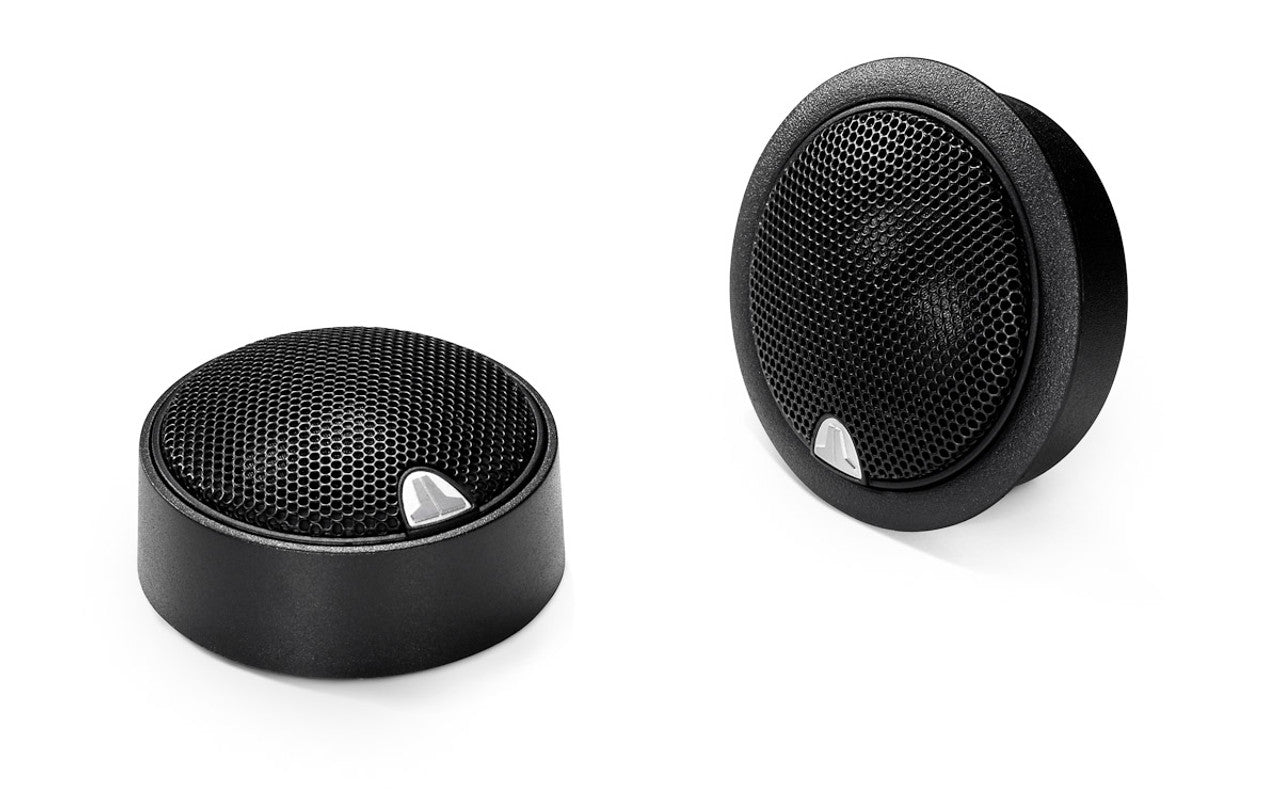

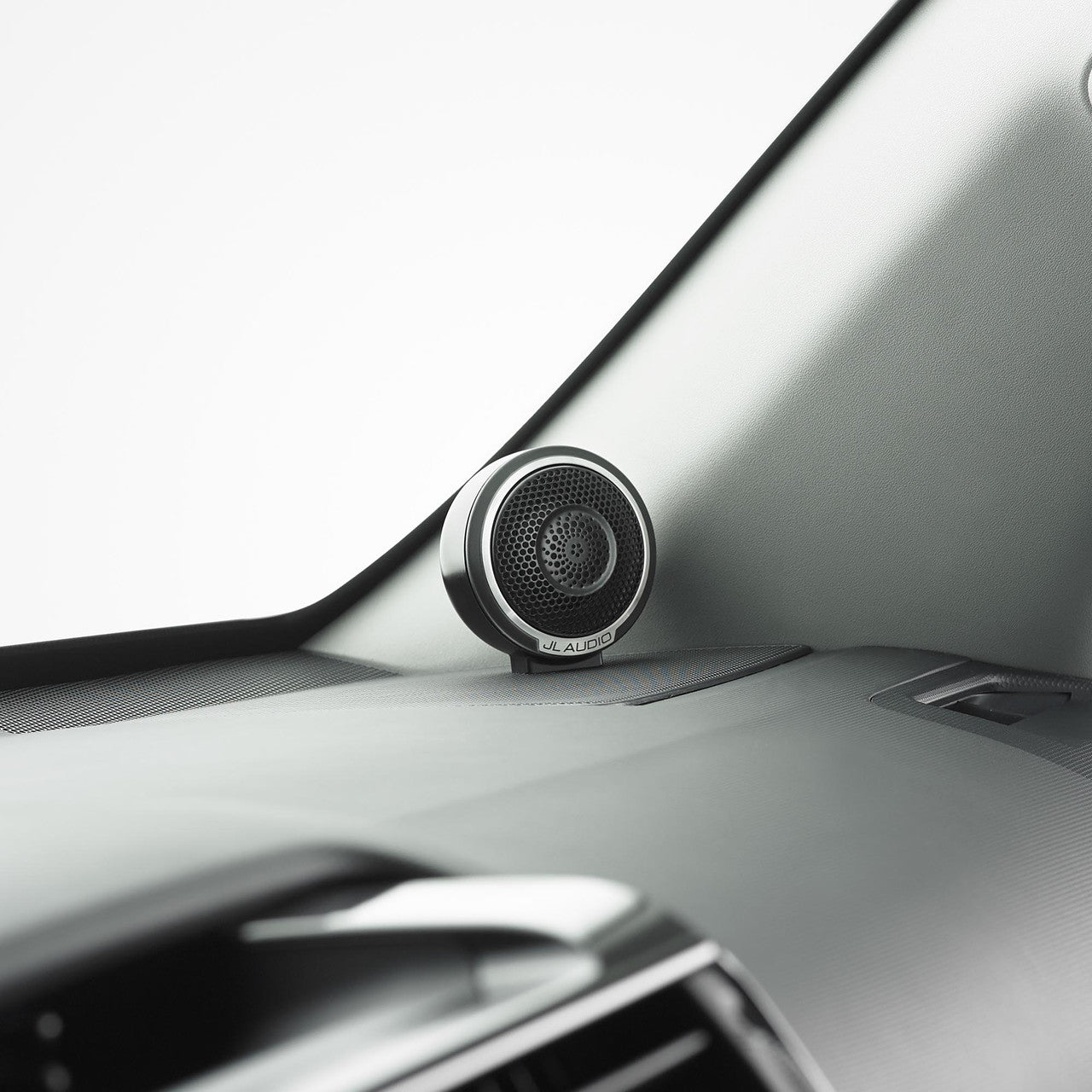

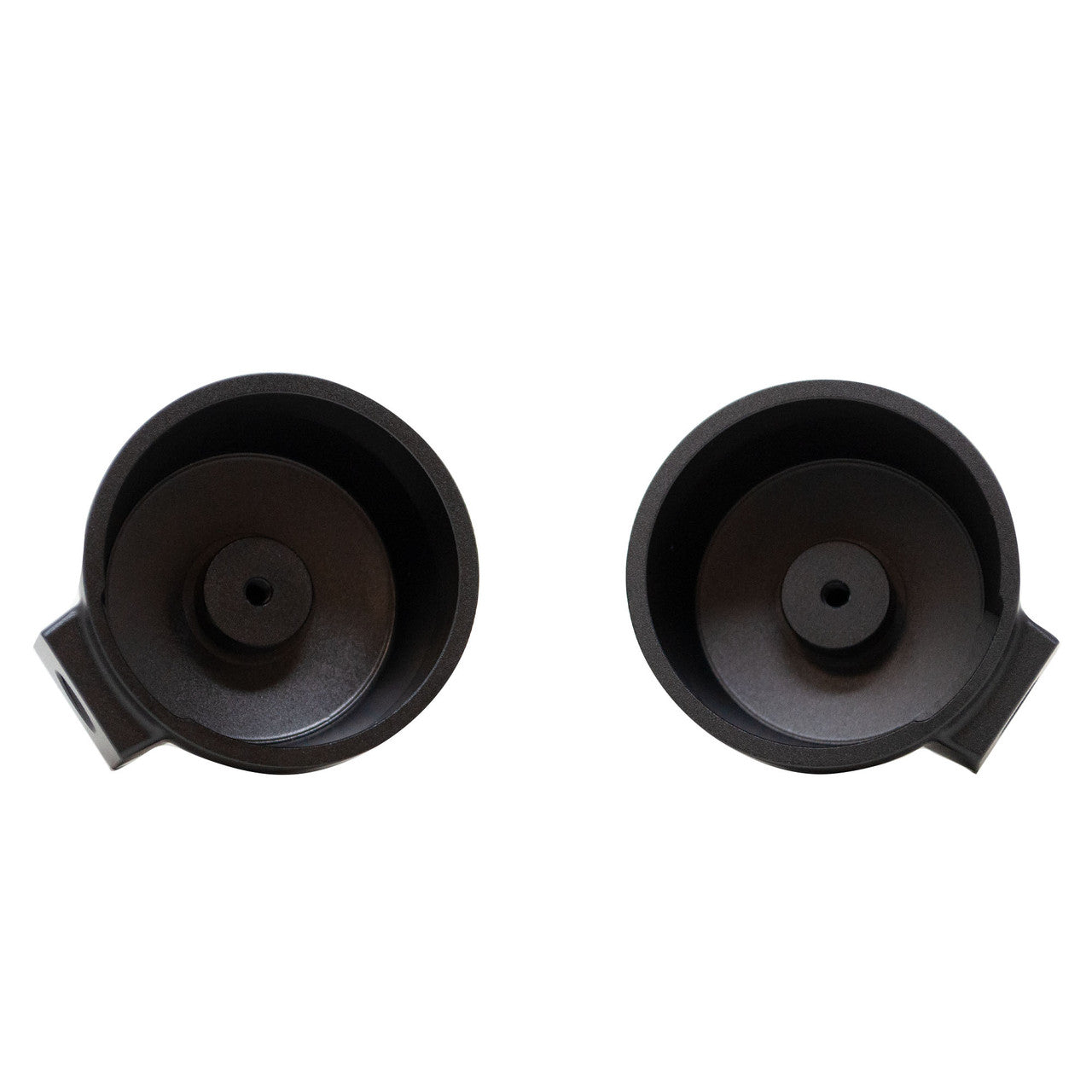

The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C3-100ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 90.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 4 kHz - 25 KHz ± 3 dB |
| *With supplied crossover | |
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A1) | 2.12 in / 54 mm |
| Surface Mount Fixture Diameter (A2) | 1.93 in / 49 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.875 in / 48 mm |
| Flush Mount Mounting Depth (C) | 0.71 in / 18.0 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.32 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.95 in / 24 mm |
