Part Number 010-03849-00
6.5-inch (165 mm) Component Woofer (Single)

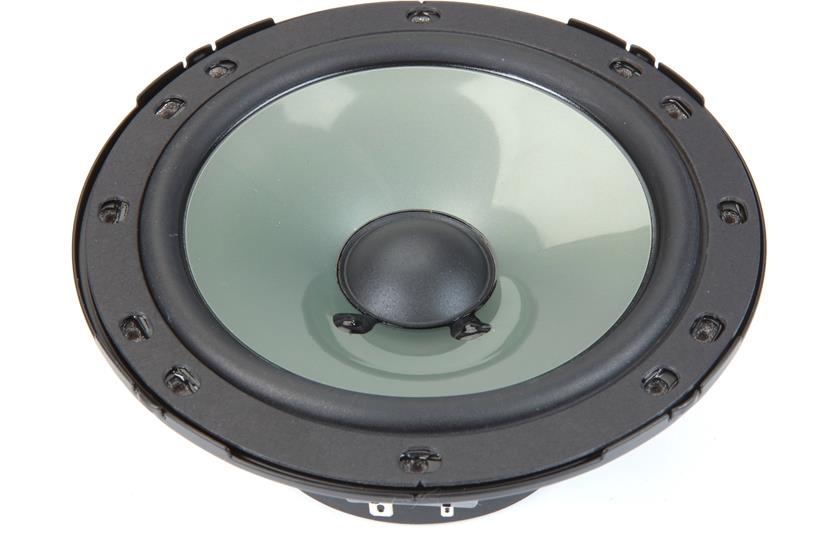

The C2-650cw is a 6.5-inch (165 mm) component woofer with mineral-filled polypropylene cone, long excursion capabilities and stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.

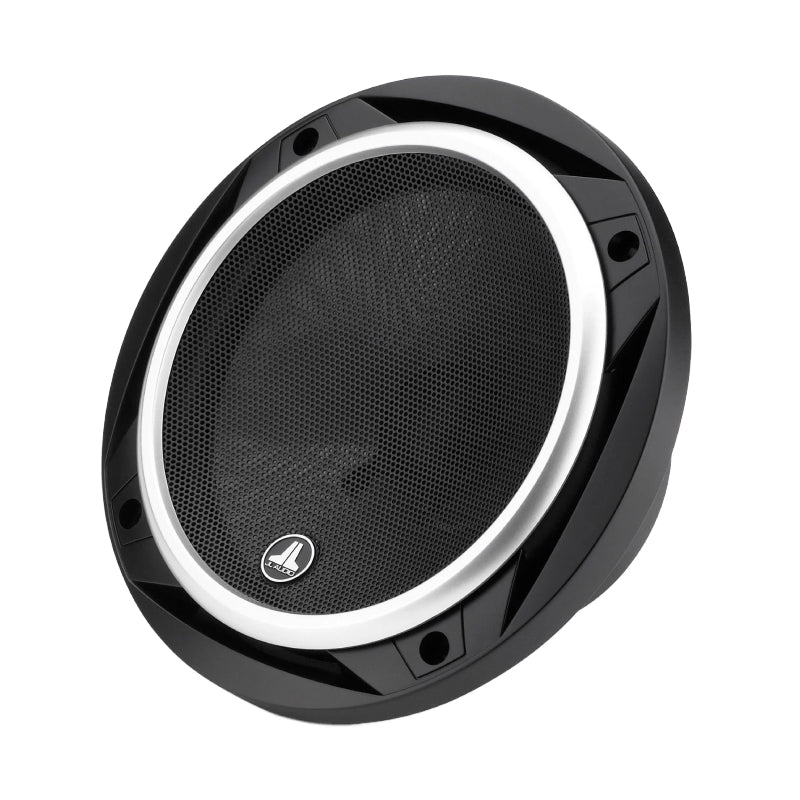

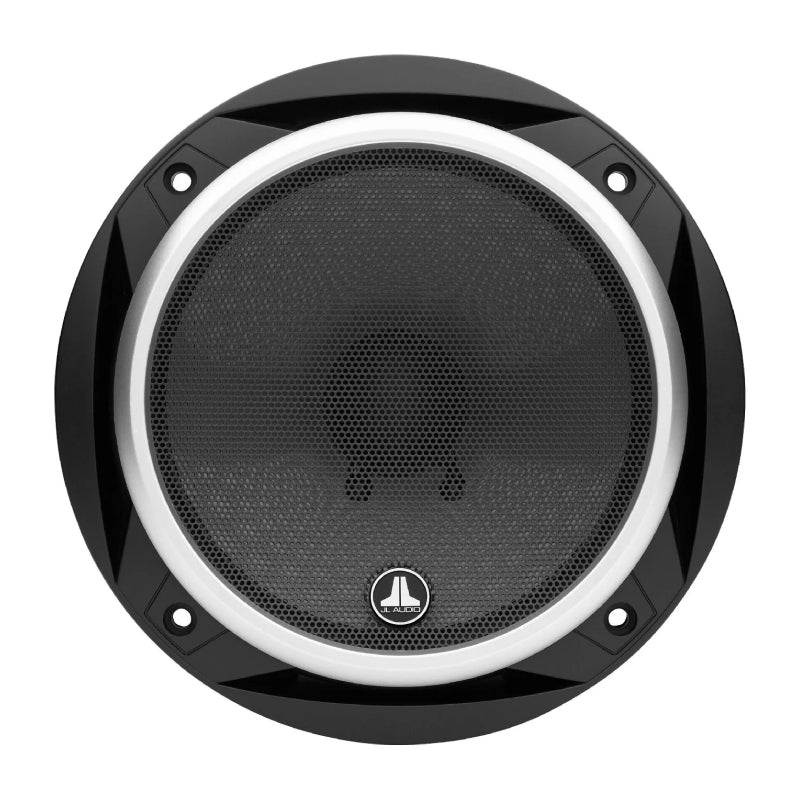

A woofer grille is included, consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold individually.
| Continuous Power Handling (RMS) | 60 W |
| Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
 |
|
| Frame Outer Diameter* (A) | 6.5 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.84 in / 174 mm |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion** (E) | 0.85 in / 22 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.44 in / 62 mm |
|
*Does not take into account mounting tabs
|
|
