JL Audio C2-650 6.5" Component Car Speakers 99617

Part Number 010-03361-00

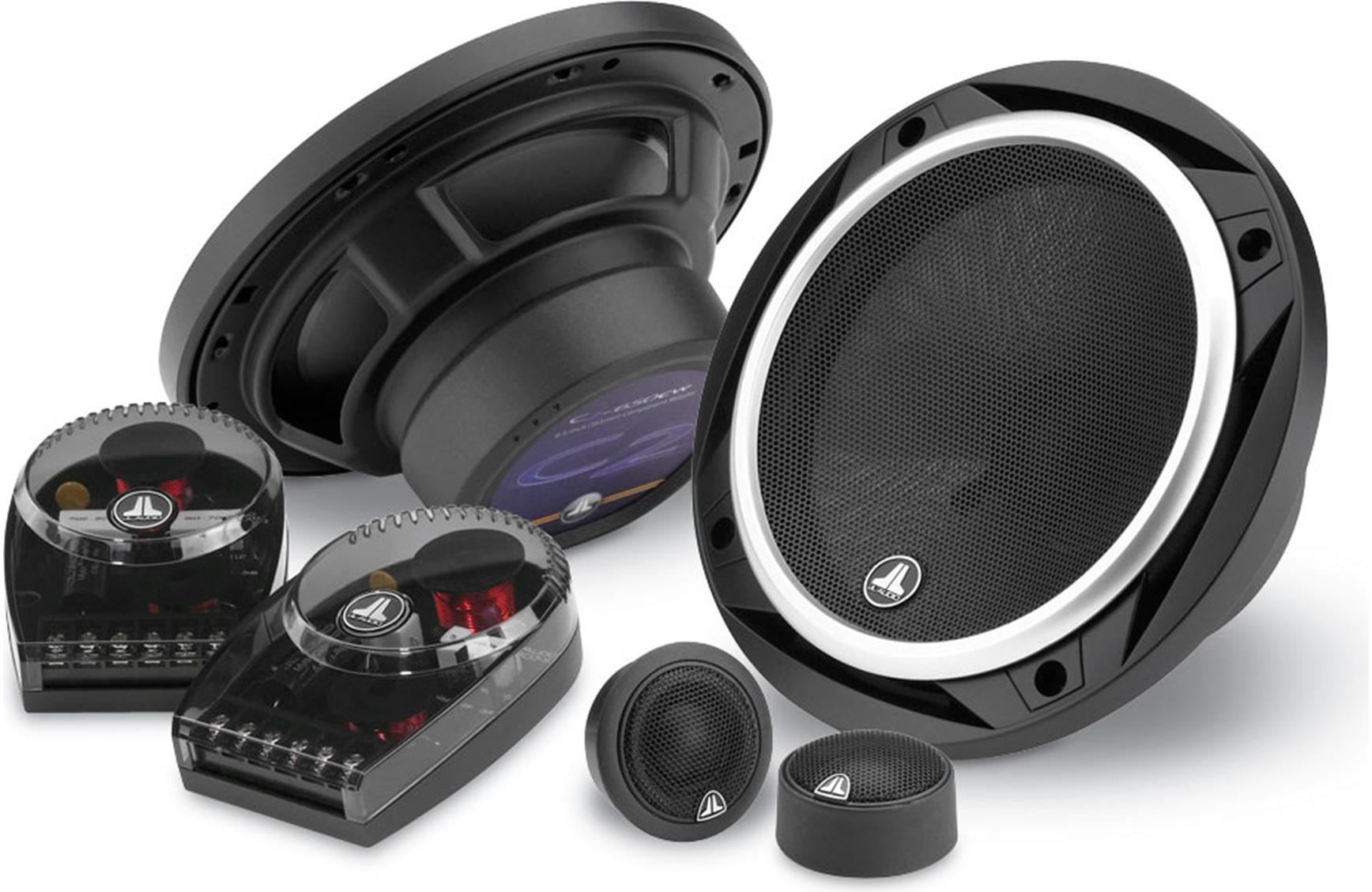

2-Way Component System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

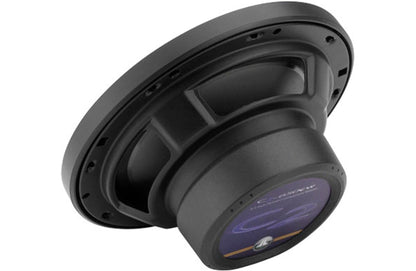

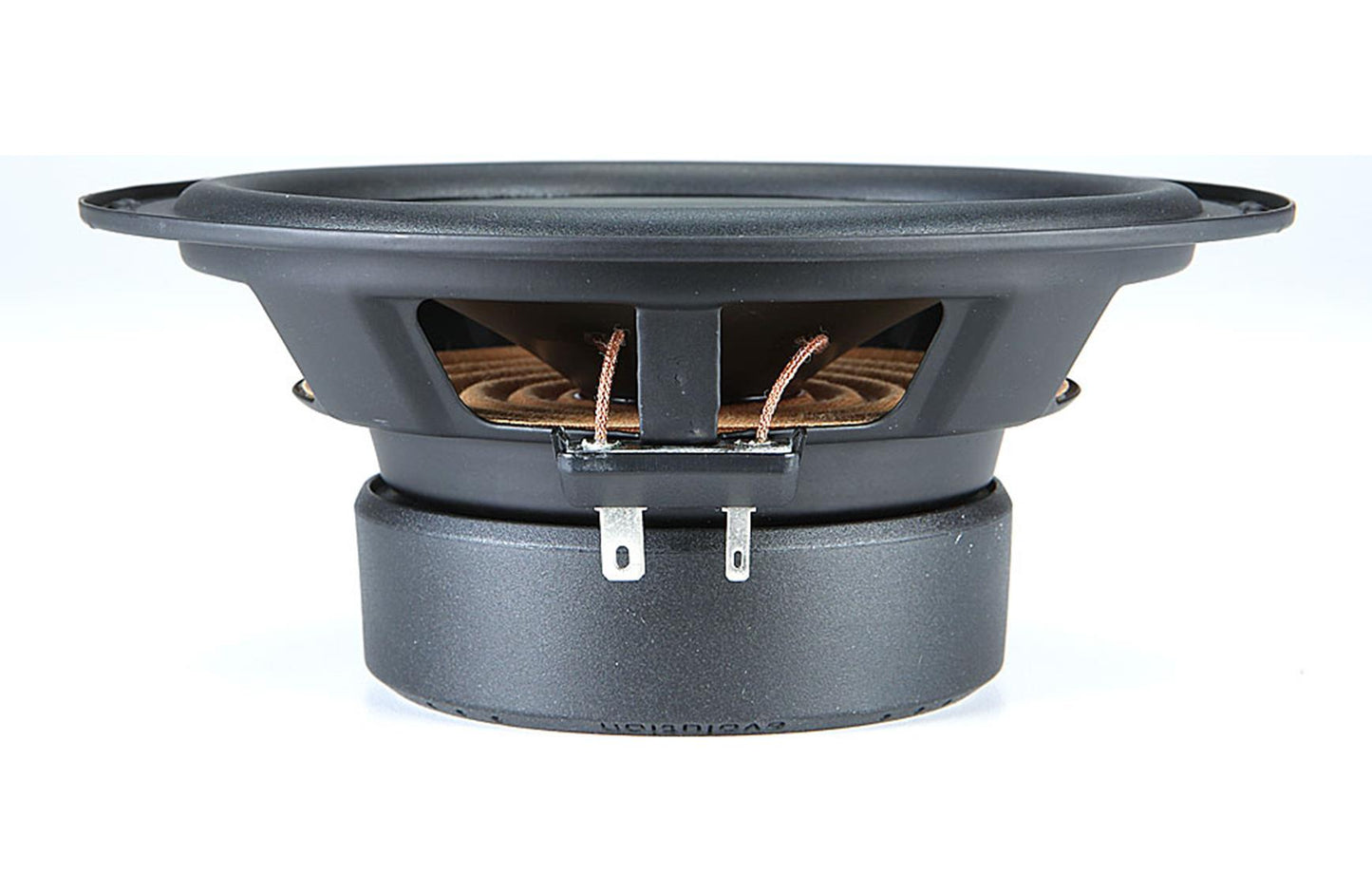

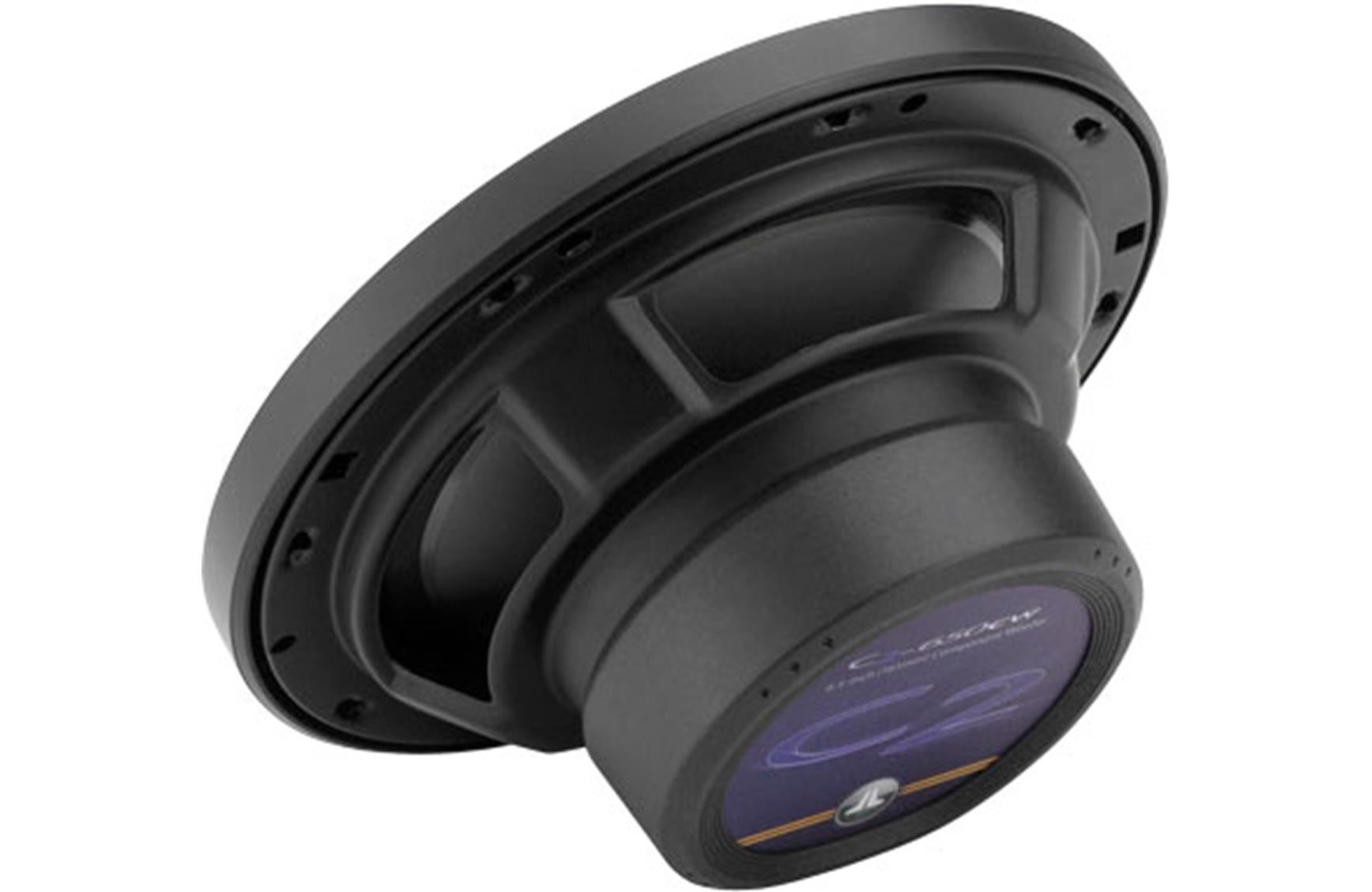

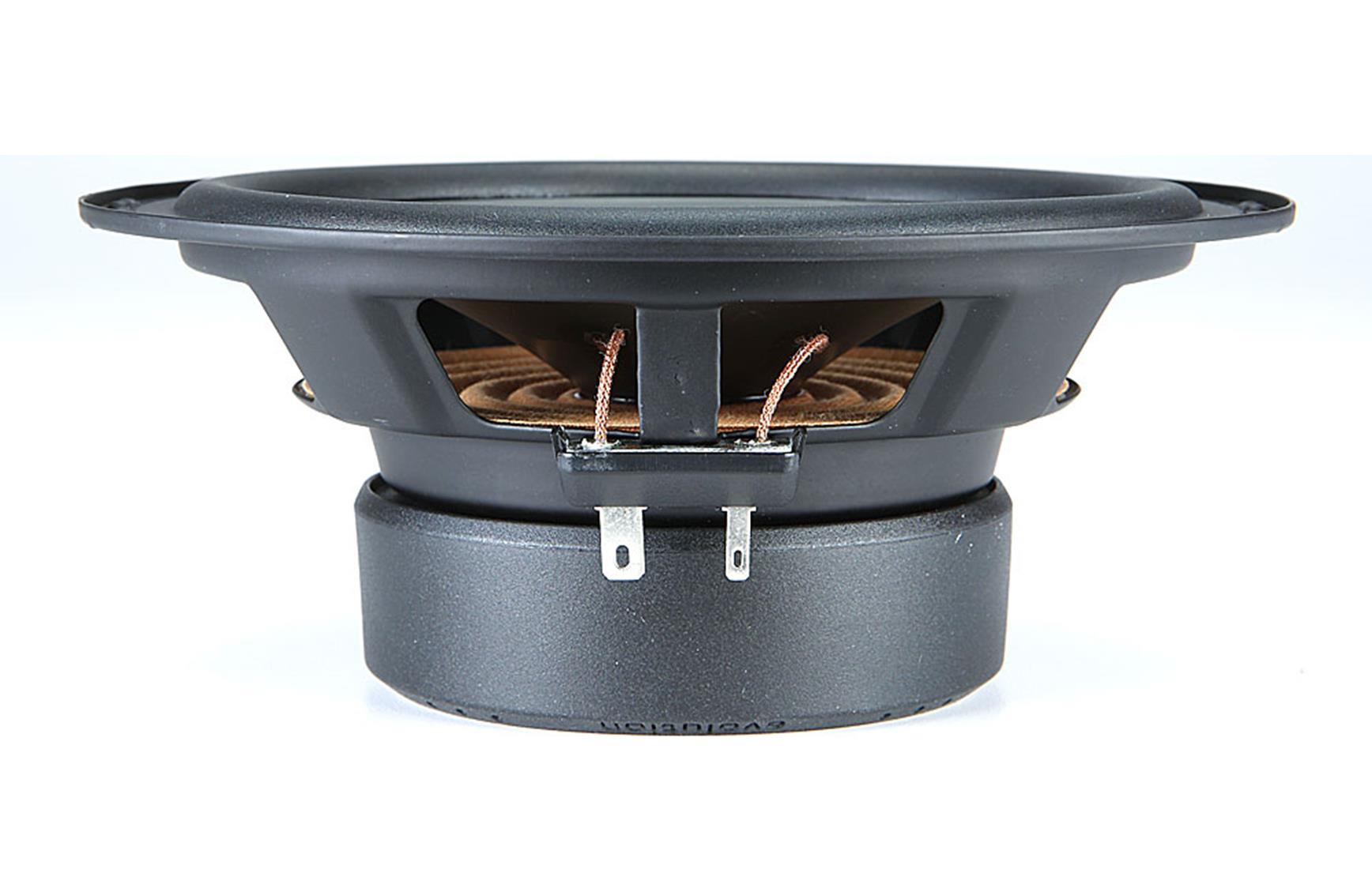

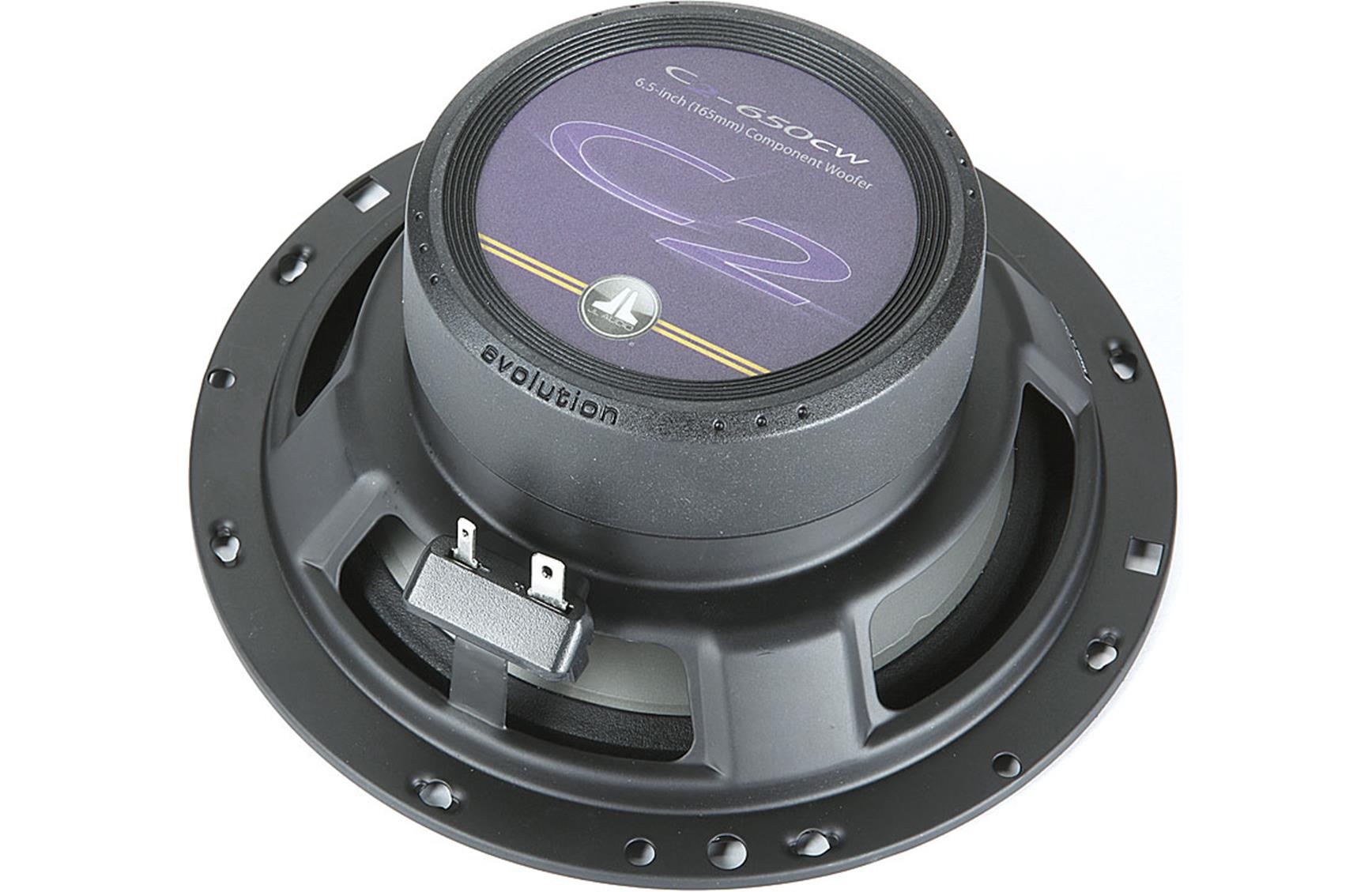

The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.

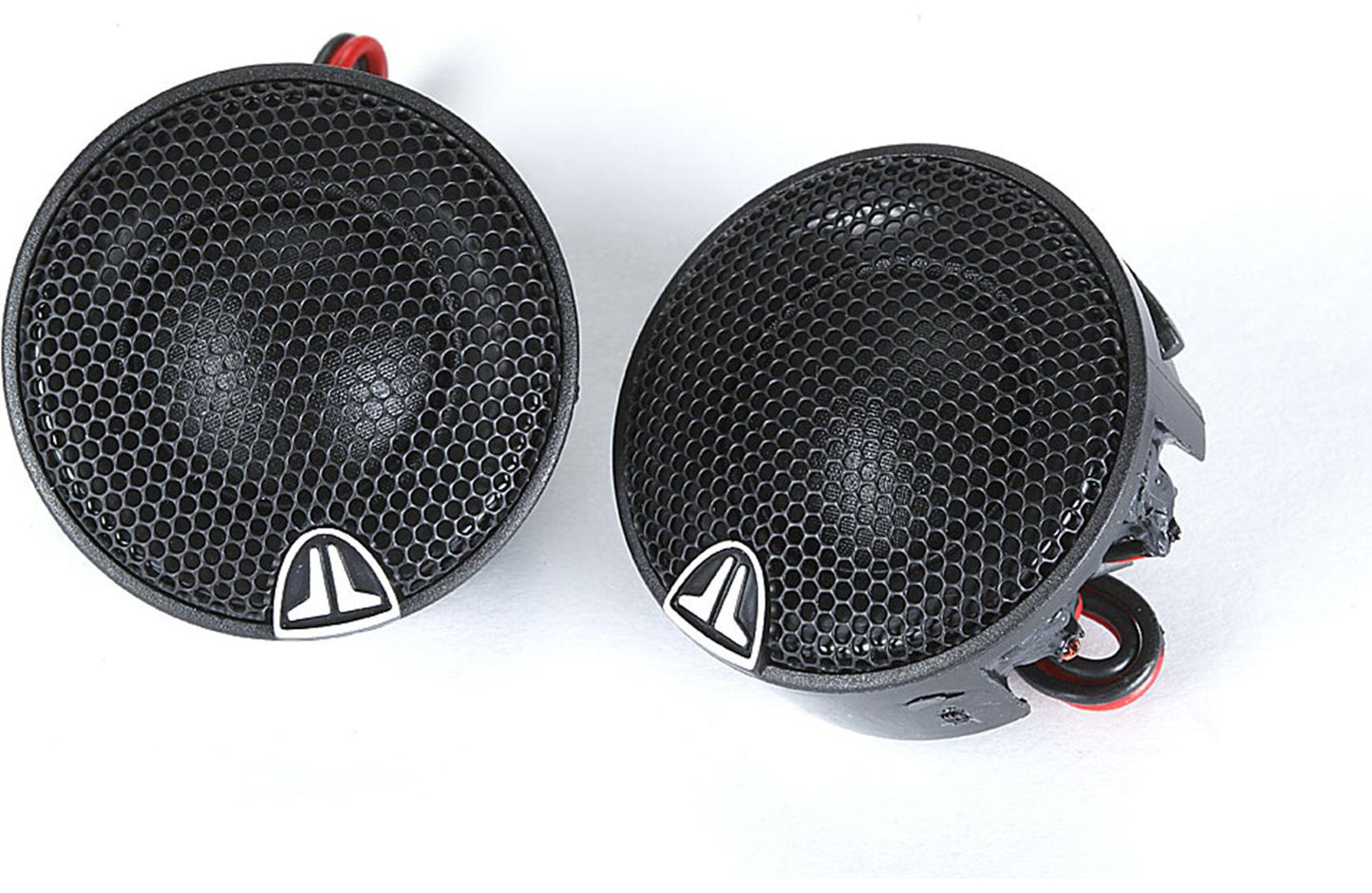

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

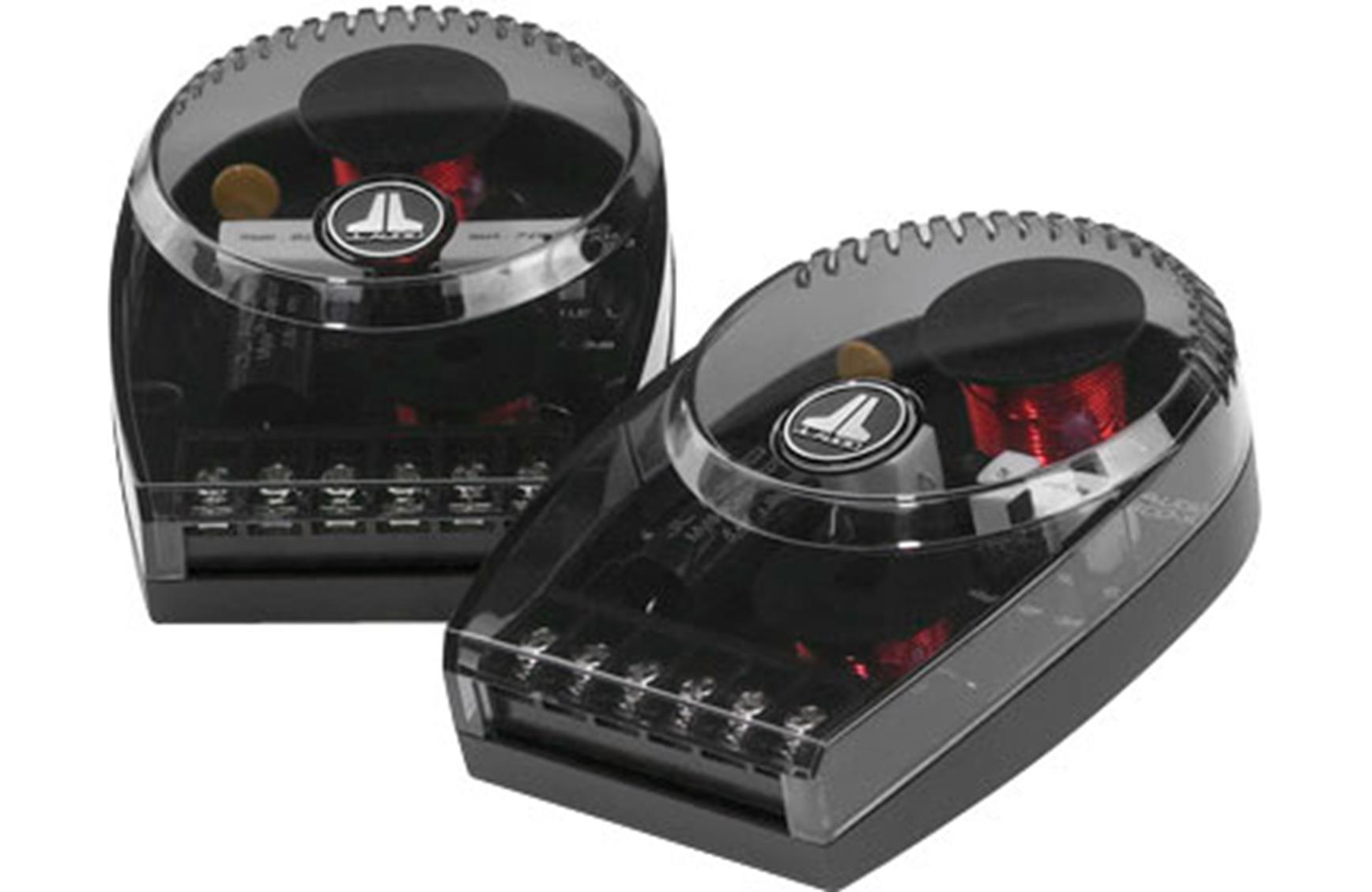

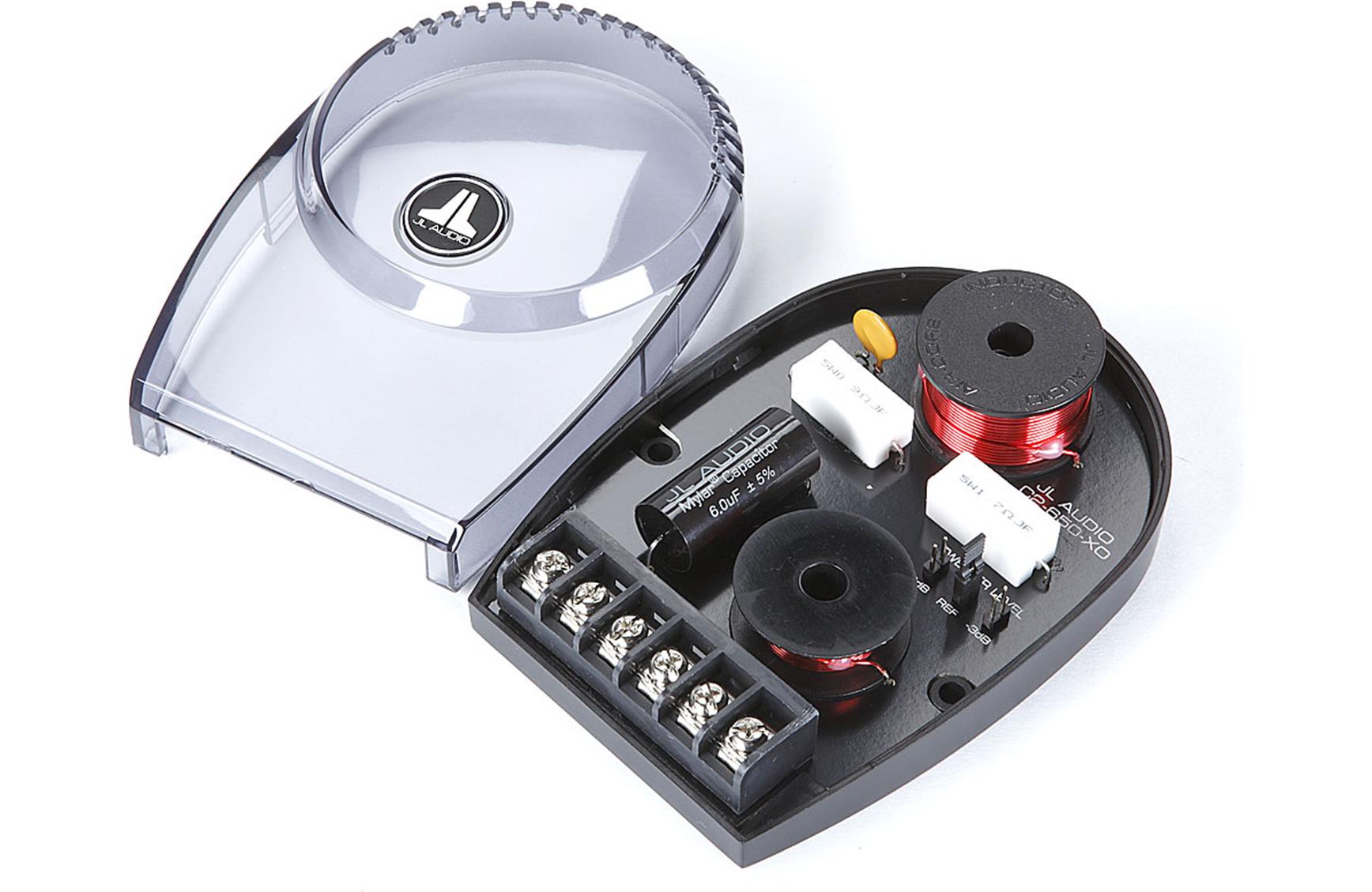

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

Sold as a pair.

Frame Outer Diameter* (A)	6.5 in / 165 mm
Grille Tray Outer Diameter (B)	6.84 in / 174 mm
Motor Outer Diameter (C)	3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion (D)	N/A
Frontal Grille Protrusion** (E)	0.85 in / 22 mm
Mounting Hole Diameter (F)	5.56 in / 141 mm
Mounting Depth (G)	2.44 in / 62 mm
*Does not take into account mounting tabs **Frontal grille protrusion measured from mounting surface   Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm Flush Mount Mounting Depth (C) 0.76 in / 19 mm Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm



Width (W)	3.36 in / 85 mm
Height (H)	1.44 in / 37 mm
Depth (D)	4.72 in / 120 mm
