JL Audio C2-600cw 6" Car Speaker (single woofer only) 99626

***This item requires 3 days handling time***

General Description:

6-inch (150 mm) 2-Way Component Woofer (Single)

The Evolution C2 speakers deliver smooth mid-range and powerful mid-bass thanks to long linear excursion woofer designs.

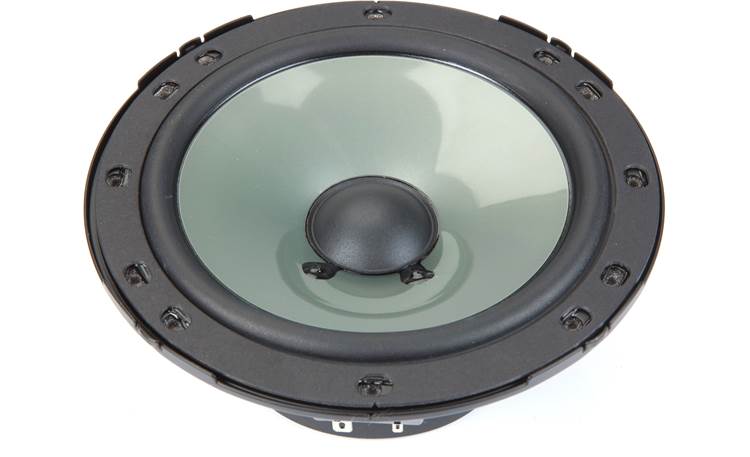

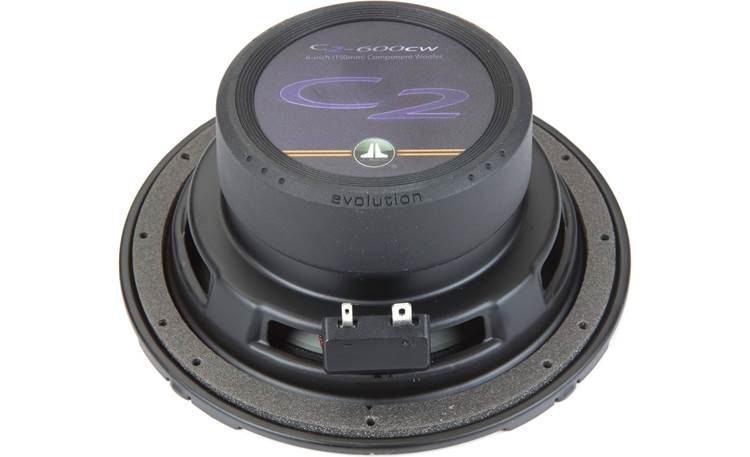

The C2-600cw is a 6-inch (150 mm) component woofer with mineral-filled polypropylene cone, long excursion capabilities and a stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.

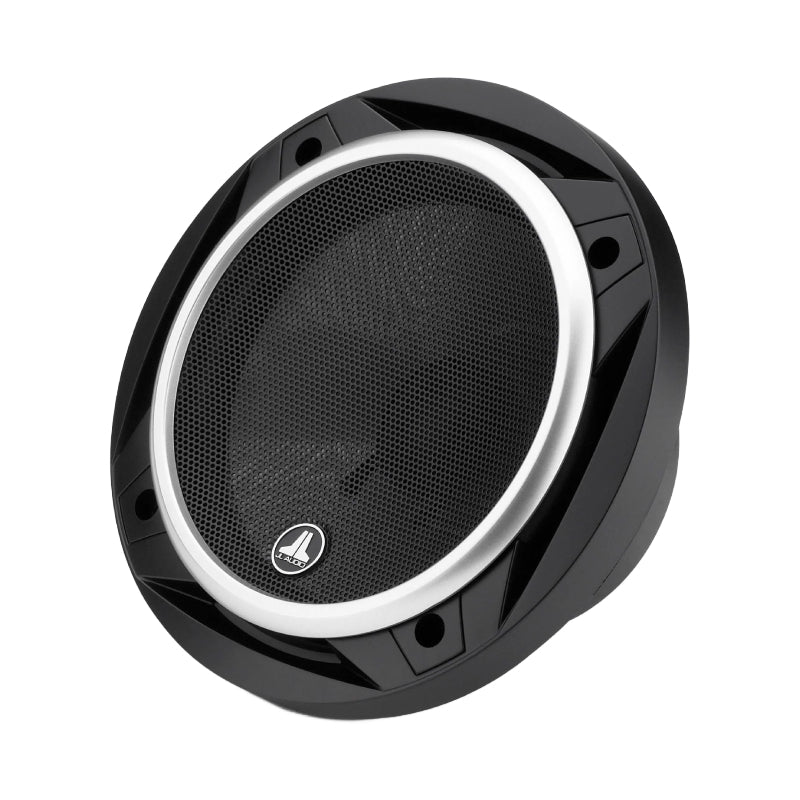

A woofer grille is included, consisting of a black grille tray with satin silver accent and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

Sold individually.

General Specifications

Continuous Power Handling (RMS)	60 W
Recommended Amplifier Power (RMS)	15 - 100 W / Ch.
System Efficiency	90.5 dB @ 1 W / 1 m
System Nominal Impedance	4 Ω
System Frequency Response	59 Hz - 22 KHz ± 3 dB

Woofer Physical Specifications

Frame Outer Diameter* (A)	6.21 in / 158 mm
Grille Tray Outer Diameter (B)	6.51 in / 163 mm
Motor Outer Diameter (C)	3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion (D)	N/A
Frontal Grille Protrusion** (E)	0.91 in / 23 mm
Mounting Hole Diameter (F)	5.00 in / 127 mm
Mounting Depth (G)	2.38 in / 60 mm
*Does not take into account mounting tabs **Frontal grille protrusion measured from mounting surface
