JL Audio
JL Audio C2-600 6" Component Car Speakers, 60W RMS, 4Ω, Pair 010-03359-00 (99615)
JL Audio C2-600 6" Component Car Speakers, 60W RMS, 4Ω, Pair 010-03359-00 (99615)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Part Number 010-03359-00
General Description:

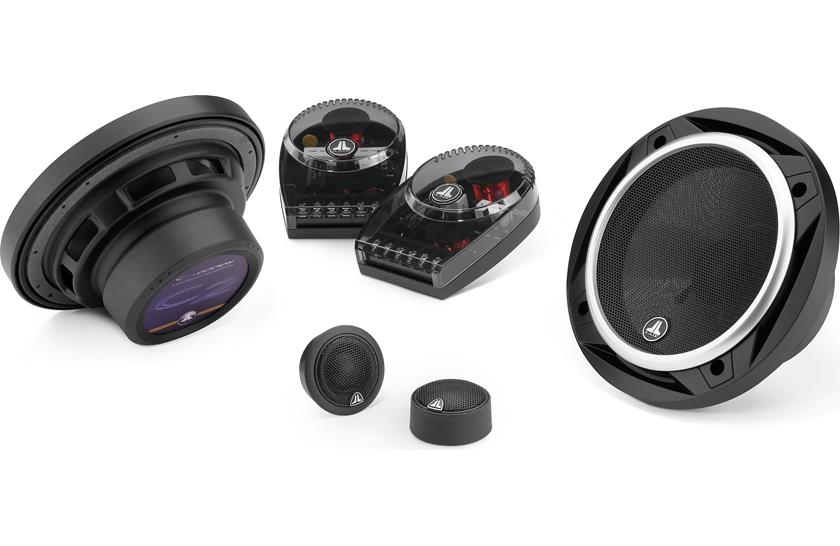

2-Way Component System: 6-inch (150 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

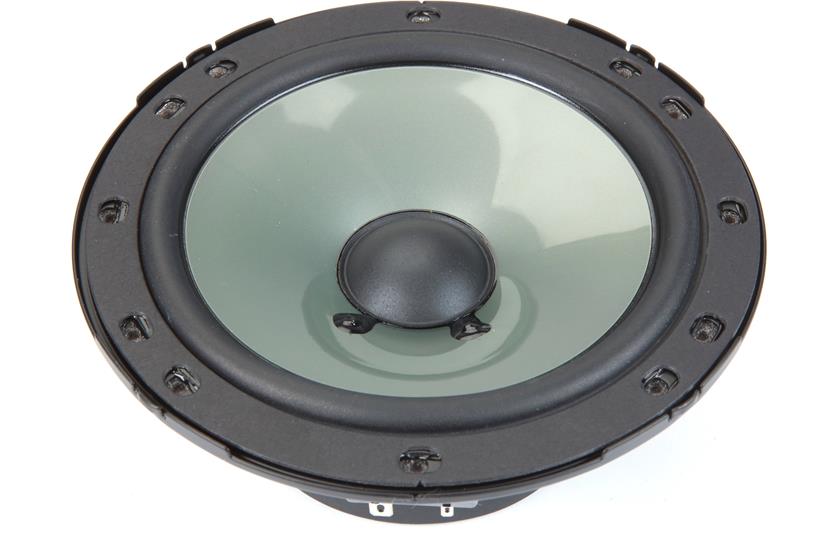

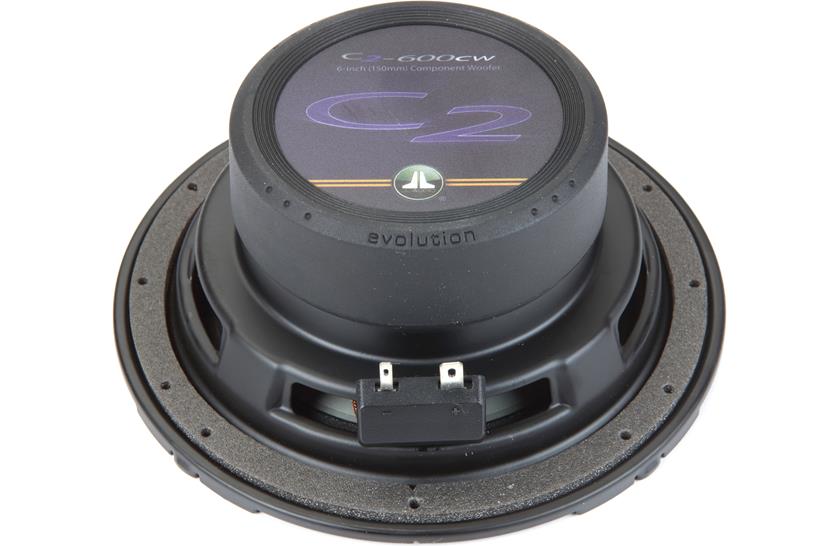

The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.

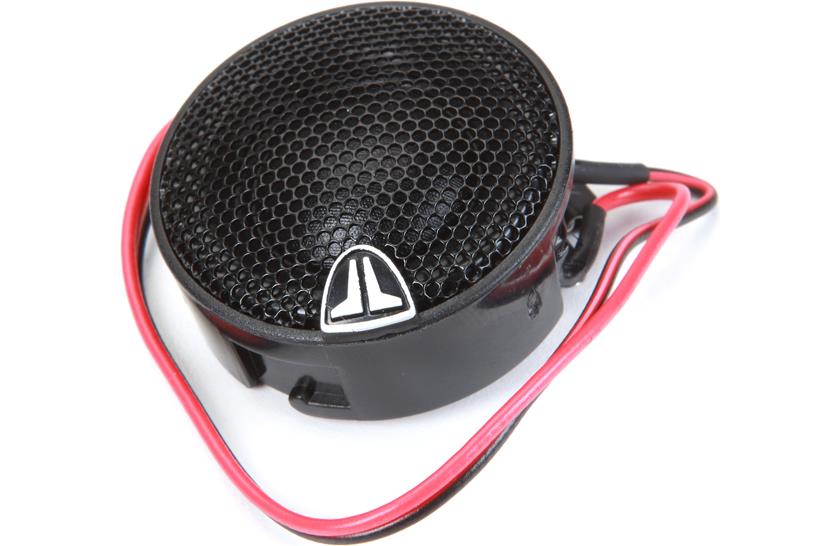

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

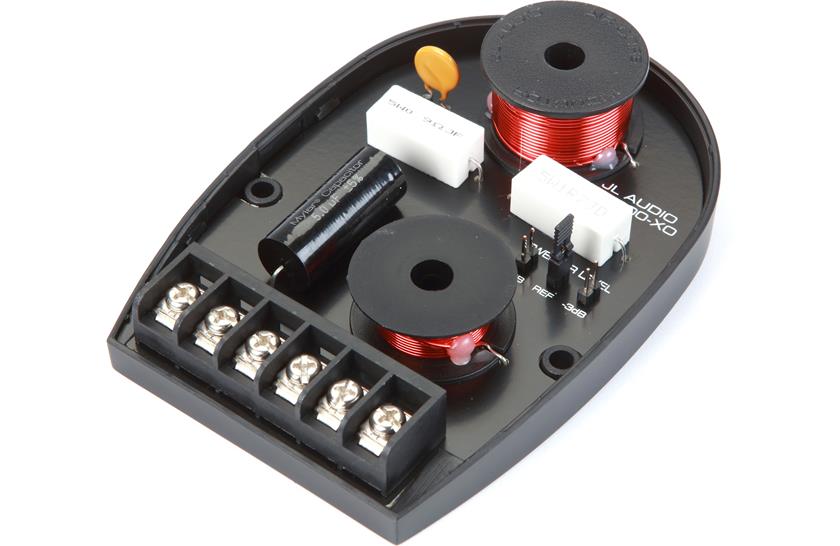

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
Woofer Physical Specifications
| Frame Outer Diameter* (A) | 6.21 in / 158 mm |
| Grille Tray Outer Diameter (B) | 6.51 in / 163 mm |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion** (E) | 0.91 in / 23 mm |
| Mounting Hole Diameter (F) | 5.00 in / 127 mm |
| Mounting Depth (G) | 2.38 in / 60 mm |
|
*Does not take into account mounting tabs |
|
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A1) | 1.87 in / 48 mm |
| Surface Mount Fixture Diameter (A2) | 1.69 in / 43 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.625 in / 41 mm |
| Flush Mount Mounting Depth (C) | 0.76 in / 19 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.29 in / 7 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.92 in / 23 mm |
Crossover Physical Specifications
| Width (W) | 3.36 in / 85 mm |
| Height (H) | 1.44 in / 37 mm |
| Depth (D) | 4.72 in / 120 mm |
