JL Audio

JL Audio C2-525cw 5.25" Component Woofer Speaker, Single 99625

JL Audio C2-525cw 5.25" Component Woofer Speaker, Single 99625

Regular price $159.99 USD
Regular price $159.99 USD Sale price $159.99 USD
Sale Sold out
Shipping calculated at checkout.
**This item has an additional 3 days handling time**

Part Number 010-03847-00

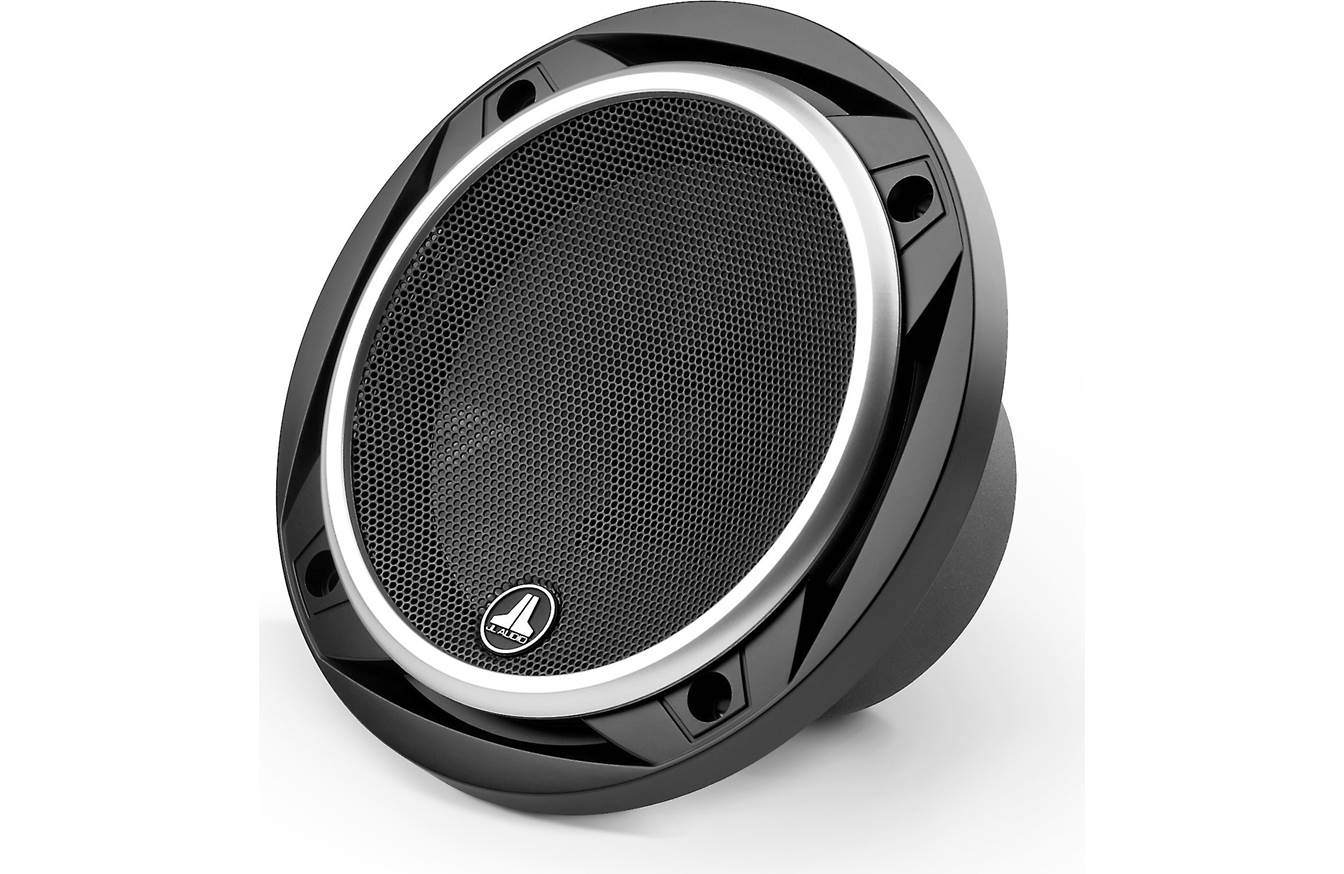

5.25-inch (130 mm) 2-Way Component Woofer (Single)

The C2-525cw is a 5.25-inch (130 mm) component woofer with mineral-filled polypropylene cone, long excursion capabilities and stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

A woofer grille is included, consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

Sold individually.

General Specifications

Continuous Power Handling (RMS) 60 W
Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
System Efficiency 89.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 63 Hz - 22 KHz ± 3 dB



Woofer Physical Specifications

Lineart Bottom-View and Side-View of C2-525 Component Speaker with dimension labels A-G
Frame Outer Diameter* (A) 5.20 in / 132 mm
Grille Tray Outer Diameter (B) 6.01 in / 153 mm
Motor Outer Diameter (C) 2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion** (E) 0.72 in / 18 mm
Mounting Hole Diameter (F) 4.56 in / 116 mm
Mounting Depth (G) 2.50 in / 64 mm

*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface
