JL Audio C2-075ct 0.75" Silk Dome Tweeters (Car Speakers) 010-03355-00 (99610)

Part Number 010-03355-00

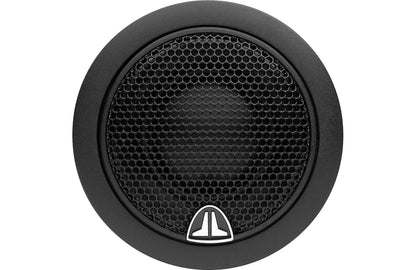

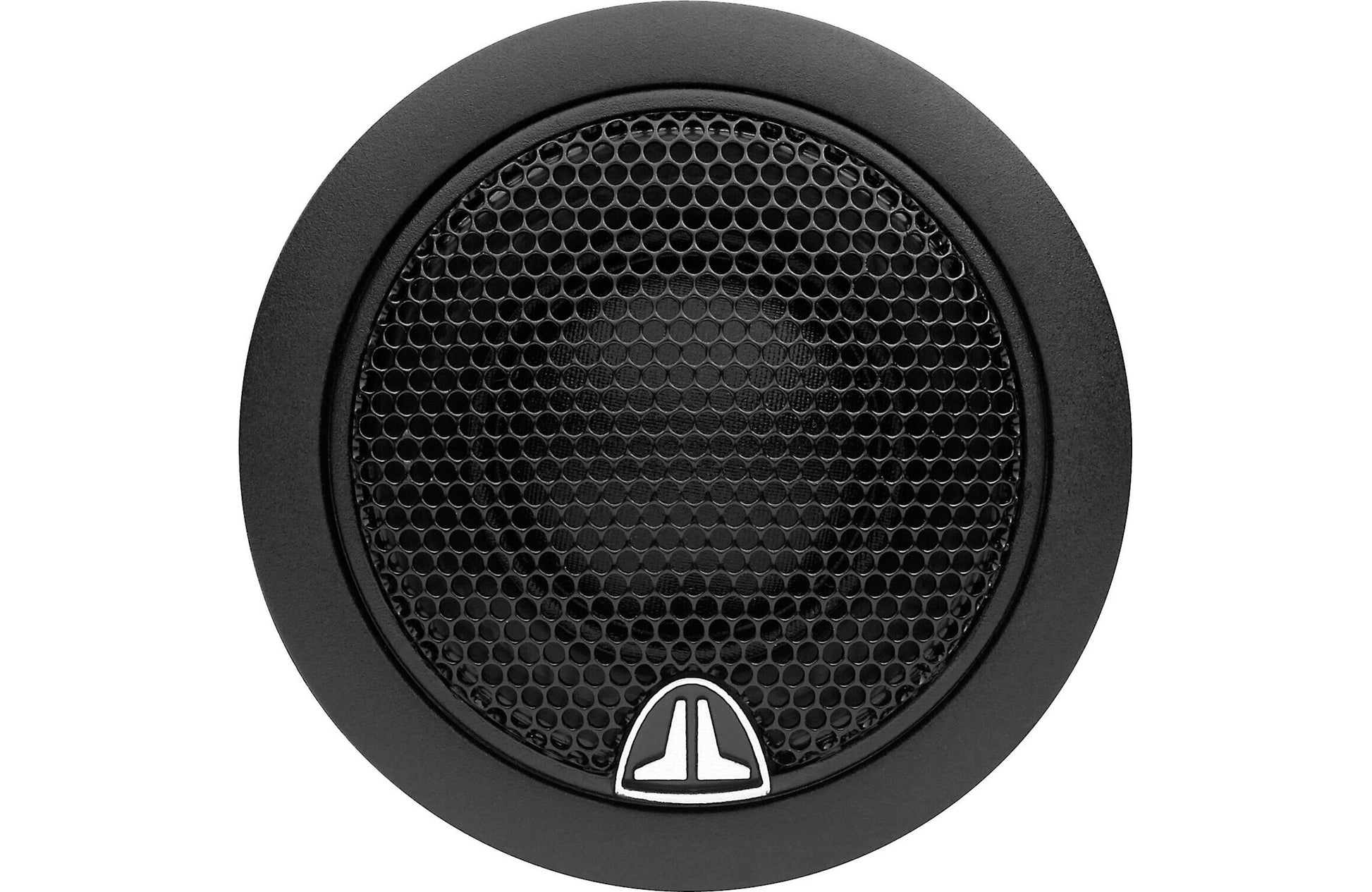

0.75-inch (19 mm) Silk Dome Tweeters

The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.

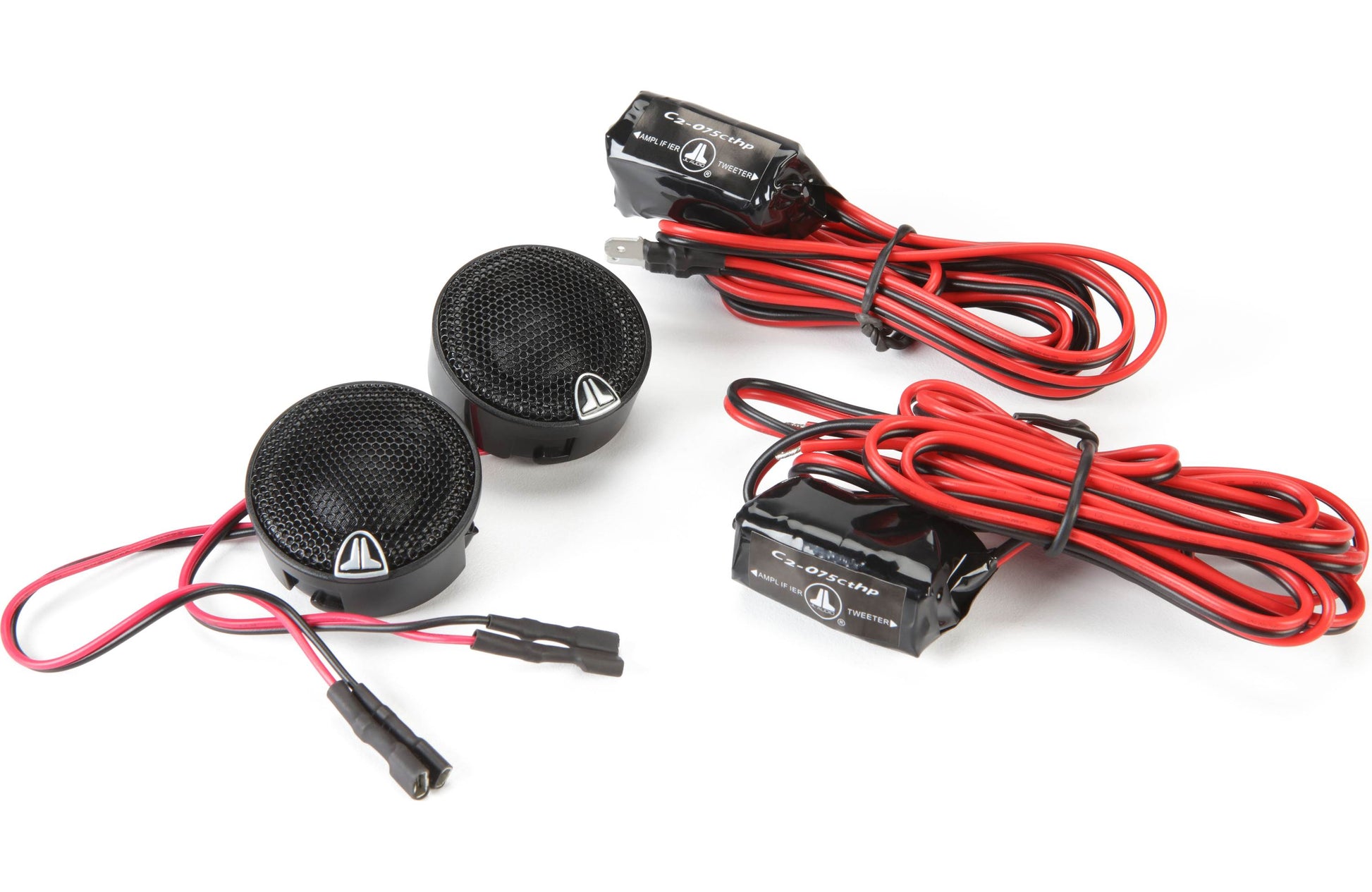

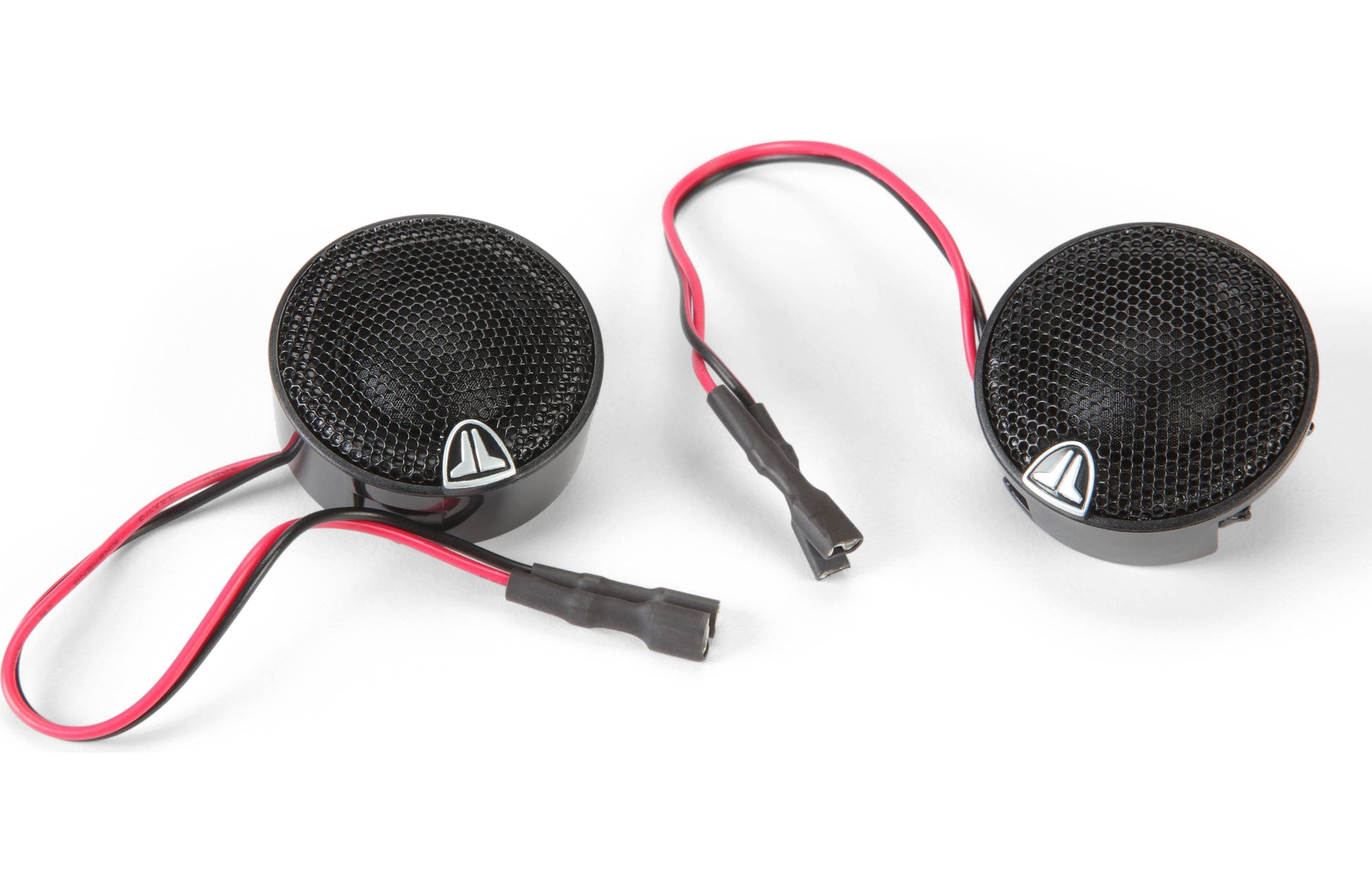

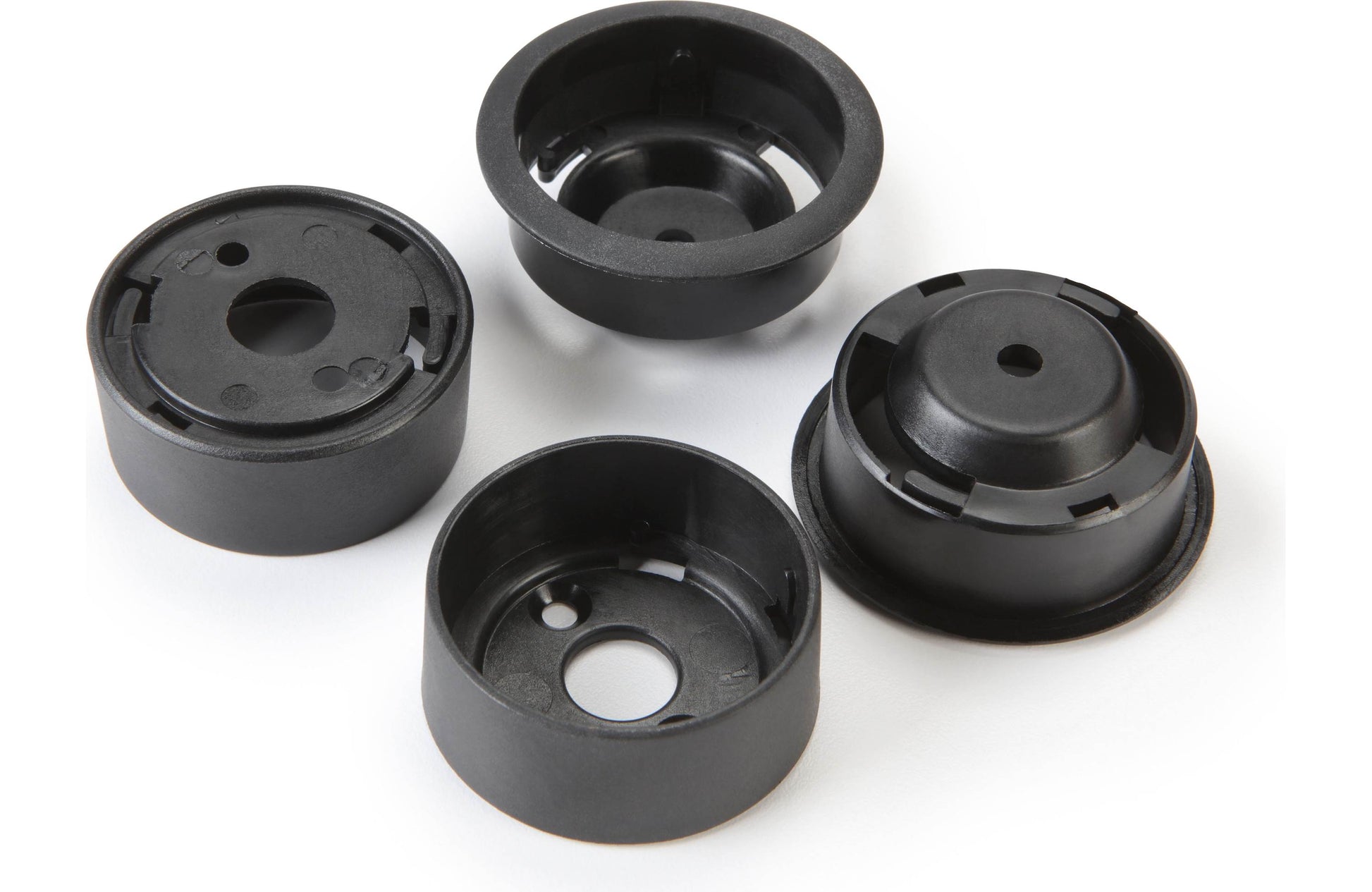

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

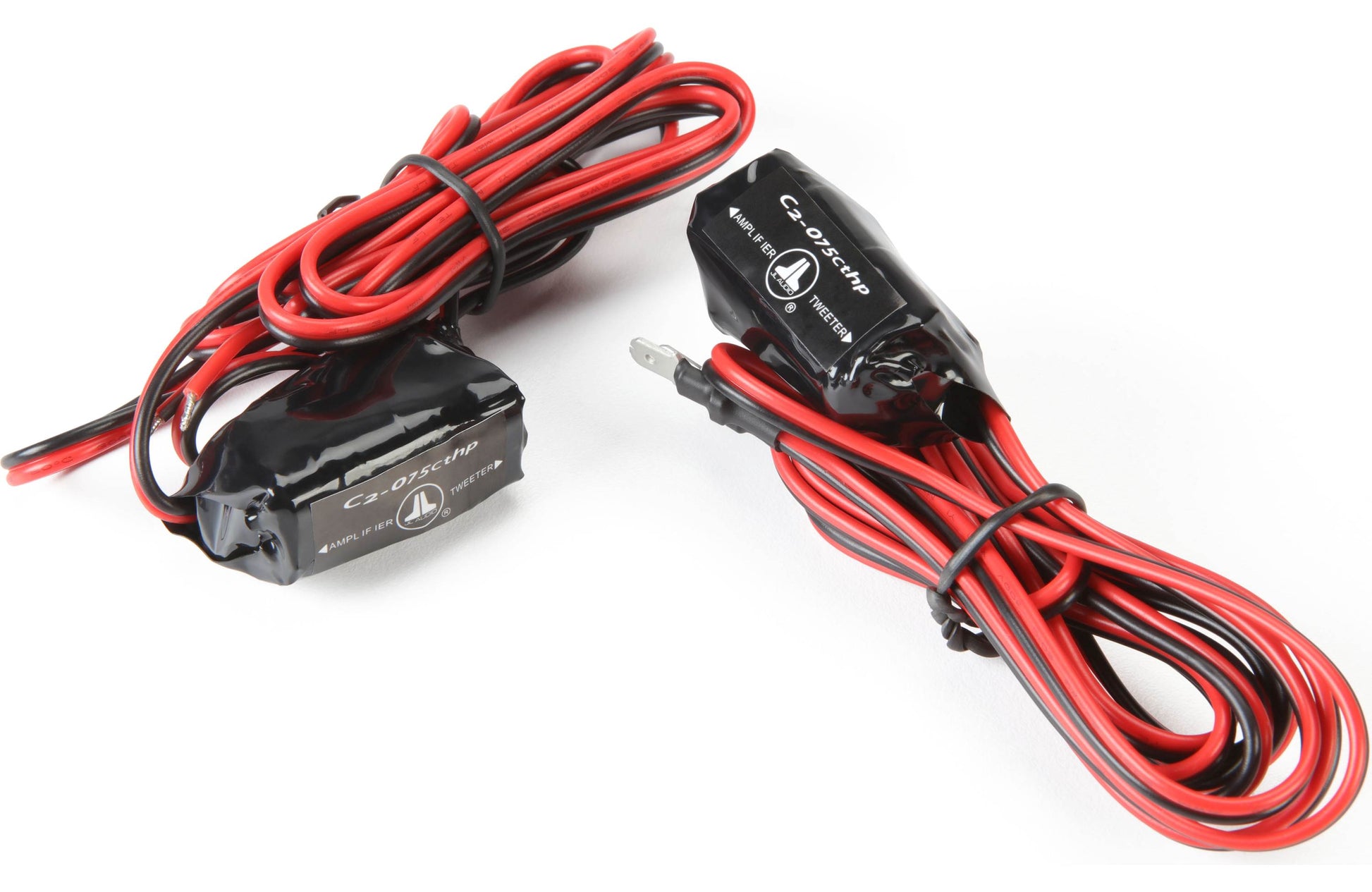

Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.

Sonic character: Clean and Powerful

Sold as a pair.

Continuous Power Handling (RMS)	60 W
Recommended Amplifier Power (RMS)	15 - 100 W / Ch.
System Efficiency	91.0 dB @ 1 W / 1 m
System Nominal Impedance	8 Ω
System Frequency Response	4 kHz - 22 KHz ± 3 dB
*With supplied crossover

Tweeter Physical Specifications

Flush Mount Fixture Diameter (A1)	1.87 in / 48 mm
Surface Mount Fixture Diameter (A2)	1.69 in / 43 mm
Flush Mount Mounting Hole Diameter (B)	1.625 in / 41 mm
Flush Mount Mounting Depth (C)	0.76 in / 19 mm
Flush Mount Tweeter Frontal Protrusion (D1)	0.29 in / 7 mm
Surface Mount Tweeter Frontal Protrusion (D2)	0.92 in / 23 mm
