JL Audio C1-100ct 1" Aluminum Dome Tweeters (Car Speakers) 99049
JL Audio C1-100ct 1" Aluminum Dome Tweeters (Car Speakers) 99049
Couldn't load pickup availability
***This item will have a 3–5 day handling time***
**This item has an additional 3 days handling time**
Part Number 010-03354-00
General Description:

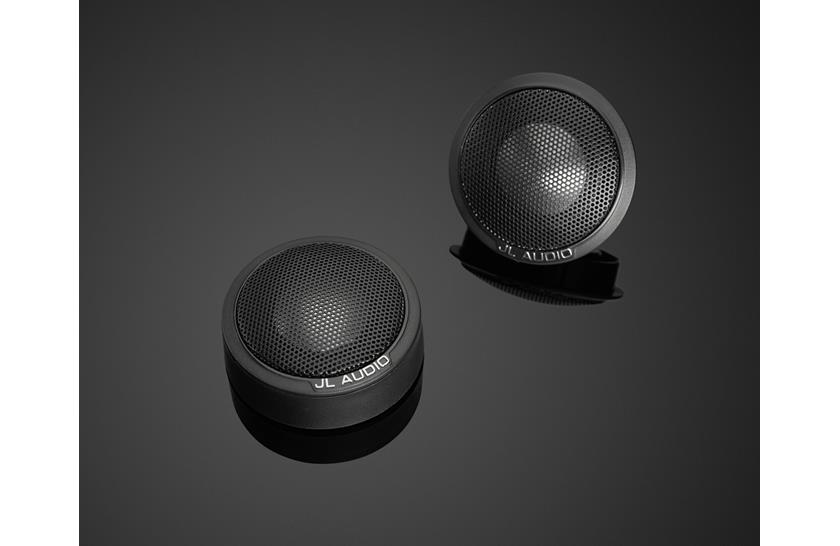

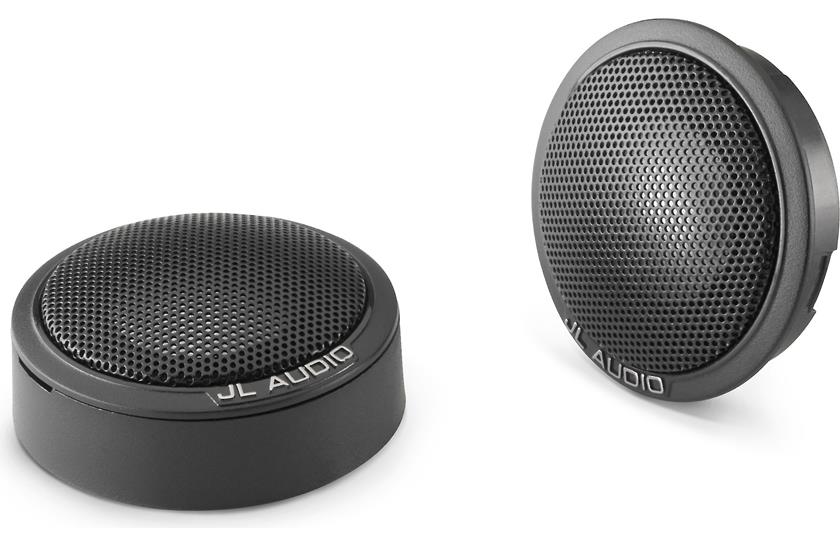

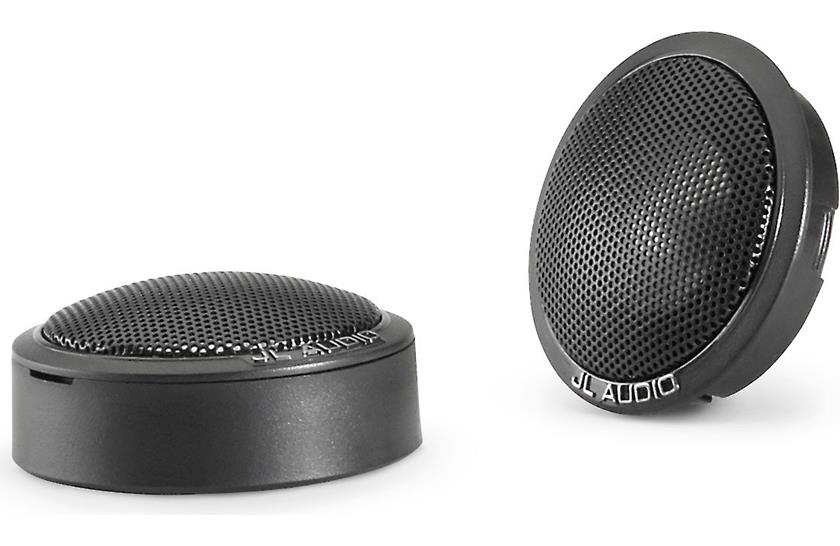

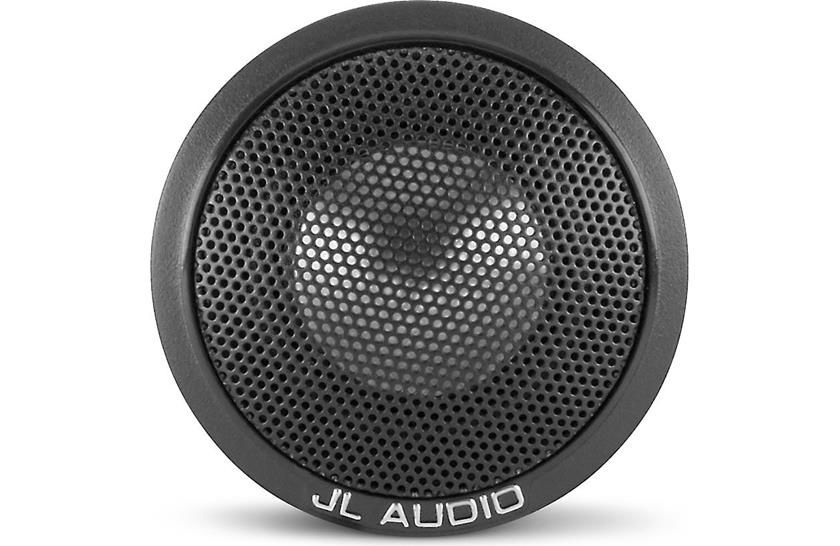

1.0-inch (25 mm) Aluminum Dome Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.

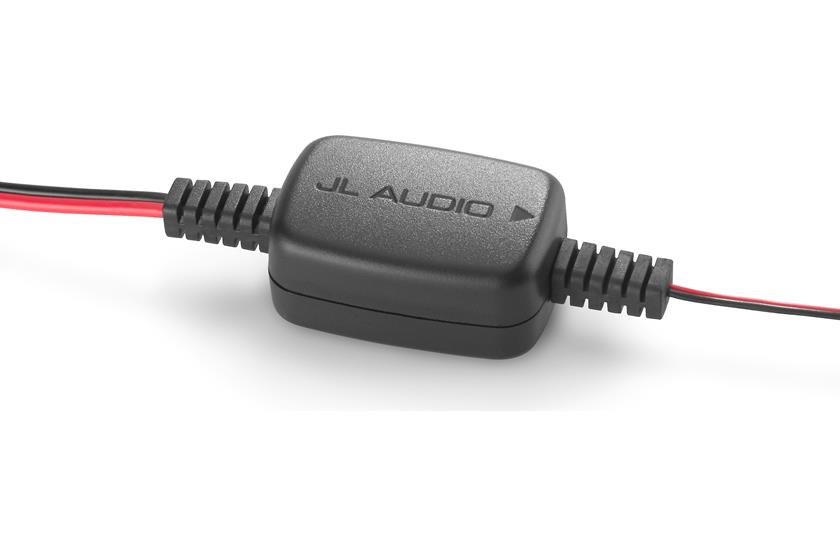

The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Recommended Amplifier Power (RMS) | 20 - 60 W / Ch. |
| System Efficiency | 91.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 3.6 kHz - 22 KHz ± 3 dB |
| *With supplied crossover | |
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A1) | 1.97 in / 50 mm |
| Surface Mount Fixture Diameter (A2) | 2.01 in / 51 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.75 in / 45 mm |
| Flush Mount Mounting Depth (C) | 0.40 in / 10 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.32 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.87 in / 22 mm |
Crossover Physical Specifications
| Width (W) | 1.96 in / 50 mm |
| Depth (D) | 1.34 in / 34 mm |
| Height (H) | 0.90 in / 23 mm |
Aluminum Dome Tweeter
Summary:
Lightweight Aluminum Dome tweeters deliver sparkling high-frequency detail that extends well beyond the frequency response of typical human hearing.
Detailed Information:
Compared to similar textile designs, aluminum tweeter diaphragms offer superior stiffness and high-frequency extension, with only a minor penalty in efficiency. JL Audio’s aluminum dome tweeters employ a rubber surround and ferrous fluid in the motor gap to damp the aluminum diaphragm. This additional damping reduces ringing and improves the tweeter’s smoothness of reproduction while still delivering the high-frequency energy and extension that metal domes are known for.
