BOYO VTL422CLS Short-Bar Backup Camera with LED Lights
BOYO VTL422CLS Short-Bar Backup Camera with LED Lights
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
The black VTL422CLS combines a shorter license-plate camera bar with LED illumination. Selectable parking lines and an adjustable camera angle let the installer configure the rear view.
At a Glance

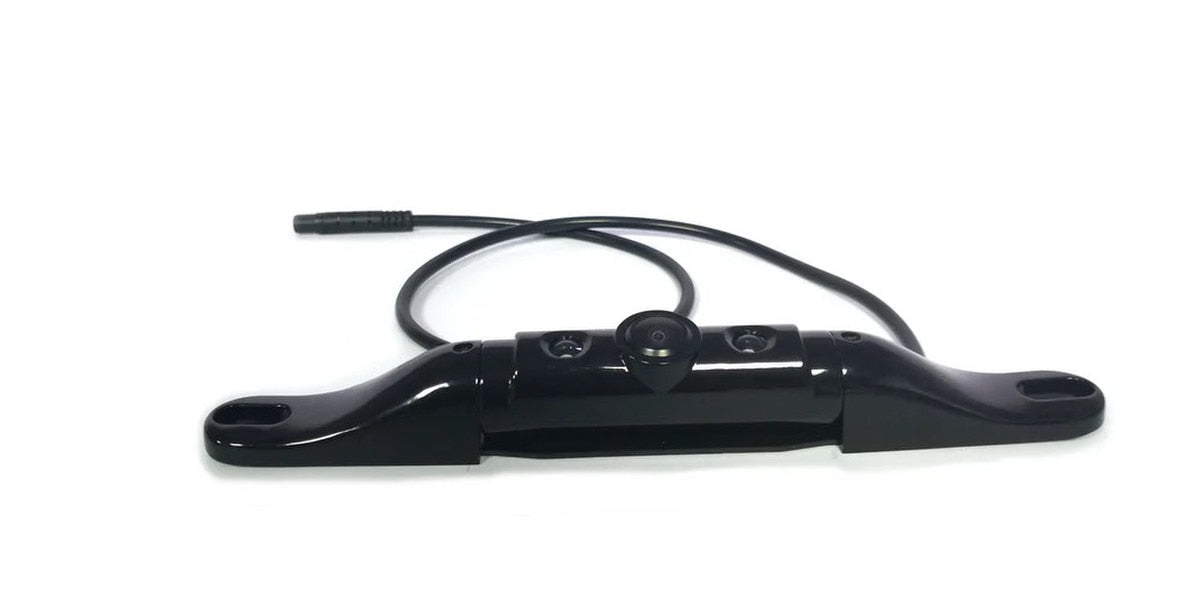

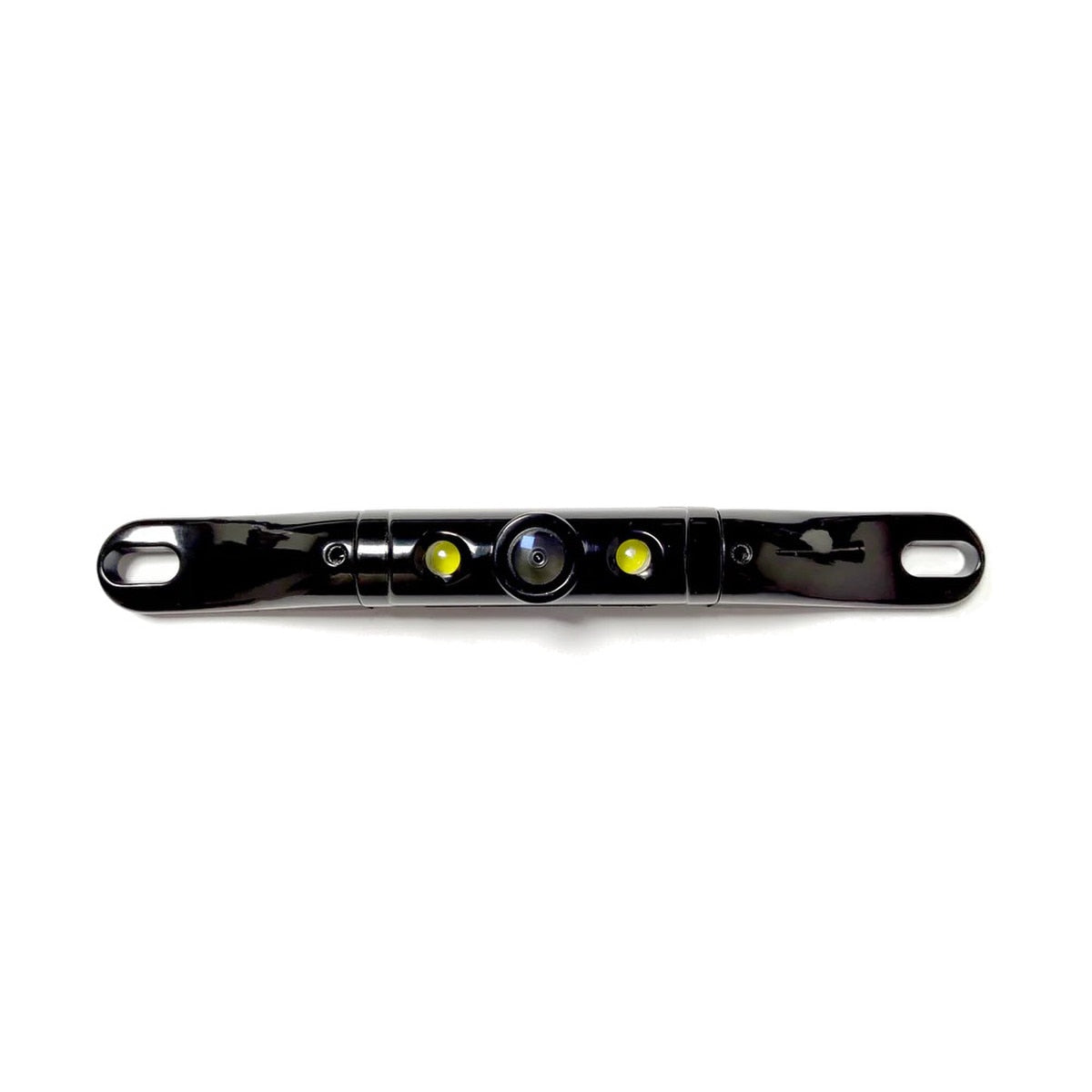

- Short black zinc camera bar
- 3 W LED lighting with on/off selection
- Mirrored or normal view
- 24-foot RCA extension
Compatibility & Installation Requirements
Camera only: a compatible monitor or receiver camera input is required and is not included. This is a universal installation product, not a vehicle-specific plug-and-play kit. Verify mounting, video format, power supply and cable routing before installation. Do not assume an AHD input is supported solely because the model name includes HD.

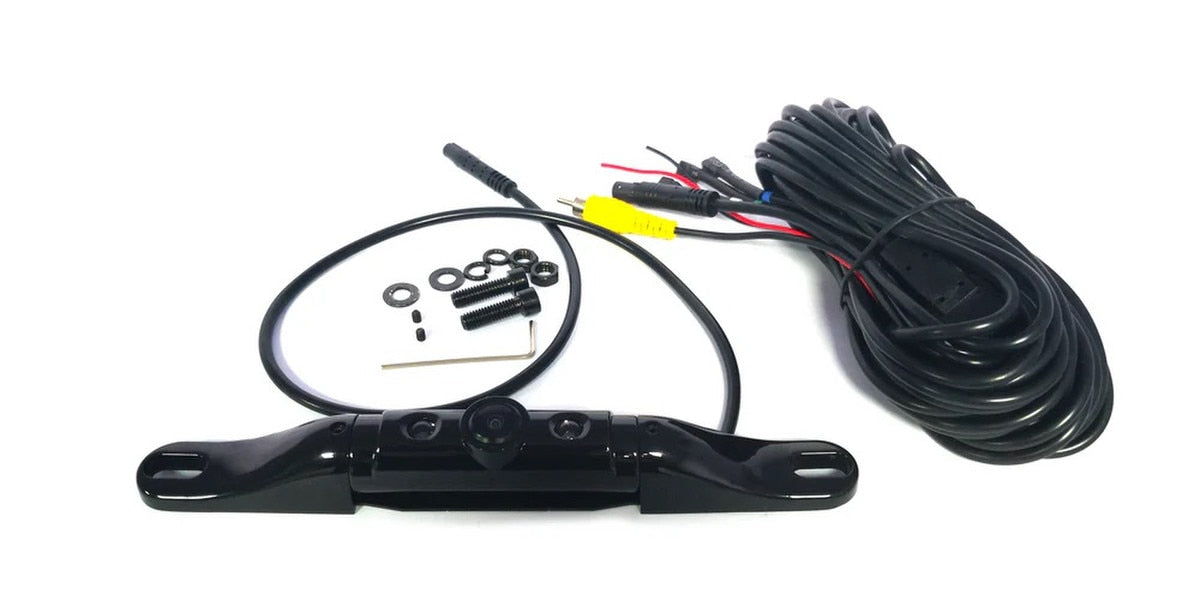

Included Equipment
- VTL422CLS camera bar
- 24-foot RCA video extension
Technical Specifications
| Brand | BOYO |
|---|---|
| Model | VTL422CLS |
| UPC | 850005493334 |
| Resolution | 640 x 480; 600 TV lines |
| Viewing angle | 170 degrees diagonal |
| Camera protection rating | IP68 |
| Power | 12 VDC |
| Video system | NTSC |
Manufacturer Resources & Warranty
One-year limited manufacturer warranty for the original purchaser, subject to BOYO terms and exclusions. Read the manufacturer warranty.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, existing display and the view or recording function you want to add. Contact us for help checking the connections and installation requirements before ordering.
