BOYO
BOYO VTL17IR Concealed Backup Camera with Night Vision
BOYO VTL17IR Concealed Backup Camera with Night Vision
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

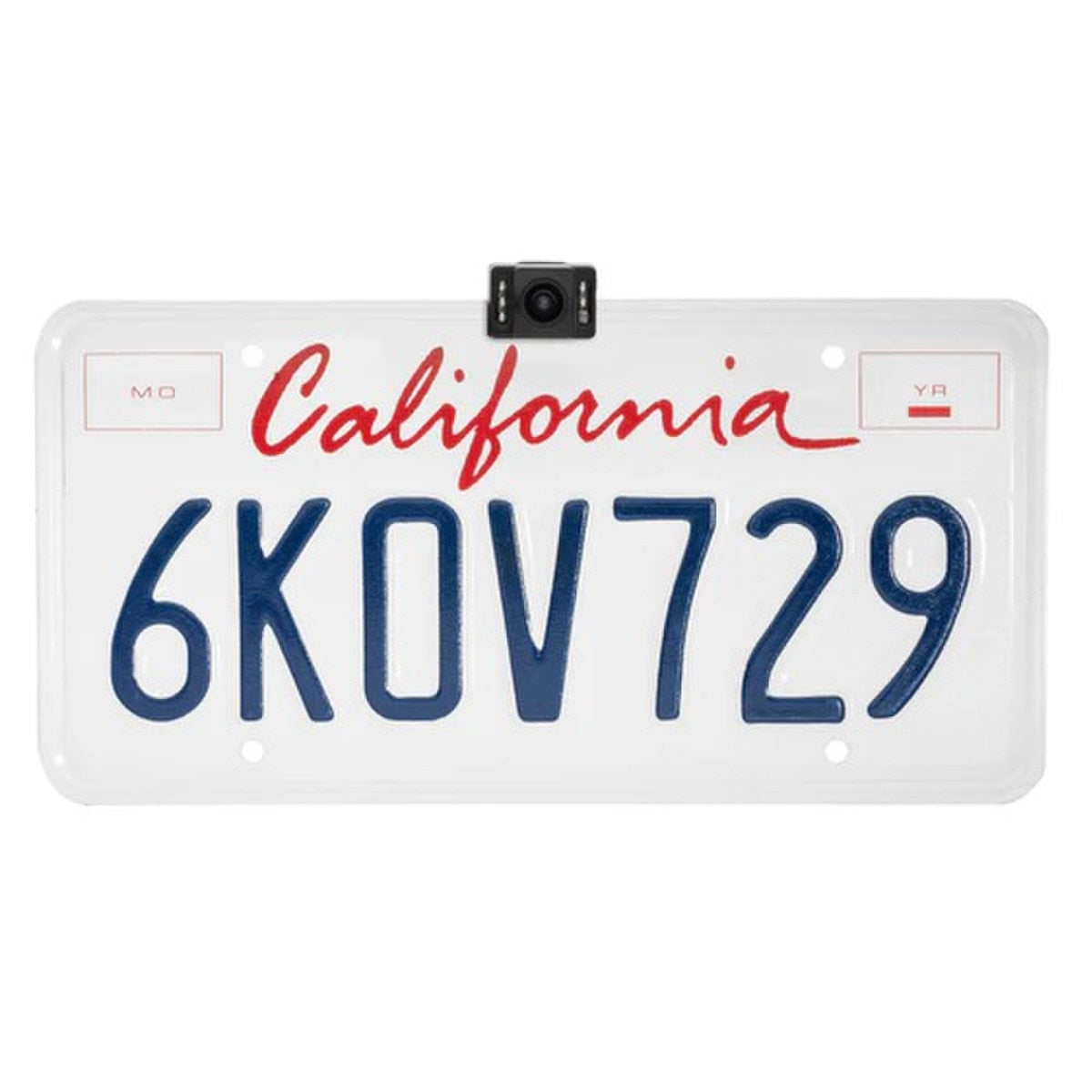

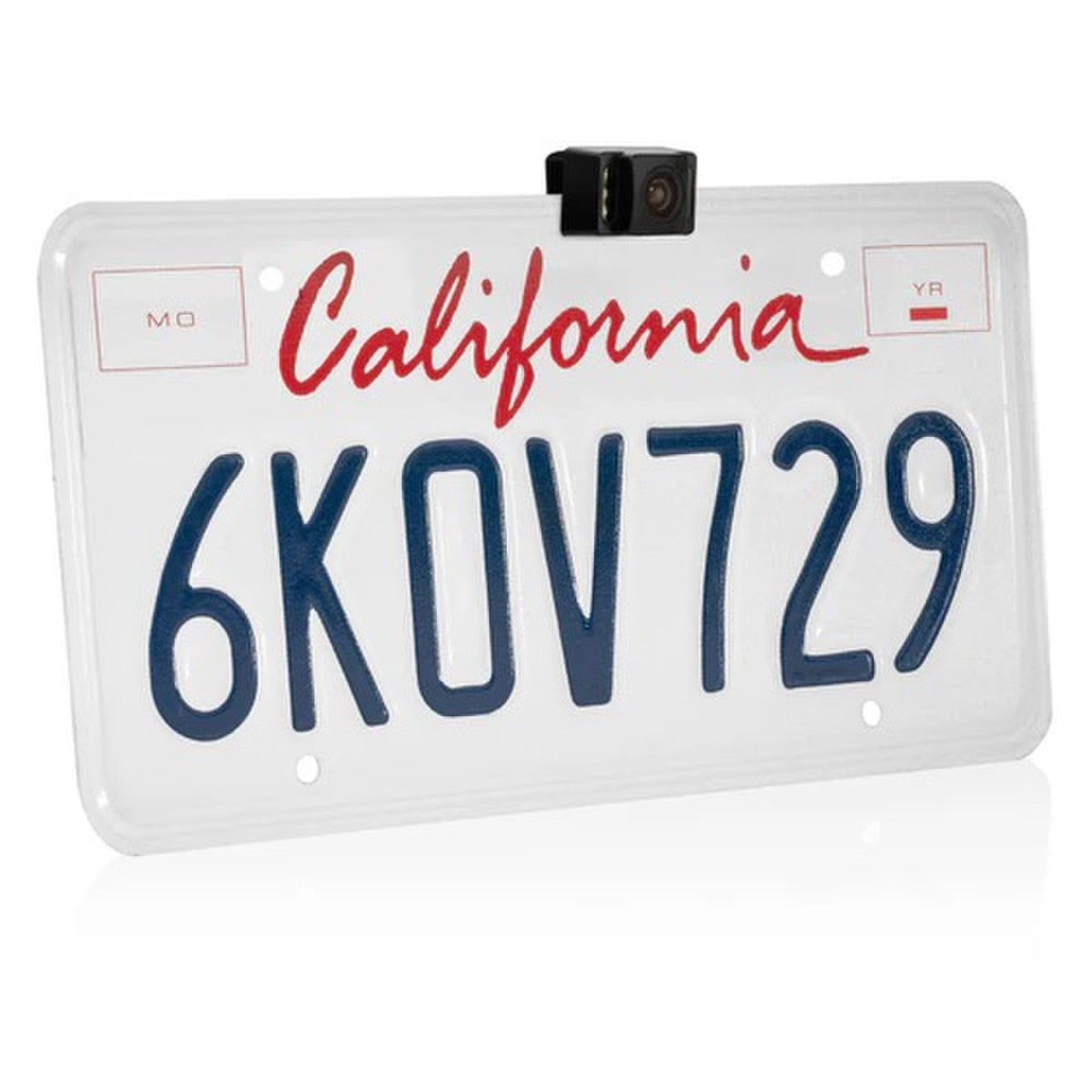

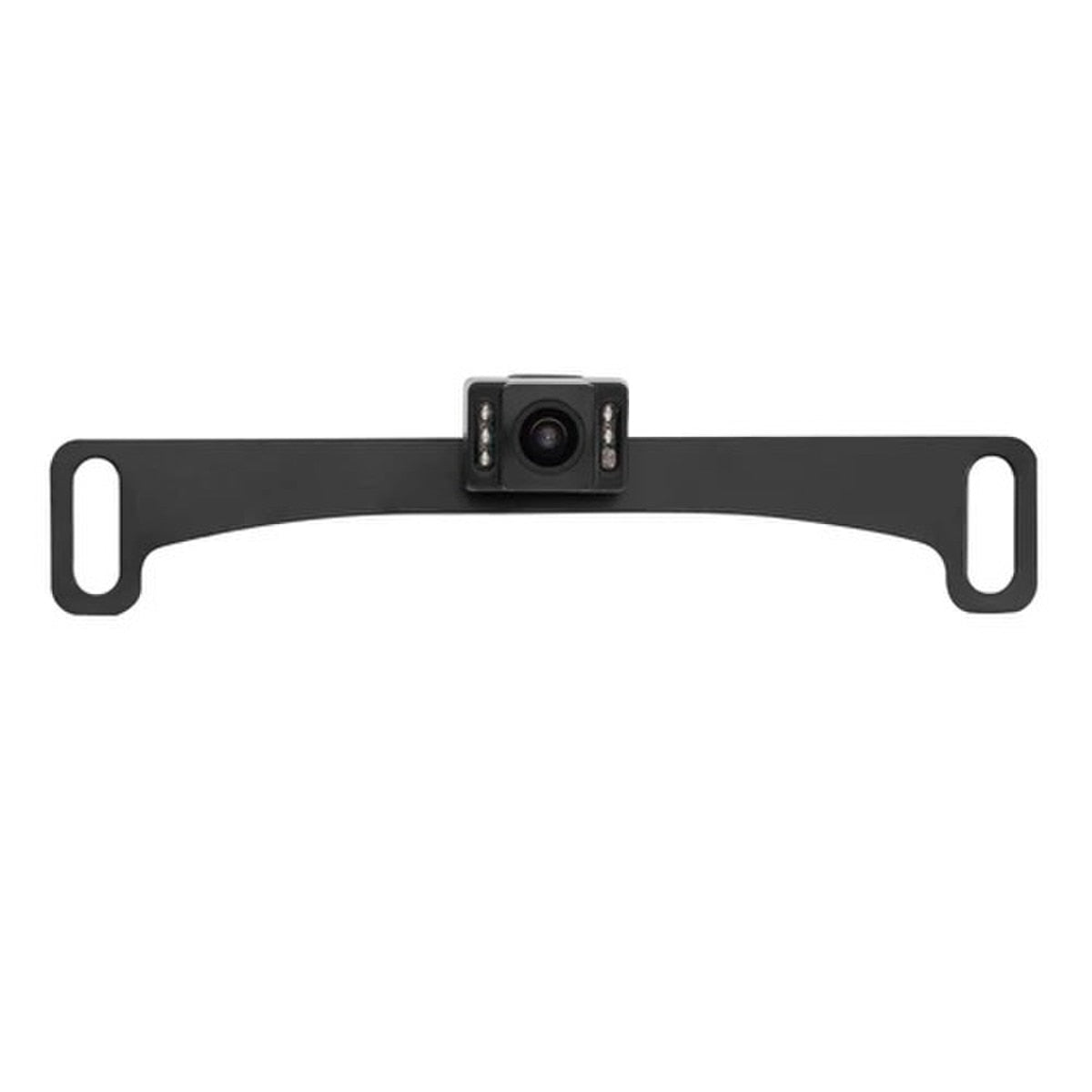

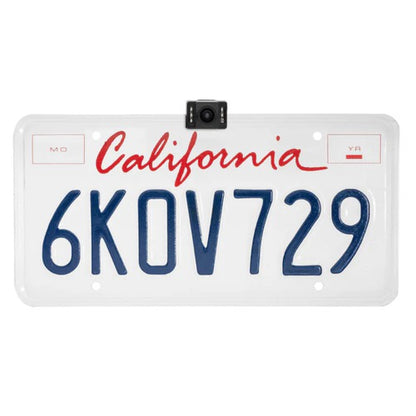

The black VTL17IR mounts behind the license plate and adds selectable parking guidance to a compatible camera display. Infrared illumination supports the camera in low light.
At a Glance
- Concealed license-plate bracket
- Adjustable camera angle
- Infrared night-view illumination
- Selectable fixed parking lines
Compatibility & Installation Requirements
Camera only: a compatible monitor or receiver camera input is required and is not included. This is a universal installation product, not a vehicle-specific plug-and-play kit. Verify mounting, video format, power supply and cable routing before installation. Do not assume an AHD input is supported solely because the model name includes HD.
Included Equipment
- VTL17IR camera with mounting bracket
- Supplied camera connection harness
Technical Specifications
| Brand | BOYO |
|---|---|
| Model | VTL17IR |
| UPC | 852052006017 |
| Resolution | 976 x 592; 700 TV lines |
| Viewing angle | 170 degrees diagonal |
| Camera protection rating | IP68 |
| Image orientation | Mirrored or normal, selectable |
Manufacturer Resources & Warranty
One-year limited manufacturer warranty for the original purchaser, subject to BOYO terms and exclusions. Read the manufacturer warranty.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, existing display and the view or recording function you want to add. Contact us for help checking the connections and installation requirements before ordering.
