BOYO VTK501HD Backup Camera with 5 Mounting Options
BOYO VTK501HD Backup Camera with 5 Mounting Options
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Choose the installation style that fits the vehicle with the VTK501HD. This is one adjustable camera with 5 mounting options—not a 5-camera system.
At a Glance

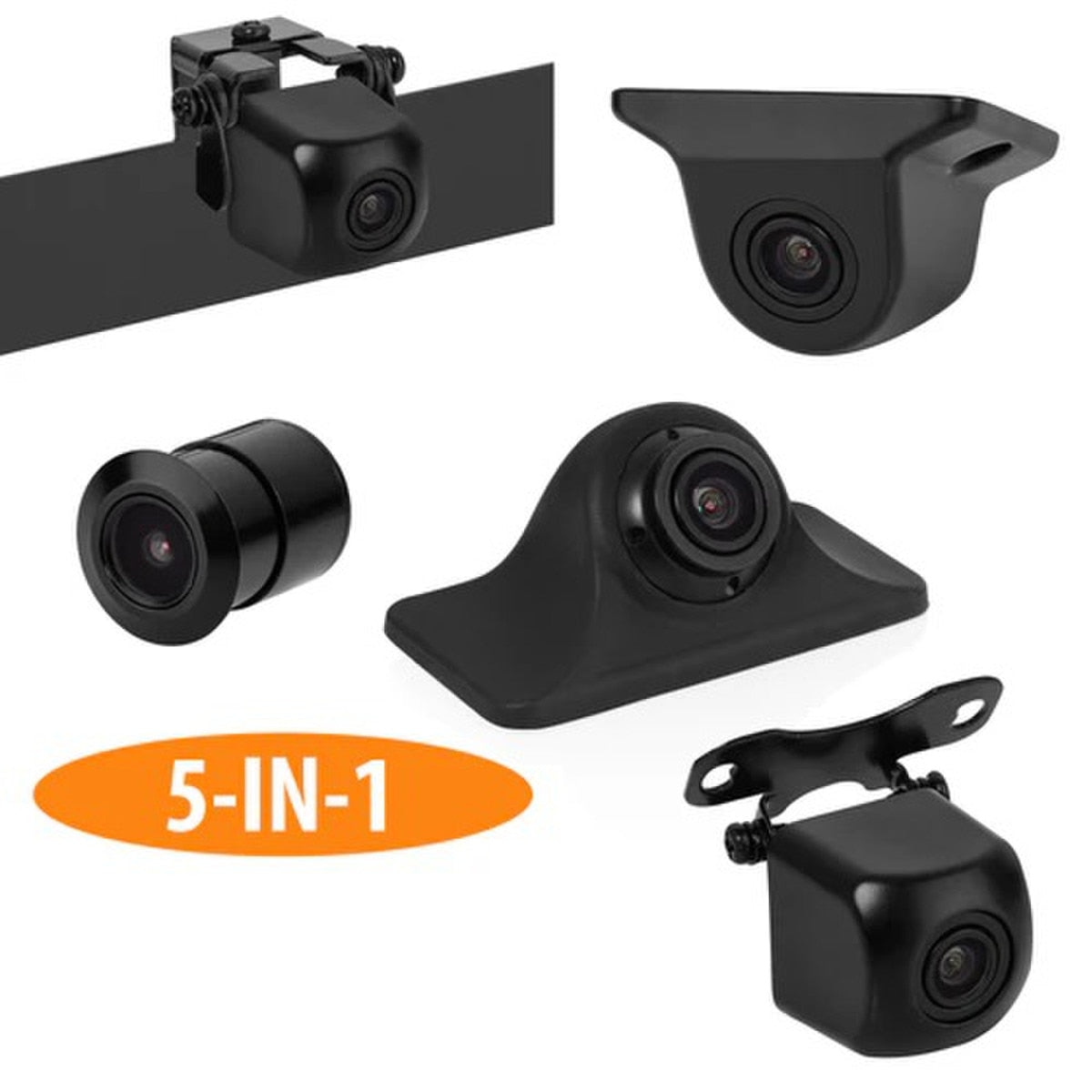

- One camera with 5 mount choices
- Selectable parking lines and mirrored/normal image
- 24-foot RCA video extension
- 25 mm hole saw supplied
Compatibility & Installation Requirements
Camera only: a compatible monitor or receiver camera input is required and is not included. This is a universal installation product, not a vehicle-specific plug-and-play kit. Verify mounting, video format, power supply and cable routing before installation. Do not assume an AHD input is supported solely because the model name includes HD. A compatible analog RCA camera input and display are required and are not included. Verify the chosen mounting location, hole clearance and stated supply-voltage range before installation.

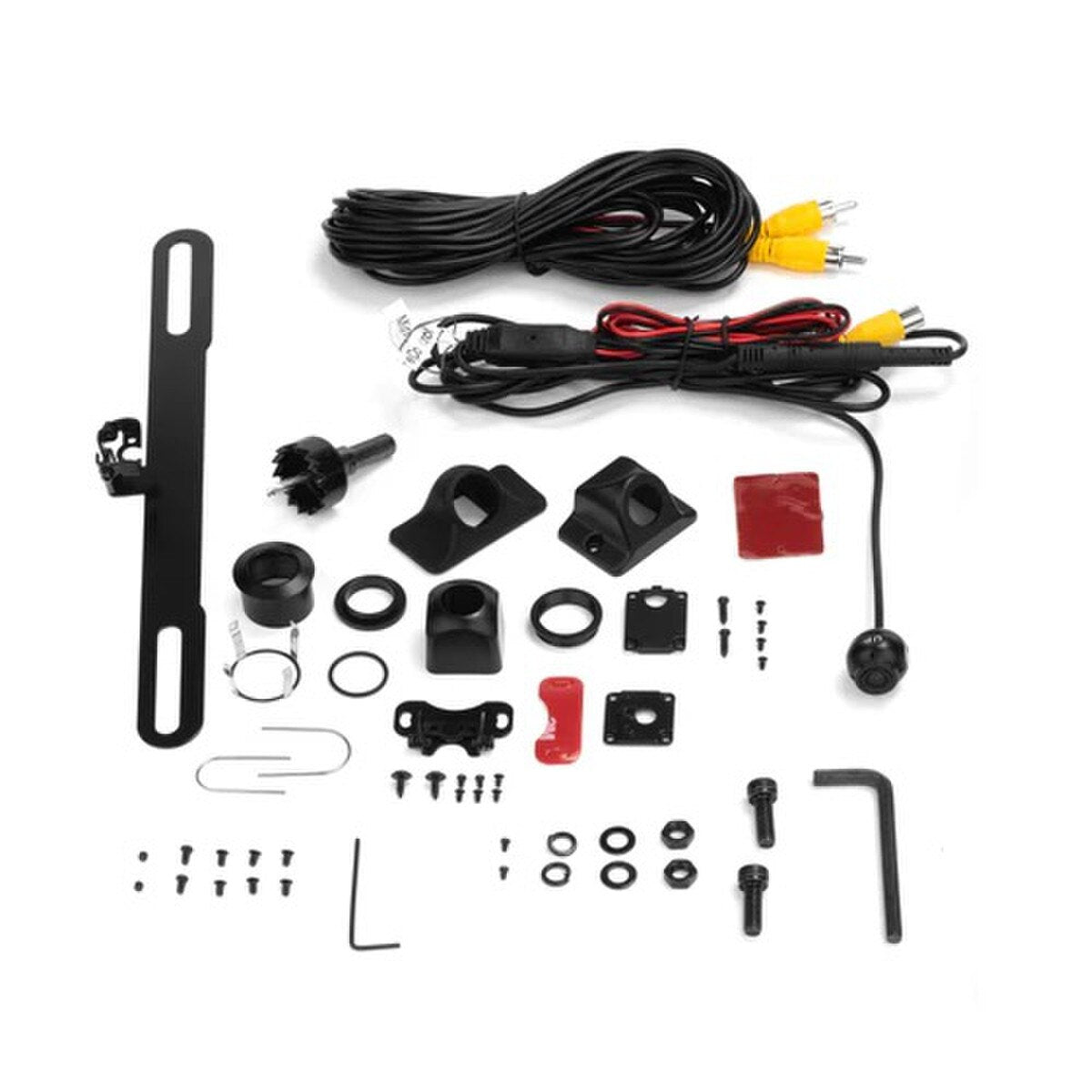

Included Equipment
- VTK501HD camera with 6-foot camera lead
- Video/power lead
- 24-foot RCA video extension with trigger conductor

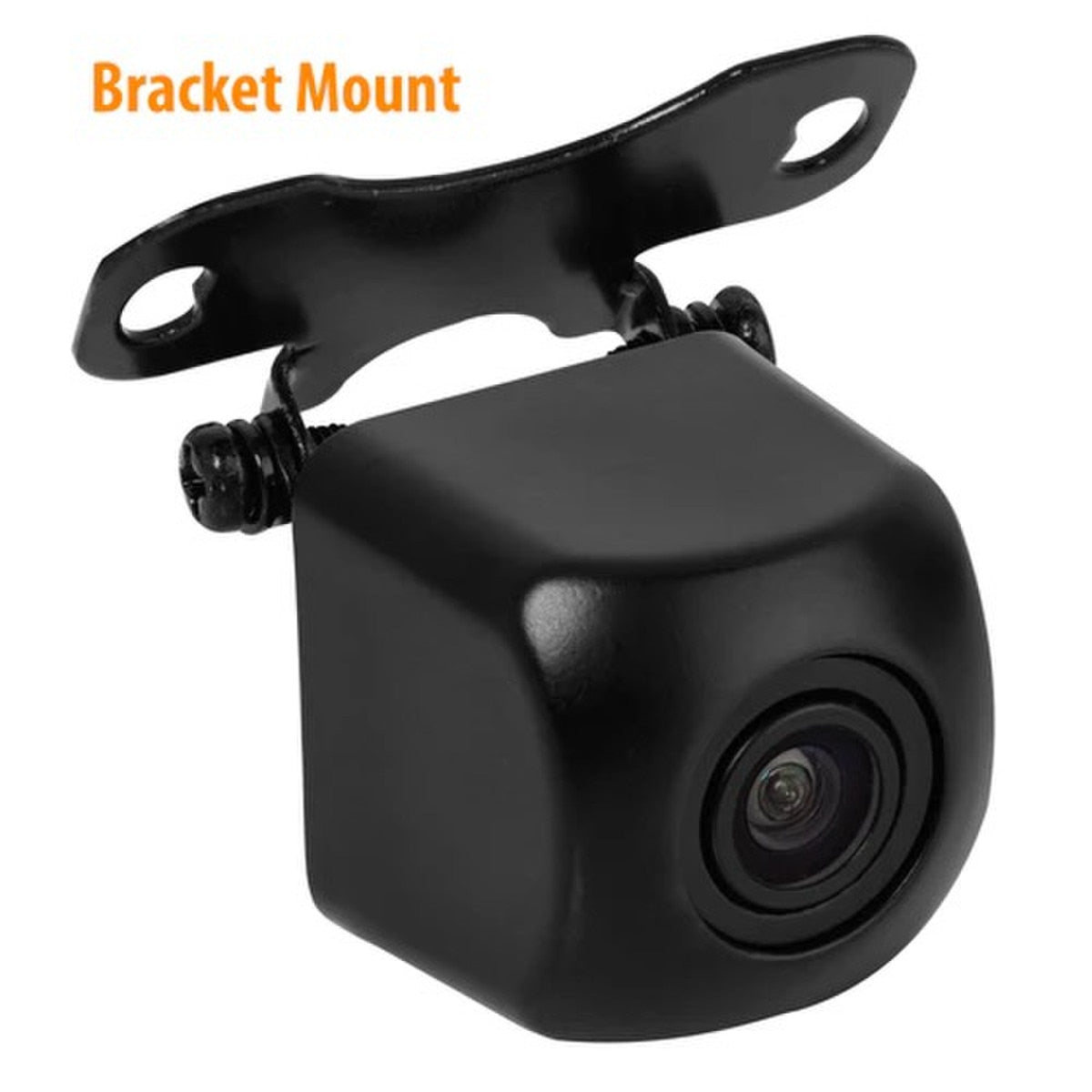

- Square bracket mount

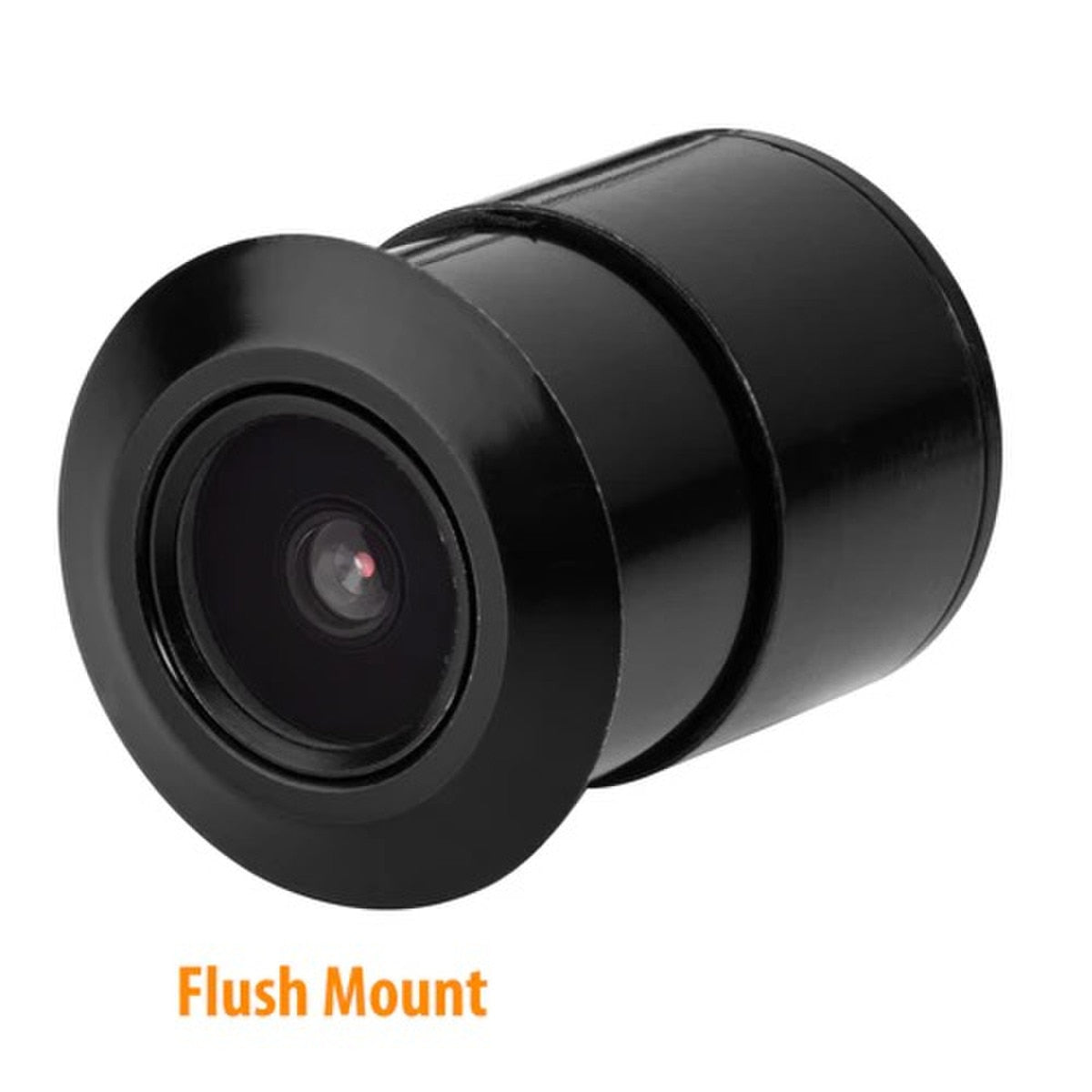

- Flush mount

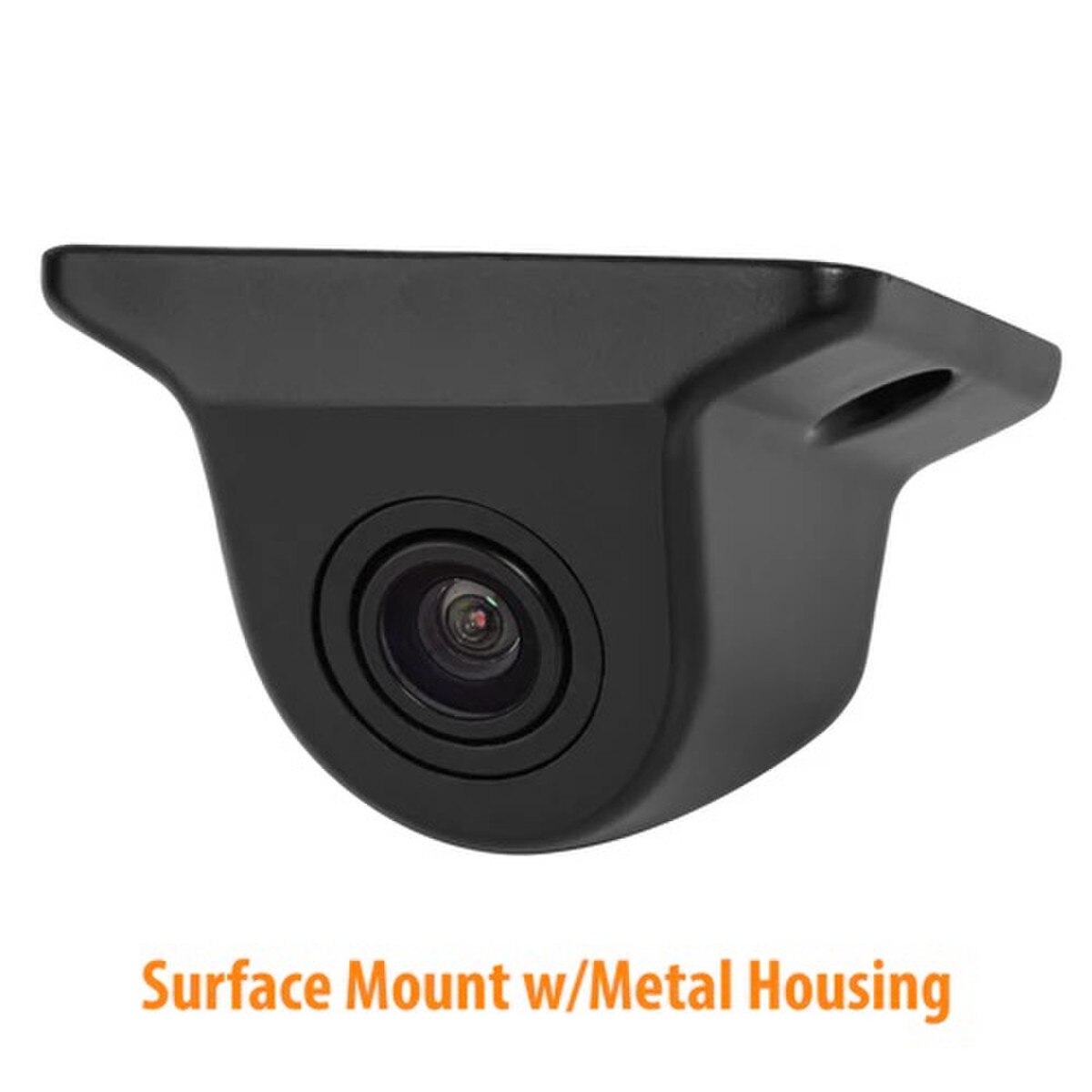

- Metal angle mount

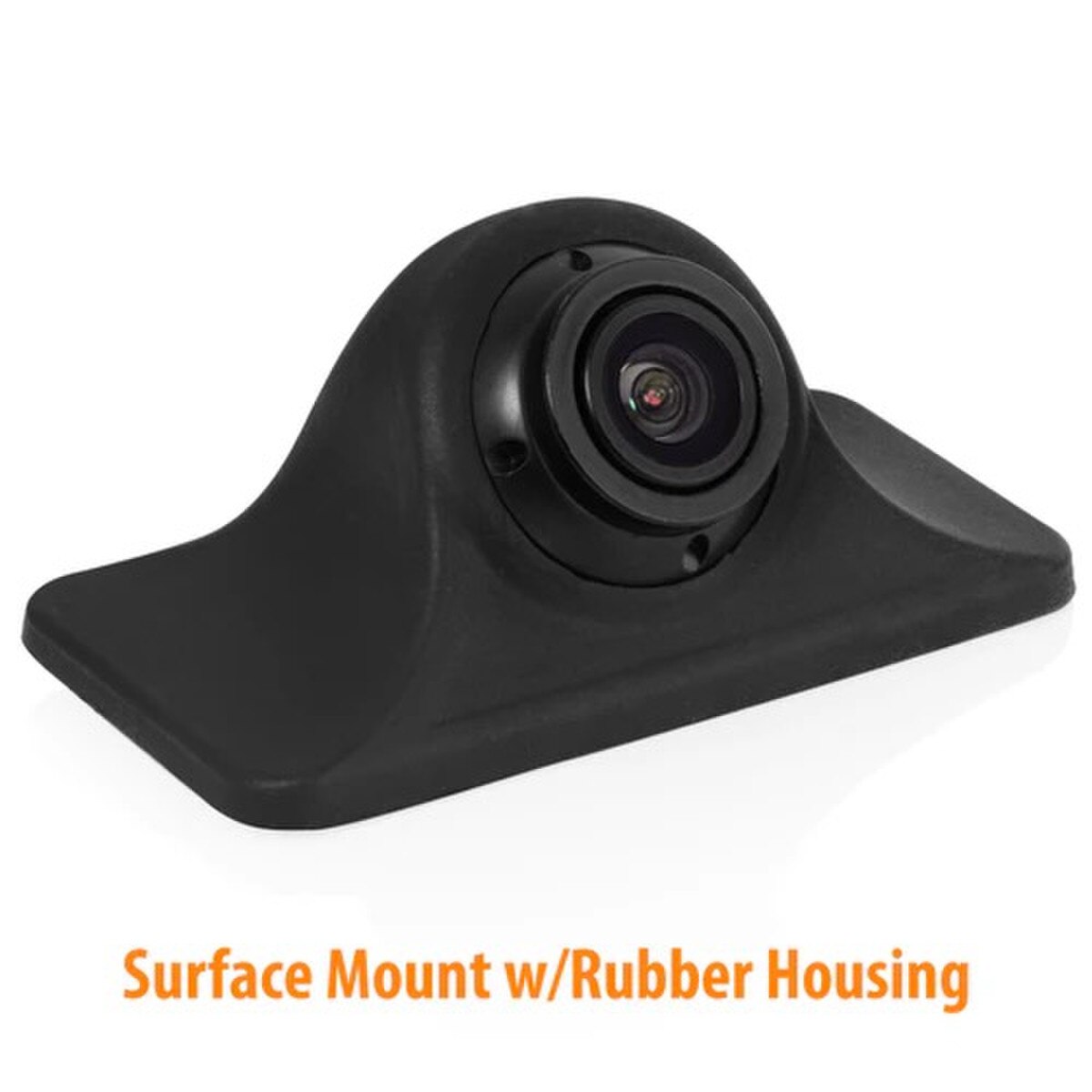

- Rubber angle mount

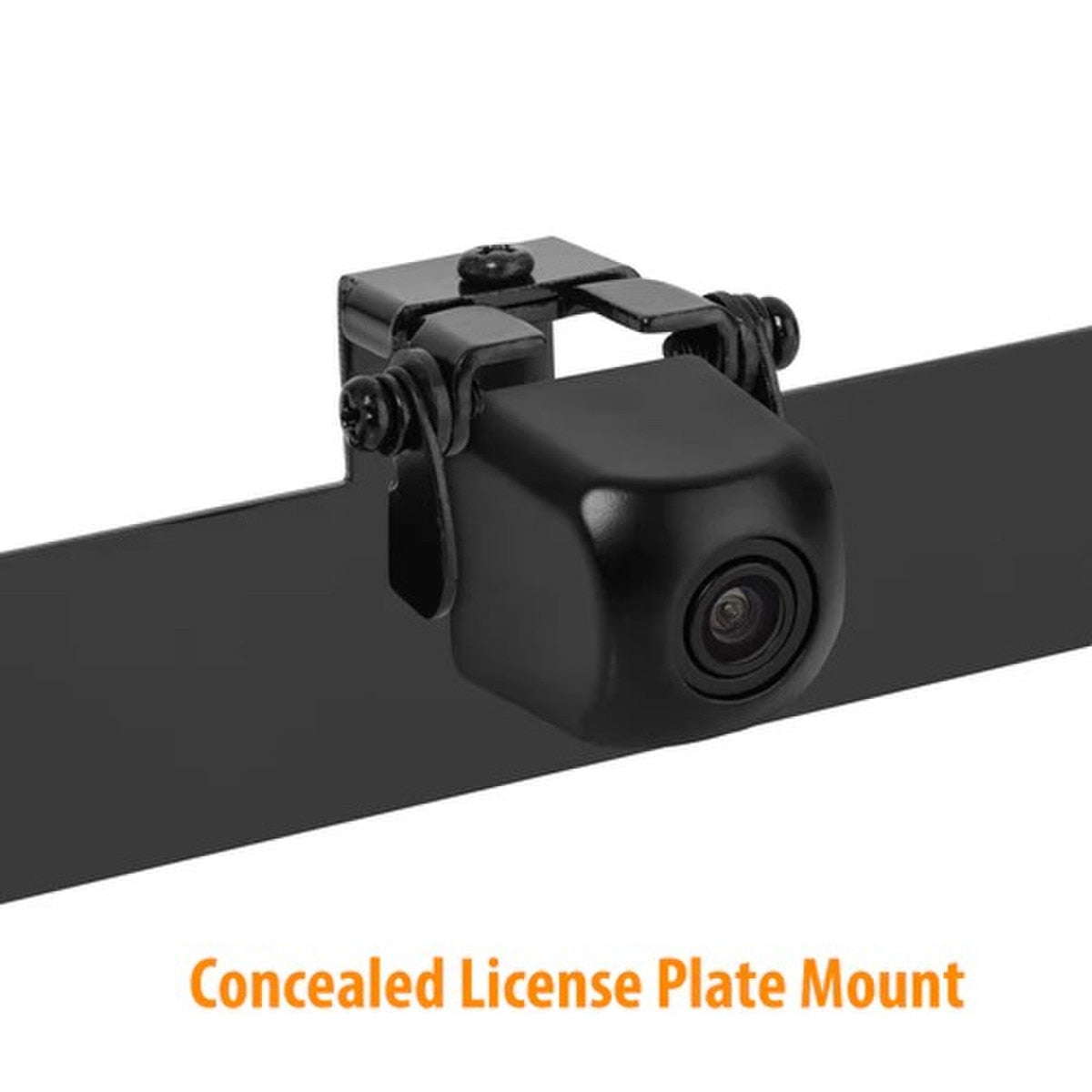

- Concealed license-plate mount
- 25 mm hole saw, mounting tape, hardware and camera adjustment tools
Technical Specifications
| Brand | BOYO |
|---|---|
| Model | VTK501HD |
| UPC | 852052006895 |
| Image sensor | 1/3-inch CMOS |
| Resolution per exact manual | 976 x 592; 700 TV lines |
| Viewing angle | 170 degrees diagonal |
| Camera protection rating | IP68 |
| Power per exact manual | 6–32 VDC |
Manufacturer Resources & Warranty
One-year limited manufacturer warranty for the original purchaser, subject to BOYO terms and exclusions. Read the manufacturer warranty.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, existing display and the view or recording function you want to add. Contact us for help checking the connections and installation requirements before ordering.
