BOYO VTC703AHD-Q4 7-inch Wireless Camera System — 4 Cameras
BOYO VTC703AHD-Q4 7-inch Wireless Camera System — 4 Cameras
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

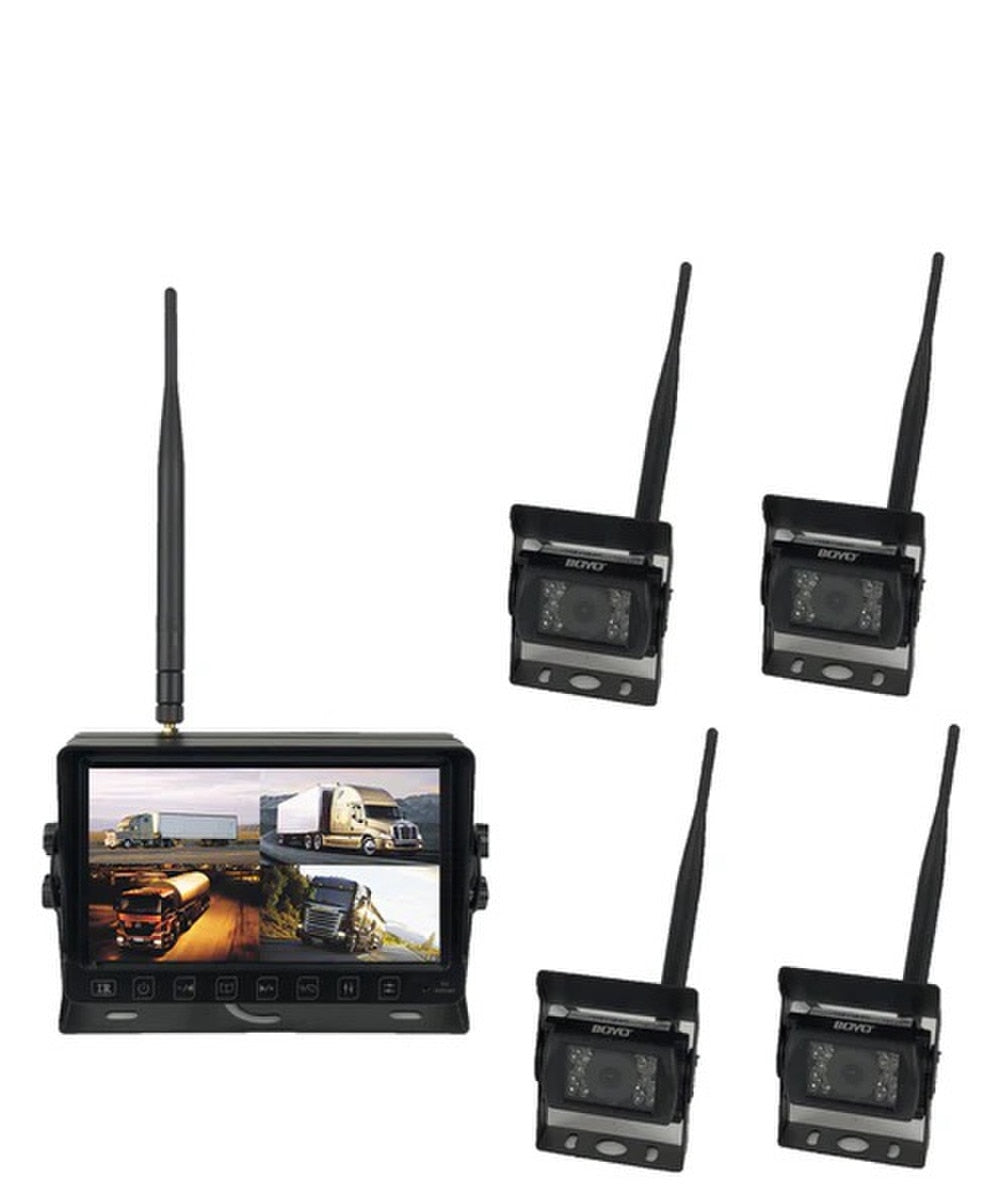

Build a dedicated camera view with the VTC703AHD-Q4. This package combines a 7-inch monitor with 4 wireless cameras; the supplied camera count is separate from the monitor's supported recording and display functions.
At a Glance
- 7-inch monitor with 1024 x 600 display
- 1080p cameras with 2.4 GHz digital wireless video
- Built-in DVR recording
- Selectable view orientation and parking lines
Compatibility & Installation Requirements
The listed monitor and camera equipment are supplied as a system. Installation still requires suitable vehicle power, secure mounting and the connections described in the manufacturer instructions. Vehicle names in general marketing do not establish a vehicle-specific plug-and-play fit. Wireless describes the video link: the monitor and each camera still need vehicle power. Mounting position, vehicle structure and interference affect usable wireless range. Additional cameras and a compatible recording card are separate unless expressly listed.
Included Equipment

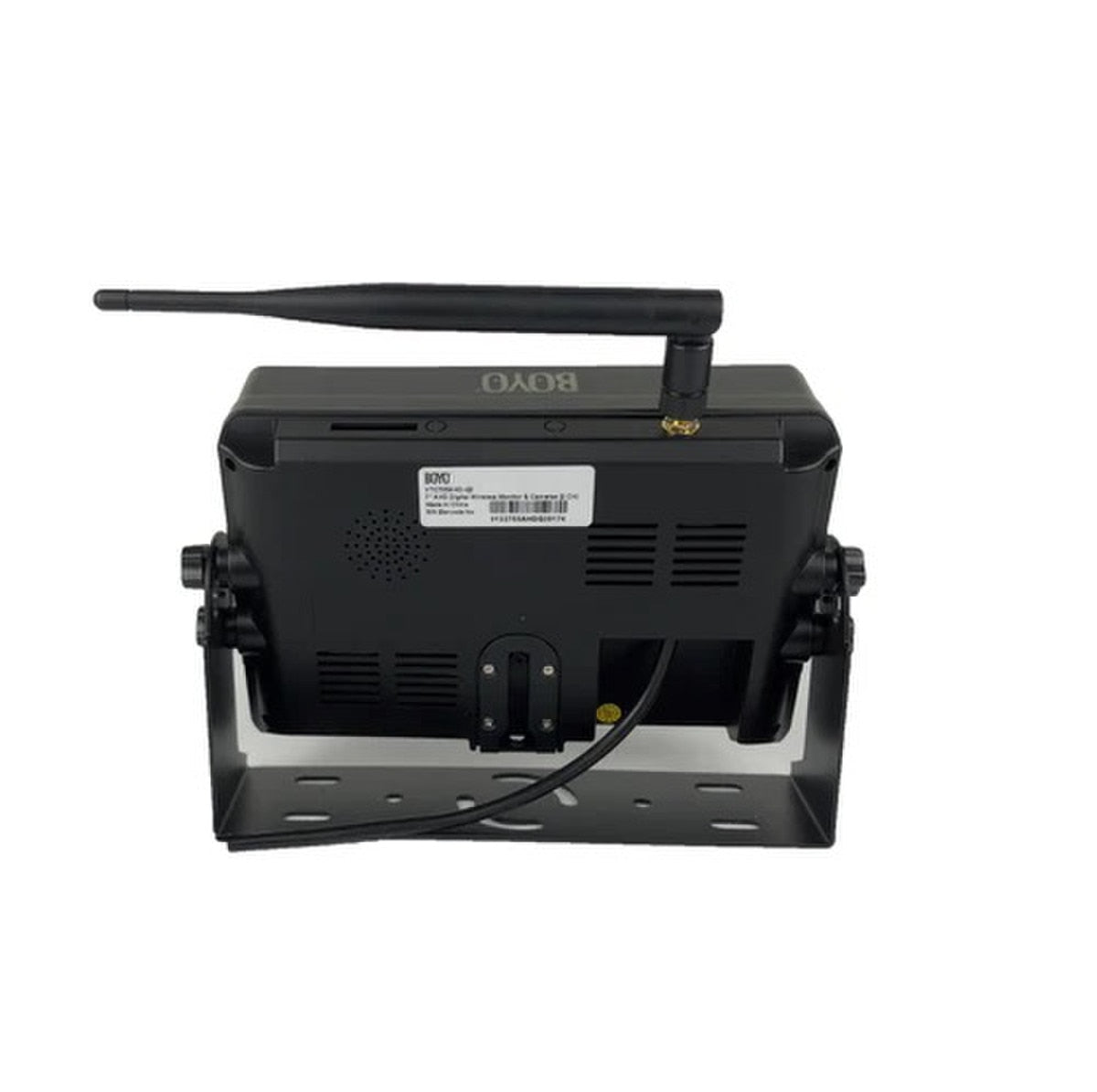

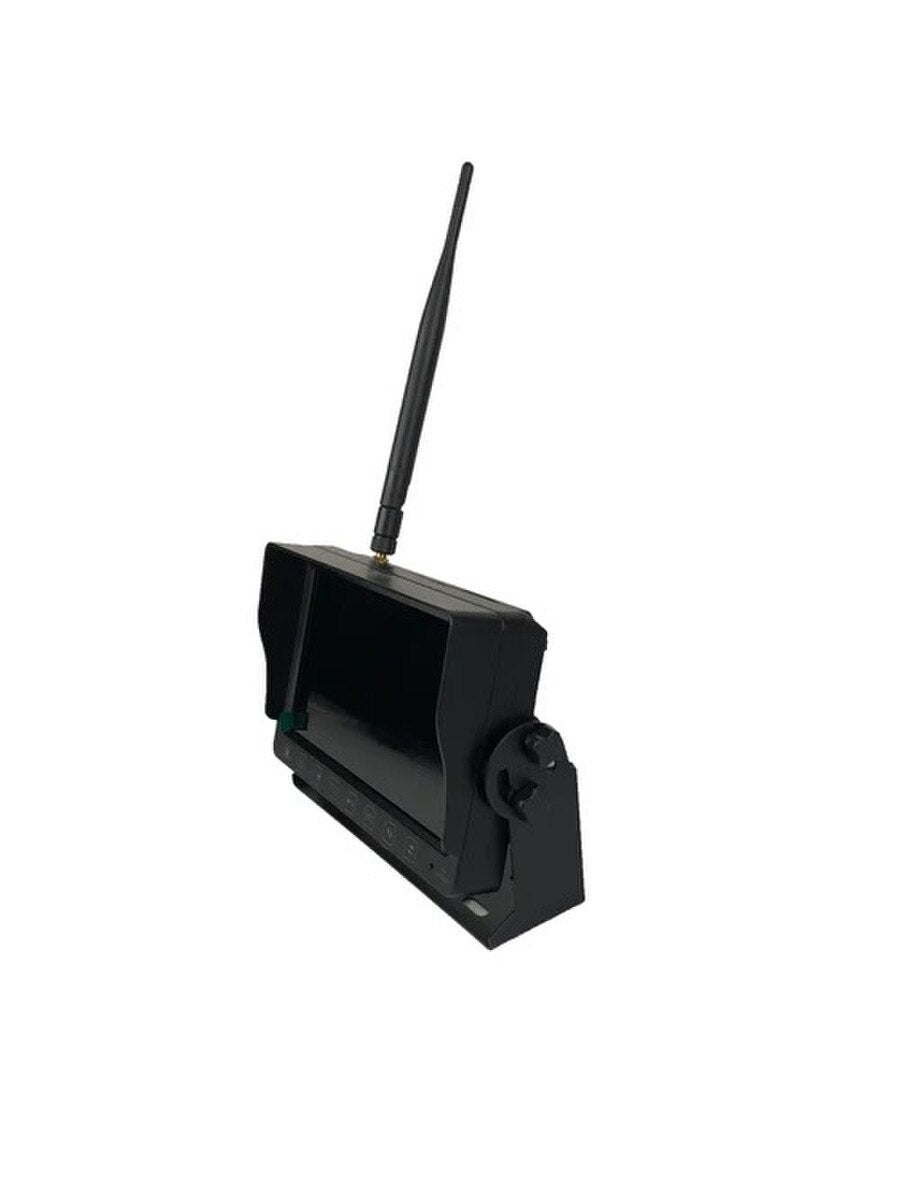

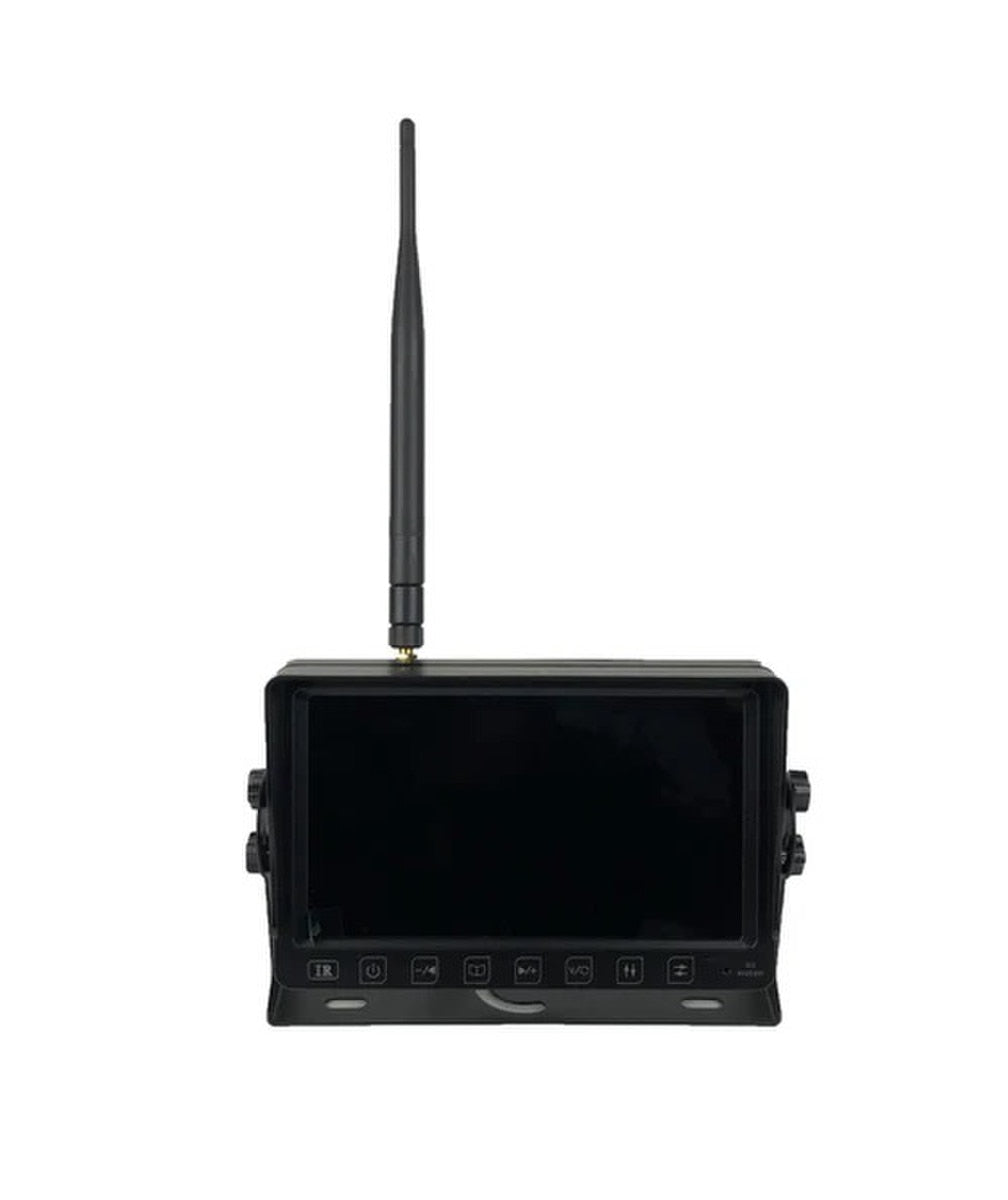

- 7-inch monitor

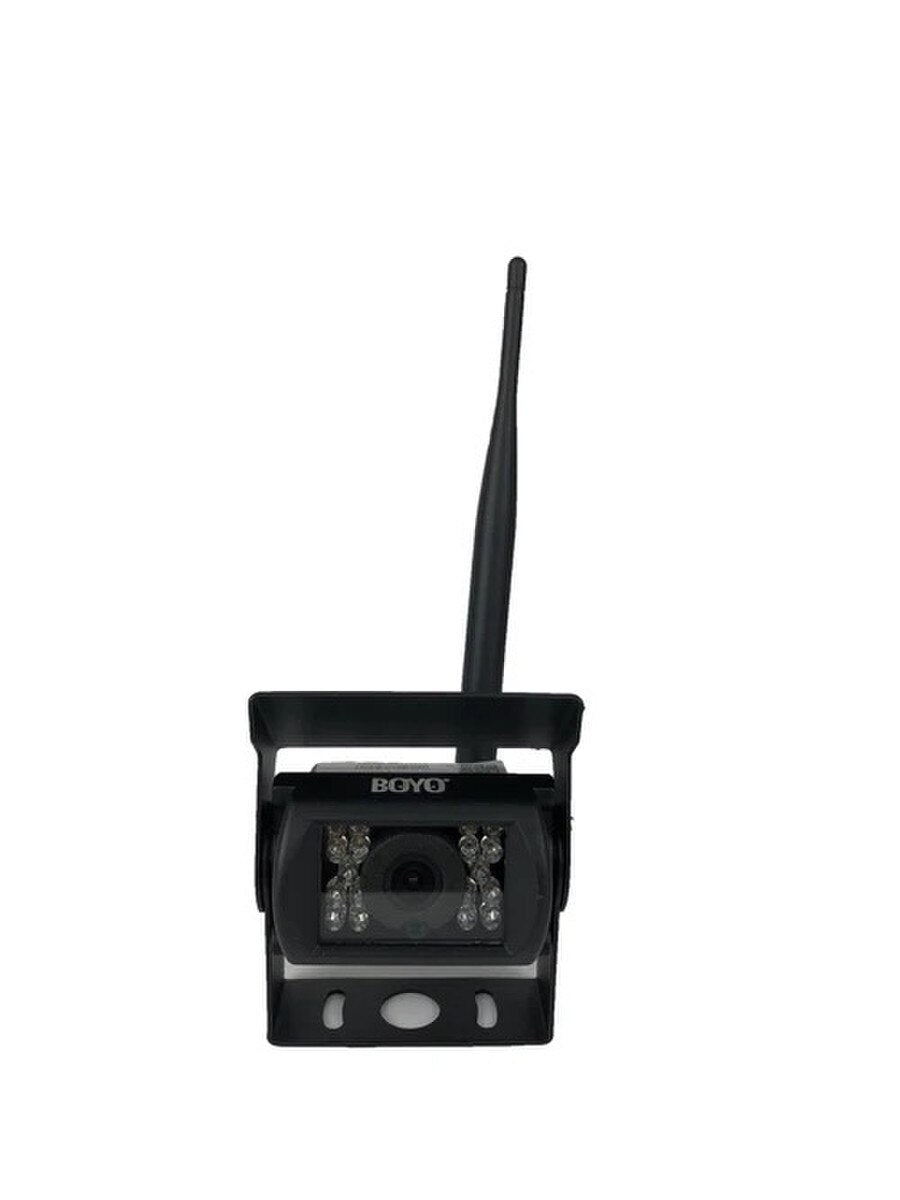

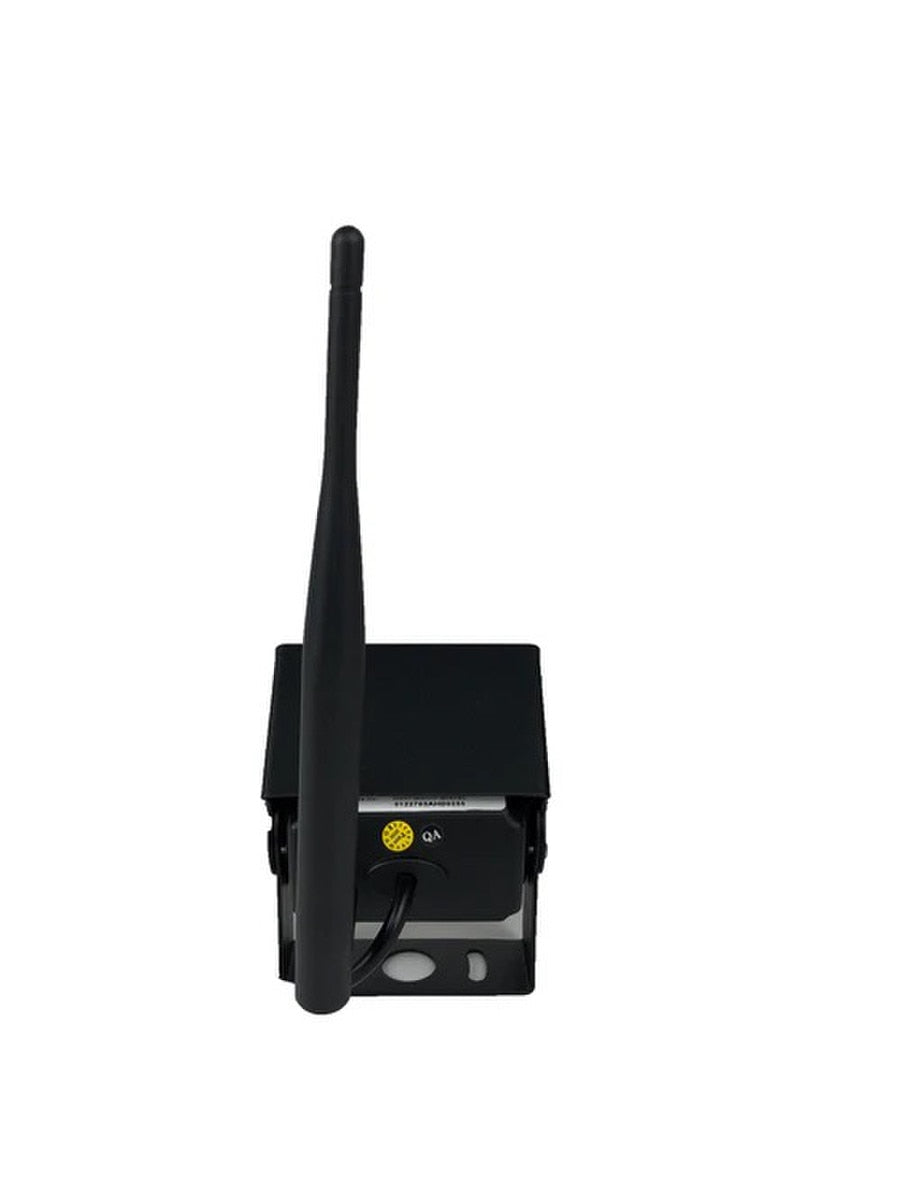

- 4 wireless cameras
- U-shaped monitor bracket
Technical Specifications
| Brand | BOYO |
|---|---|
| Model | VTC703AHD-Q4 |
| UPC | 850005493532 |
| Included cameras | 4 |
| Monitor resolution | 1024 x 600 |
| Camera resolution | 1920 x 1080 |
| Camera viewing angle | 110 degrees horizontal |
| Camera protection rating | IP68 |
| Power for cameras and monitor | 9–36 VDC |
Manufacturer Resources & Warranty
One-year limited manufacturer warranty for the original purchaser, subject to BOYO terms and exclusions. Read the manufacturer warranty.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, existing display and the view or recording function you want to add. Contact us for help checking the connections and installation requirements before ordering.
