BOYO VTB302HD Heavy-Duty Backup Camera with 49-ft Cable
BOYO VTB302HD Heavy-Duty Backup Camera with 49-ft Cable
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

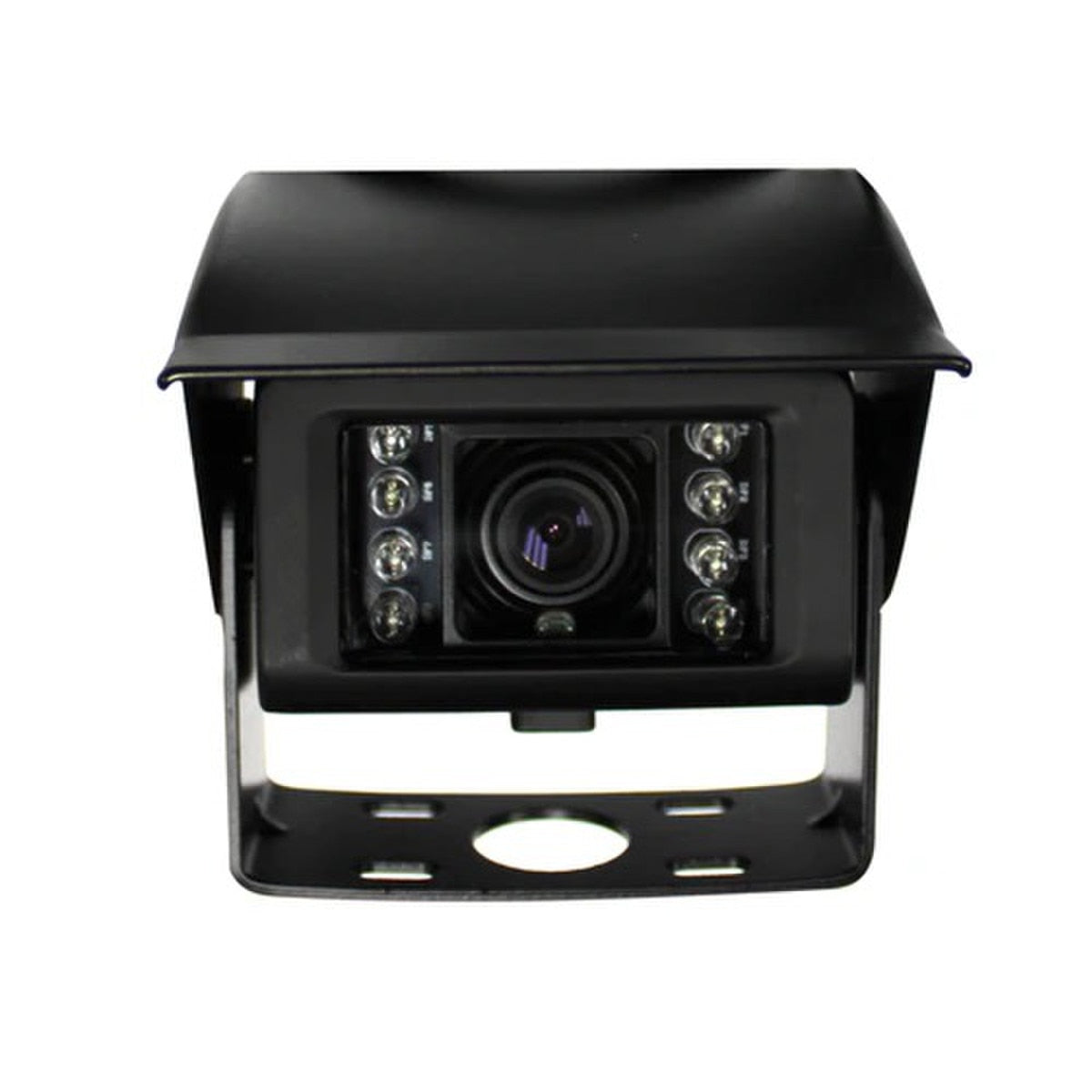

The VTB302HD adds an adjustable bracket camera and infrared illumination to a compatible rear-view display. Its long extension cable supports installations where the camera and monitor are well apart.
At a Glance
- Heavy-duty adjustable bracket
- Infrared lighting and adjustable sunshade
- Selectable parking lines and image orientation
- 49-foot extension supplied
Compatibility & Installation Requirements
Camera only: a compatible monitor or receiver camera input is required and is not included. This is a universal installation product, not a vehicle-specific plug-and-play kit. Verify mounting, video format, power supply and cable routing before installation. Do not assume an AHD input is supported solely because the model name includes HD. Use a 12–24 VDC supply and a compatible analog-video monitor. Confirm the required cable routing, camera mounting clearance and electrical connections before installation.
Included Equipment
- VTB302HD camera and bracket
- 15-meter / approximately 49-foot 4-pin extension and video connection
Technical Specifications
| Brand | BOYO |
|---|---|
| Model | VTB302HD |
| UPC | 852052006505 |
| Sensor | 1/3-inch Sony CCD |
| Resolution | 768 x 494; 600 TV lines |
| Viewing angle | Up to 120 degrees |
| Camera protection rating | IP68 |
| Power per installation manual | 12–24 VDC |
| Video output | 1.0 Vp-p, 75 ohms; PAL/NTSC compatible |
Manufacturer Resources & Warranty
One-year limited manufacturer warranty for the original purchaser, subject to BOYO terms and exclusions. Read the manufacturer warranty.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, existing display and the view or recording function you want to add. Contact us for help checking the connections and installation requirements before ordering.
