BOYO VTB301CA Selectable AHD/CVBS Backup Camera
BOYO VTB301CA Selectable AHD/CVBS Backup Camera
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Choose high-definition AHD or standard CVBS video to suit a compatible display with the VTB301CA. Its bracket mount and supplied 65-foot extension make it suited to longer vehicle installations.
At a Glance
- Selectable AHD or CVBS output
- AHD 1080p/720p selection
- Selectable parking lines and image orientation
- Infrared illumination
Compatibility & Installation Requirements
Camera only: a compatible display is required and is not included. Match the selected AHD/CVBS mode and resolution to the display input, and verify mounting, power supply and cable routing before installation. Select the video mode before connecting to the display. AHD mode requires a monitor or receiver that supports the selected AHD resolution; CVBS mode is for compatible analog inputs.

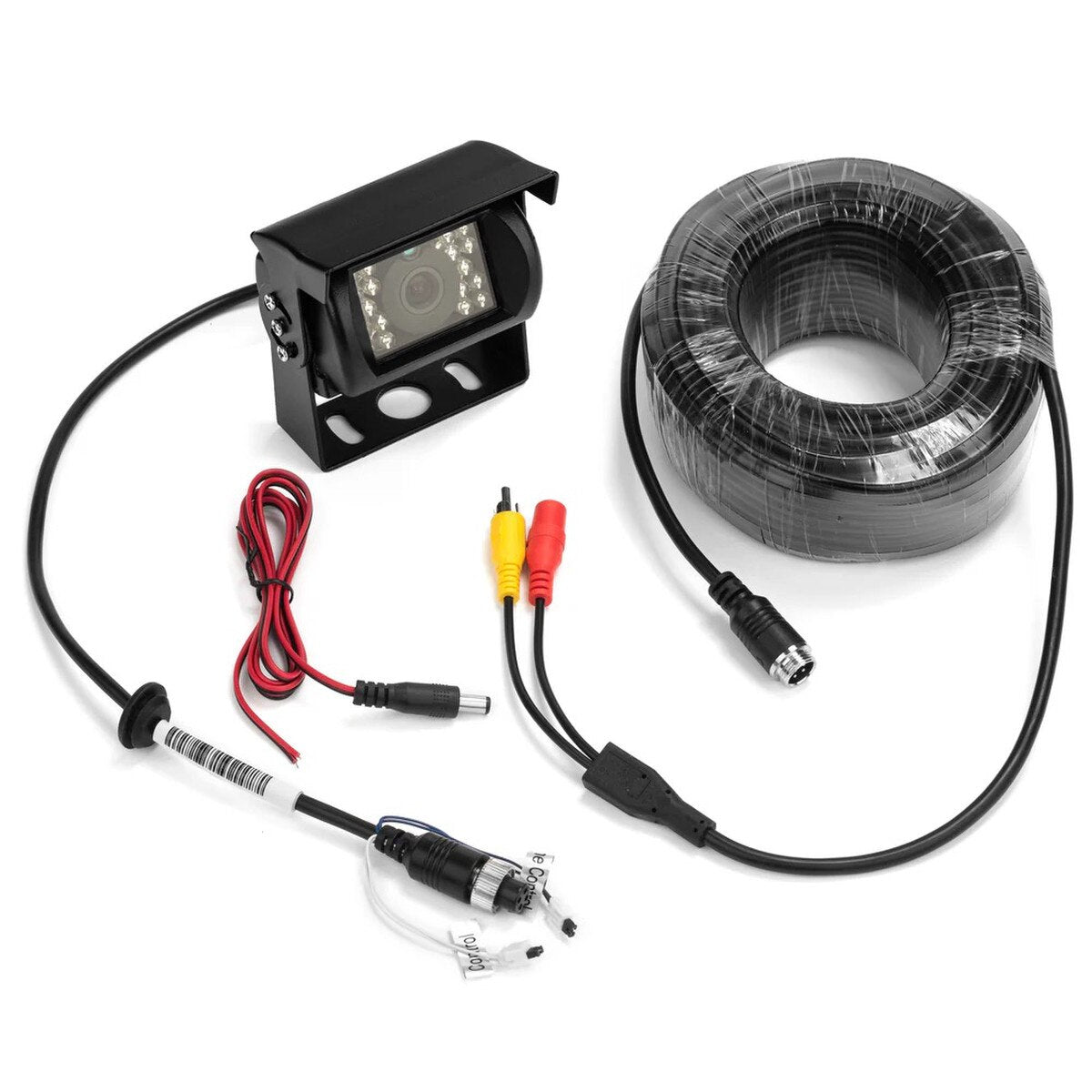

Included Equipment

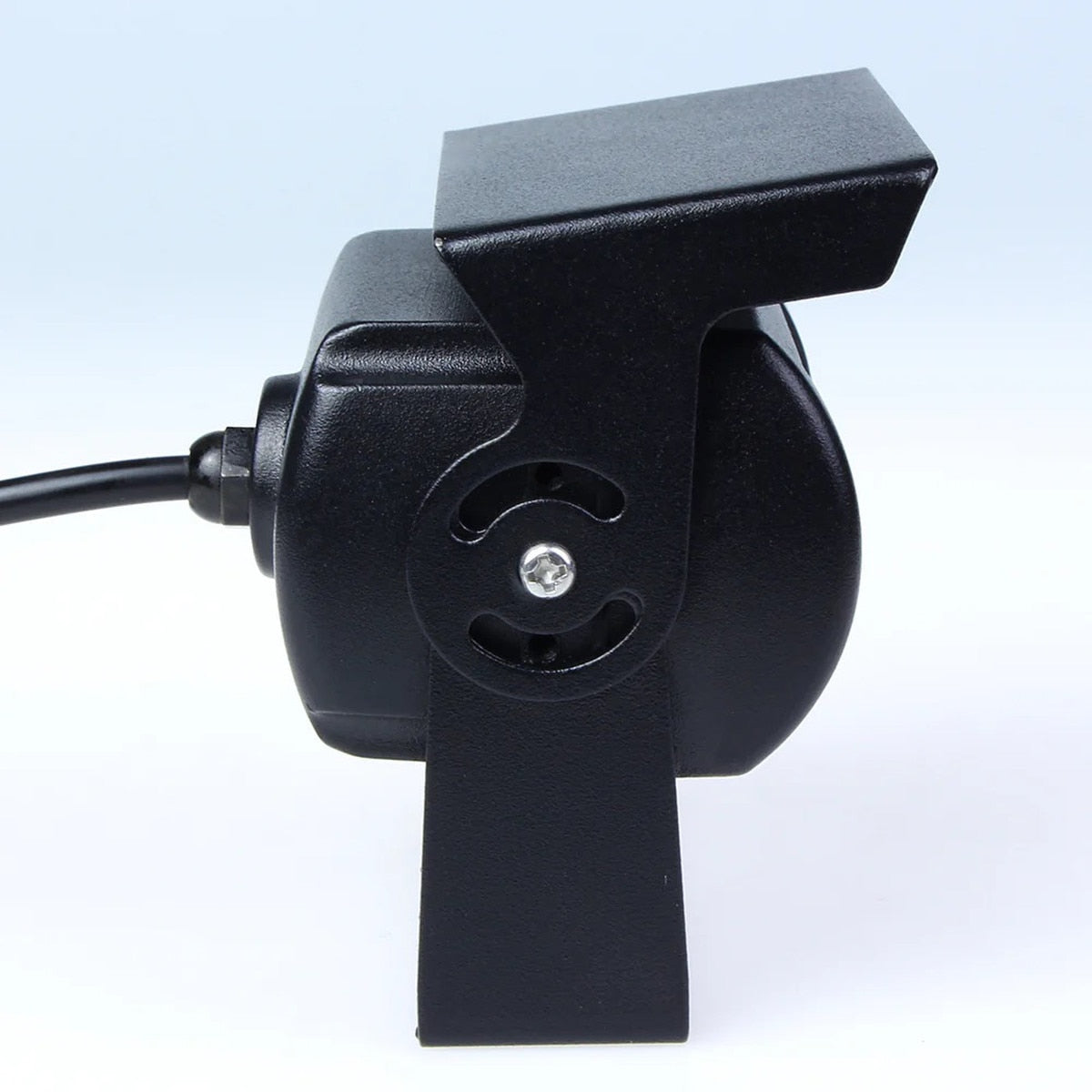

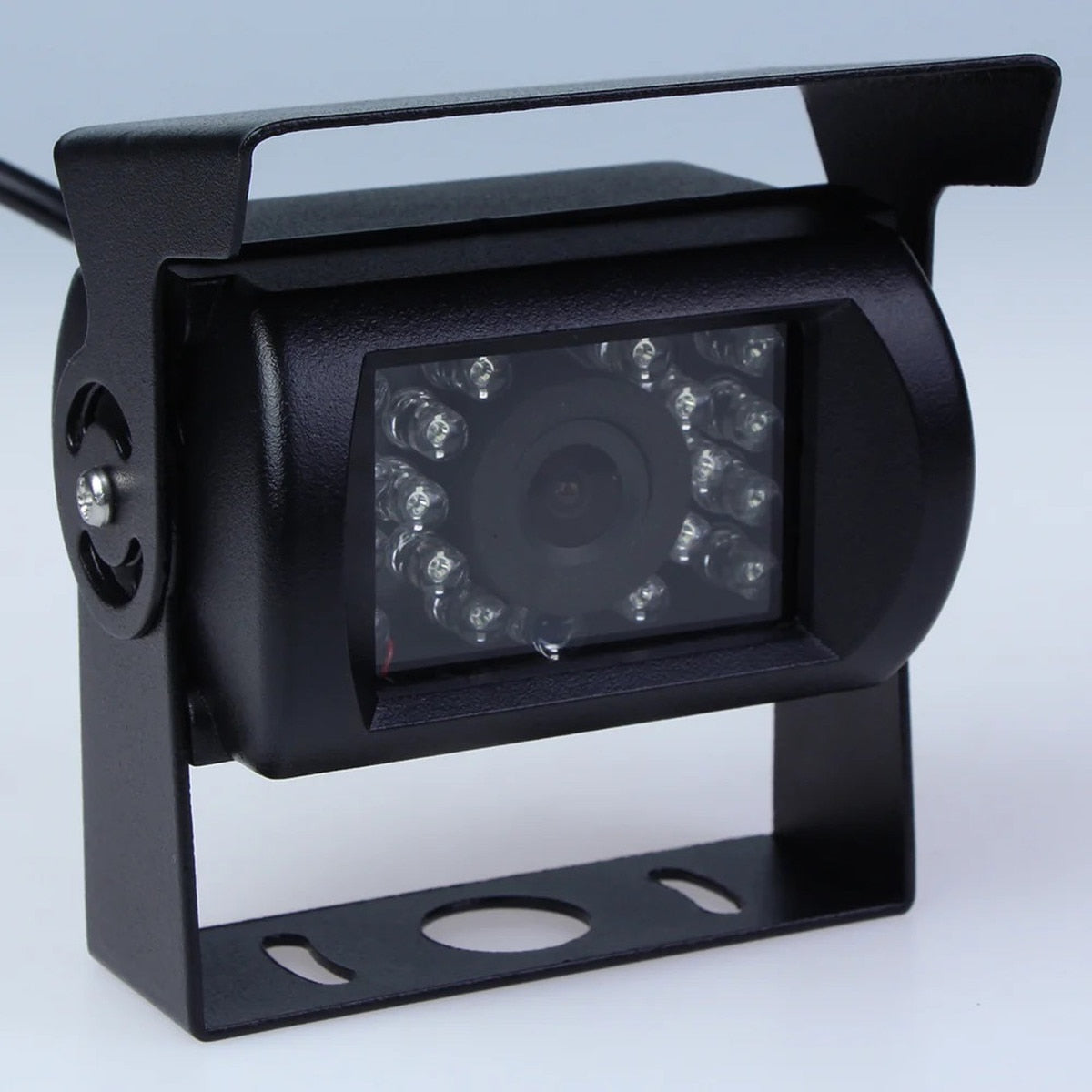

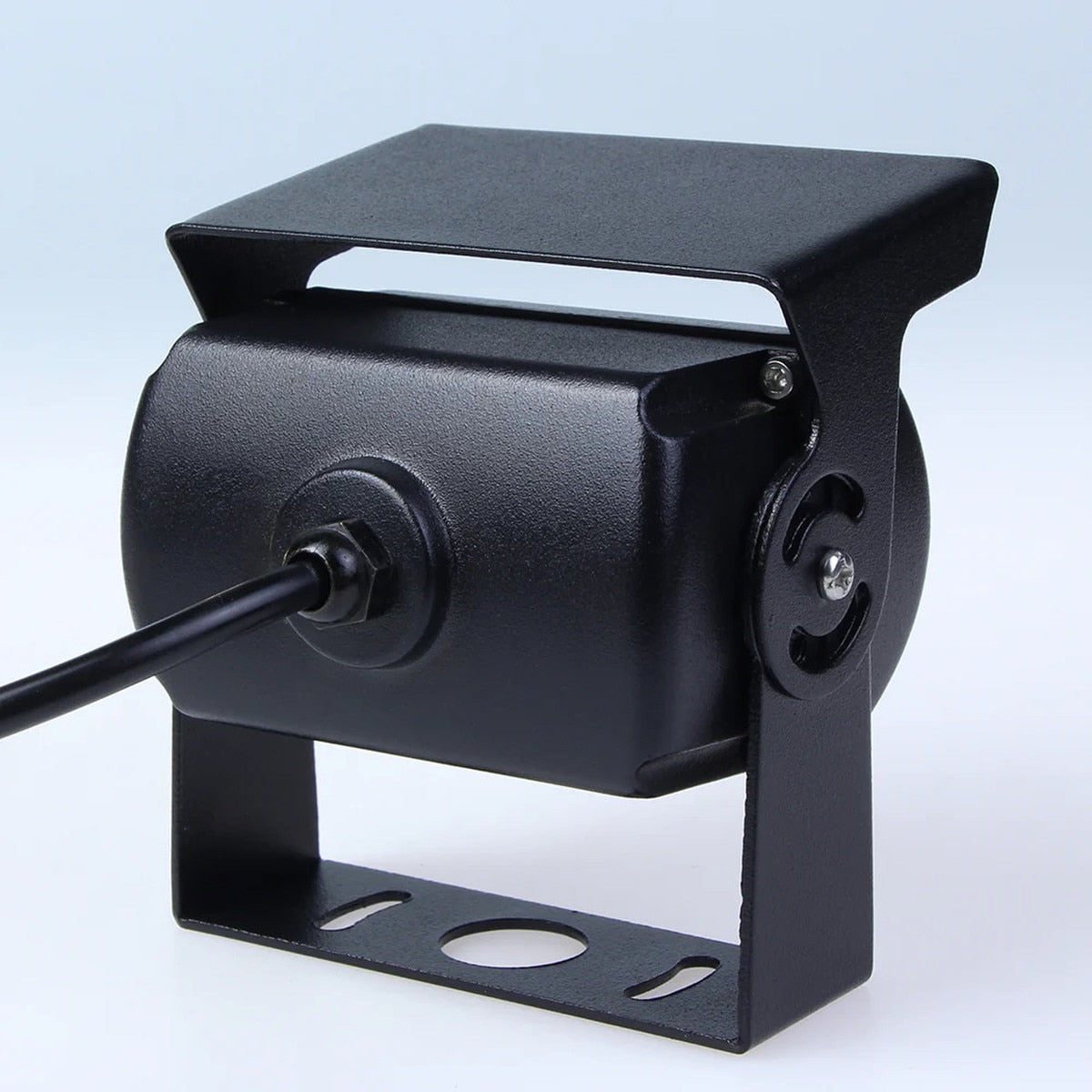

- VTB301CA bracket camera
- 20-meter / 65-foot extension cable
Technical Specifications
| Brand | BOYO |
|---|---|
| Model | VTB301CA |
| UPC | 850005493389 |
| AHD resolution | 1920 x 1080; 720p selectable |
| CVBS resolution | 640 x 480; 600 TV lines |
| Viewing angle in AHD | 125 degrees horizontal / 60 vertical / 170 diagonal |
| Viewing angle in CVBS | 80 degrees horizontal / 40 vertical / 100 diagonal |
| Camera protection rating | IP69K |
| Power | 8–35 VDC |
| Video system | NTSC |
Manufacturer Resources & Warranty
One-year limited manufacturer warranty for the original purchaser, subject to BOYO terms and exclusions. Read the manufacturer warranty.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, existing display and the view or recording function you want to add. Contact us for help checking the connections and installation requirements before ordering.
