Axxess AXSUB-GM1 Add-A-Sub Interface for select GMC 2013-2020 vehicles
Axxess AXSUB-GM1 Add-A-Sub Interface for select GMC 2013-2020 vehicles
Regular price
$289.99 USD
Regular price
Sale price
$289.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXSUB-GM1 is a vehicle-specific Add-A-Sub data interface designed to add aftermarket subwoofer signal to compatible factory-radio systems. The patented AXSUB interface processes low-frequency signal that may be limited by the factory radio, helping an added subwoofer amplifier perform properly while the factory source unit remains in place.
At a Glance
- Plug-and-play Add-A-Sub data interface for adding an aftermarket subwoofer while retaining the factory radio
- Designed for amplified and non-amplified systems depending on listed application
- 2-channel non-fading 5V RMS output
- Fixed low-pass frequency of 234Hz
- 250mA remote turn-on output
- Bass knob included for subwoofer level control
- Vehicle-specific harness included
- Installation done at the radio location
- Micro-B USB updatable
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Buick | Enclave | 2018-2019 | IO5 IO6 & Bose |
| Buick | Enclave | 2018-2019 | IO5 IO6; Factory amplifier location: Right of Accelerator pedal below center console. |
| Cadillac | ATS | 2013-2019 | UQA/UQS; Factory amplifier location: In the Luggage Compartment, Left Rear, Behind Trim Panel, Mounted to Floor. |
| Cadillac | Escalade | 2015-2020 | UQA/UQH/UQS; Factory amplifier location: In the Rear Compartment, behind Left Rear Quarter Trim. |
| Cadillac | SRX | 2013-2016 | UQA/UQS; Factory amplifier location: Right of the Accelerator pedal. Below Center Console. |
| Chevrolet | Camaro | 2016-2018 | IO5 or IO6; Factory amplifier location: Trunk / Luggage Compartment, Middle under Floor Lining. Left of Fuse Block. |
| Chevrolet | Colorado | 2015-2019 | IO5 IO6; Factory amplifier location: Passenger Side, Mounted Behind Glovebox. |
| Chevrolet | Corvette | 2014-2019 | UQA/UQS; Factory amplifier location: Trunk / Luggage Compartment, Middle under Floor Lining. Left of Fuse Block. |
| Chevrolet | Cruze | 2016-2018 | IO5 or IO6; Factory amplifier location: Hatch: Luggage Compartment, left (Trunk) Notch: Right Rear Trunk, Trim panel. |
| Chevrolet | Equinox | 2018 | IO5 or IO6; Factory amplifier location: Below Center of Instrument Panel, Mounted on Floor. |
| Chevrolet | Impala | 2014-2018 | UQG/UQS; Factory amplifier location: Right Rear of Trunk, Behind Trim Panel. |
| Chevrolet | Malibu | 2016-2018 | IO5 or IO6 & Bose; Factory amplifier location: Right Rear of Trunk, Behind Trim Panel. |
| Chevrolet | Malibu | 2016-2018 | IP1; Factory amplifier location: Right Rear of Trunk, Behind Trim Panel. |
| Chevrolet | Silverado | 2014-2018 | IO3, IO5 or IO6; Factory amplifier location: Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor. |
| Chevrolet | Silverado | 2014-2018 | UQA/UQG/UQH/UQS; Factory amplifier location: Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor. |
| Chevrolet | Silverado | 2019 | LD; IO5 or IO6; Factory amplifier location: Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor. |
| Chevrolet | Suburban | 2015-2020 | Factory amplifier location: In the Rear Compartment, behind Left Rear Quarter Trim. |
| Chevrolet | Suburban | 2015-2020 | UQA/UQH/UQS; Factory amplifier location: In the Rear Compartment, behind Left Rear Quarter Trim. |
| Chevrolet | Tahoe | 2015-2020 | Factory amplifier location: In the Rear Compartment, behind Left Rear Quarter Trim. |
| Chevrolet | Tahoe | 2015-2020 | UQA/UQH/UQS; Factory amplifier location: In the Rear Compartment, behind Left Rear Quarter Trim. |
| GMC | Acadia | 2017-2019 | UQA/IO5/IO6 & Bose; Factory amplifier location: In the Passenger Compartment, uner the front of the center console. |
| GMC | Canyon | 2015-2018 | IO5 or IO6; Factory amplifier location: Passenger Compartment, mounted behind glovebox. |
| GMC | Canyon | 2015-2018 | UQA/UQG/UQH/UQS; Factory amplifier location: Passenger Compartment, mounted behind glovebox. |
| GMC | Sierra | 2014-2018 | IO3, IO5 or IO6; Factory amplifier location: Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor. |
| GMC | Sierra Limited | 2019 | IO5 or IO6; Factory amplifier location: Rear Passenger Behind Seat, Mounted Below the Rear Window by Floor. |
| GMC | Terrain | 2018 | IO5 or IO6; Factory amplifier location: Below Center of Instrument Panel, Mounted on Floor. |
| GMC | Yukon | 2015-2020 | Factory amplifier location: Rear Compartment, behind Left Rear Quarter Trim. |
| GMC | Yukon | 2015-2020 | UQA/UQH/UQS; Factory amplifier location: Rear Compartment, behind Left Rear Quarter Trim. |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Installs at the radio location using the vehicle-specific harness
- Designed to provide subwoofer amplifier signal and remote turn-on output without replacing the factory radio
- Bass knob provides convenient subwoofer level control
- Professional installation is recommended for amplifier integration, gain setup, and subwoofer tuning
- Check the latest Metra / Axxess instructions before installation

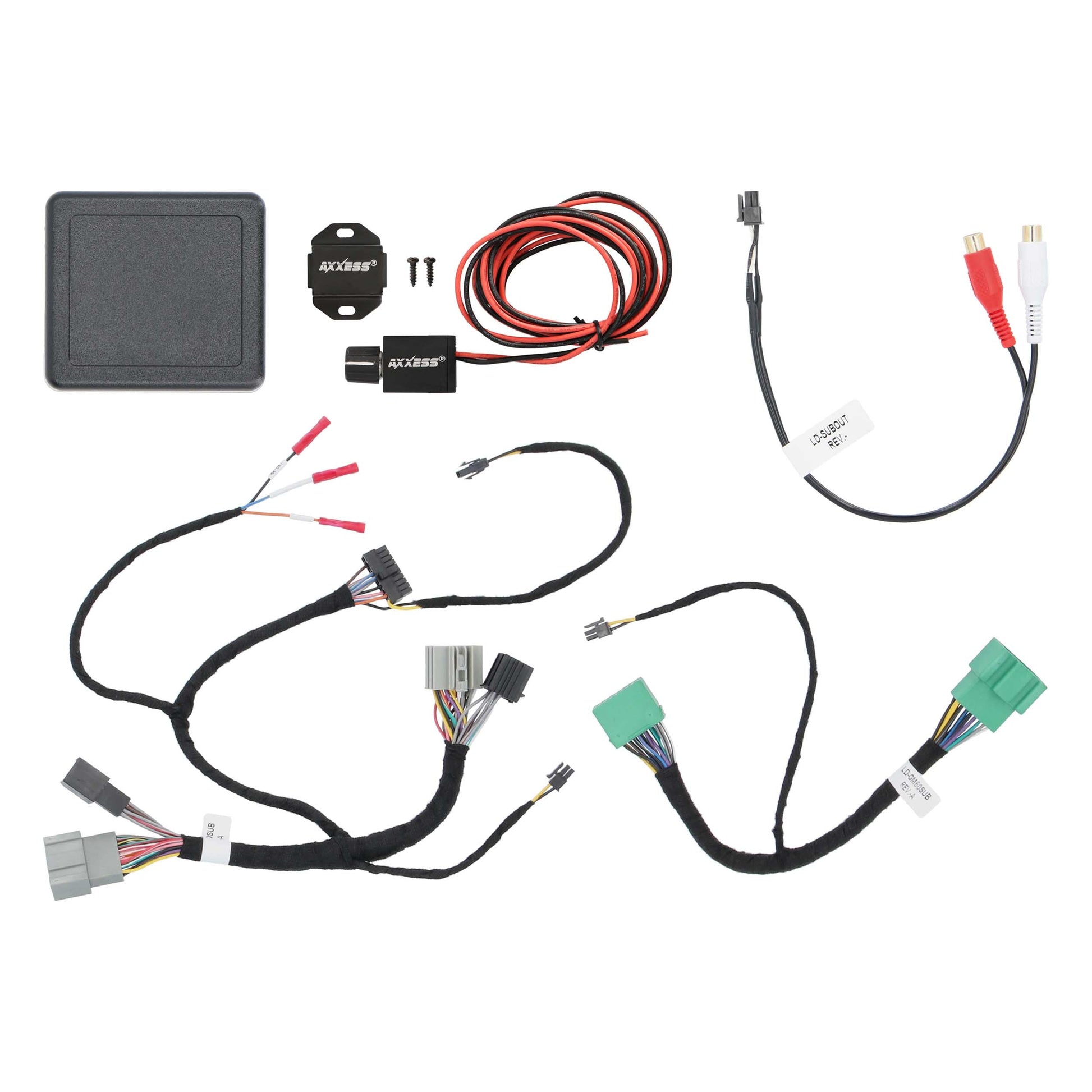

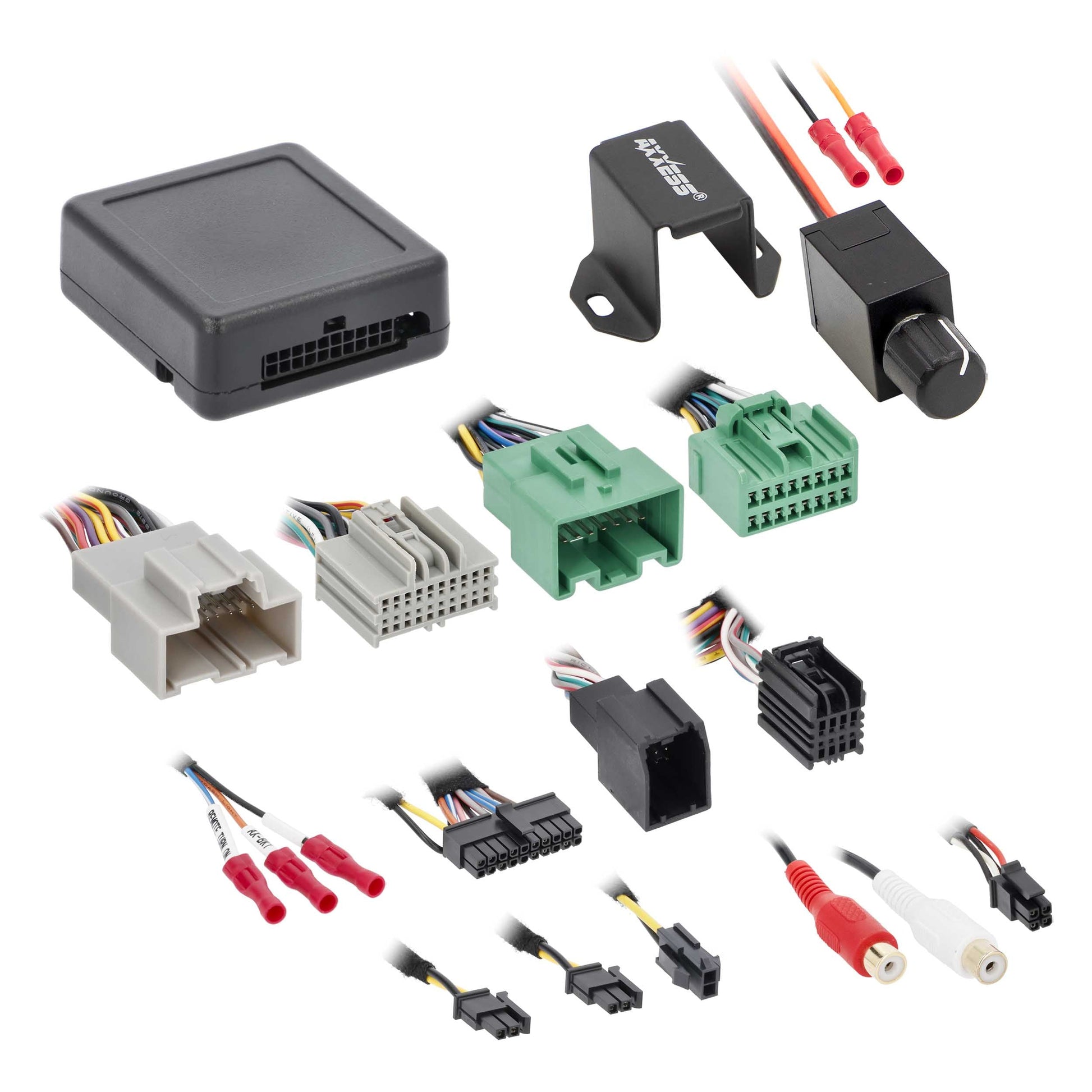

What’s in the Box
- Axxess AXSUB-GM1 Add-A-Sub interface
- Vehicle T-harness
- Bass knob
Technical Specifications
- Brand: Axxess
- Model: AXSUB-GM1
- Product Type: Vehicle-specific Add-A-Sub data interface
- Application: select GMC 2013-2020 vehicles
- Vehicle System: amplified and non-amplified systems depending on listed application
- Audio Output: 2-channel non-fading 5V RMS output
- Low-Pass Frequency: Fixed 234Hz
- Remote Output: 250mA remote turn-on output
- Update Port: Micro-B USB
- Sold As: Each
Identifiers & Packaging
- MPN: AXSUB-GM1
- UPC: 086429436507
- Sold As: Each
- Included Components: Axxess AXSUB-GM1 Add-A-Sub interface, Vehicle T-harness, Bass knob
