Axxess AXRSEH-GL29 RSE Retention Harness for Select GM Vehicles
Axxess AXRSEH-GL29 RSE Retention Harness for Select GM Vehicles
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

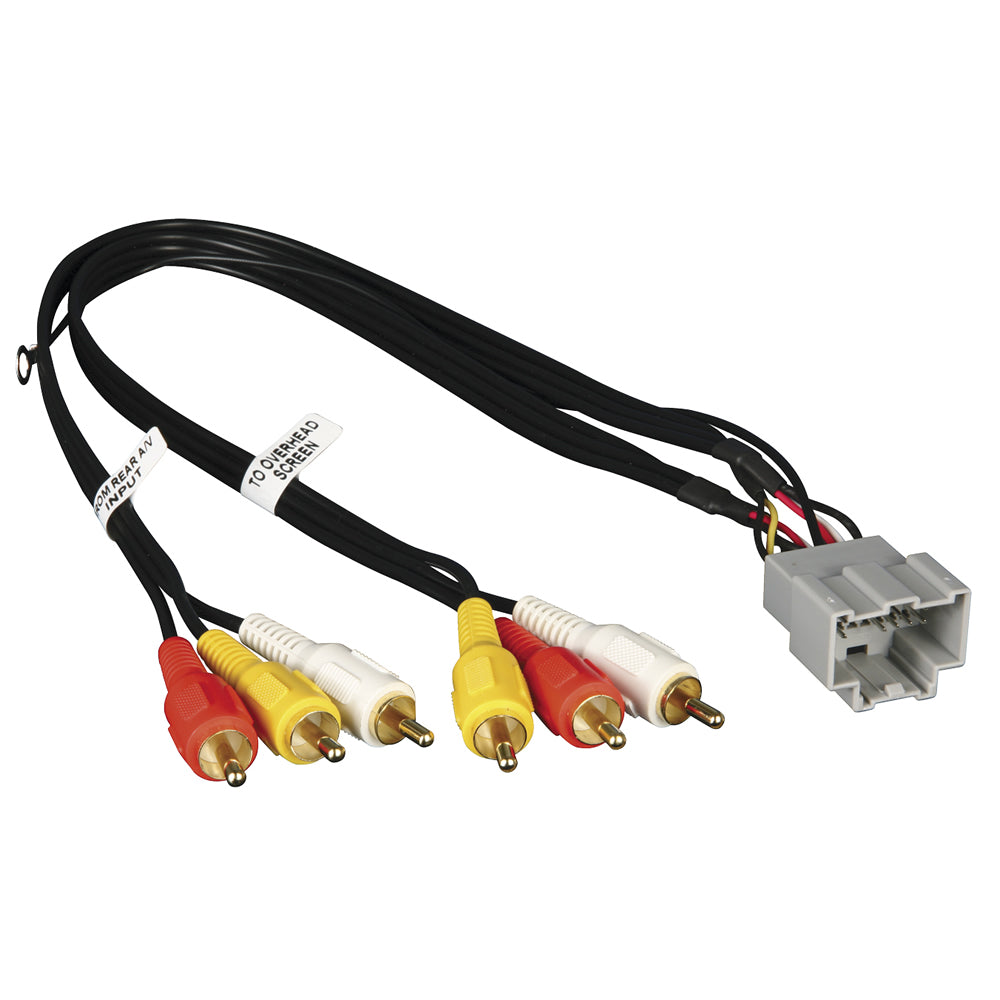

Axxess AXRSEH-GL29 is a rear seat entertainment retention harness for select 2006-2023 GM vehicles with factory rear seat entertainment. It is used during aftermarket radio replacement to help retain supported factory overhead RSE audio/video functions instead of losing the factory rear entertainment system.
At a Glance
- Rear seat entertainment retention harness for aftermarket radio installations
- Provides an audio/video input to the factory overhead video screen from the aftermarket radio
- Provides an audio/video input from the rear seat control panel to the aftermarket radio
- Helps retain factory RSE audio and video when supported by the vehicle application
- Designed for models with a DVD player built into the factory radio
- Retains the A/V-IN jack if equipped
- Only applicable for models with a second-row RSE system
System / Wiring Notes
- Aftermarket radio must have the required audio/video input and output connections
- Rear seat entertainment retention depends on factory RSE equipment and vehicle application
- Additional radio replacement interface, dash kit, antenna adapter, camera adapter, or harness may be required
- Verify exact vehicle, trim, factory radio, and RSE configuration before purchase
- Only applicable for models with second-row RSE.
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Buick | Enclave | 2008-2017 | — |
| Buick | Lucerne | 2006-2011 | — |
| Cadillac | DTS | 2006-2011 | — |
| Cadillac | Escalade | 2007-2014 | RPO UUI/UUJ |
| Cadillac | Escalade ESV | 2007-2014 | RPO UUI/UUJ |
| Cadillac | Escalade EXT | 2007-2012 | RPO UUI/UUJ |
| Cadillac | SRX | 2007-2009 | — |
| Chevrolet | Avalanche | 2007-2013 | RPO UIC, UM7, US8, UUI, UUJ, or UUN |
| Chevrolet | Cheyenne | 2012-2013 | — |
| Chevrolet | Equinox | 2007-2009 | — |
| Chevrolet | Express van | 2008-2023 | Full Size; RPO UUI/UUJ |
| Chevrolet | Impala | 2006-2013 | — |
| Chevrolet | Monte Carlo | 2006-2007 | — |
| Chevrolet | Silverado | 2007-2013 | RPO UIC, UM7, US8, UUI, UUJ, or UUN |
| Chevrolet | Suburban | 2007-2014 | — |
| Chevrolet | Tahoe | 2007-2014 | RPO UIC, UM7, US8, UUI, UUJ, or UUN |
| Chevrolet | Traverse | 2009-2017 | — |
| GMC | Acadia | 2007-2016 | — |
| GMC | Savana Full Size Van | 2008-2023 | RPO UUI/UUJ |
| GMC | Sierra | 2007-2013 | New Body; RPO UIC, UM7, US8, UUI, UUJ, or UUN |
| GMC | Sierra 2500/3500 | 2014-2015 | — |
| GMC | Yukon/Yukon XL / Denali | 2007-2014 | RPO UIC, UM7, US8, UUI, UUJ, or UUN |
| Hummer | H2 | 2008-2009 | — |
| Pontiac | Torrent | 2007-2009 | — |
| Saturn | Outlook | 2007-2009 | — |
| Saturn | VUE | 2008-2009 | — |
| Suzuki | XL-7 | 2007-2009 | — |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle, radio, and factory system compatibility before installation
- Read the current Axxess or Metra instructions before wiring or programming the interface
- Additional dash kit, antenna adapter, camera adapter, amplifier interface, or radio-specific harness may be required for a complete installation
- Professional installation is recommended for proper integration and retained-feature operation
What’s in the Box
- Axxess AXRSEH-GL29 entertainment retention harness
- Installation components as supplied by Axxess
Technical Specifications
- Brand: Axxess
- Model: AXRSEH-GL29
- Product Type: Rear seat entertainment retention harness
- Application: select 2006-2023 GM vehicles with factory rear seat entertainment
- Compatibility Type: Vehicle-specific
- Connection Role: Factory RSE audio/video retention
Identifiers & Packaging
- MPN: AXRSEH-GL29
- UPC: 086429400041
- Sold As: Each
- Included Components: Entertainment retention harness and installation components
