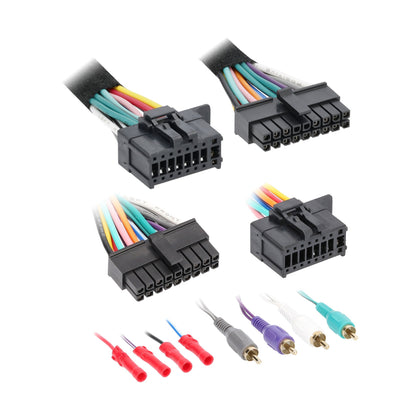

Axxess AXRSCH-PIO Radio Status Control Harness for Select Pioneer Radios

Axxess AXRSCH-PIO is a radio-specific status control harness for select Pioneer radios used with Axxess AXRSC radio status control installations. It helps create a cleaner plug-and-play connection between the AXRSC system and compatible aftermarket radios without hardwiring the radio manufacturer harness.

Key Features

• Radio-specific status control harness for select Pioneer radios
• Pairs with the AXRSC interface and AXRSC vehicle-specific harnesses
• Radio manufacturer’s included harness is not required for installation when properly matched
• No hardwiring required in supported AXRSC installations
• Includes amplified and non-amplified harnessing as supplied by Axxess

System / Wiring Notes

• Must be paired with the Axxess AXRSC interface and the correct AXRSC vehicle-specific harness
• Compatible only with listed or manufacturer-supported aftermarket radio models
• Radio and vehicle feature retention depends on the AXRSC system, selected vehicle harness, and compatible radio support
• Verify current Axxess application data before installation

Installation Notes

• Confirm exact vehicle, radio, and factory system compatibility before installation
• Read the current Axxess or Metra instructions before wiring or programming the interface
• Additional dash kit, antenna adapter, camera adapter, amplifier interface, or radio-specific harness may be required for a complete installation
• Professional installation is recommended for proper integration and retained-feature operation

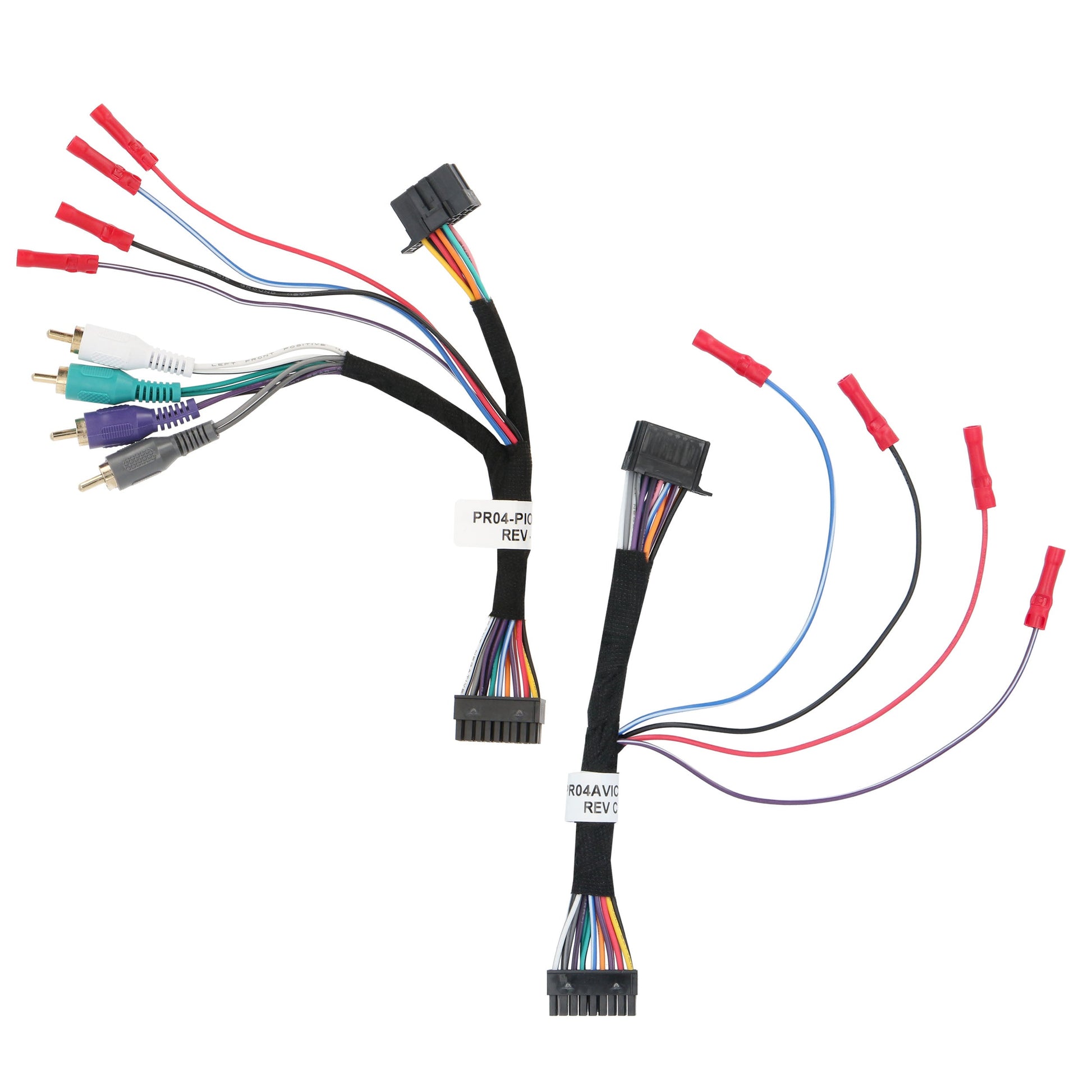

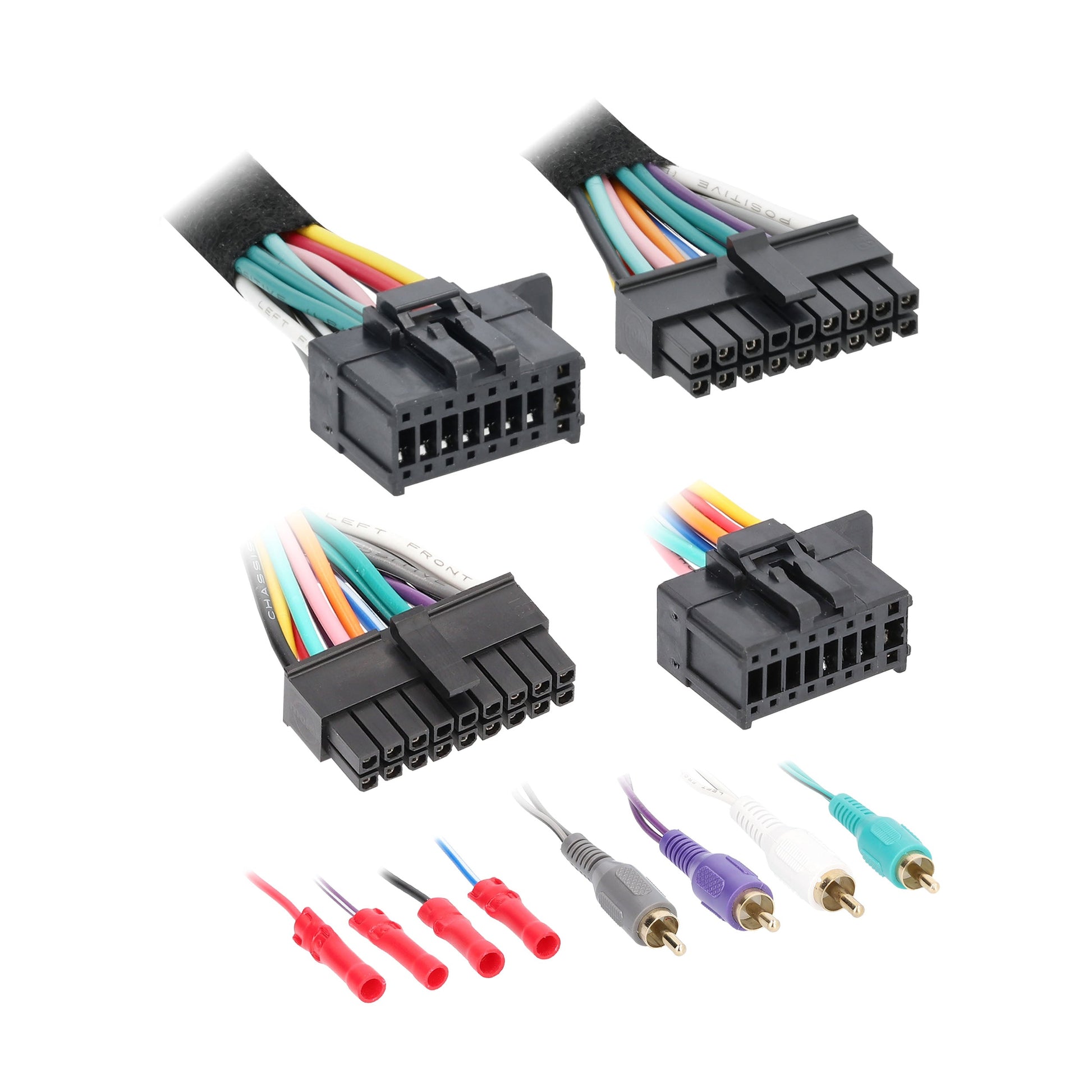

What’s in the Box

• Axxess AXRSCH-PIO radio-specific status control harness
• Amplified harness
• Non-amplified harness
• Step-by-step instructions as supplied by Axxess

Technical Specifications

• Brand: Axxess
• Model: AXRSCH-PIO
• Product Type: Radio-specific status control harness
• Application: Select Pioneer radios used with AXRSC installations
• Compatibility Type: Radio-specific
• Required Interface: Axxess AXRSC and compatible vehicle-specific AXRSCH harness
• Compatible Radio Applications: DMH-W4600NEX
  DMH-W4660NEX
  DMH-WC5700NEX
  DMH-WC6600NEX
  DMH-WT76NEX
  DMH-WT86NEX
  DMH-WT3800NEX
  DMH-WT6000NEX
  DMH-WT7600NEX
  DMH-WT8600NEX

Identifiers & Packaging

• MPN: AXRSCH-PIO
• UPC: 86429515080
• Sold As: Each
• Included Components: Amplified harness, non-amplified harness, and instructions
