Axxess AXRC-CH1 Ram Chime Retention Data Interface 2013-2017
Axxess AXRC-CH1 Ram Chime Retention Data Interface 2013-2017
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXRC-CH1 is a chime retention and radio replacement data interface for select 2013-2017 Ram vehicles with small-screen factory radio. It helps provide accessory power, retained accessory power, warning chimes, and navigation-output wiring support when replacing the factory radio in compatible vehicles.
At a Glance
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P.
- Used in non-amplified systems or when bypassing an amplified system
- Retains all warning chimes through onboard speaker
- Pre-wired AXSWC harness; AXSWC sold separately
- Retains factory 3.5mm AUX input jack
- Provides NAV outputs for parking brake, reverse, and speed sense
- Micro-B USB updatable
- Retains factory backup camera where supported
System / Wiring Notes
- Axxess lists this part as no longer available and directs to AXDI-CH5 for current replacement coverage
- Verify small-screen factory radio application before purchase
- AXSWC is sold separately when steering wheel control retention is required
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years |
|---|---|---|
| RAM | 1500 | 2013-2017 |
| RAM | 2500 | 2013-2017 |
| RAM | 3500 | 2013-2017 |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle, trim, factory radio, factory audio system, and radio compatibility before installation
- Read the current Axxess or Metra instructions before wiring or programming the interface
- Additional dash kit, antenna adapter, camera adapter, amplifier interface, or radio-specific harness may be required for a complete installation
- Professional installation is recommended for proper integration and retained-feature operation
What’s in the Box

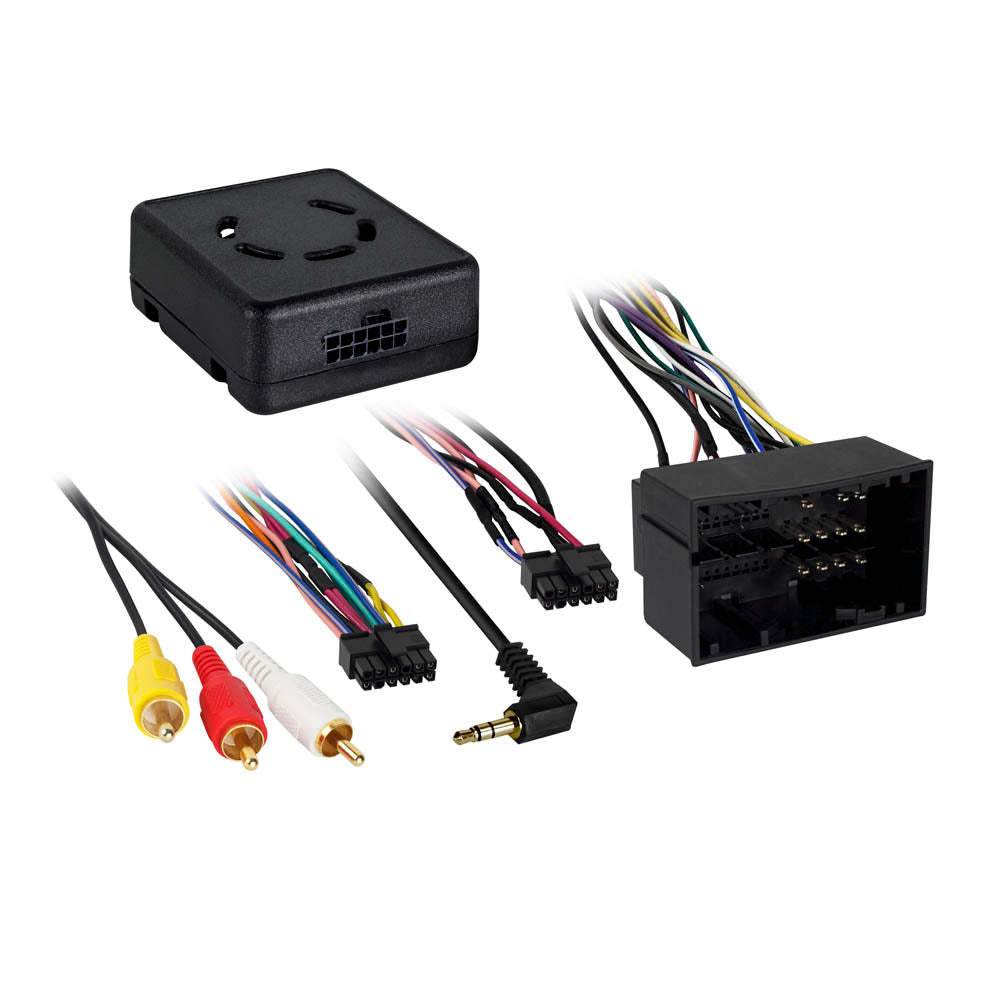

- Axxess AXRC-CH1 interface
- Vehicle-specific harness
- Installation components as supplied by Axxess
- Step-by-step instructions as supplied by Axxess
Technical Specifications
- Brand: Axxess
- Model: AXRC-CH1
- Product Type: Chime retention / radio replacement data interface
- Application: select 2013-2017 Ram vehicles with small-screen factory radio
- Compatibility Type: Vehicle-specific
- Audio System Support: Non-amplified systems or factory amplifier bypass
- Update Method: Micro-B USB where supported by the interface
Identifiers & Packaging
- MPN: AXRC-CH1
- UPC: 086429385126
- Sold As: Each
- Included Components: Interface, harness, and installation components as supplied by Axxess
