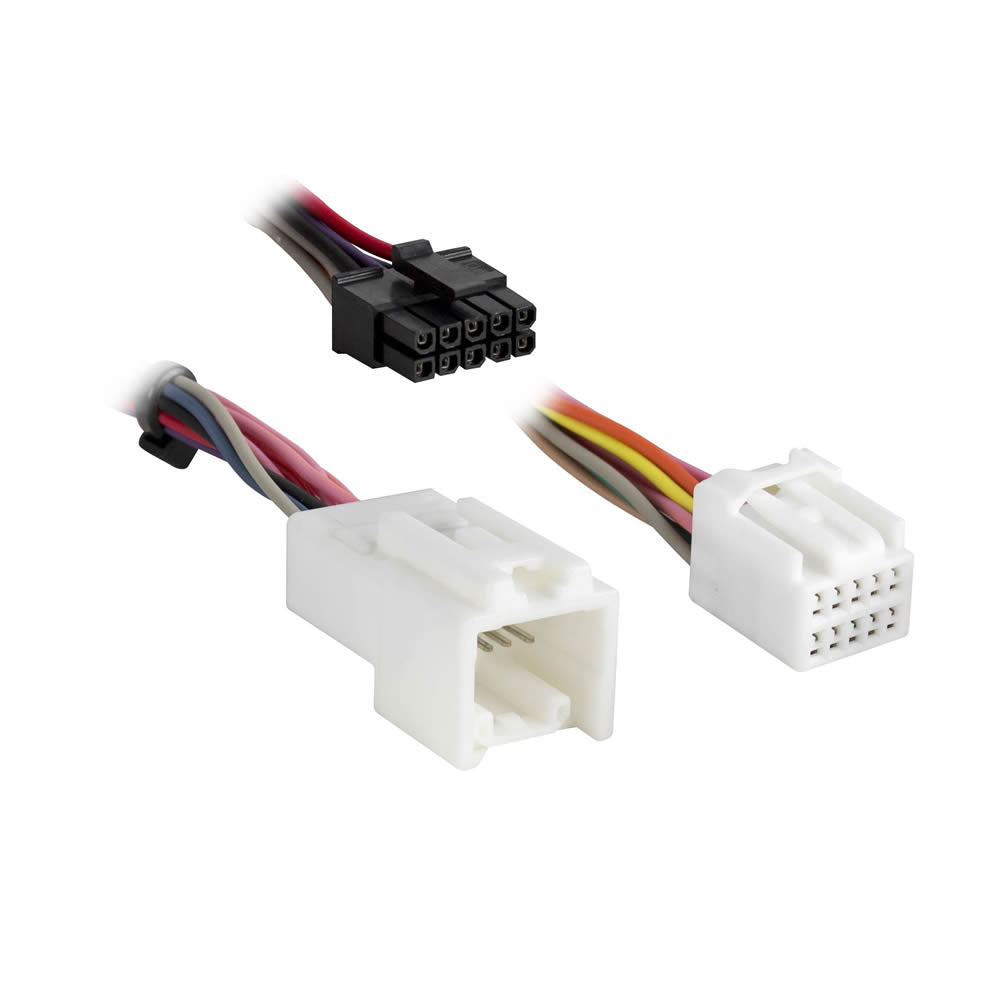

Axxess AXI-TL10-R Backup Camera RGB Harness for Toyota Lexus 2001-2010

Axxess AXI-TL10-R is a backup camera RGB interface harness for select Toyota 2001-2010 and Lexus 2001-2009 factory navigation applications. It is intended for adding an aftermarket backup camera to compatible Toyota / Lexus factory-screen systems without cutting stock connections where the application is correct.

At a Glance

• Backup camera RGB interface harness for select Toyota 2001-2010 and Lexus 2001-2009 applications
• Designed for compatible factory navigation / factory LCD-screen systems where listed
• Used to install an aftermarket backup camera to the factory navigation screen in supported applications
• Manufacturer instruction data places connections at the Toyota / Lexus navigation DVD-ROM on applicable vehicles
• Verify exact vehicle, navigation system, and Axxess application data before purchase

System / Wiring Notes

• Designed for camera integration with compatible factory screens or factory navigation systems as specified by Axxess
• Application depends on the exact vehicle year, make, model, factory radio, factory screen, and equipment package
• Additional Axxess.i components, camera adapters, or installation parts may be required depending on the vehicle and camera system
• Verify current Axxess application data before purchase and before installation

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

• Confirm exact vehicle fitment, factory screen type, factory navigation status, and camera input requirements before installation
• Install location and connector access vary by vehicle and factory system
• Professional installation is recommended for camera-interface work behind the radio, screen, or navigation module
• Test camera operation and reverse-trigger behavior before reassembling interior panels
• Check the current manufacturer instructions before installation

What’s in the Box

• Axxess AXI-TL10-R backup camera RGB interface harness

Technical Specifications

• Brand: Axxess
• Model: AXI-TL10-R
• Product Type: backup camera RGB interface harness
• Application: select Toyota 2001-2010 and Lexus 2001-2009 factory navigation applications
• Interface Type: Backup camera RGB interface harness
• Vehicle Application: Select Toyota 2001-2010 / Lexus 2001-2009
• Install Location Note: Navigation DVD-ROM connection on applicable vehicles per instruction data
• Compatibility Type: Vehicle-specific
• Sold As: Each

Identifiers & Packaging

• MPN: AXI-TL10-R
• UPC: 086429310753
• Sold As: Each
• Included Components: Axxess AXI-TL10-R backup camera RGB interface harness
