Axxess AXEXH-GM09 AX-Series Extension Harness for Select GM Vehicles

Axxess AXEXH-GM09 AX-Series Extension Harness for Select GM Vehicles

$76.99 USD
$76.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

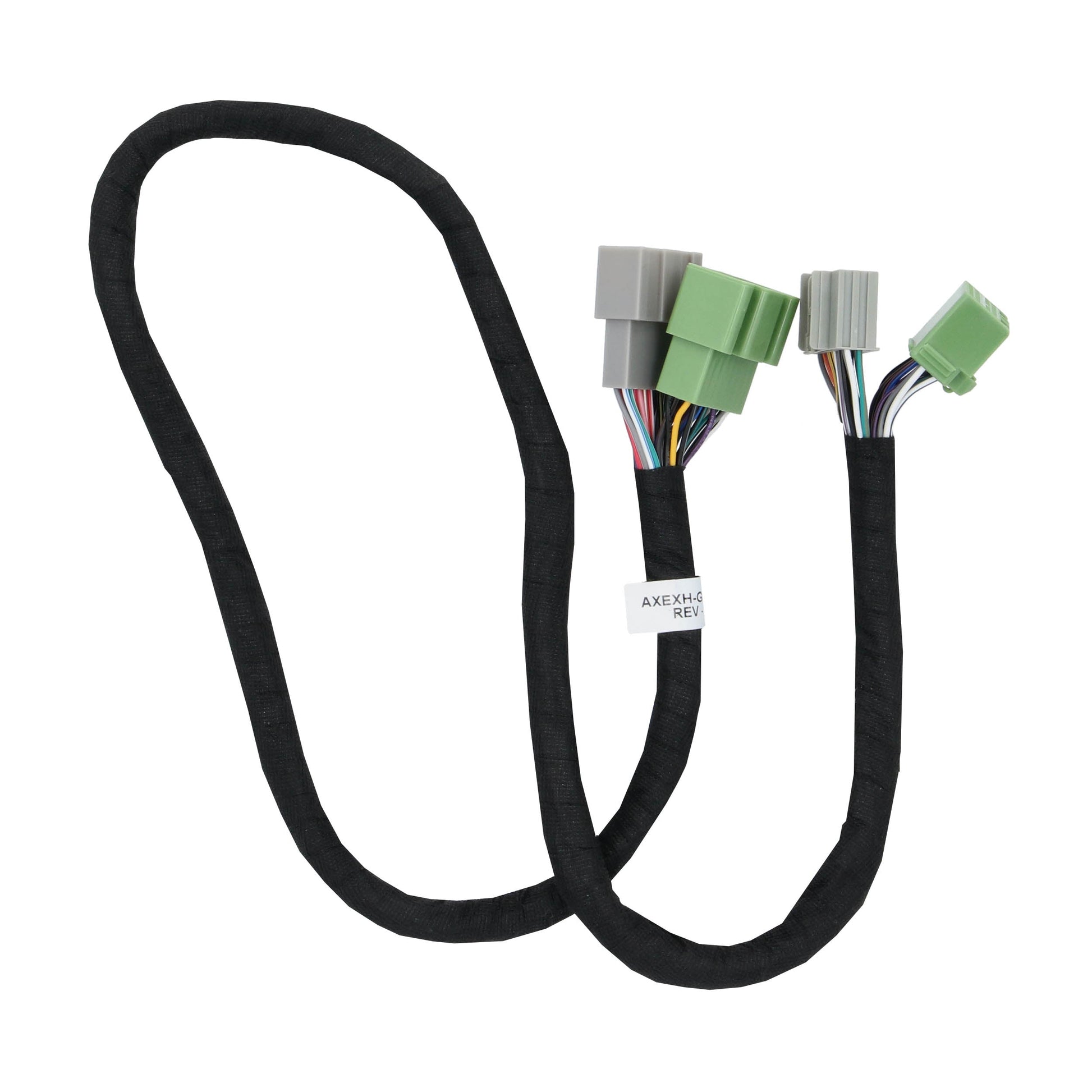

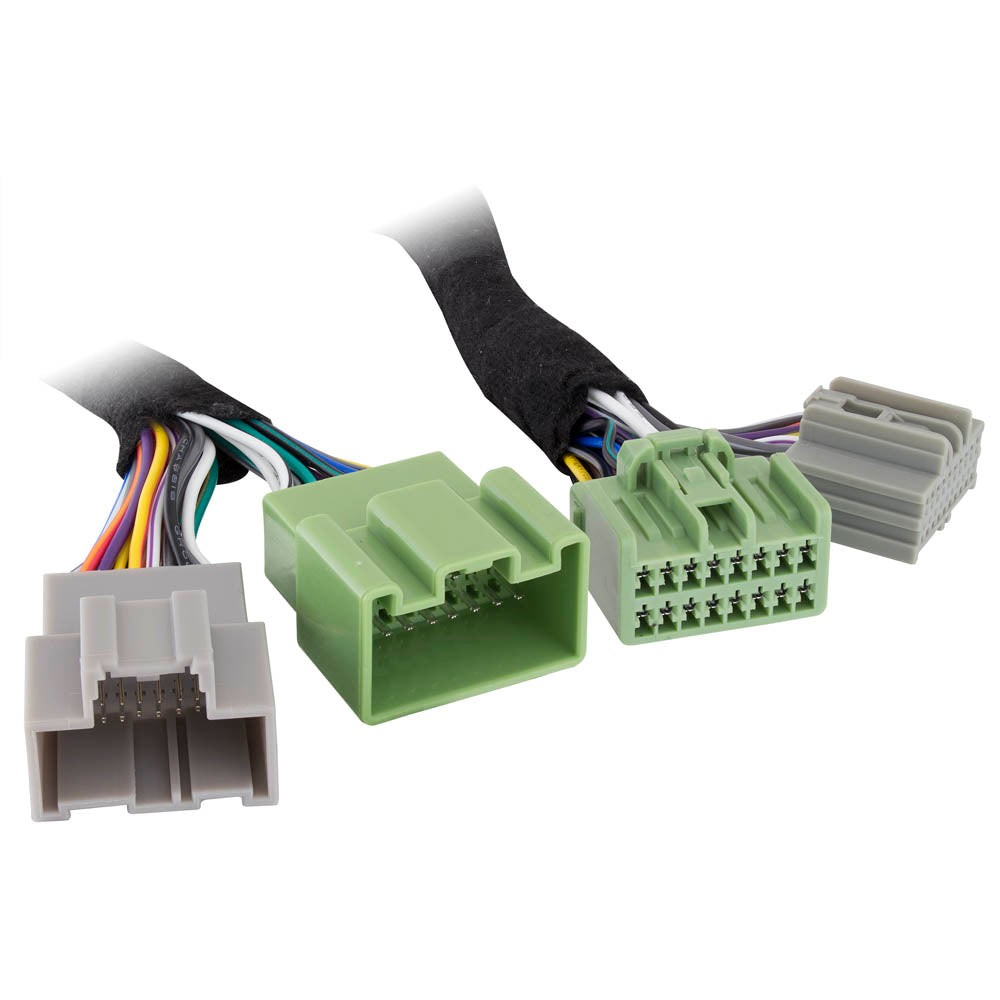

Axxess AXEXH-GM09 is an AX-series radio replacement extension harness for select GM vehicles. It extends the radio replacement interface harness when the factory tuner or radio module is mounted away from the dash, such as in the rear of the vehicle or passenger-side kick panel.

At a Glance

  • Extension harness for select GM AX-series radio replacement interfaces
  • Helps reach remote-mounted factory tuner or radio module locations
  • 48-inch harness length for added installation reach
  • Wrapped in cloth tape for an OE-style appearance
  • Designed for vehicle-specific Axxess AX-series integration applications

System / Wiring Notes

  • Use only when the Axxess Vehicle Fit Guide or installation instructions call for an AXEXH extension harness
  • This is not a stand-alone radio replacement interface and must be paired with the correct compatible Axxess interface
  • GM RPO codes and factory radio configuration must be verified before purchase

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Make Model Years Factory Equipment / Qualifier Application
Cadillac Escalade 2015-2020 — Telematics-retention interface
Chevrolet Camaro 2016-2018 RPO IO5 or IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Cheyenne 2014-2018 RPO IO3, IO4, IO5 or IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Colorado 2015-2018 IO5 / IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Cruze 2016 RPO IO5/IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Equinox 2018 RPO IO5/IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Malibu 2016-2018 RPO IO5/IO6/IP1 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Silverado 2014-2018 RPO IO3, IO4, IO5, or IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Spark 2016-2018 RPO IP0/IP1 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Suburban 2015-2020 — Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Tahoe 2015-2020 — Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Traverse 2018 RPO Code IO5 / IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
Chevrolet Trax 2017-2020 RPO IP1 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
GMC Acadia 2017-2019 RPO IO5/IO6 Telematics-retention interface
GMC Canyon 2015-2018 IO5 / IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
GMC Sierra 2014-2018 RPO IO3, IO4, IO5, or IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
GMC Sierra 2500/3500 2015-2018 RPO IO3, IO4, IO5, or IO6 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
GMC Terrain 2018 I05/I06 Data interface pre-wired for steering-wheel controls; Telematics-retention interface
GMC Yukon 2015-2020 — Data interface pre-wired for steering-wheel controls; Telematics-retention interface

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

  • Confirm exact vehicle year, model, trim level, factory radio system, and option codes before installation
  • Additional installation parts such as a dash kit, antenna adapter, steering wheel control harness, or radio-specific adapter may be required
  • Professional installation is recommended for best results
  • Check current Axxess instructions before installation and update firmware when required

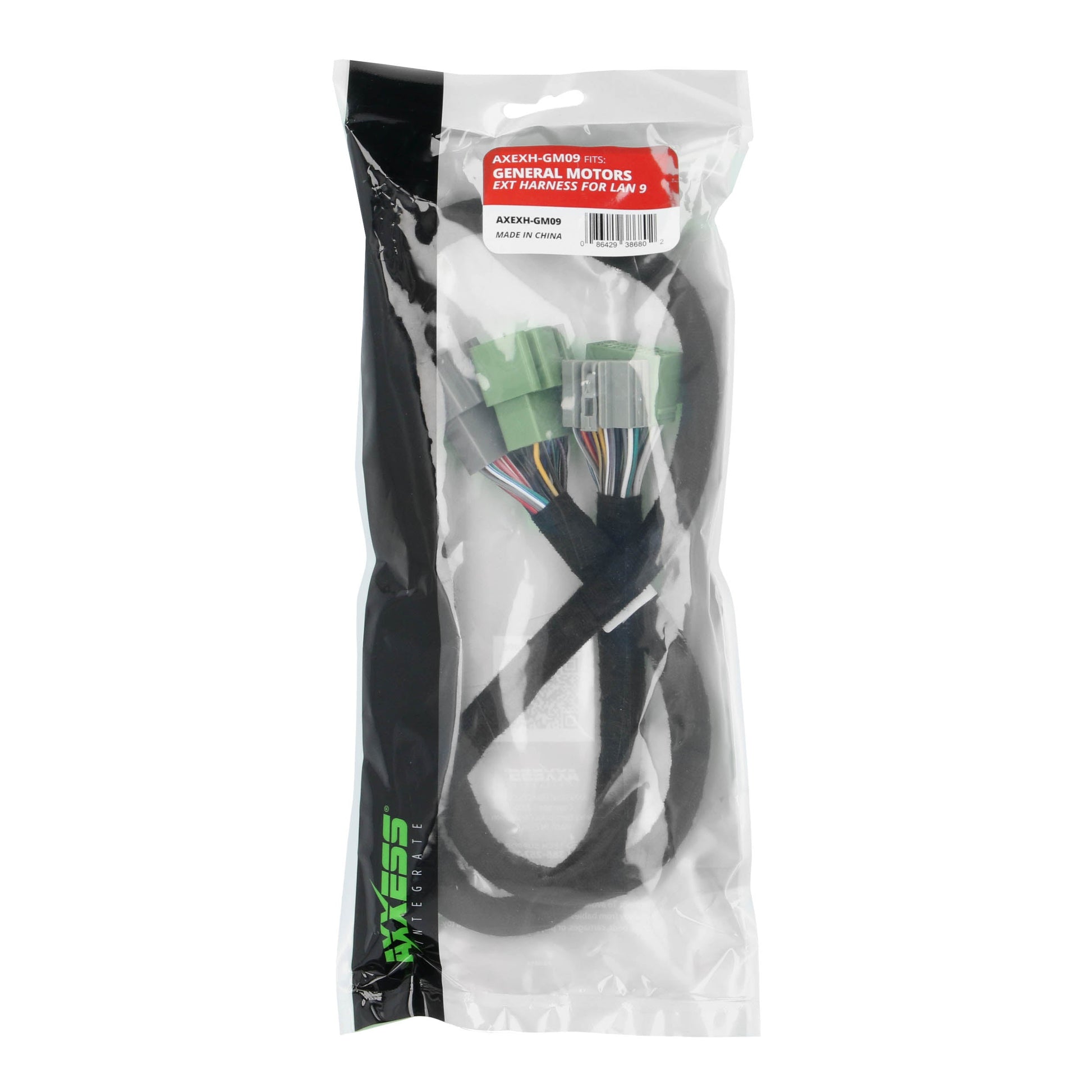

What’s in the Box

  • Axxess AXEXH-GM09 extension harness

Technical Specifications

  • Brand: Axxess
  • Model: AXEXH-GM09
  • Product Type: AX-series extension harness
  • Application: select 2014-2021 GM vehicles using compatible AX-series interfaces
  • Compatibility Type: Vehicle-specific
  • Harness Length: 48 inches

Identifiers & Packaging

  • MPN: AXEXH-GM09
  • UPC: '086429386802
  • Sold As: Each
  • Included Components: Extension harness
