Axxess AXDSPX-HK4 S/PDIF DSP Interface for Hyundai Kia 2013-2024

Axxess AXDSPX-HK4 is an AXDSP-X digital signal processor data interface package for select Hyundai and Kia models 2013-2024. It helps clean up factory-radio audio processing, provides tunable preamp outputs for aftermarket amplifiers, and supports retained factory audio functions where applicable.

Key Features

• DSP data interface package for select Hyundai and Kia models 2013-2024
• Retains ability to work with S/PDIF digitally controlled amplified systems
• Package includes the AXDSP-X interface and vehicle-specific harnessing
• 6 inputs and 10 individually assignable outputs
• Selectable 31-band graphic EQ or 5-band parametric EQ on each channel
• Selectable high-pass, low-pass, or bandpass filters
• Independent equalization and time delay on each output
• Clipping detection and limiting circuits
• Bass knob included
• Settings adjusted wirelessly through the AX-DSP-XL app
• Micro-B USB updatable
• Factory amplifier does not need to be retained
• Retains OE voice prompts such as Blue Link or UVO with adjustable level when equipped

System / Wiring Notes

• Retains ability to work with S/PDIF digitally controlled amplified systems
• Install location: at the factory amplifier
• Designed to be used with the factory radio in supported applications
• Retained factory prompts, chimes, parking alerts, OnStar, Blue Link, UVO, or similar features depend on vehicle equipment and proper configuration
• DSP tuning must be completed in the AX-DSP-XL app for the vehicle and audio system

Vehicle Compatibility

Installation Notes

• Verify the vehicle is in the listed application range and has the required factory audio system before purchase
• Do not assume compatibility across similar vehicles, factory radios, RPO codes, or amplifier packages
• Confirm exact vehicle fitment, factory audio system, amplifier configuration, radio RPO code where applicable, and radio connector before purchase
• Additional installation parts may be required depending on the vehicle, factory equipment, and system design
• Programming, firmware updates, app setup, or DSP tuning may be required for proper operation
• Professional installation and tuning are recommended for best results
• Check the current Axxess vehicle fit guide and manufacturer instructions before installation

What’s in the Box

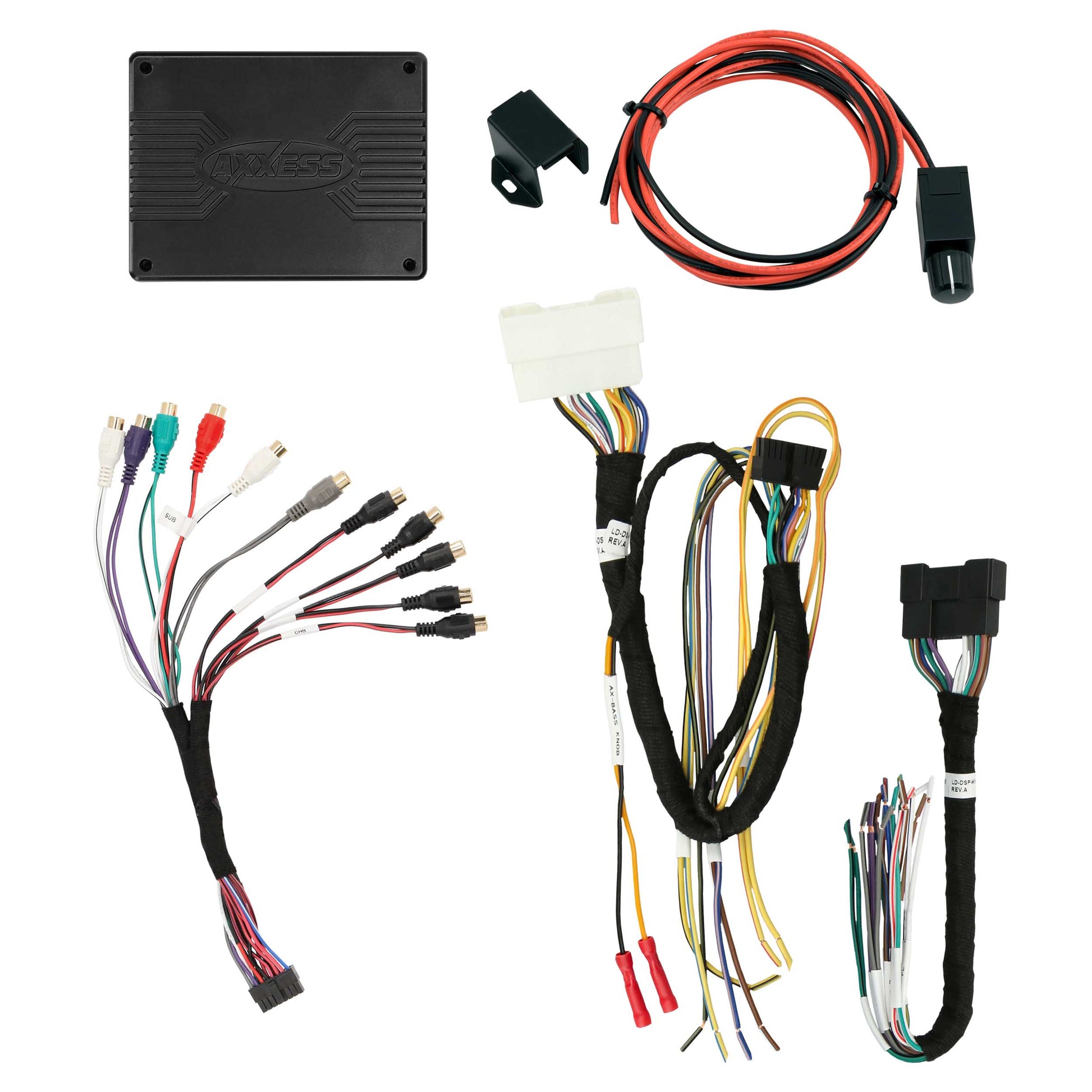

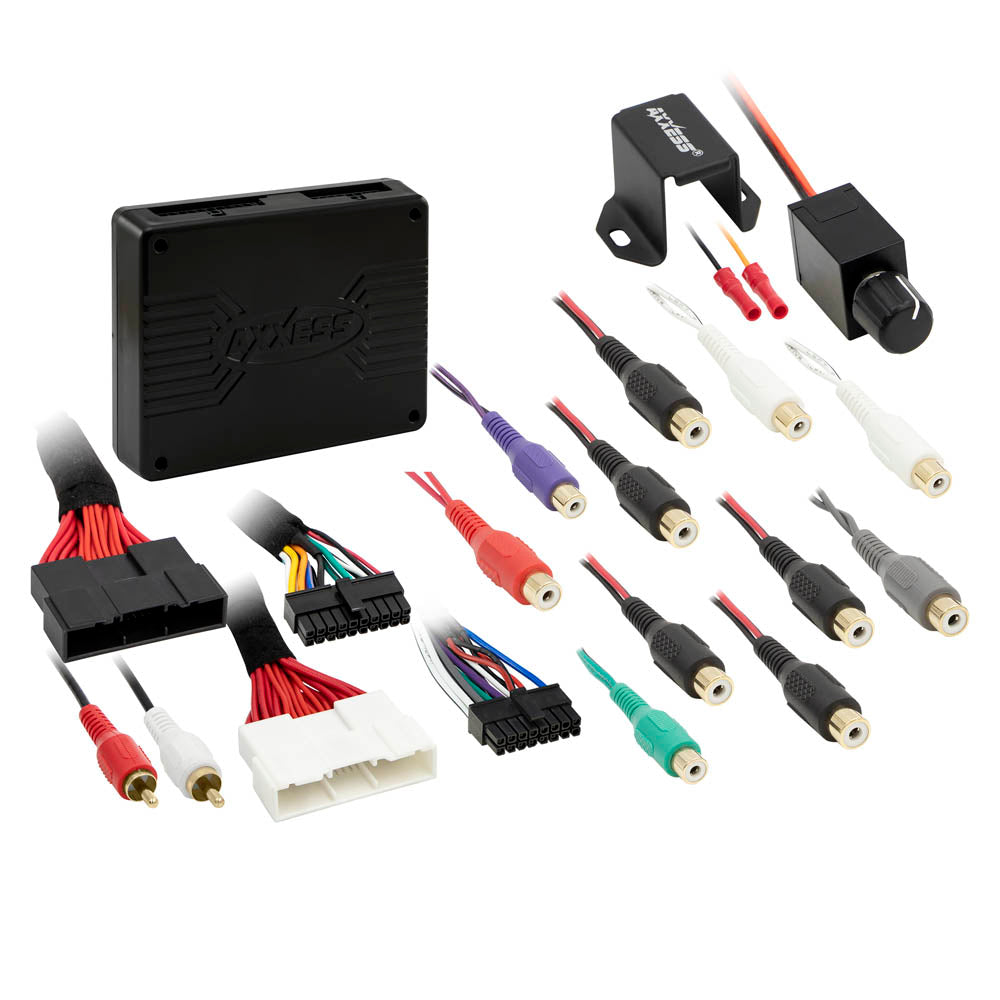

• AXDSP-X interface, vehicle-specific T-harness, amplifier bypass harness, bass knob, and manufacturer instructions

Technical Specifications

• Brand: Axxess
• Model: AXDSPX-HK4
• Product Type: DSP data interface with vehicle-specific harness
• Application: select Hyundai and Kia models 2013-2024
• Compatibility Type: Vehicle-specific
• Factory System Requirement: Retains ability to work with S/PDIF digitally controlled amplified systems
• Install Location: at the factory amplifier
• DSP Platform: AXDSP-X
• Inputs: 6
• Outputs: 10 individually assignable
• EQ: 31-band graphic EQ or 5-band parametric EQ
• Filters: High-pass, low-pass, or bandpass
• Selectable Slope: 12, 24, 36, or 48 dB per octave
• Delay: Up to 10 ms per channel
• Tuning: Axxess AX-DSP-XL app
• Update Method: Micro-B USB
• Included Control: Bass knob

Identifiers & Packaging

• MPN: AXDSPX-HK4
• UPC: 86429384051
• Sold As: Each
• Included Components: AXDSP-X interface, vehicle-specific T-harness, amplifier bypass harness, bass knob, and manufacturer instructions
