Axxess AXDSPH-MZ1 DSP T-Harness for Select Mazda 2002-2020
Axxess AXDSPH-MZ1 DSP T-Harness for Select Mazda 2002-2020
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

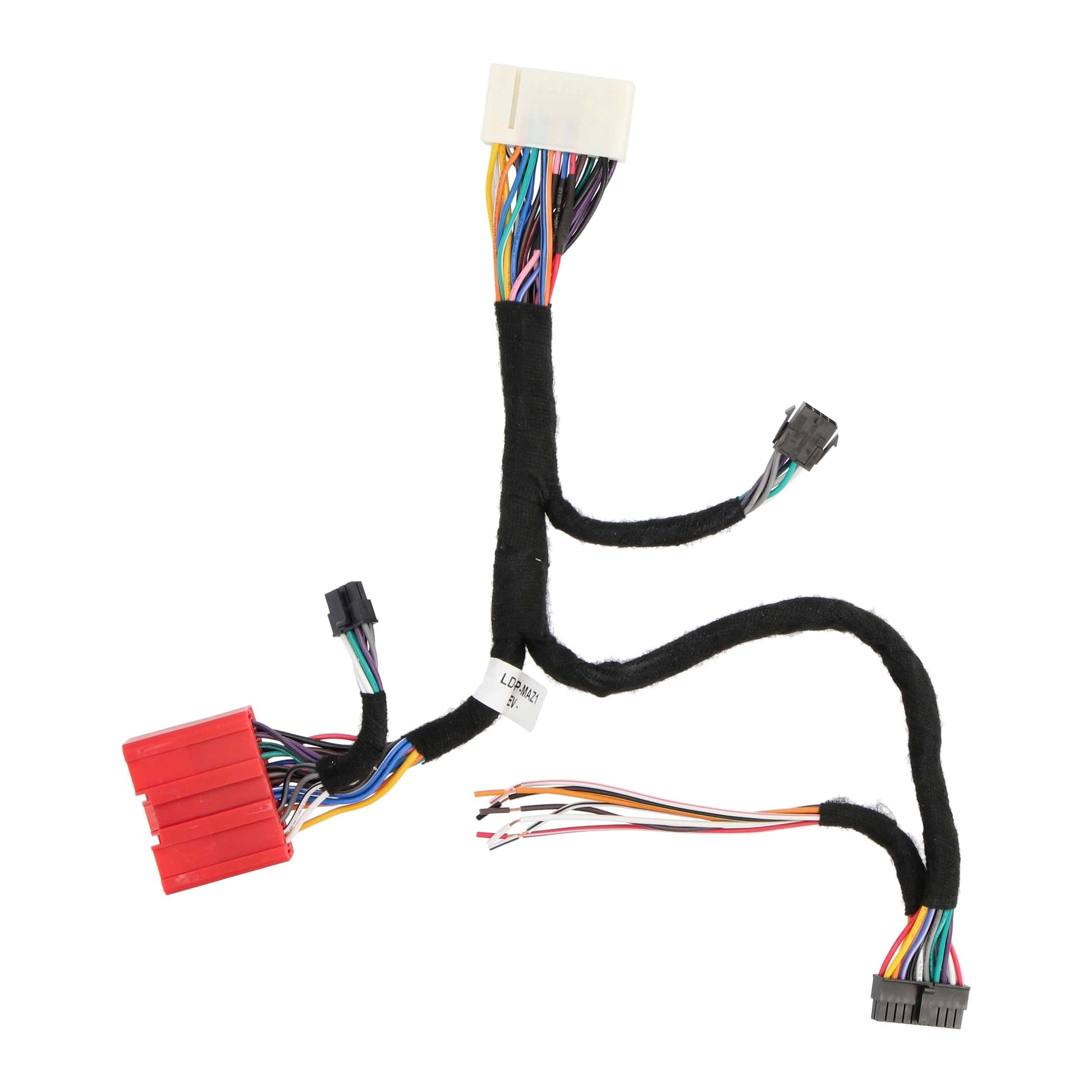

Axxess AXDSPH-MZ1 is a vehicle-specific DSP T-harness for select Mazda models 2002-2020. It is built for installers using an Axxess AXDSP-X processor and provides the vehicle harnessing needed for cleaner DSP integration without buying a complete pre-packaged DSP kit.
At a Glance
- DSP T-harness for select Mazda models 2002-2020
- Plug-and-play harness for compatible AXDSP-X installations
- AXDSP-X processor sold separately
- Vehicle-specific harnessing supports cleaner amplifier and DSP integration
- A la carte harness option for installers who stock AXDSP-X processors separately
- Helps reduce vehicle wire modification when used in the correct application
System / Wiring Notes
- Vehicle-specific DSP T-harness for compatible Axxess AXDSP-X installations
- The AXDSP-X interface is required and is not included with this T-harness
- Factory audio system, amplifier package, navigation equipment, and screen configuration can affect compatibility
- DSP setup and tuning must be completed according to the current Axxess instructions and app/software requirements
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Mazda | CX-5 | 2013-2015 | Factory amplifier location: High Passengers Kick. |
| Mazda | CX-9 | 2008-2015 | Factory amplifier location: Right Rear Quarter Panel. |
| Mazda | Mazda 2 | 2011-2014 | Factory amplifier location: N/A |
| Mazda | Mazda 3 | 2004-2015 | Factory amplifier location: 04'-05': Cargo Floor; 06'-08': Driver's Seat; 10'-Up*: Below Passengers Seat. |
| Mazda | Mazda 5 | 2006-2015 | Factory amplifier location: Blow Passenger's Seat. |
| Mazda | Mazda 6 | 2008-2015 | Factory amplifier location: High Passengers Kick. |
| Mazda | Mazda 6 | 2016-2017 | Without Center Display; Factory amplifier location: Blow Passenger's Seat. |
| Mazda | MX-5 Miata | 2002-2015 | Factory amplifier location: Below 'Rear Deck' Between Headrests. |
| Mazda | MX-5 Miata | 2016-2020 | Without Center Display; Factory amplifier location: Left Shelf under Rear Roof Assembly. |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Verify that the vehicle is listed for this exact harness and not just a similar Axxess DSP harness
- Do not assume compatibility across similar model years, factory radio types, premium audio systems, or amplifier packages
- Confirm exact vehicle fitment, factory audio system, trim level, radio connector, and amplifier system before purchase
- Additional installation parts may be required depending on the vehicle, factory equipment, and system design
- Programming, app setup, firmware updates, or DSP tuning may be required for proper operation
- Professional installation and tuning are recommended for best results
- Check the current Axxess vehicle fit guide and manufacturer instructions before installation
What’s in the Box
- Axxess AXDSPH-MZ1 DSP T-harness
Technical Specifications
- Brand: Axxess
- Model: AXDSPH-MZ1
- Product Type: DSP T-harness
- Application: select Mazda models 2002-2020
- Compatibility Type: Vehicle-specific
- Required Interface: AXDSP-X sold separately
- Installation Role: Vehicle harnessing for Axxess DSP integration
Identifiers & Packaging
- MPN: AXDSPH-MZ1
- UPC: 086429426195
- Sold As: Each
- Included Components: DSP T-harness
