Axxess AXDIS-TY3 Data Interface with SWC for Select Toyota Vehicles
Axxess AXDIS-TY3 Data Interface with SWC for Select Toyota Vehicles
Regular price
$267.99 USD
Regular price
Sale price
$267.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXDIS-TY3 is a radio replacement data interface with steering wheel control retention for select Toyota 2018-2024 vehicles. It helps retain key factory functions when installing an aftermarket radio while providing the accessory power and navigation output signals commonly needed for a clean integration.
At a Glance
- Radio replacement data interface for select Toyota 2018-2024 vehicles
- Designed for amplified and non-amplified systems
- Retains audio controls on the steering wheel when used with a compatible aftermarket radio
- Provides 12-volt accessory power output
- Provides NAV outputs including parking brake, reverse, and speed sense where supported
- Micro-B USB updatable
- Retains the factory backup camera where supported
- Retains balance and fade on non-amplified systems
System / Wiring Notes
- Retained features depend on the vehicle trim, factory audio system, and aftermarket radio being installed
- Steering wheel control retention requires a compatible aftermarket radio and proper programming/setup
- Verify factory amplified/non-amplified system configuration before purchase
- Balance and fade retention may vary by amplified versus non-amplified factory system
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier | Application |
|---|---|---|---|---|
| Toyota | 4Runner | 2020-2024 | — | Data interface with built-in steering-wheel controls |
| Toyota | Avalon | 2019-2020 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Avalon | 2019-2022 | — | Data interface with built-in steering-wheel controls |
| Toyota | C-HR | 2019-2022 | — | Data interface with built-in steering-wheel controls |
| Toyota | Camry | 2018-2020 | With 8" touchscreen radio; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Camry | 2021-2024 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Corolla | 2019-2021 | — | Data interface with built-in steering-wheel controls |
| Toyota | Highlander | 2020-2023 | Without 12.3" screen; Factory amplified audio system | Radio-replacement data interface for amplified system |
| Toyota | Highlander | 2020-2023 | Without 12.3" screen; Non-amplified factory audio system | Radio-replacement data interface for non-amplified system |
| Toyota | RAV4 | 2019-2024 | Factory amplified audio system | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2020-2022 | With black high gloss color dash; Factory amplified audio system | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2020-2022 | With charcoal high gloss color dash; Factory amplified audio system | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2020-2022 | With matte black color dash; Factory amplified audio system | Radio-replacement data interface for amplified system |
| Toyota | Sienna | 2018-2020 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sienna | 2018-2023 | — | Data interface with built-in steering-wheel controls |
| Toyota | Tacoma | 2020-2023 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tundra | 2020-2021 | With black high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tundra | 2020-2021 | high gloss With silver sides; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle year, model, trim level, factory radio system, and option codes before installation
- Additional installation parts such as a dash kit, antenna adapter, steering wheel control harness, or radio-specific adapter may be required
- Professional installation is recommended for best results
- Check current Axxess instructions before installation and update firmware when required
What’s in the Box

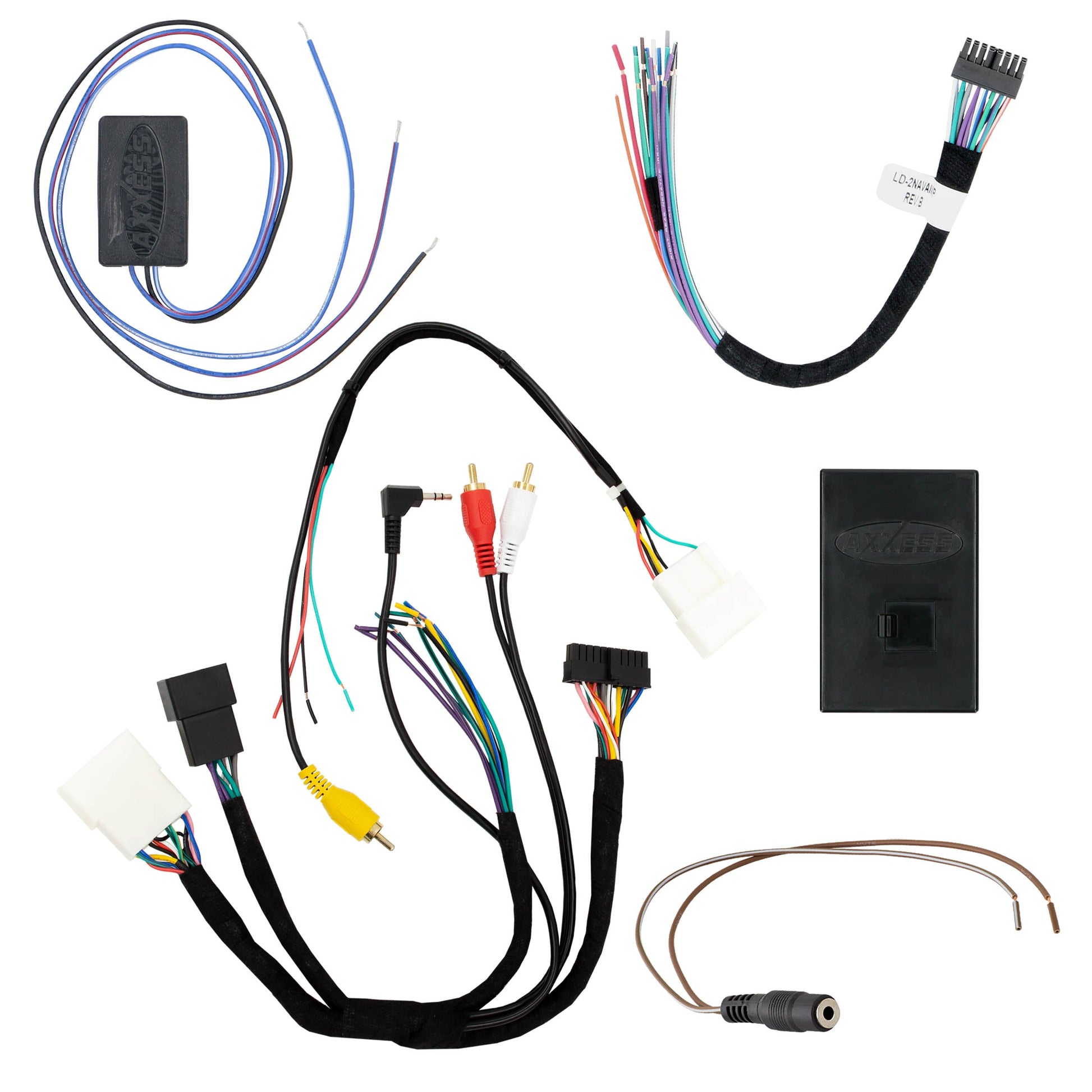

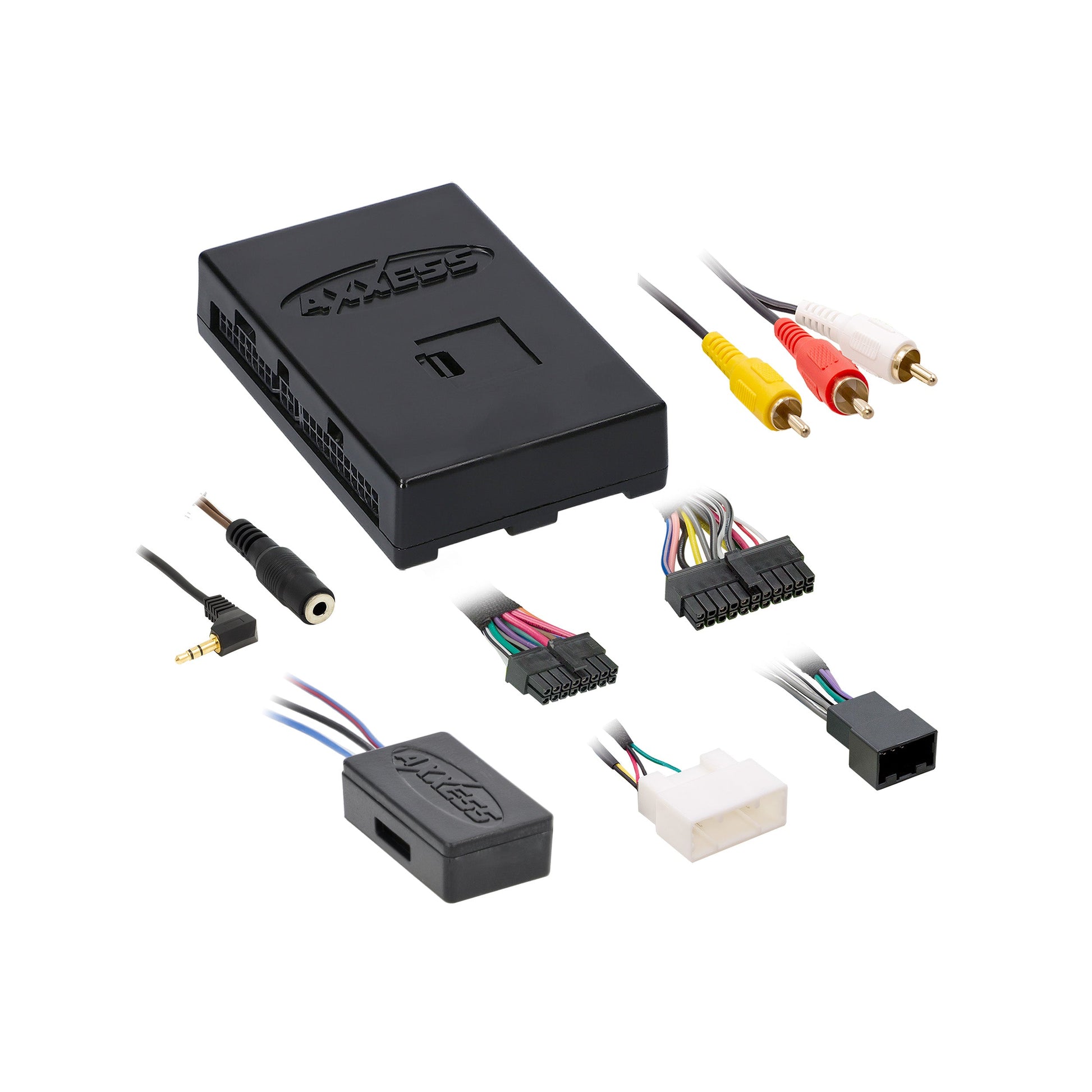

- Axxess AXDIS-TY3 radio replacement data interface

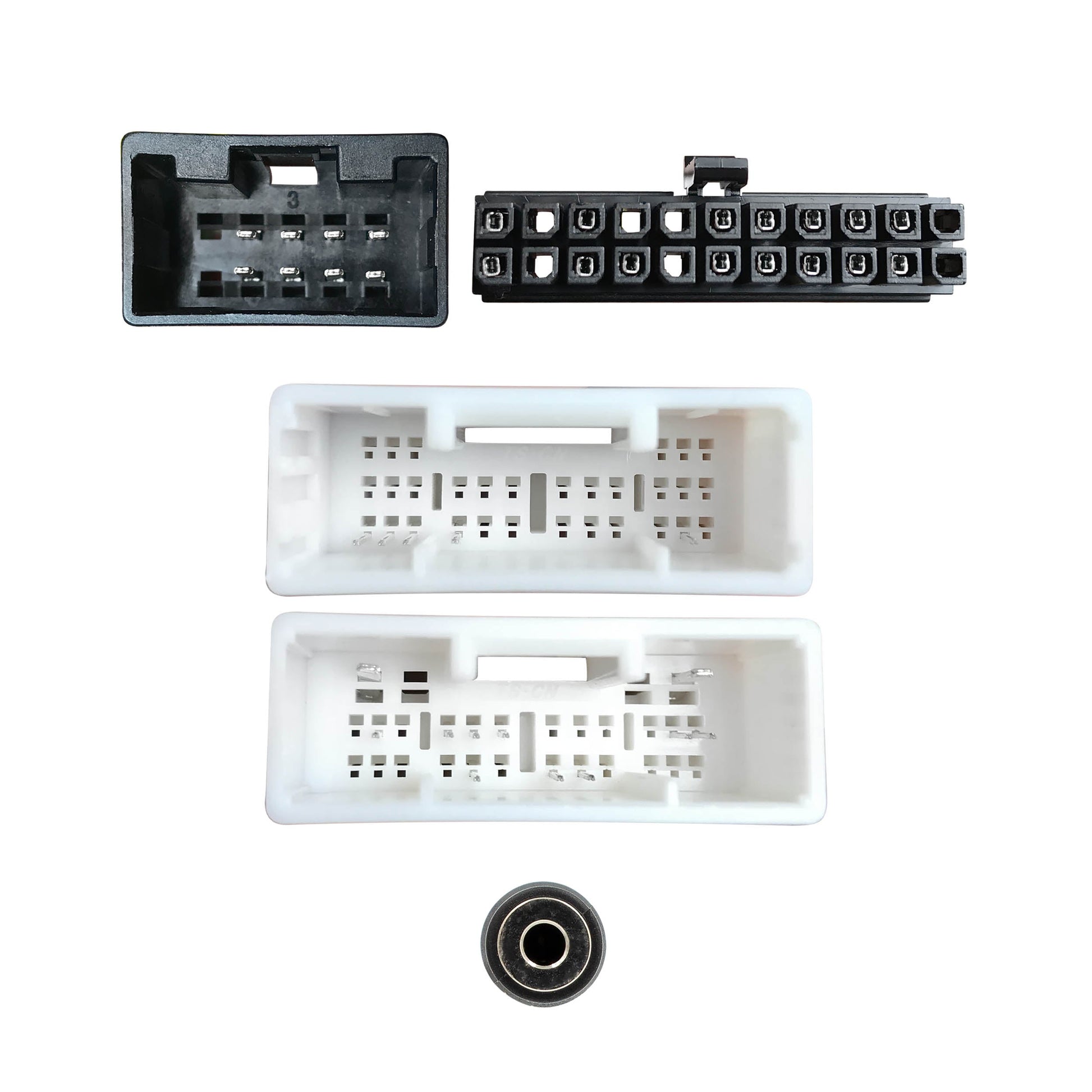

- Vehicle-specific harnessing as supplied by Axxess
Technical Specifications
- Brand: Axxess
- Model: AXDIS-TY3
- Product Type: Radio replacement data interface with SWC retention
- Application: select Toyota 2018-2024 vehicles
- Compatibility Type: Vehicle-specific
- Update Method: Micro-B USB
Identifiers & Packaging
- MPN: AXDIS-TY3
- UPC: '086429384693
- Sold As: Each
- Included Components: Radio replacement data interface and vehicle-specific harnessing
