Axxess

Axxess AXDIS-TY2 Data Interface with SWC for Select Toyota Vehicles

Axxess AXDIS-TY2 Data Interface with SWC for Select Toyota Vehicles

$267.99 USD
$267.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

Axxess AXDIS-TY2 is a radio replacement data interface with steering wheel control retention for select Toyota 2012-2022 vehicles. It helps retain key factory functions when installing an aftermarket radio while providing the accessory power and navigation output signals commonly needed for a clean integration.

At a Glance

  • Radio replacement data interface for select Toyota 2012-2022 vehicles
  • Designed for amplified and non-amplified systems
  • Retains audio controls on the steering wheel when used with a compatible aftermarket radio
  • Provides 12-volt accessory power output
  • Provides NAV outputs including parking brake, reverse, and speed sense where supported
  • Micro-B USB updatable
  • Retains balance and fade where supported by the factory system

System / Wiring Notes

  • Retained features depend on the vehicle trim, factory audio system, and aftermarket radio being installed
  • Steering wheel control retention requires a compatible aftermarket radio and proper programming/setup
  • Verify factory amplified/non-amplified system configuration before purchase
  • Navigation and separate-screen notes must be checked against the exact Toyota trim before purchase

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Make Model Years Factory Equipment / Qualifier Application
Toyota 4Runner 2014-2019 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Avalon 2013-2014 NAV Data interface with built-in steering-wheel controls
Toyota Avalon 2015-2018 — Data interface with built-in steering-wheel controls
Toyota Camry 2012-2013 With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Camry 2014 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Camry 2015-2017 — Data interface with built-in steering-wheel controls
Toyota Corolla 2015-2018 — Data interface with built-in steering-wheel controls
Toyota Highlander 2014-2019 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Prius V 2012-2014 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Prius V 2015-2017 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Prius, Prius Plug-In 2012-2015 PHV; With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Prius/Prius V 2013-2022 NAV Data interface with built-in steering-wheel controls
Toyota RAV4 2013.5-2018 non-EV; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Sequoia 2013 With black high gloss color dash; With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Sequoia 2013 With matte black color dash; With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Sequoia 2014-2019 With black high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Sequoia 2014-2019 With charcoal high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Sequoia 2014-2019 With matte black color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Sienna 2015-2017 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Tacoma 2014-2015 With charcoal high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Tacoma 2014-2015 With matte black color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Tacoma 2016-2019 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Tundra 2014-2019 With black high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Tundra 2014-2019 high gloss With silver sides; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Venza 2013-2014 With HDD based nav; With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Toyota Venza 2014-2016 — Data interface with built-in steering-wheel controls
Toyota Venza 2015 Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

  • Confirm exact vehicle year, model, trim level, factory radio system, and option codes before installation
  • Additional installation parts such as a dash kit, antenna adapter, steering wheel control harness, or radio-specific adapter may be required
  • Professional installation is recommended for best results
  • Check current Axxess instructions before installation and update firmware when required

What’s in the Box

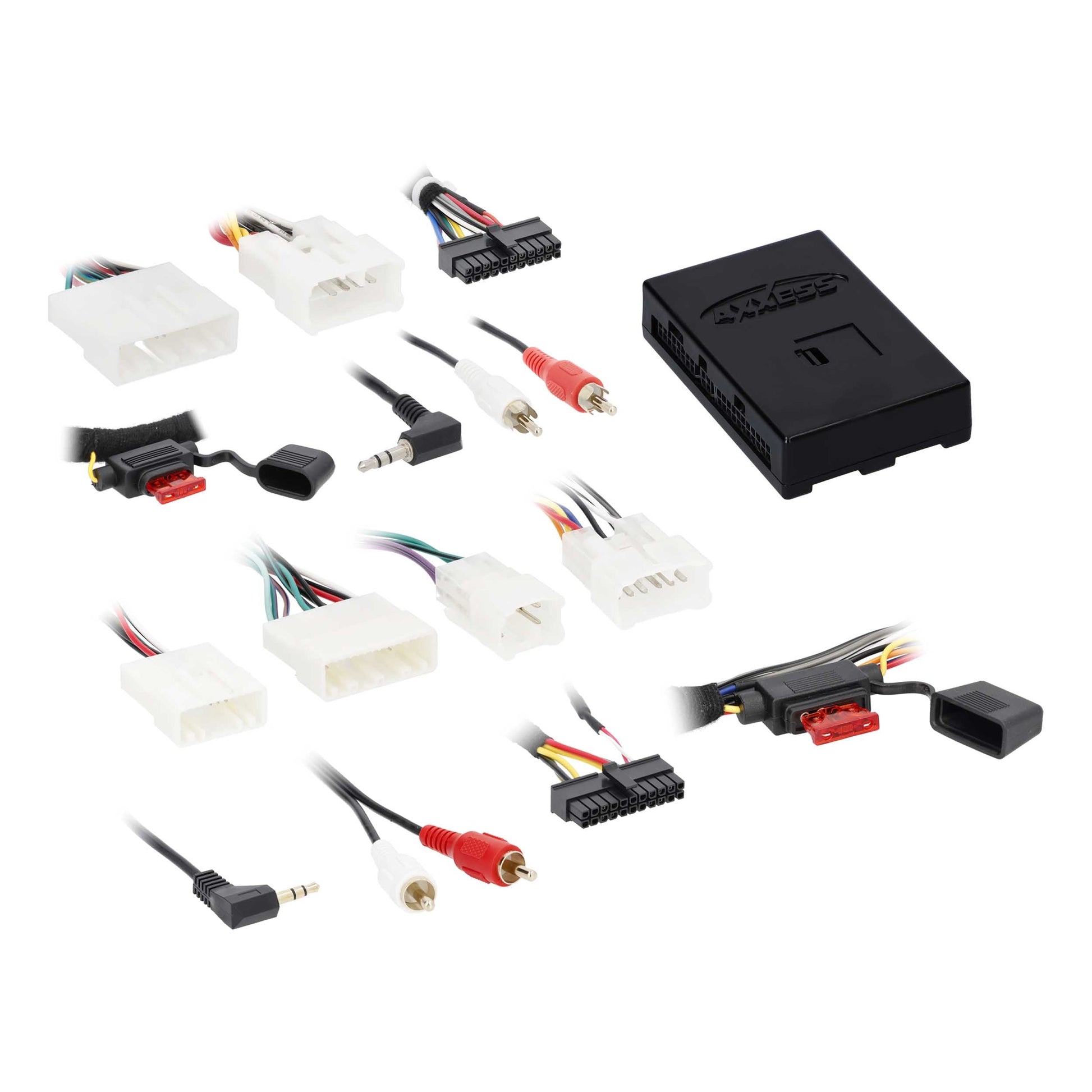

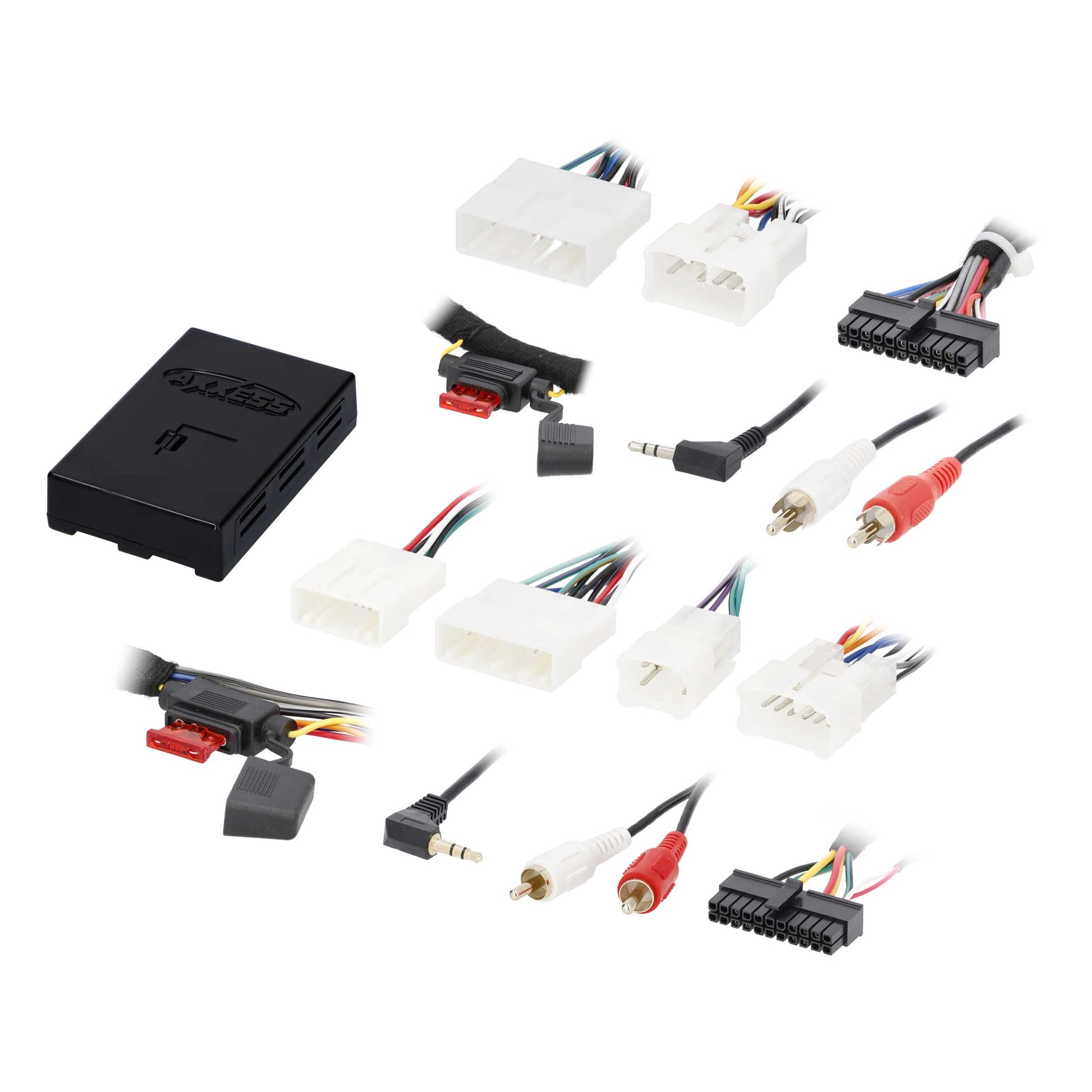

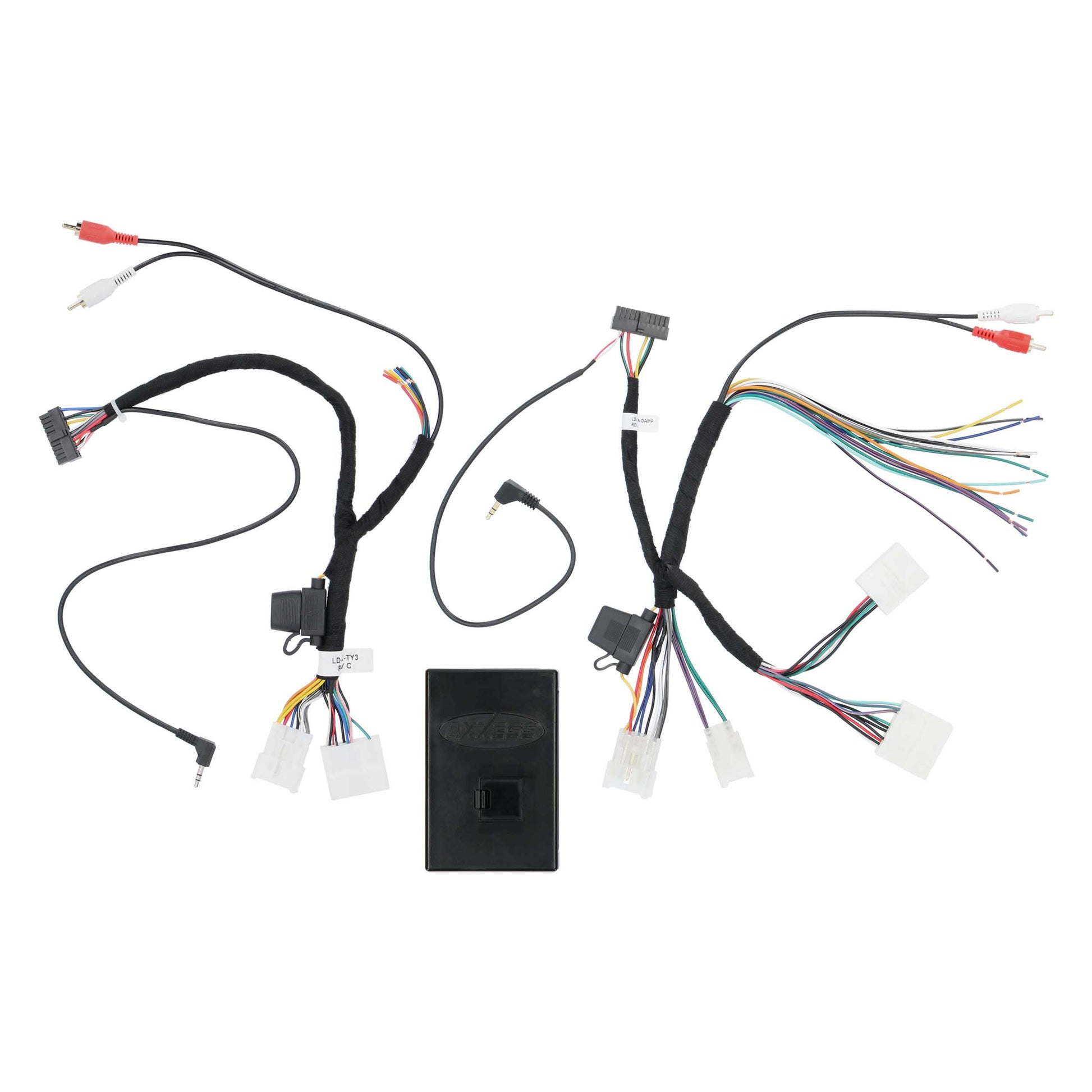

  • Axxess AXDIS-TY2 radio replacement data interface

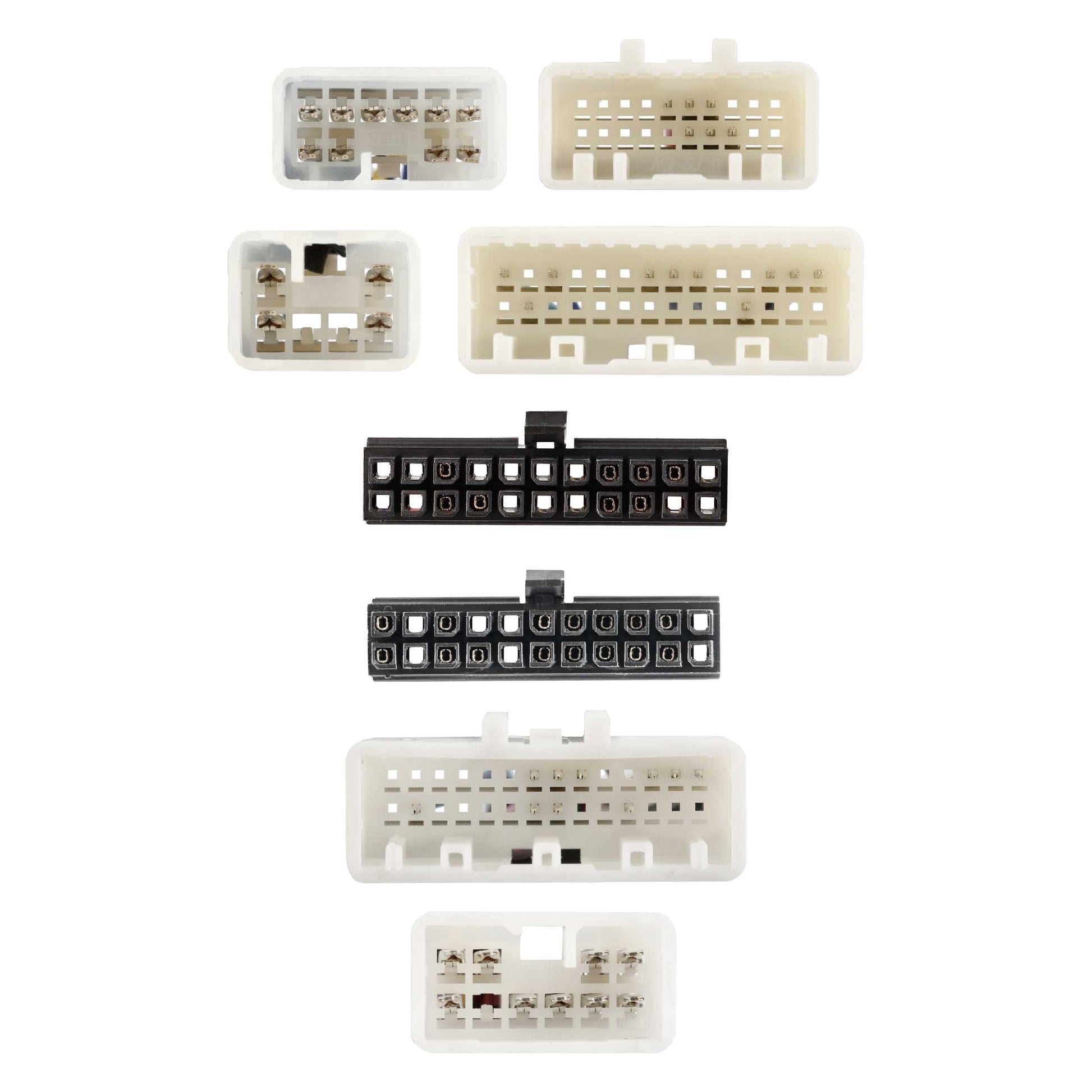

  • Vehicle-specific harnessing as supplied by Axxess

Technical Specifications

  • Brand: Axxess
  • Model: AXDIS-TY2
  • Product Type: Radio replacement data interface with SWC retention
  • Application: select Toyota 2012-2022 vehicles
  • Compatibility Type: Vehicle-specific
  • Update Method: Micro-B USB

Identifiers & Packaging

  • MPN: AXDIS-TY2
  • UPC: '086429384686
  • Sold As: Each
  • Included Components: Radio replacement data interface and vehicle-specific harnessing
