Axxess AXDIS-TY1 Data Interface with SWC for Select Toyota and Lexus Vehicles
Axxess AXDIS-TY1 Data Interface with SWC for Select Toyota and Lexus Vehicles
Regular price
$267.99 USD
Regular price
Sale price
$267.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXDIS-TY1 is a radio replacement data interface with steering wheel control retention for select Toyota and Lexus 2001-2015 vehicles. It helps retain key factory functions when installing an aftermarket radio while providing the accessory power and navigation output signals commonly needed for a clean integration.
At a Glance
- Radio replacement data interface for select Toyota and Lexus 2001-2015 vehicles
- Designed for amplified and non-amplified systems
- Retains audio controls on the steering wheel when used with a compatible aftermarket radio
- Provides 12-volt accessory power output
- Provides NAV outputs including parking brake, reverse, and speed sense where supported
- Micro-B USB updatable
- Retains factory 3.5mm AUX-IN jack where supported
- Retains balance on amplified systems and balance/fade on non-amplified systems
System / Wiring Notes
- Retained features depend on the vehicle trim, factory audio system, and aftermarket radio being installed
- Steering wheel control retention requires a compatible aftermarket radio and proper programming/setup
- Verify factory amplified/non-amplified system configuration before purchase
- Factory AUX and audio-retention behavior depends on the exact Toyota/Lexus factory system
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier | Application |
|---|---|---|---|---|
| Lexus | ES 330 | 2002-2003 | With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | ES 330 | 2002-2003 | With multi disc; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | ES 330 | 2004-2006 | With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | ES 330 | 2004-2006 | With multi disc; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | ES 350 | 2007-2012 | Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | ES Series | 2002-2006 | Multi-Disc | Data interface with built-in steering-wheel controls |
| Lexus | ES Series | 2007-2012 | — | Data interface with built-in steering-wheel controls |
| Lexus | GS 300, GS 400, GS 430 | 2001-2005 | Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | GS Series | 2001-2005 | — | Data interface with built-in steering-wheel controls |
| Lexus | IS 300 | 2002-2005 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | LS 430 | 2001-2006 | Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | LX Series | 2001-2007 | — | Data interface with built-in steering-wheel controls |
| Lexus | RX 330 | 2004-2006 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | RX 350, RX 400H | 2007-2009 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Lexus | RX Series | 2001-2009 | — | Data interface with built-in steering-wheel controls |
| Toyota | 4Runner | 2003-2009 | Limited; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | 4Runner | 2003-2009 | Sport, SR5; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | 4Runner | 2003-2009 | With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | 4Runner | 2010-2013 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Avalon | 2013-2014 | Non-NAV | Data interface with built-in steering-wheel controls |
| Toyota | Camry | 2007-2011 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Camry | 2007-2014 | — | Data interface with built-in steering-wheel controls |
| Toyota | Camry | 2012-2013 | Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Camry Solara | 2004-2008 | With black color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Camry Solara | 2004-2008 | With silver color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Corolla | 2003-2008 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Corolla | 2009-2011 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Corolla | 2009-2015 | — | Data interface with built-in steering-wheel controls |
| Toyota | FJ Cruiser | 2011-2014 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Highlander | 2008-2012 | With black color dash; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Highlander | 2008-2012 | With brown color dash; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Highlander | 2008-2012 | With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Highlander | 2013 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Matrix | 2005-2008 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Matrix | 2009-2010 | With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Matrix | 2009-2010 | Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Matrix | 2011-2012 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Prius | 2004-2009 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Prius | 2010-2011 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Prius | 2010-2012 | — | Data interface with built-in steering-wheel controls |
| Toyota | Prius, Prius Plug-In | 2012-2015 | PHV; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | RAV4 | 2004-2005 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | RAV4 | 2004-2014 | — | Data interface with built-in steering-wheel controls |
| Toyota | RAV4 | 2006-2011 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | RAV4 | 2012 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | RAV4 | 2013-2013.5 | non-EV; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2005-2007 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2008-2012 | With black high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2008-2012 | With matte black color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2013 | With black high gloss color dash; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sequoia | 2013 | With matte black color dash; Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sienna | 2004-2010 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sienna | 2011-2014 | With base model nav; With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sienna | 2011-2014 | With upper model nav; With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Sienna | 2011-2014 | Without factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Solara | 2004-2008 | With black color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Solara | 2004-2008 | With silver color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tacoma | 2005-2011 | With black OR gray color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tacoma | 2012-2013 | With charcoal high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tacoma | 2012-2013 | With matte black color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tundra | 2004-2005 | Double Cab; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tundra | 2005-2006 | Access Cab; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tundra | 2006 | Double Cab; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tundra | 2007-2013 | With black high gloss color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Tundra | 2007-2013 | With matte black color dash; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Venza | 2009-2012 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| Toyota | Venza | 2013-2014 | With SD card based nav; With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle year, model, trim level, factory radio system, and option codes before installation
- Additional installation parts such as a dash kit, antenna adapter, steering wheel control harness, or radio-specific adapter may be required
- Professional installation is recommended for best results
- Check current Axxess instructions before installation and update firmware when required
What’s in the Box

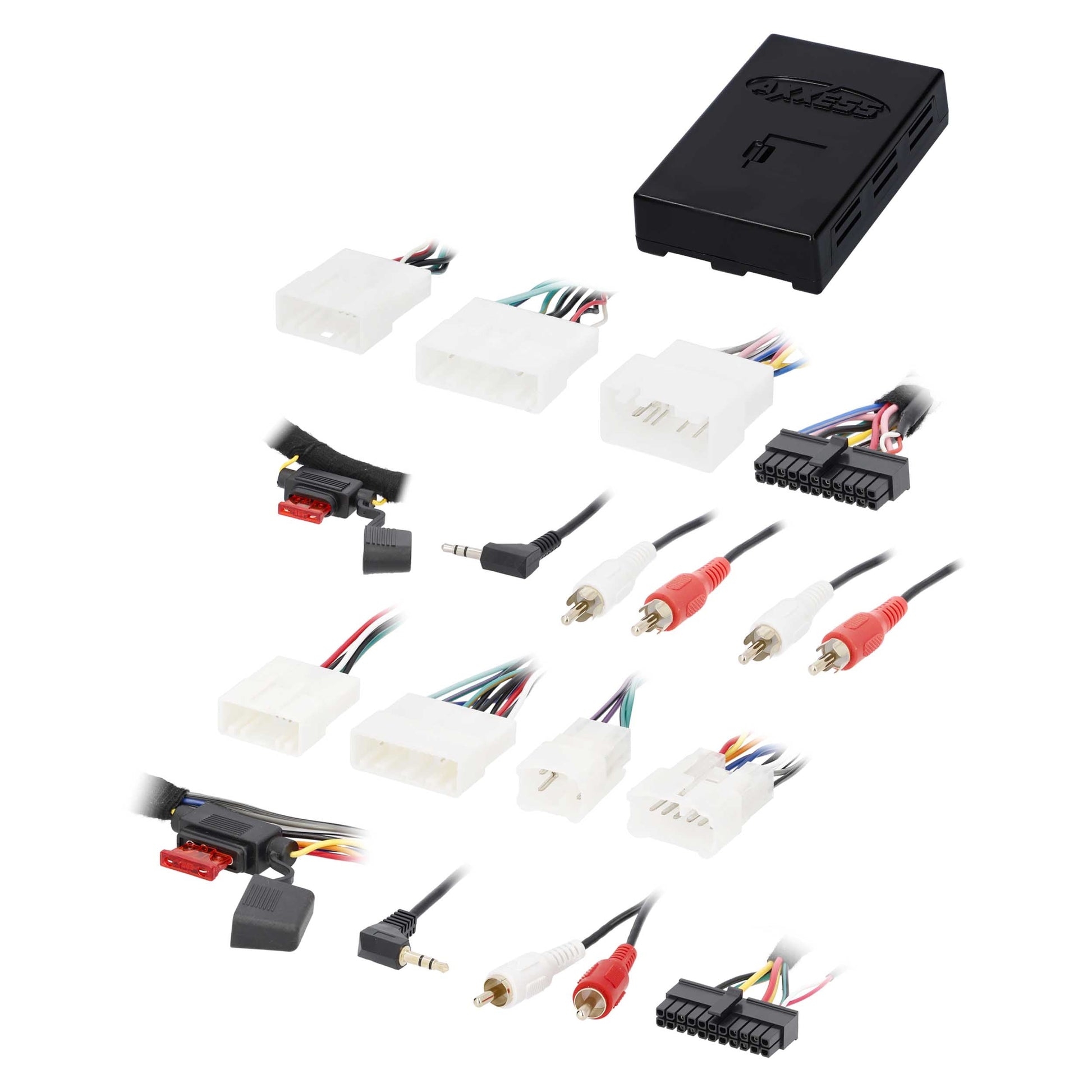

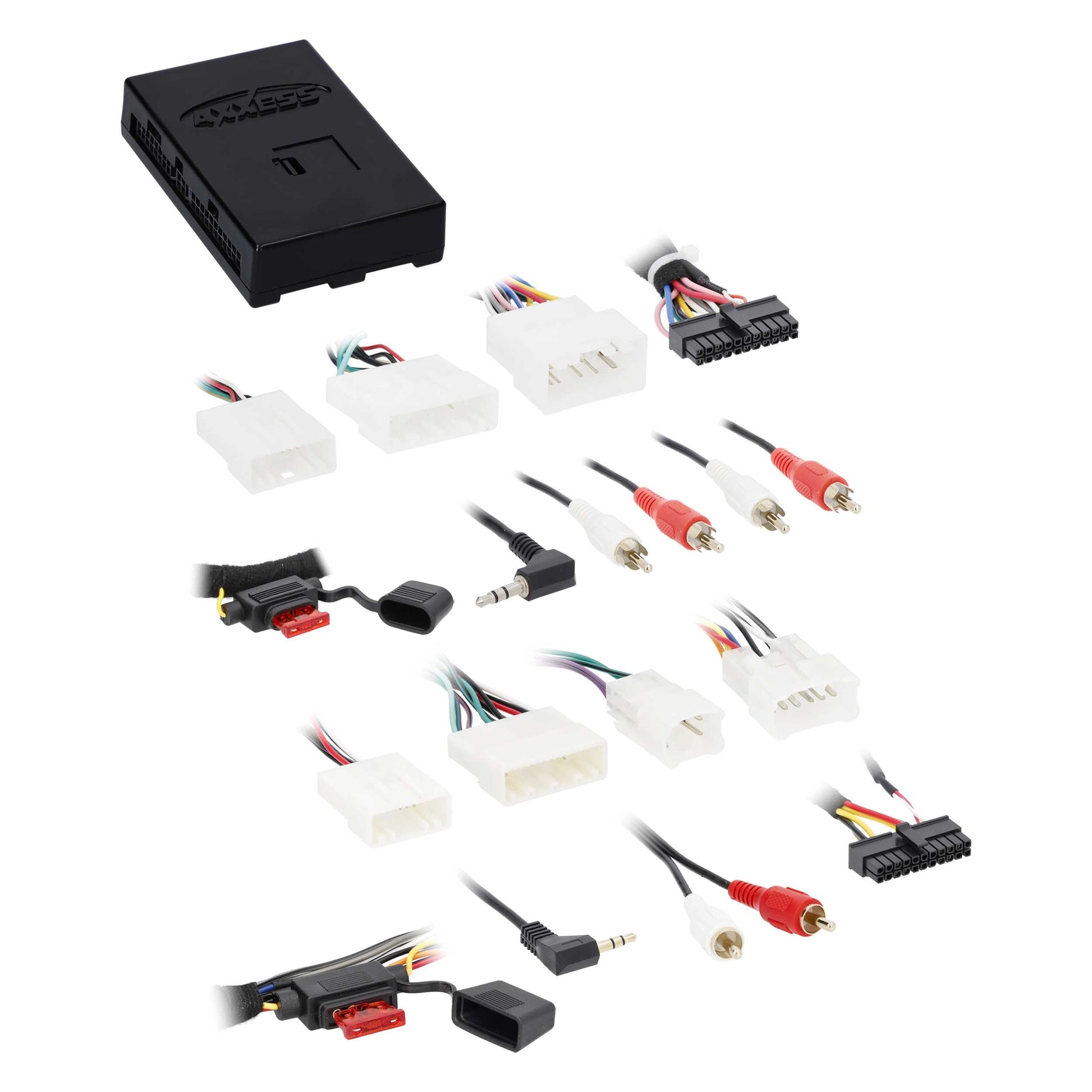

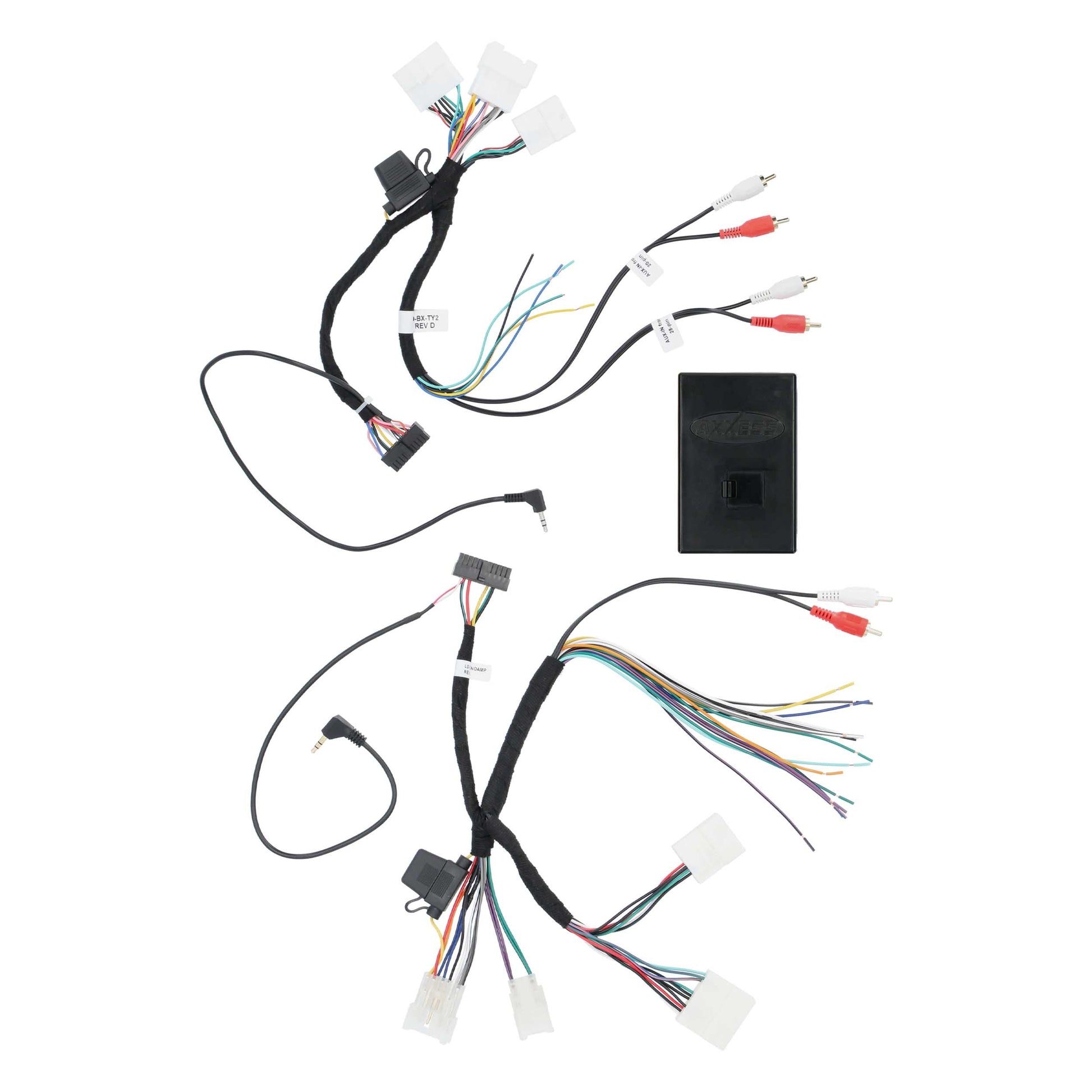

- Axxess AXDIS-TY1 radio replacement data interface

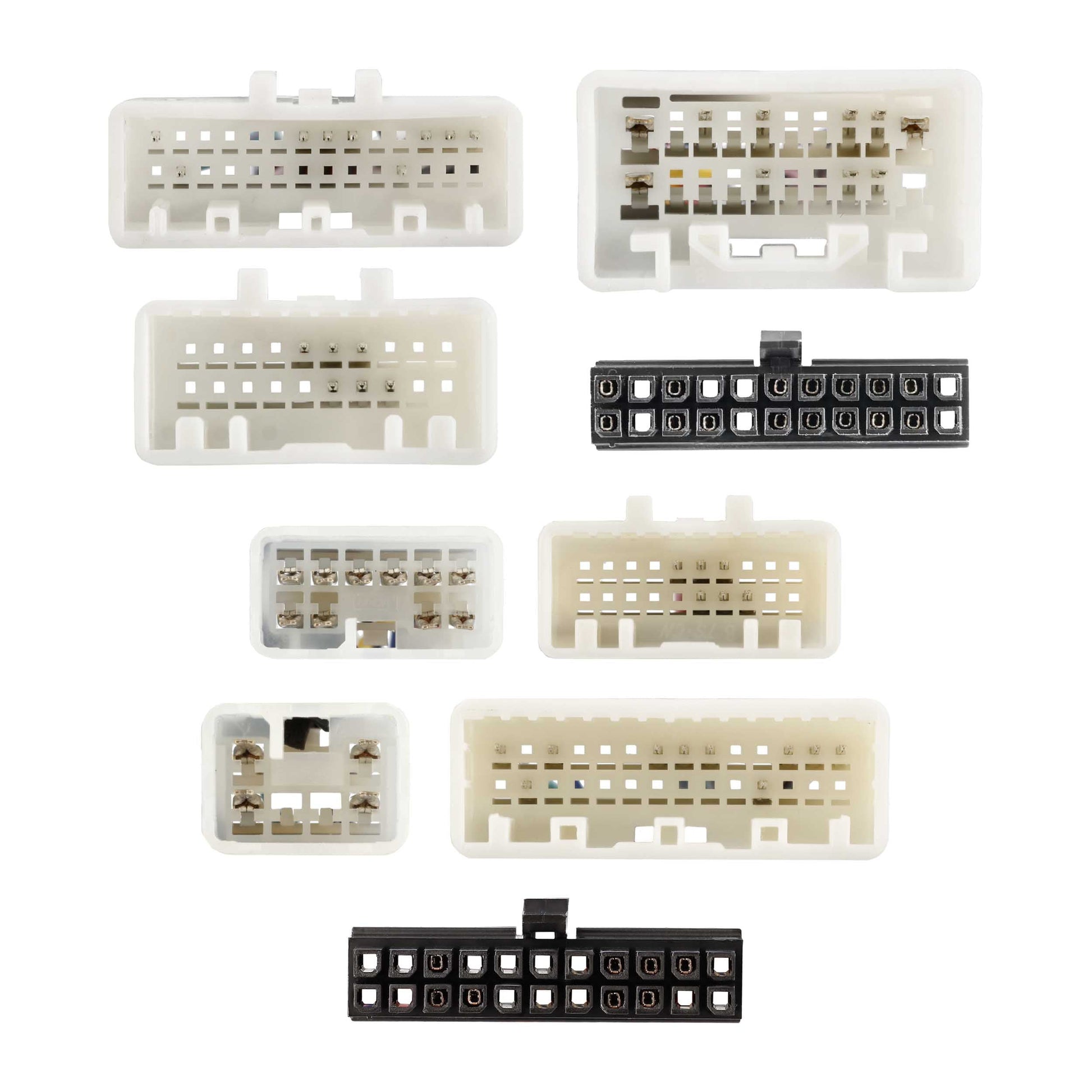

- Vehicle-specific harnessing as supplied by Axxess
Technical Specifications
- Brand: Axxess
- Model: AXDIS-TY1
- Product Type: Radio replacement data interface with SWC retention
- Application: select Toyota and Lexus 2001-2015 vehicles
- Compatibility Type: Vehicle-specific
- Update Method: Micro-B USB
Identifiers & Packaging
- MPN: AXDIS-TY1
- UPC: '086429384679
- Sold As: Each
- Included Components: Radio replacement data interface and vehicle-specific harnessing
