Axxess AXDIS-LR92 MOST25 Data Interface with SWC for Select Land Rover Vehicles
Axxess AXDIS-LR92 MOST25 Data Interface with SWC for Select Land Rover Vehicles
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXDIS-LR92 is a MOST25 radio replacement data interface with steering wheel control retention for select Land Rover 2004-2009 MOST25 amplified applications. It supports aftermarket radio installation in compatible amplified factory audio systems while retaining key vehicle integration functions needed for a professional installation.
At a Glance
- MOST25 radio replacement data interface for select Land Rover 2004-2009 MOST25 amplified applications
- Designed for compatible MOST25 amplified factory audio systems
- Provides 12-volt accessory power output
- Retains R.A.P. retained accessory power where supported
- Provides NAV outputs including parking brake, reverse, and speed sense
- Retains audio controls on the steering wheel
- DIP switch configuration for steering wheel control setup
- Micro-B USB updatable
- Backup camera is not retained if equipped
System / Wiring Notes
- Vehicle must have the compatible factory MOST25 amplified audio system specified by Axxess
- Retained features depend on factory equipment, factory radio version, and aftermarket radio compatibility
- Backup camera, Bluetooth phone buttons, USB, AUX, and balance retention vary by part number and vehicle application
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier | Application |
|---|---|---|---|---|
| Land Rover | LR3 | 2004-2009 | L319 world model | Data interface with built-in steering-wheel controls |
| Land Rover | LR3 | 2005-2009 | M.O.S.T. 25 amplified; Factory amplified audio system | Radio-replacement data interface for amplified system |
| Land Rover | Range Rover Sport | 2005-2009 | L320 world model | Data interface with built-in steering-wheel controls |
| Land Rover | Range Rover Sport | 2006-2009 | M.O.S.T. 25 amplified; Factory amplified audio system | Radio-replacement data interface for amplified system |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle year, model, trim level, factory radio system, amplifier type, and connector configuration before installation
- Additional installation parts such as a dash kit, antenna adapter, USB adapter, backup camera harness, or radio-specific SWC adapter may be required
- Professional installation is recommended for best results
- Check current Axxess instructions before installation and update firmware when required

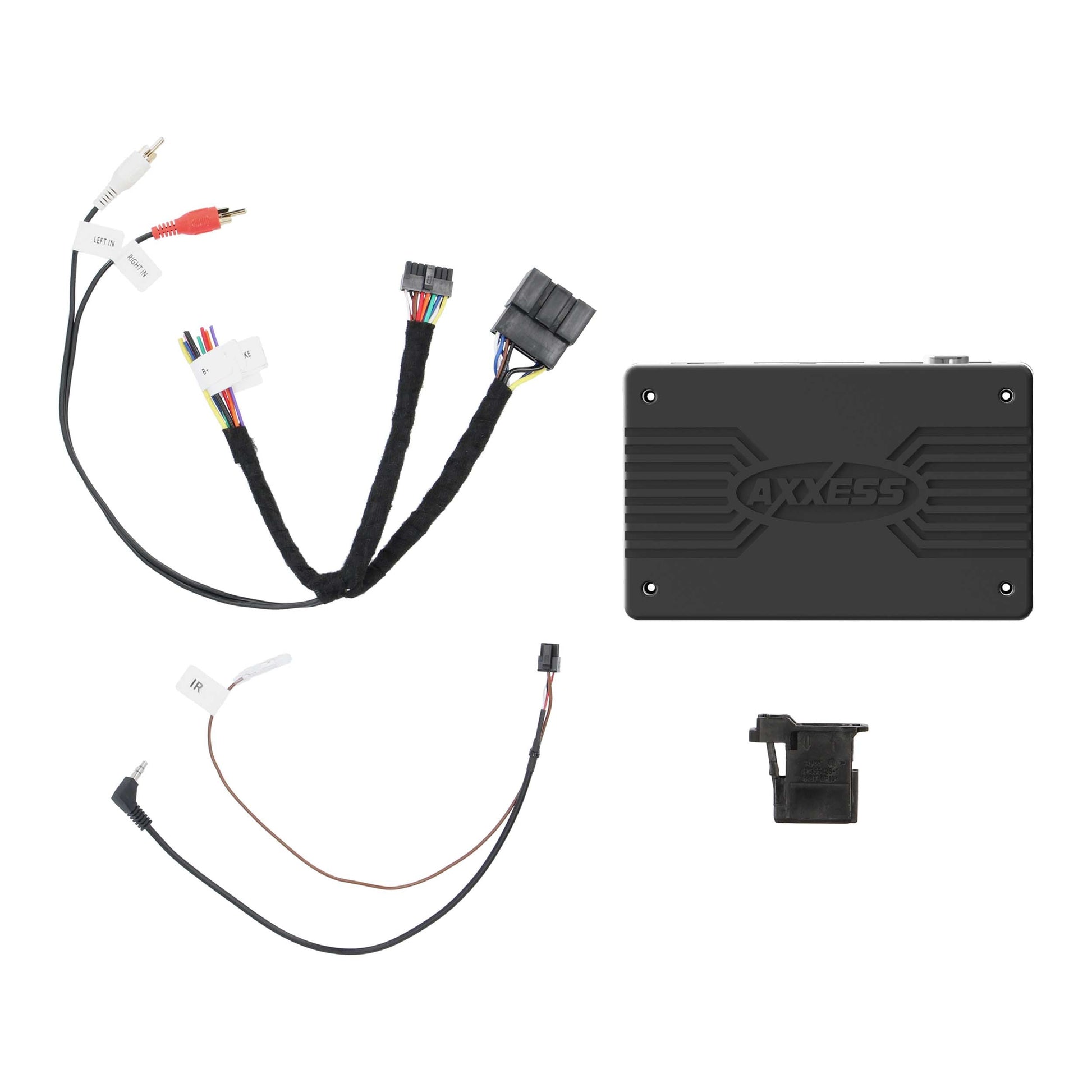

What’s in the Box

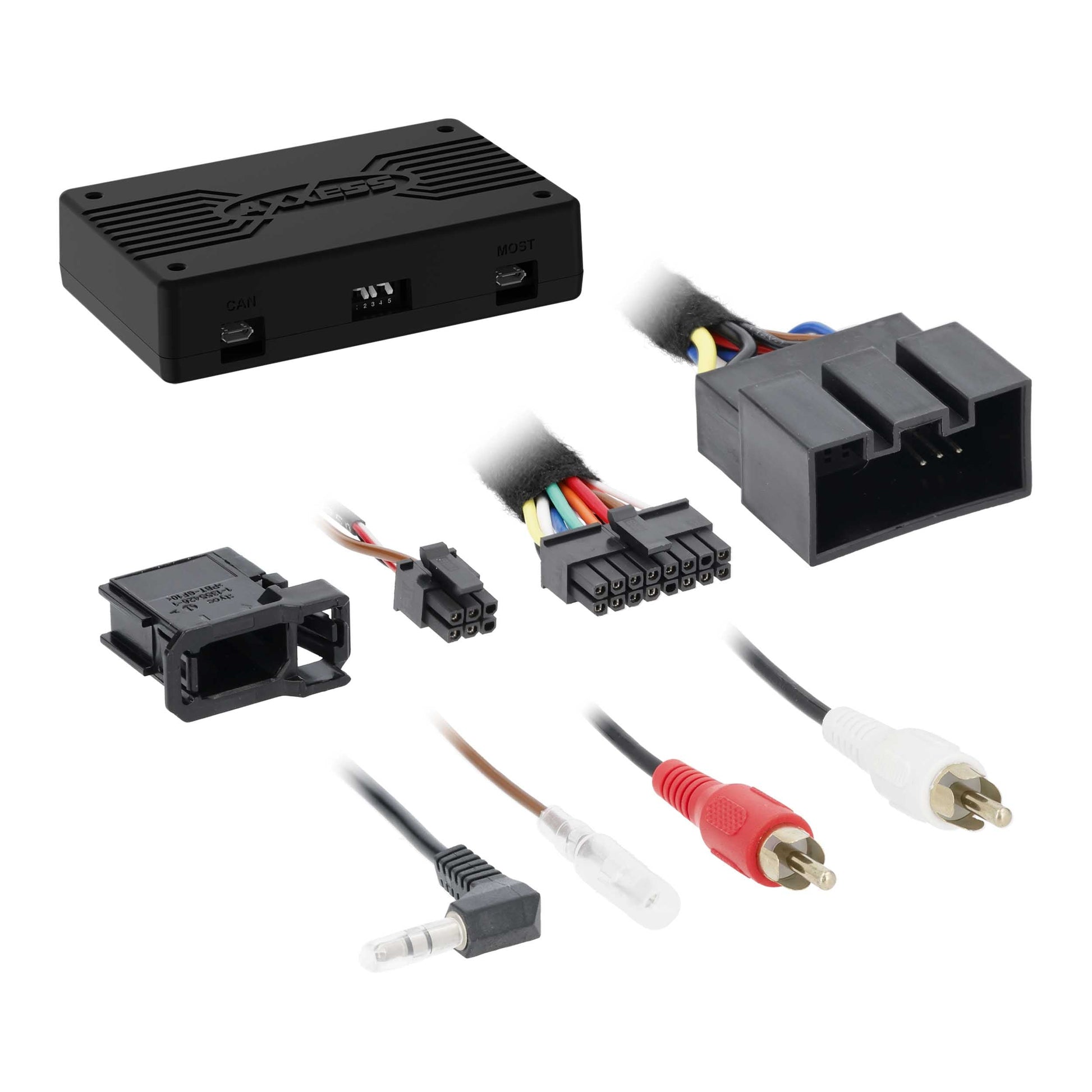

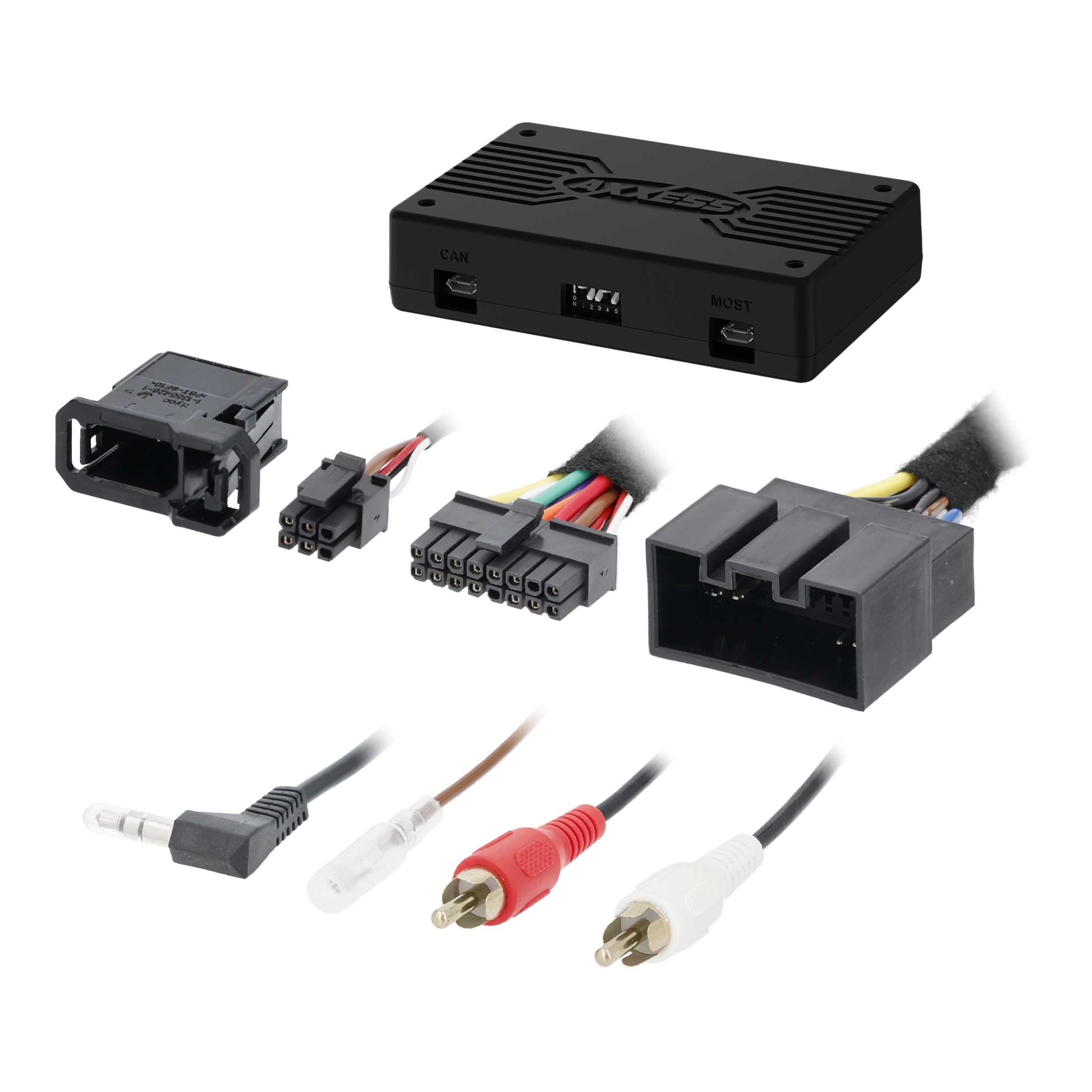

- Axxess AXDIS-LR92 MOST25 radio replacement data interface

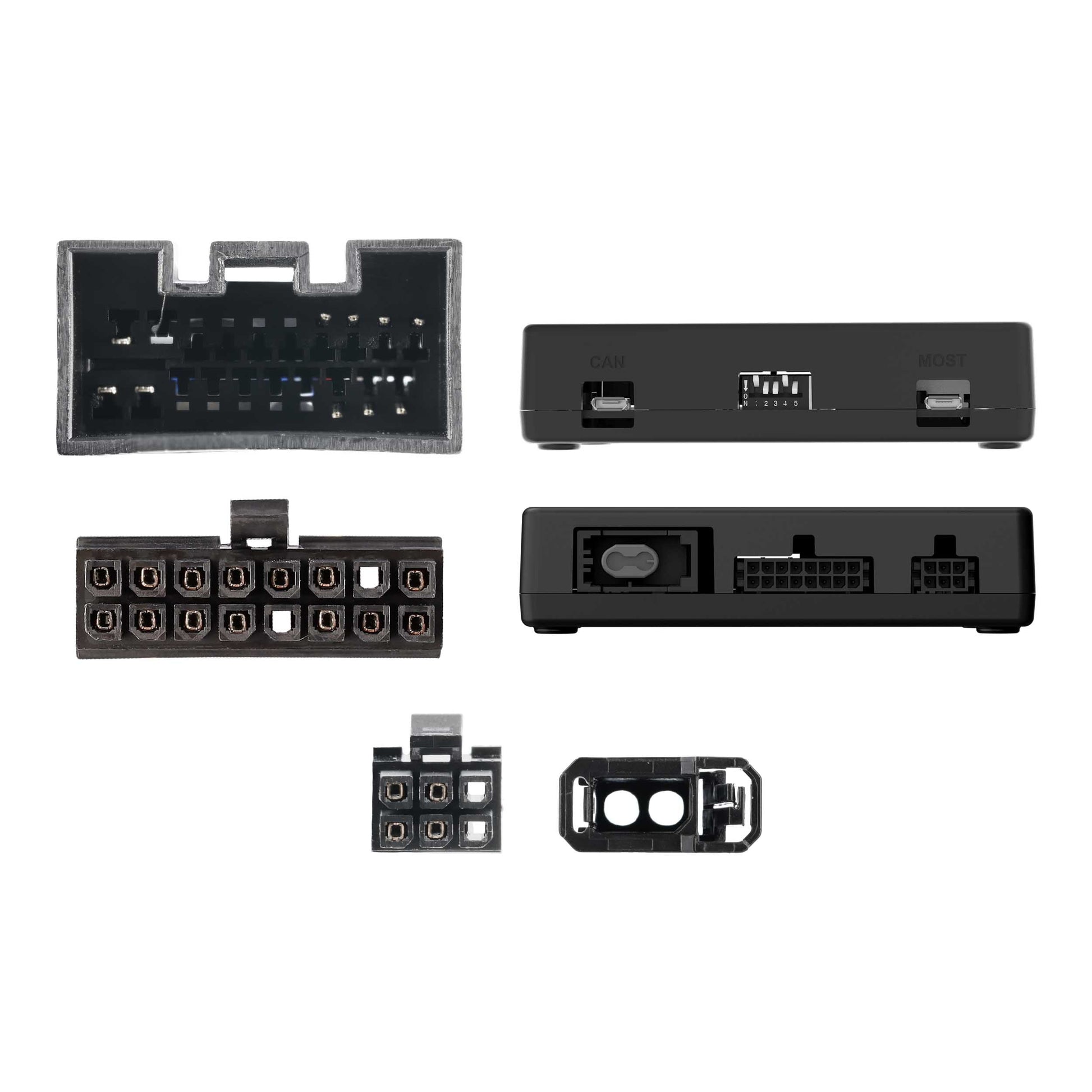

- Vehicle-specific harnessing as supplied by Axxess
Technical Specifications
- Brand: Axxess
- Model: AXDIS-LR92
- Product Type: MOST25 radio replacement data interface with SWC retention
- Application: select Land Rover 2004-2009 MOST25 amplified applications
- Compatibility Type: Vehicle-specific
- Update Method: Micro-B USB
Identifiers & Packaging
- MPN: AXDIS-LR92
- UPC: 086429384334
- Sold As: Each
- Included Components: MOST25 radio replacement data interface and vehicle-specific harnessing
