Axxess AXDIS-GMLN9BT Data Interface with SWC for Select GM Vehicles

Axxess AXDIS-GMLN9BT is a radio replacement data interface with steering wheel control retention for select GM 2014-2021 vehicles with RPO IO5 or IO6 non-amplified systems. It supports aftermarket radio installation while retaining selected GM factory functions and providing the accessory power and output signals commonly needed during integration.

At a Glance

• Radio replacement data interface for select GM 2014-2021 vehicles with RPO IO5 or IO6 non-amplified systems
• Designed for non-amplified GM systems with RPO IO5 or IO6
• Provides 12-volt 10-amp accessory power output
• Retains R.A.P. retained accessory power where supported
• Provides NAV outputs including parking brake, reverse, and speed sense
• Retains audio controls on the steering wheel with compatible aftermarket radios
• Micro-B USB updatable
• Retains and controls personalization settings via Bluetooth wireless technology with the AX-CUSTOM-BT app
• Retains OnStar with adjustable volume if equipped
• Retains OEM Bluetooth connectivity if equipped
• Retains safety chimes with adjustable gain control
• Retains factory backup camera, 3.5mm AUX-IN jack, balance, and fade where supported
• Can be used with AXEXH-GM09 extension harness when required

System / Wiring Notes

• GM RPO codes, factory amplifier type, radio system, and screen configuration must be verified before purchase
• Retained features depend on factory equipment and aftermarket radio compatibility
• Digitally amplified systems may have different balance/fade retention behavior than non-amplified or analog-amplified systems
• Bluetooth personalization control requires the AX-CUSTOM-BT app and compatible smartphone or tablet

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

• Confirm exact vehicle year, model, trim level, factory radio system, amplifier type, and connector configuration before installation
• Additional installation parts such as a dash kit, antenna adapter, USB adapter, backup camera harness, or radio-specific SWC adapter may be required
• Professional installation is recommended for best results
• Check current Axxess instructions before installation and update firmware when required

What’s in the Box

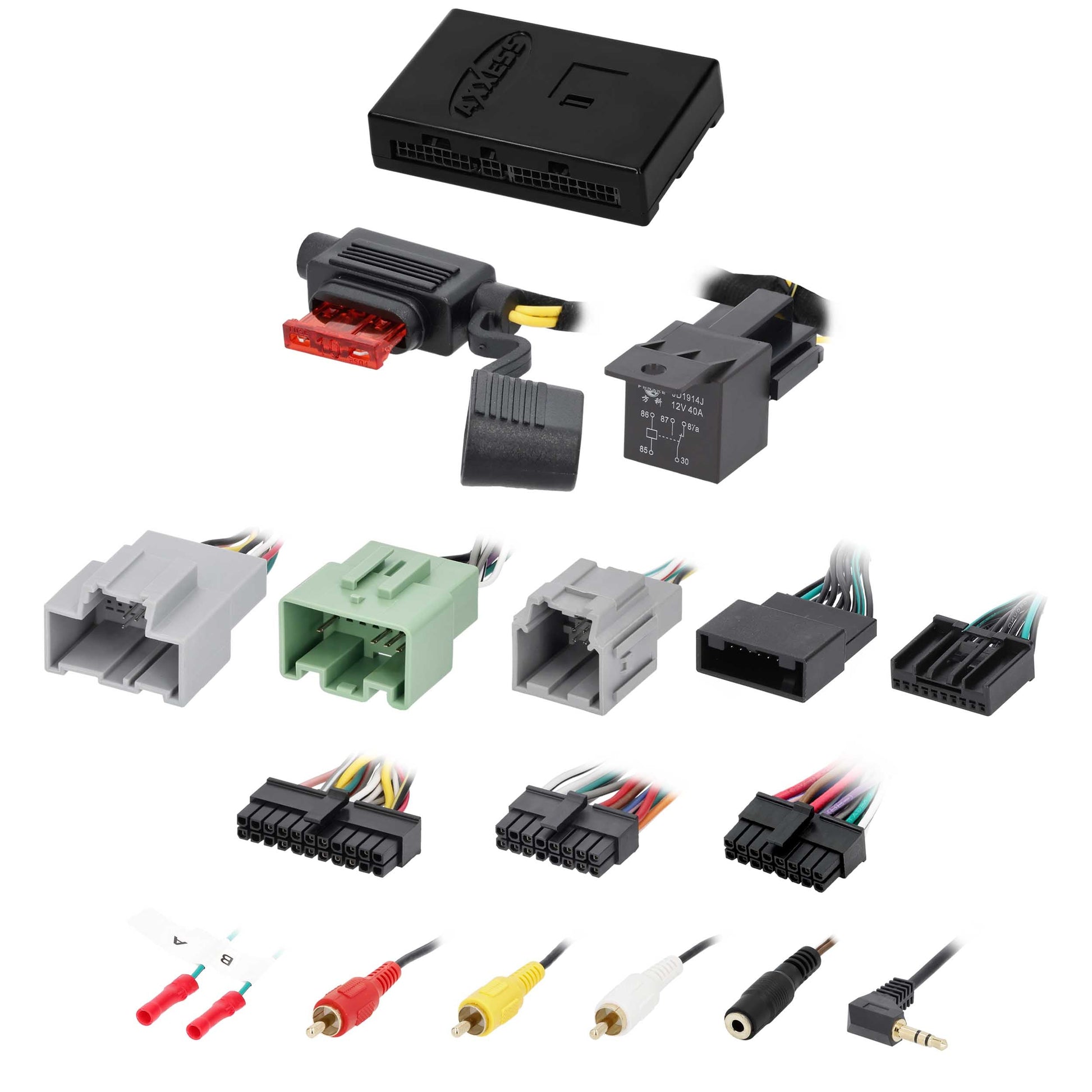

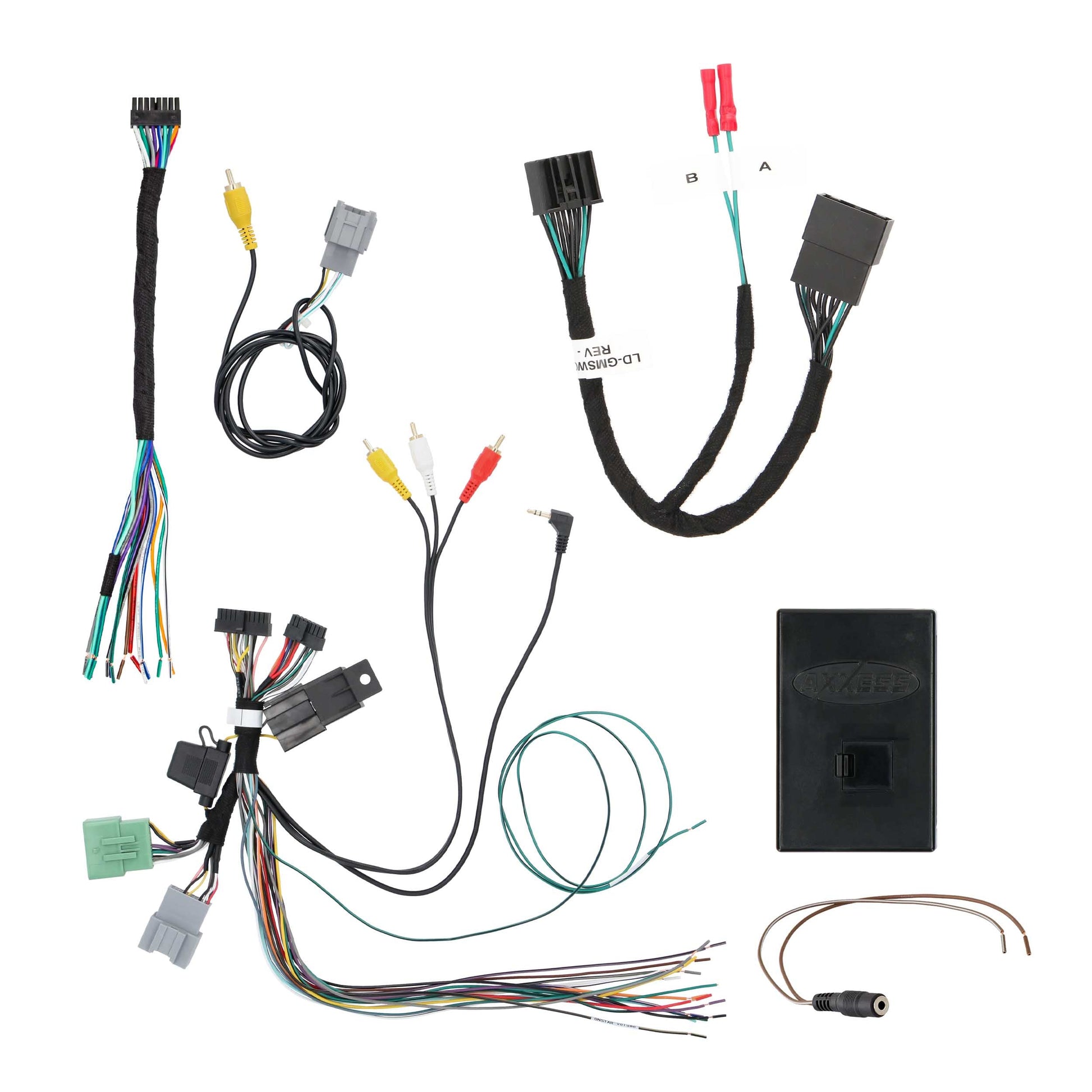

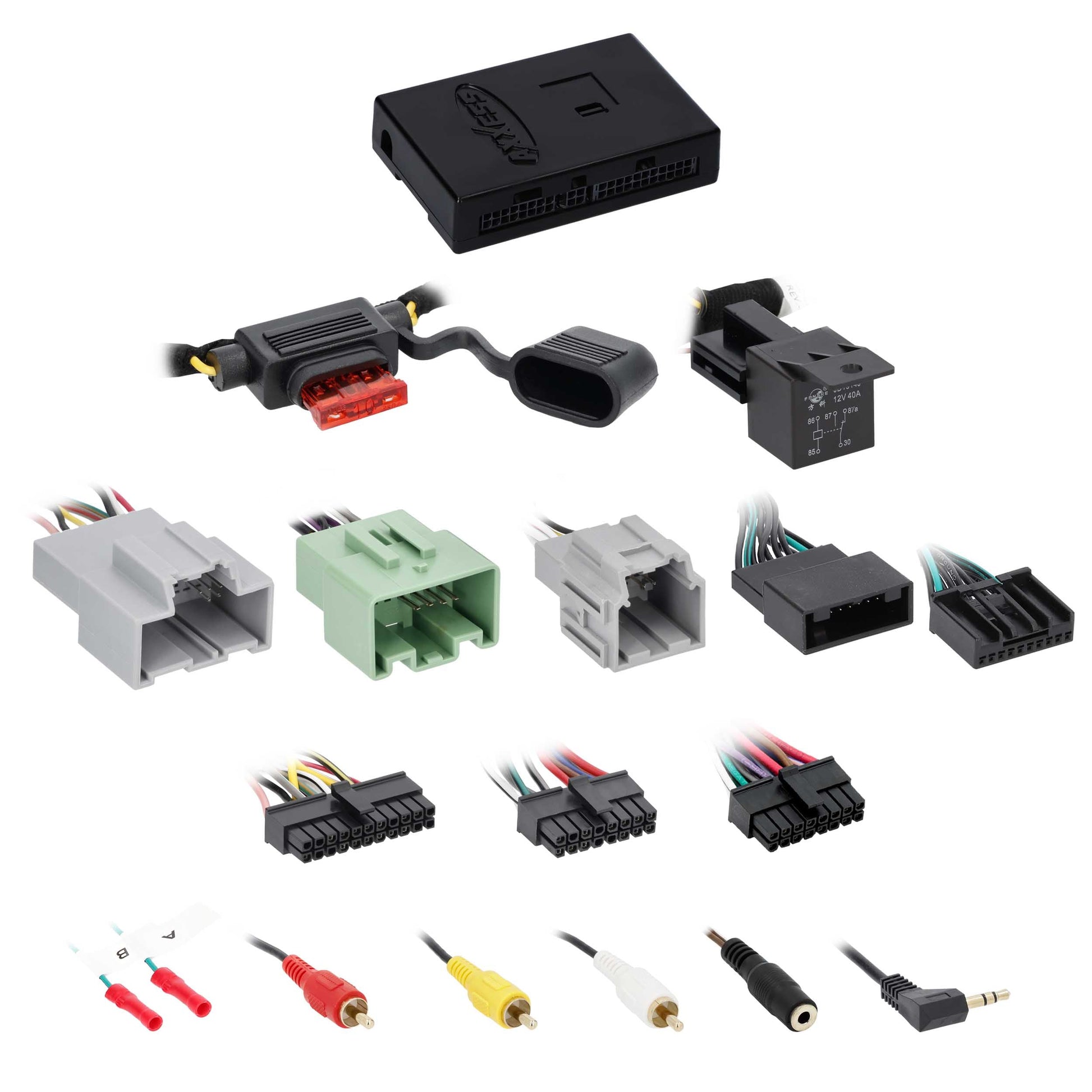

• Axxess AXDIS-GMLN9BT radio replacement data interface

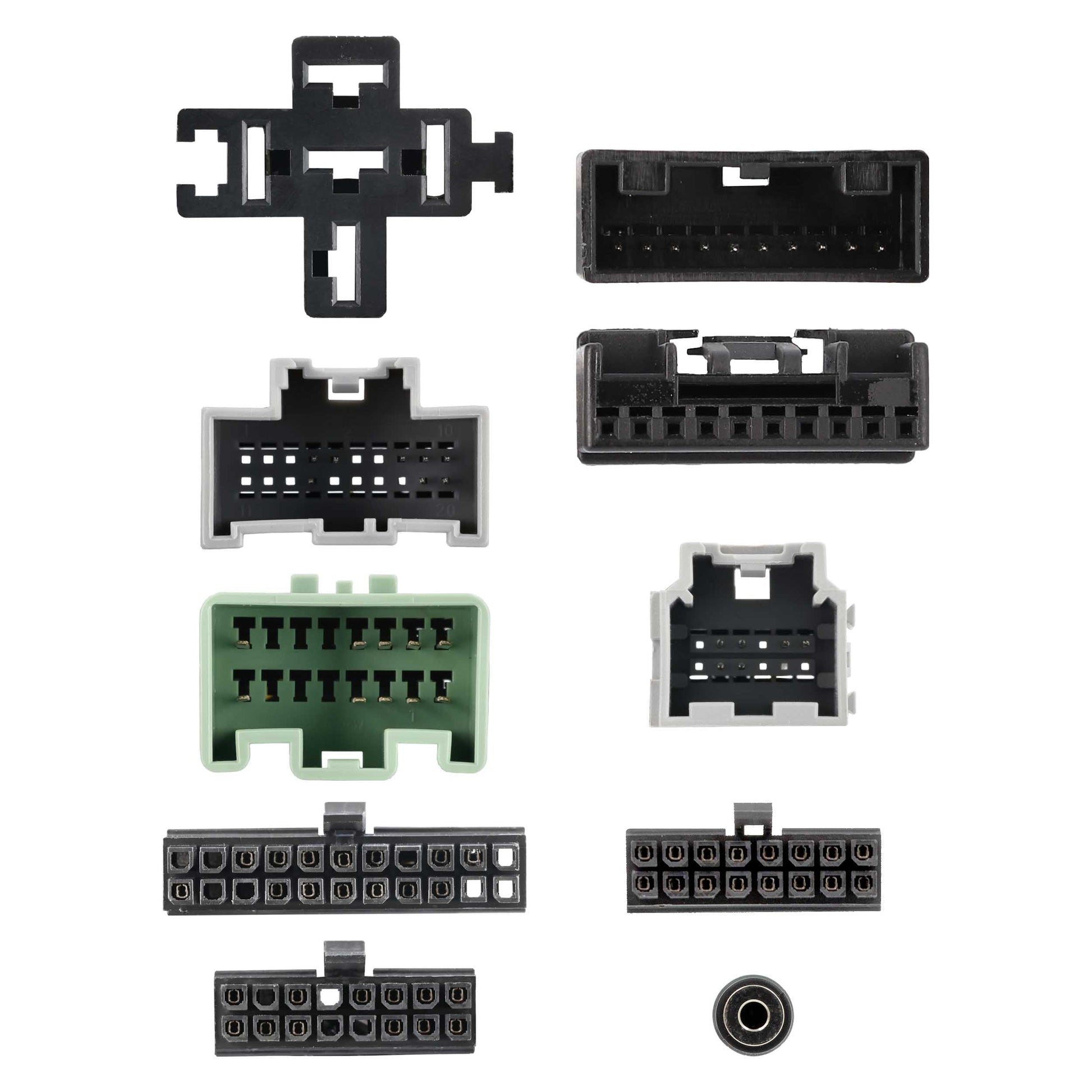

• Vehicle-specific harnessing as supplied by Axxess

Technical Specifications

• Brand: Axxess
• Model: AXDIS-GMLN9BT
• Product Type: Radio replacement data interface with SWC retention
• Application: select GM 2014-2021 vehicles with RPO IO5 or IO6 non-amplified systems
• Compatibility Type: Vehicle-specific
• Update Method: Micro-B USB

Identifiers & Packaging

• MPN: AXDIS-GMLN9BT
• UPC: 086429440498
• Sold As: Each
• Included Components: Radio replacement data interface and vehicle-specific harnessing
