Axxess AXDI-MB1 Data Interface for Select Mercedes Vehicles

Axxess AXDI-MB1 Data Interface for Select Mercedes Vehicles

$118.99 USD
$118.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

Axxess AXDI-MB1 is a radio replacement data interface for select Mercedes-Benz 2001-2018 vehicles. It supports aftermarket radio installation by providing vehicle data integration, accessory power, and retained factory functions where supported by the vehicle and radio system.

At a Glance

  • Radio Replacement Data Interface for select Mercedes-Benz 2001-2018 vehicles
  • Provides 12-volt 10-amp accessory power output where specified by Axxess
  • Retains R.A.P. retained accessory power where supported
  • Provides NAV outputs including parking brake, reverse, and speed sense when supported
  • Micro-B USB updatable for current Axxess firmware support
  • Designed for non-amplified systems or applications bypassing a factory amplifier
  • Pre-wired for Axxess steering wheel control interface, sold separately
  • Retains balance and fade where supported
  • High-level speaker input for aftermarket radio integration

System / Wiring Notes

  • Vehicle fitment is application-specific; verify exact year, model, trim, factory amplifier, factory radio option, and connector configuration before purchase
  • Retained features depend on factory equipment, factory radio configuration, and aftermarket radio compatibility
  • Axxess steering wheel control interface is sold separately when SWC retention is desired
  • Verify Mercedes factory audio system, amplifier configuration, and Sound 20 system where applicable before purchase

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Make Model Years Factory Equipment / Qualifier Application
Freightliner Sprinter 2014-2018 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes C Class 2008-2014 — Data interface pre-wired for steering-wheel controls
Mercedes C-Class 2001-2004 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes C-Class 2005-2007 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes C-Class 2008-2011 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes C-Class 2012-2015 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes CLK 500 2003 — Data interface pre-wired for steering-wheel controls
Mercedes CLK Class 2008-2009 — Data interface pre-wired for steering-wheel controls
Mercedes CLK-Class 2003 500, 55 AMG; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes CLK-Class 2004 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes CLK-Class 2005-2009 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes CLK55 AMG 2003 — Data interface pre-wired for steering-wheel controls
Mercedes E Class 2008-2013 — Data interface pre-wired for steering-wheel controls
Mercedes E-Class 2010-2013 Convertible, Coupe; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes E-Class 2010-2013 Sedan, Wagon; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes G Class 2008-2015 — Data interface pre-wired for steering-wheel controls
Mercedes G-Class 2007-2008 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes G-Class 2009-2012 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes G-Class 2013-2018 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes GL Class 2008-2015 — Data interface pre-wired for steering-wheel controls
Mercedes GL-Class 2007-2008 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes GL-Class 2009-2012 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes GL-Class 2013-2015 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes GLK Class 2009-2015 — Data interface pre-wired for steering-wheel controls
Mercedes GLK-Class 2010-2012 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes GLK-Class 2013-2015 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes R Class 2008-2013 — Data interface pre-wired for steering-wheel controls
Mercedes R-Class 2006-2008 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes R-Class 2009-2011 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes SL Class 2008-2013 — Data interface pre-wired for steering-wheel controls
Mercedes SL-Class 2005-2008 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes SL-Class 2009-2012 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes SL-Class 2013-2020 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes SLK Class 2008-2015 — Data interface pre-wired for steering-wheel controls
Mercedes SLK-Class 2005-2008 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes SLK-Class 2009-2011 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes SLK-Class 2012-2015 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes Sprinter 2010-2013 With Sound 20/50 radio; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercedes Sprinter Van 2010-2018 Sound 20 system Data interface pre-wired for steering-wheel controls

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

  • Confirm exact vehicle year, model, trim level, factory radio system, amplifier type, RPO code or screen size where applicable, and connector configuration before installation
  • Additional installation parts such as a dash kit, antenna adapter, USB adapter, camera harness, or steering wheel control interface may be required
  • Professional installation is recommended for best results
  • Check current Axxess instructions before installation and update firmware when required

What’s in the Box

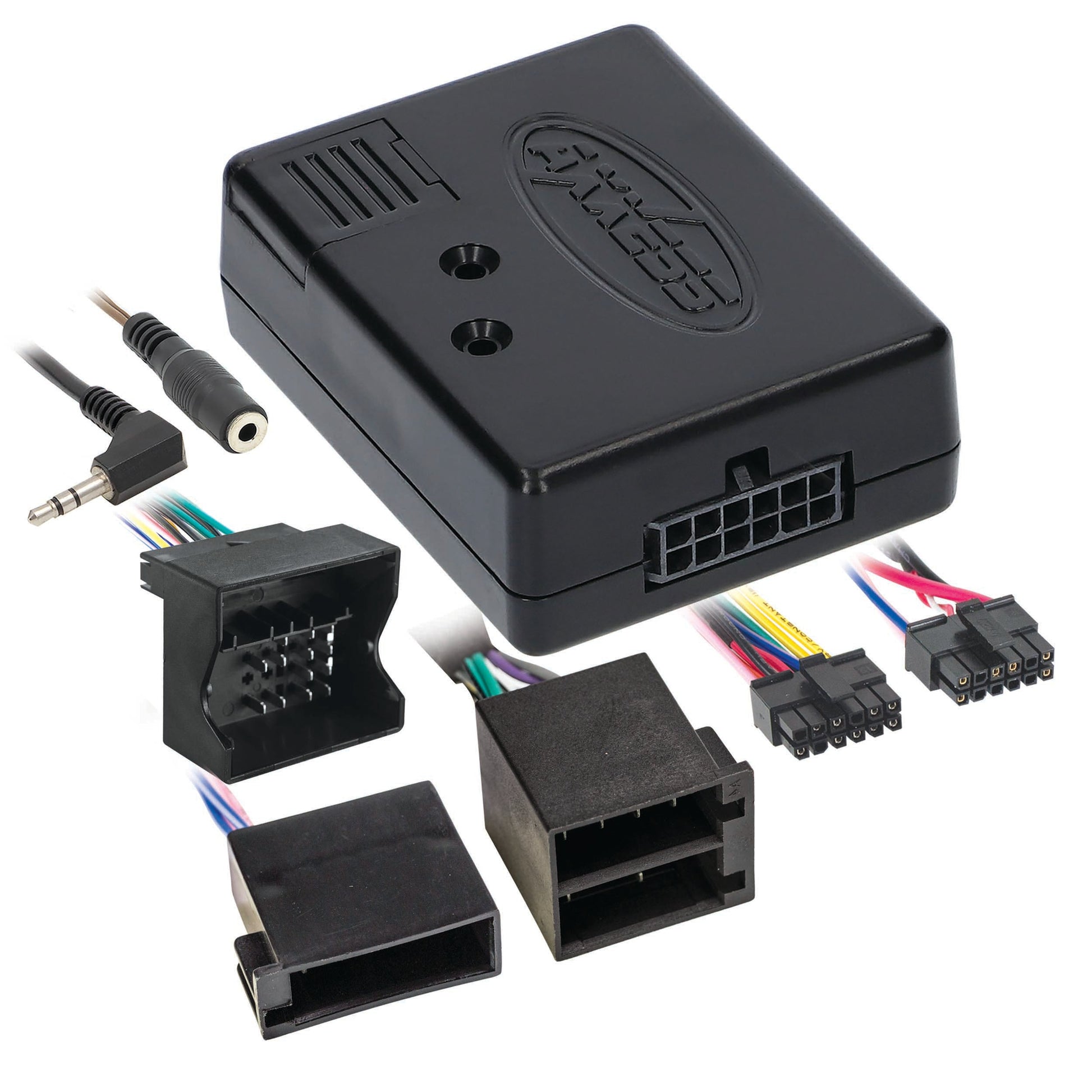

  • Axxess AXDI-MB1 interface

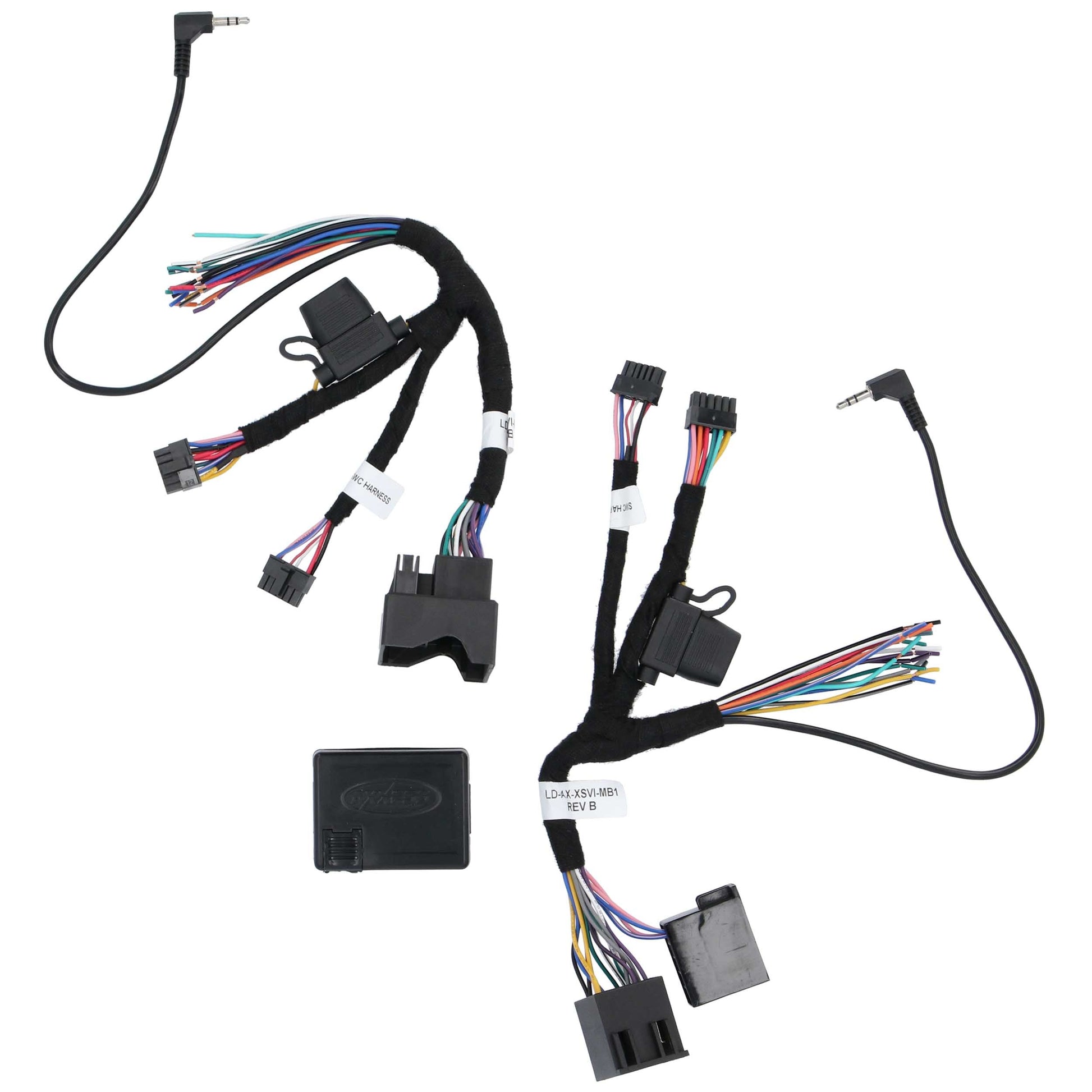

  • Vehicle-specific harnessing as supplied by Axxess

Technical Specifications

  • Brand: Axxess
  • Model: AXDI-MB1
  • Product Type: radio replacement data interface
  • Application: select Mercedes-Benz 2001-2018 vehicles
  • Compatibility Type: Vehicle-specific
  • Update Method: Micro-B USB
  • SWC Support: Pre-wired for Axxess SWC interface, sold separately

Identifiers & Packaging

  • MPN: AXDI-MB1
  • UPC: 086429384440
  • Sold As: Each
  • Included Components: Interface and vehicle-specific harnessing
