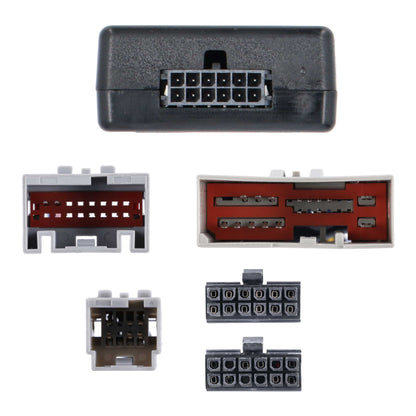

Axxess AXDI-FD1 Data Interface for Select Ford Lincoln Mazda Mercury

Axxess AXDI-FD1 Data Interface for Select Ford Lincoln Mazda Mercury

$155.99 USD
$155.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

Axxess AXDI-FD1 is a radio replacement data interface for select Ford, Lincoln, Mazda, and Mercury 2006-2022 vehicles. It supports aftermarket radio installation by providing vehicle data integration, accessory power, and retained factory functions where supported by the vehicle and radio system.

At a Glance

  • Radio Replacement Data Interface for select Ford, Lincoln, Mazda, and Mercury 2006-2022 vehicles
  • Provides 12-volt 10-amp accessory power output where specified by Axxess
  • Retains R.A.P. retained accessory power where supported
  • Provides NAV outputs including parking brake, reverse, and speed sense when supported
  • Micro-B USB updatable for current Axxess firmware support
  • Designed for non-amplified, amplified, Sony, and THX amplified systems
  • Pre-wired for Axxess steering wheel control interface, sold separately
  • Retains balance and fade except on Sony and THX systems
  • Provides accessory power, R.A.P., and NAV outputs where supported

System / Wiring Notes

  • Vehicle fitment is application-specific; verify exact year, model, trim, factory amplifier, factory radio option, and connector configuration before purchase
  • Retained features depend on factory equipment, factory radio configuration, and aftermarket radio compatibility
  • Sony and THX amplified systems do not retain balance and fade through this interface
  • Axxess steering wheel control interface is sold separately when SWC retention is desired
  • Verify Ford-family factory audio system before purchase

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Make Model Years Factory Equipment / Qualifier Application
Ford E series 2014-2019 with AM/FM/CD/SYNC Data interface pre-wired for steering-wheel controls
Ford E-Series 2015-2020 formerly known as Econoline (With AM/FM/CD/SYNC); Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Econoline 2009-2014 AM/FM/CD/SYNC; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Econoline 2009-2014 With factory navigation; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
Ford Econoline 2009-2014 With factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Edge 2007-2010 — Data interface pre-wired for steering-wheel controls
Ford Escape 2008-2012 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Expedition 2007-2014 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Expedition 2015 fleet vehicle; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2009-2010 FX, STX, XLT; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2009-2010 Harley Davidson; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2009-2010 King Ranch; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2009-2010 Lariat; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2009-2010 Platinum; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2009-2012 SVT Raptor; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2009-2014 XL With CD; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2011-2012 FX, STX, XLT; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2011-2012 Harley Davidson; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2011-2012 King Ranch; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2011-2012 Lariat; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2011-2012 Platinum; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-150 2013-2014 With CD, Without color screen; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-250/350/450/550 2011-2016 — Data interface pre-wired for steering-wheel controls
Ford F-250/350/450/550 2013-2016 8" screen; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-250/350/450/550 2013-2016 XL,XLT With CD; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F-650, F-750 2016-2020 AM/FM/CD; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford F650/750 2016-2022 With CD Data interface pre-wired for steering-wheel controls
Ford Focus 2008-2011 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Fusion 2010-2012 painted black; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Fusion 2010-2012 painted blue; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Fusion 2010-2012 painted red; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Fusion 2010-2012 painted silver; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Mustang 2008-2009 late 2008 build date; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Ford Mustang 2008-2014 — Data interface pre-wired for steering-wheel controls
Lincoln MKS 2009-2011 — Data interface pre-wired for steering-wheel controls
Lincoln MKT 2010-2012 — Data interface pre-wired for steering-wheel controls
Lincoln MKX 2007-2010 Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Lincoln MKX 2007-2012 — Data interface pre-wired for steering-wheel controls
Lincoln MKZ 2007-2009 Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Lincoln MKZ 2007-2012 — Data interface pre-wired for steering-wheel controls
Lincoln Navigator 2007 4 x 2 models; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Lincoln Navigator 2007 4 x 4 models; Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Lincoln Navigator 2007-2014 — Data interface pre-wired for steering-wheel controls
Lincoln Zephyr 2006 With factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Lincoln Zephyr 2006 Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mazda Tribute 2008-2011 Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercury Mariner 2008-2011 Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Mercury Milan 2010-2011 Without factory navigation; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

  • Confirm exact vehicle year, model, trim level, factory radio system, amplifier type, RPO code or screen size where applicable, and connector configuration before installation
  • Additional installation parts such as a dash kit, antenna adapter, USB adapter, camera harness, or steering wheel control interface may be required
  • Professional installation is recommended for best results
  • Check current Axxess instructions before installation and update firmware when required

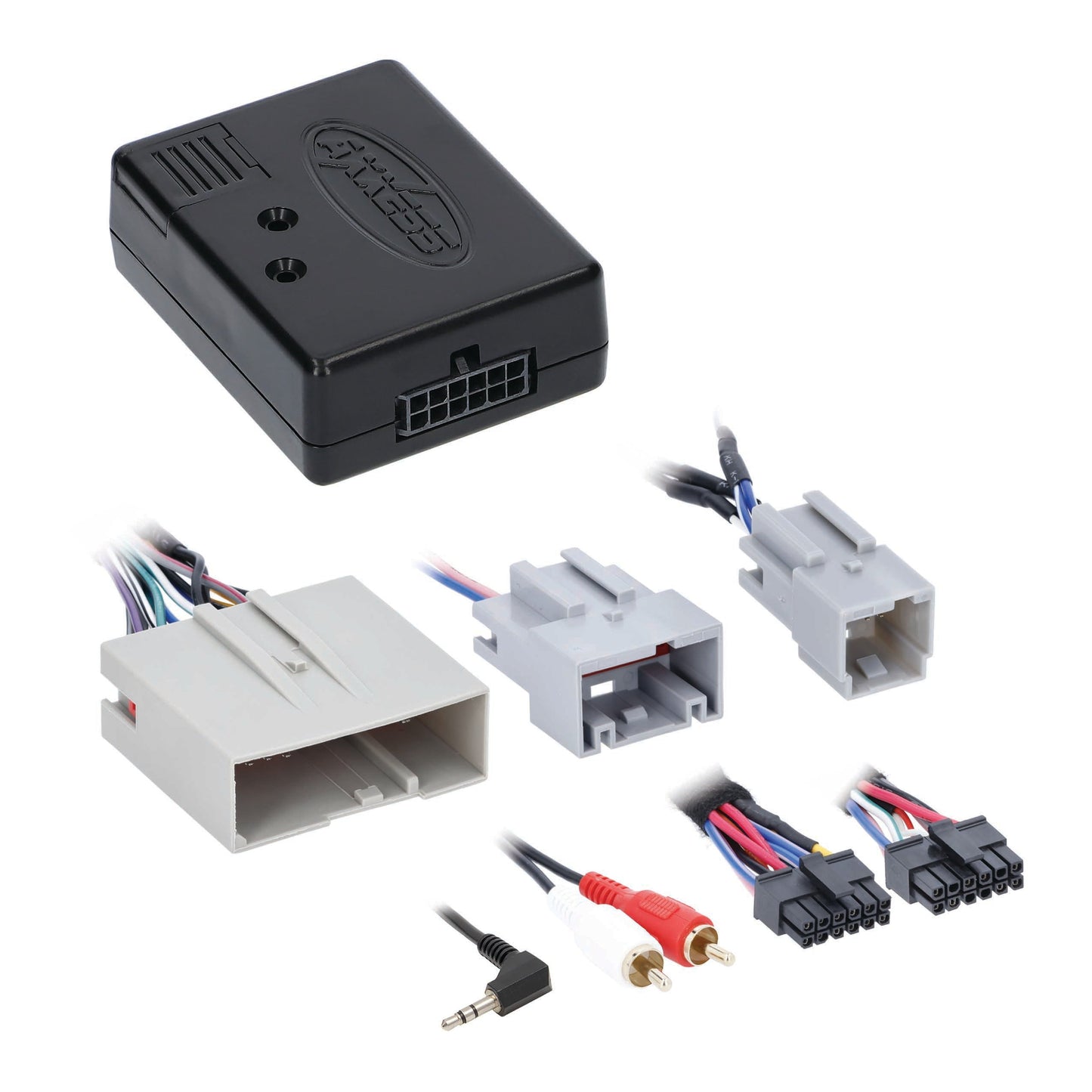

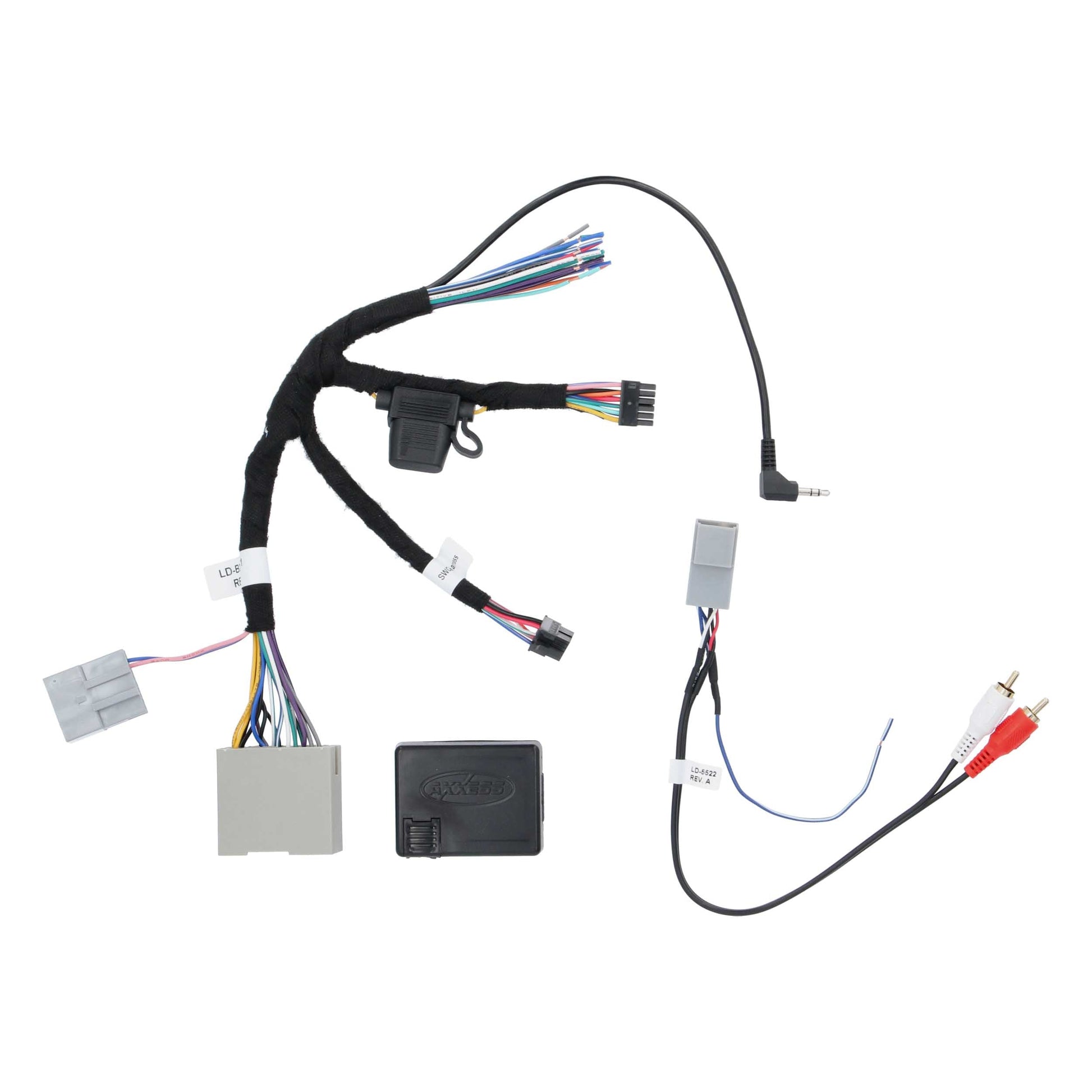

What’s in the Box

  • Axxess AXDI-FD1 interface
  • Vehicle-specific harnessing as supplied by Axxess

Technical Specifications

  • Brand: Axxess
  • Model: AXDI-FD1
  • Product Type: radio replacement data interface
  • Application: select Ford, Lincoln, Mazda, and Mercury 2006-2022 vehicles
  • Compatibility Type: Vehicle-specific
  • Update Method: Micro-B USB

Identifiers & Packaging

  • MPN: AXDI-FD1
  • UPC: 086429384082
  • Sold As: Each
  • Included Components: Interface and vehicle-specific harnessing
