Axxess AXDI-CH5 Data Interface for Select Chrysler Dodge Fiat Jeep RAM

Axxess AXDI-CH5 Data Interface for Select Chrysler Dodge Fiat Jeep RAM

$186.99 USD
$186.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

Axxess AXDI-CH5 is a radio replacement data interface for select Chrysler, Dodge, Fiat, Jeep, and RAM 2013-2023 vehicles with small-screen radio applications. It supports aftermarket radio installation by providing vehicle data integration, accessory power, and retained factory functions where supported by the vehicle and radio system.

At a Glance

  • Radio Replacement Data Interface for select Chrysler, Dodge, Fiat, Jeep, and RAM 2013-2023 vehicles with small-screen radio applications
  • Provides 12-volt 10-amp accessory power output where specified by Axxess
  • Retains R.A.P. retained accessory power where supported
  • Provides NAV outputs including parking brake, reverse, and speed sense when supported
  • Micro-B USB updatable for current Axxess firmware support
  • Designed for non-amplified systems or applications bypassing a factory amplifier
  • Pre-wired for Axxess steering wheel control interface, sold separately
  • Retains factory chimes and warning chimes through onboard speaker
  • Retains factory 3.5mm AUX-IN jack

System / Wiring Notes

  • Vehicle fitment is application-specific; verify exact year, model, trim, factory amplifier, factory radio option, and connector configuration before purchase
  • Retained features depend on factory equipment, factory radio configuration, and aftermarket radio compatibility
  • Small-screen factory radio application must be verified before purchase
  • Axxess steering wheel control interface is sold separately when SWC retention is desired
  • Verify factory amplifier and radio option before installation

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Make Model Years Factory Equipment / Qualifier Application
Chrysler 200 2015-2016 LX trim With 3" screen; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Chrysler 200 w/small screen 2015-2016 — Data interface pre-wired for steering-wheel controls; Factory-amplifier turn-on interface
Dodge Dart 2013-2016 Without 8.4" screen; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Dodge Dart w/small screen 2013-2016 — Data interface pre-wired for steering-wheel controls; Factory-amplifier turn-on interface
FIAT 500 2015 — Data interface pre-wired for steering-wheel controls
FIAT 500L 2014 — Data interface pre-wired for steering-wheel controls
FIAT 500X 2016 — Data interface pre-wired for steering-wheel controls
Jeep Cherokee 2014-2017 Sport Without 5" display (Uconnect 5.0); Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
Jeep Cherokee 2014-2023 — Data interface pre-wired for steering-wheel controls; Factory-amplifier turn-on interface
RAM 1500 Classic 2019-2024 Without 7 inch, 8.4 inch or 12 inch touchscreen; Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for amplified system
RAM 1500 Classic 2019-2024 Without 7 inch, 8.4 inch or 12 inch touchscreen; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
RAM 1500 w/small screen 2019-2023 Classic Data interface pre-wired for steering-wheel controls
RAM 1500, 2500, 3500 2013-2017 Without 8.4" touchscreen; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system
RAM 1500/2500/3500 w/small screen 2013-2018 — Data interface pre-wired for steering-wheel controls
RAM 2500/3500 w/small screen 2019-2023 — Data interface pre-wired for steering-wheel controls
RAM Chassis Cab 2013-2017 Without 8.4 inch touchscreen; 2500, 3500, 4500, 5500; Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. Radio-replacement data interface for non-amplified system

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

  • Confirm exact vehicle year, model, trim level, factory radio system, amplifier type, RPO code or screen size where applicable, and connector configuration before installation
  • Additional installation parts such as a dash kit, antenna adapter, USB adapter, camera harness, or steering wheel control interface may be required
  • Professional installation is recommended for best results
  • Check current Axxess instructions before installation and update firmware when required

What’s in the Box

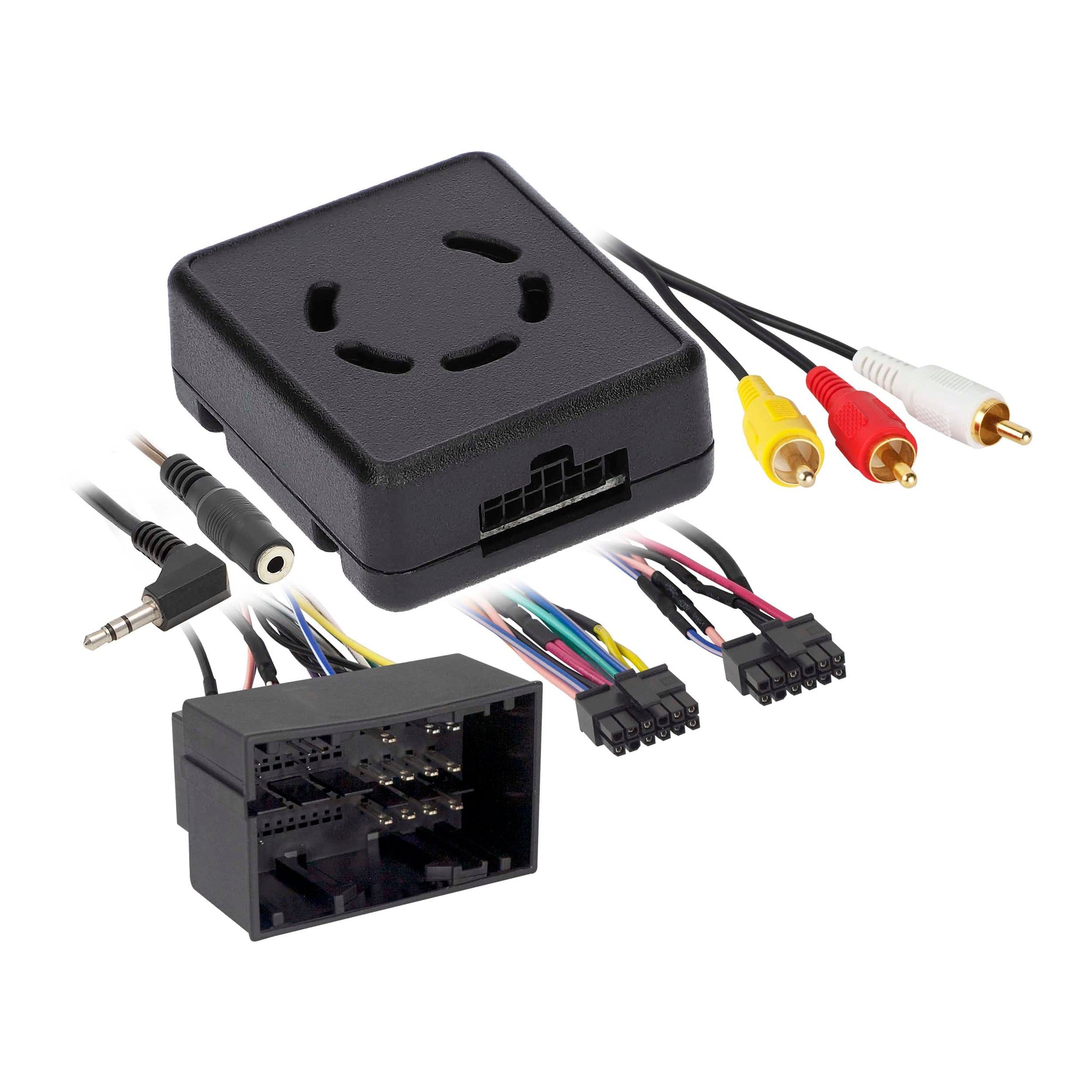

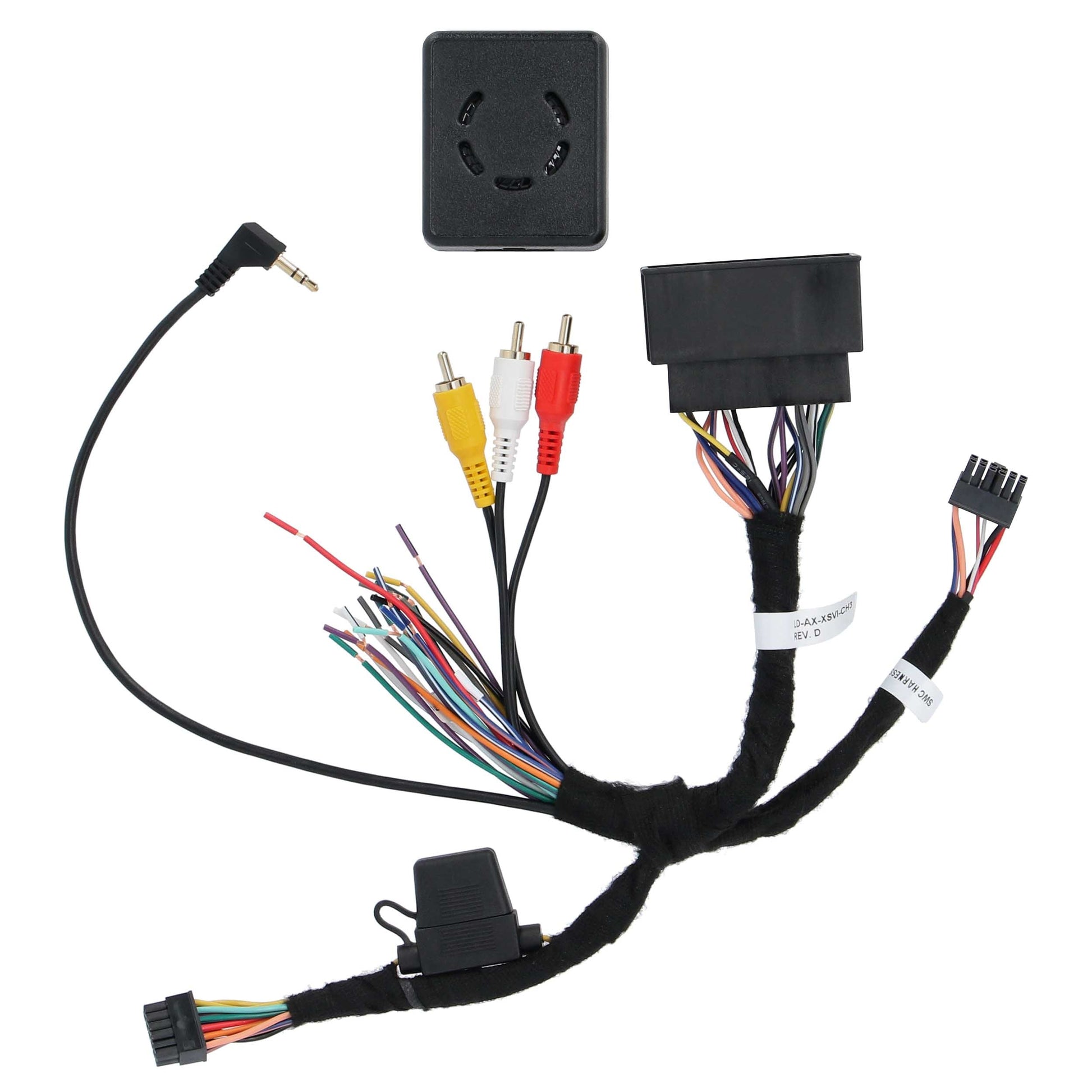

  • Axxess AXDI-CH5 interface
  • Vehicle-specific harnessing as supplied by Axxess

Technical Specifications

  • Brand: Axxess
  • Model: AXDI-CH5
  • Product Type: radio replacement data interface
  • Application: select Chrysler, Dodge, Fiat, Jeep, and RAM 2013-2023 vehicles with small-screen radio applications
  • Compatibility Type: Vehicle-specific
  • Update Method: Micro-B USB

Identifiers & Packaging

  • MPN: AXDI-CH5
  • UPC: 086429432882
  • Sold As: Each
  • Included Components: Interface and vehicle-specific harnessing
