Axxess
Axxess AXDI-6515 Data Interface for Fiat 500 2012-2015
Axxess AXDI-6515 Data Interface for Fiat 500 2012-2015
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

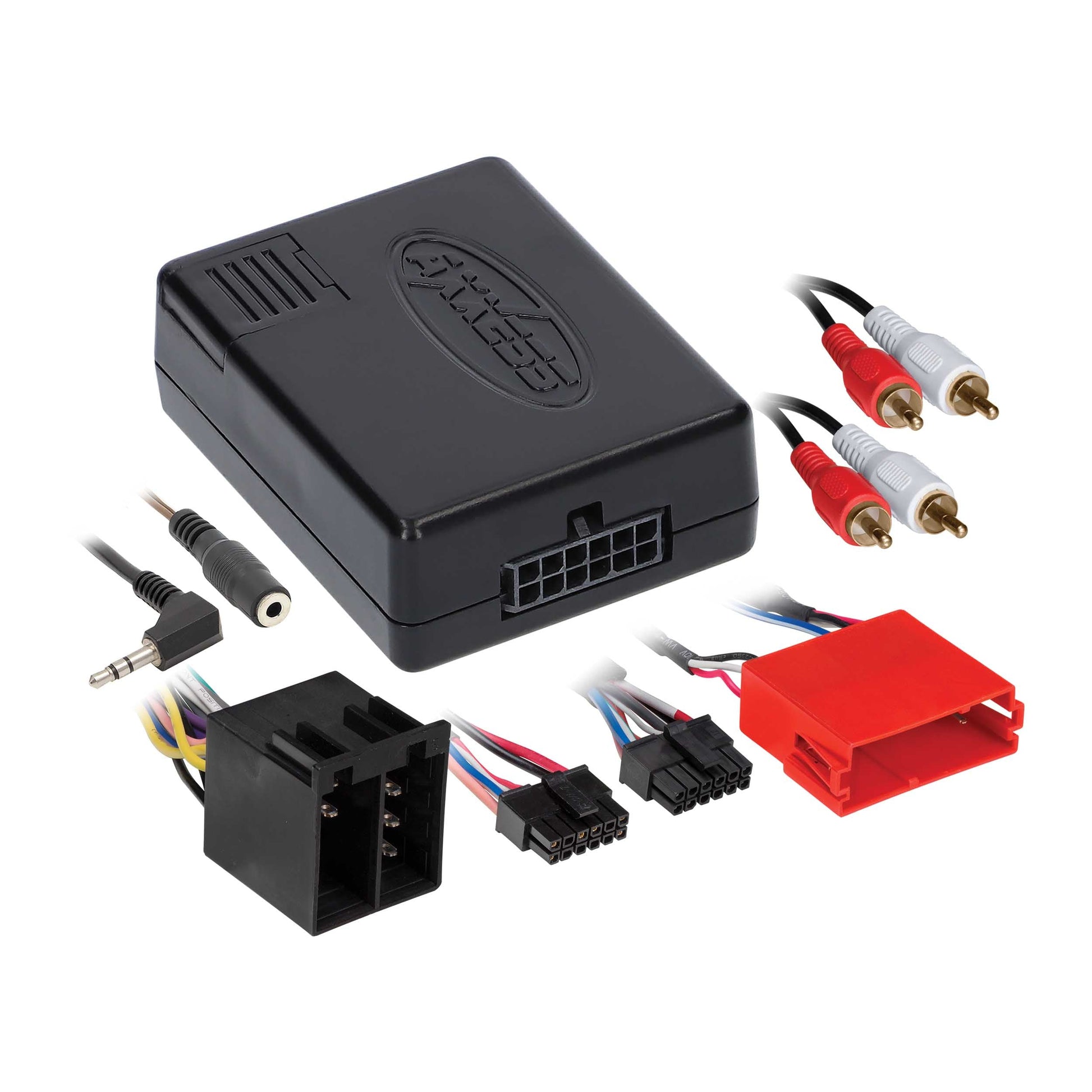

Axxess AXDI-6515 is a radio replacement data interface for Fiat 500 2012-2015. It supplies the installation signals normally required when replacing the factory radio and helps retain supported vehicle functions with the correct aftermarket radio and vehicle configuration.
At a Glance
- Data interface for aftermarket radio installation in Fiat 500 2012-2015
- Designed for non-amplified and amplified systems
- Provides 12-volt 10-amp accessory power
- Retains retained accessory power (R.A.P.) where applicable
- Provides NAV outputs including parking brake, reverse, and speed sense
- Pre-wired for Axxess steering wheel control integration with AXSWC interface sold separately
- Micro-B USB updateable
- Retains factory 3.5mm AUX input where applicable
- Retains OE Bluetooth connectivity where applicable
- High-level speaker input
System / Wiring Notes
- Vehicle-specific data interface used when replacing the factory radio
- Steering wheel control retention requires the appropriate Axxess steering wheel control interface when equipped and supported
- Retained features depend on vehicle trim, radio type, factory audio system, and factory equipment
- Retained AUX and OE Bluetooth features depend on factory equipment
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier | Application |
|---|---|---|---|---|
| FIAT | 500 | 2012-2015 | — | Data interface pre-wired for steering-wheel controls |
| FIAT | 500, 500C, 500e | 2012-2015 | Factory amplified audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for amplified system |
| FIAT | 500, 500C, 500e | 2012-2015 | Non-amplified factory audio system; Refer to the current Axxess application chart for additional interface choices. | Radio-replacement data interface for non-amplified system |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact year, make, model, trim, radio type, and factory audio system before installation
- Additional dash kit, antenna adapter, steering wheel control interface, or radio-specific harness may be required
- Professional installation is recommended for proper setup and retained-feature operation
- Check the current Axxess vehicle fit guide and installation instructions before installation
What’s in the Box

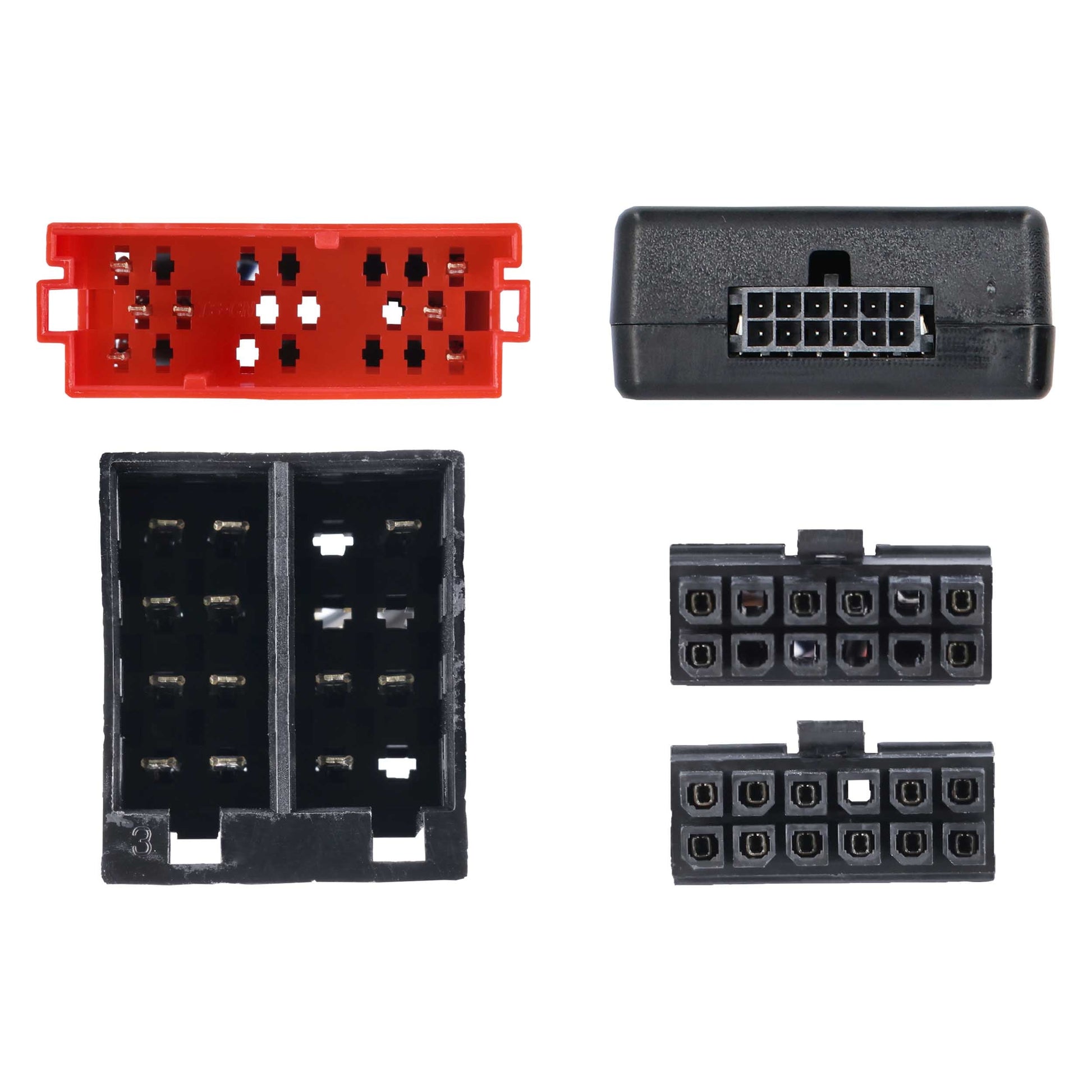

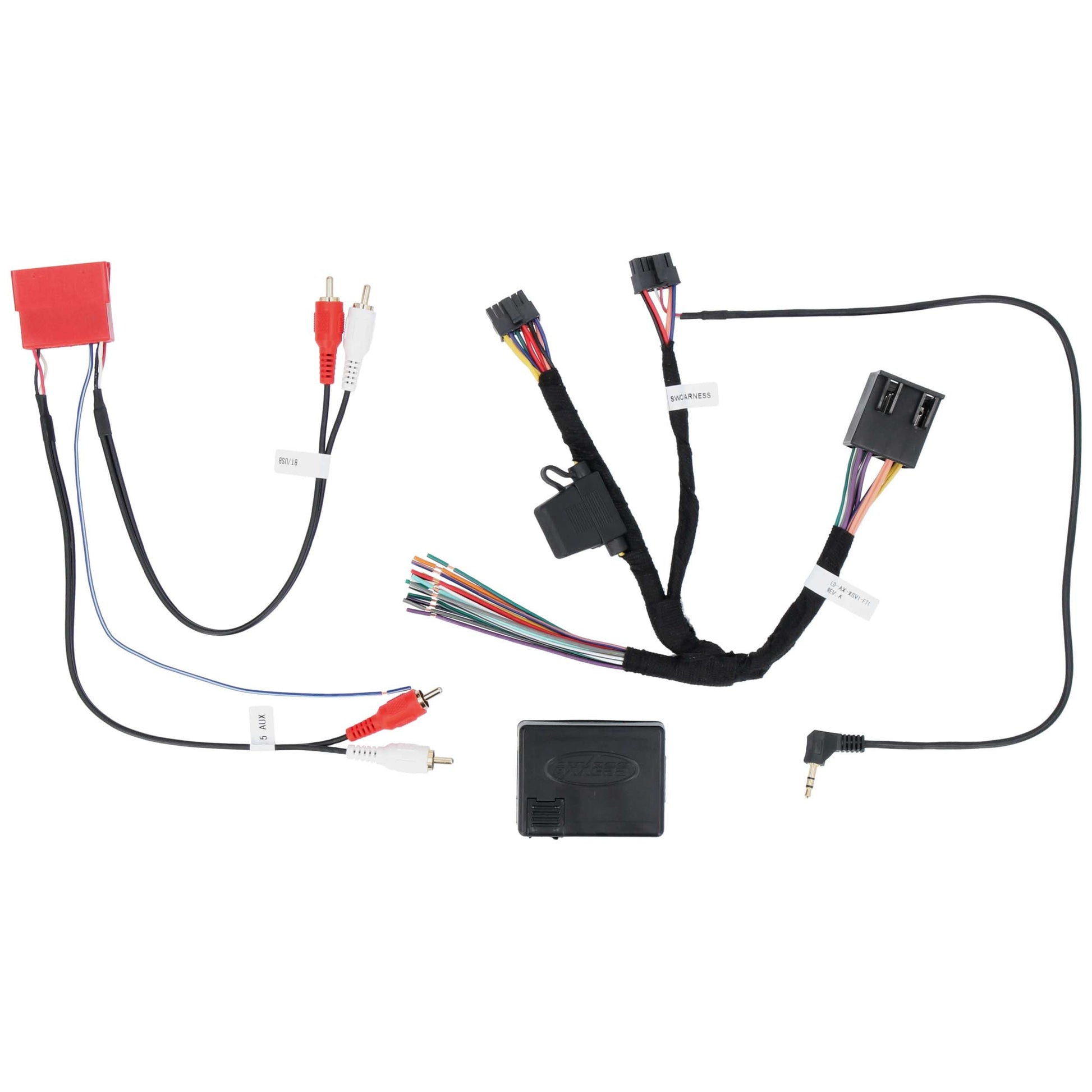

- Axxess AXDI-6515 data interface and vehicle-specific harnessing as supplied by the manufacturer
Technical Specifications
- Brand: Axxess
- Model: AXDI-6515
- Product Type: Radio replacement data interface
- Application: Fiat 500 2012-2015
- Compatibility Type: Vehicle-specific
- Update Method: Micro-B USB
- Steering Wheel Control Support: Pre-wired for AXSWC interface where applicable; AXSWC sold separately
Identifiers & Packaging
- MPN: AXDI-6515
- UPC: 086429432929
- Sold As: Each
- Included Components: Data interface and vehicle-specific harnessing
