Axxess AXBUCH6V-H24V is a factory backup camera retention harness for select Honda vehicles without touchscreen. It helps keep the original backup camera usable after a compatible aftermarket radio is installed.
At a Glance
- Backup camera retention harness for select Honda vehicles without touchscreen
- Retains the factory backup camera when installing a compatible aftermarket radio
- Retains the factory 3.5mm AUX input where applicable
- Includes 12-volt to 6-volt converter to supply proper camera voltage
- Vehicle-specific harnessing helps reduce hardwiring during radio replacement
System / Wiring Notes
- Designed for radio replacement applications where the factory camera operates on 6 volts
- Camera retention depends on factory radio type, factory camera equipment, and aftermarket radio camera input compatibility
- Some applications require navigation, non-navigation, display-radio, amplifier, or touchscreen conditions exactly as listed
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
Axxess backup-camera integration
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Honda | Fit | 2015-2017 | Factory backup-camera system; Supersedes or replaces prior application part AX-HON24RVC-6V |
| Honda | HR-V | 2015-2018 | Factory backup-camera system; Supersedes or replaces prior application part AX-HON24RVC-6V |
| Honda | Pilot | 2016-2019 | Factory backup-camera system; Supersedes or replaces prior application part AX-HON24RVC-6V |
| Honda | Ridgeline | 2018-2020 | Factory backup-camera system; Supersedes or replaces prior application part AX-HON24RVC-6V |
Axxess radio replacement
| Make | Model | Years |
|---|---|---|
| Honda | Fit | 2015-2017 |
| Honda | HRV | 2015-2018 |
| Honda | Pilot | 2016-2019 |
| Honda | Pilot | 2016-2021 |
| Honda | Ridgeline | 2017-2020 |
| Honda | Ridgeline | 2018-2020 |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle fitment, factory radio type, camera equipment, and screen/navigation configuration before installation
- Aftermarket radio must have a compatible camera input for camera display after radio replacement
- Additional dash kit, radio harness, antenna adapter, or interface may be required for a complete installation
- Professional installation is recommended
What’s in the Box

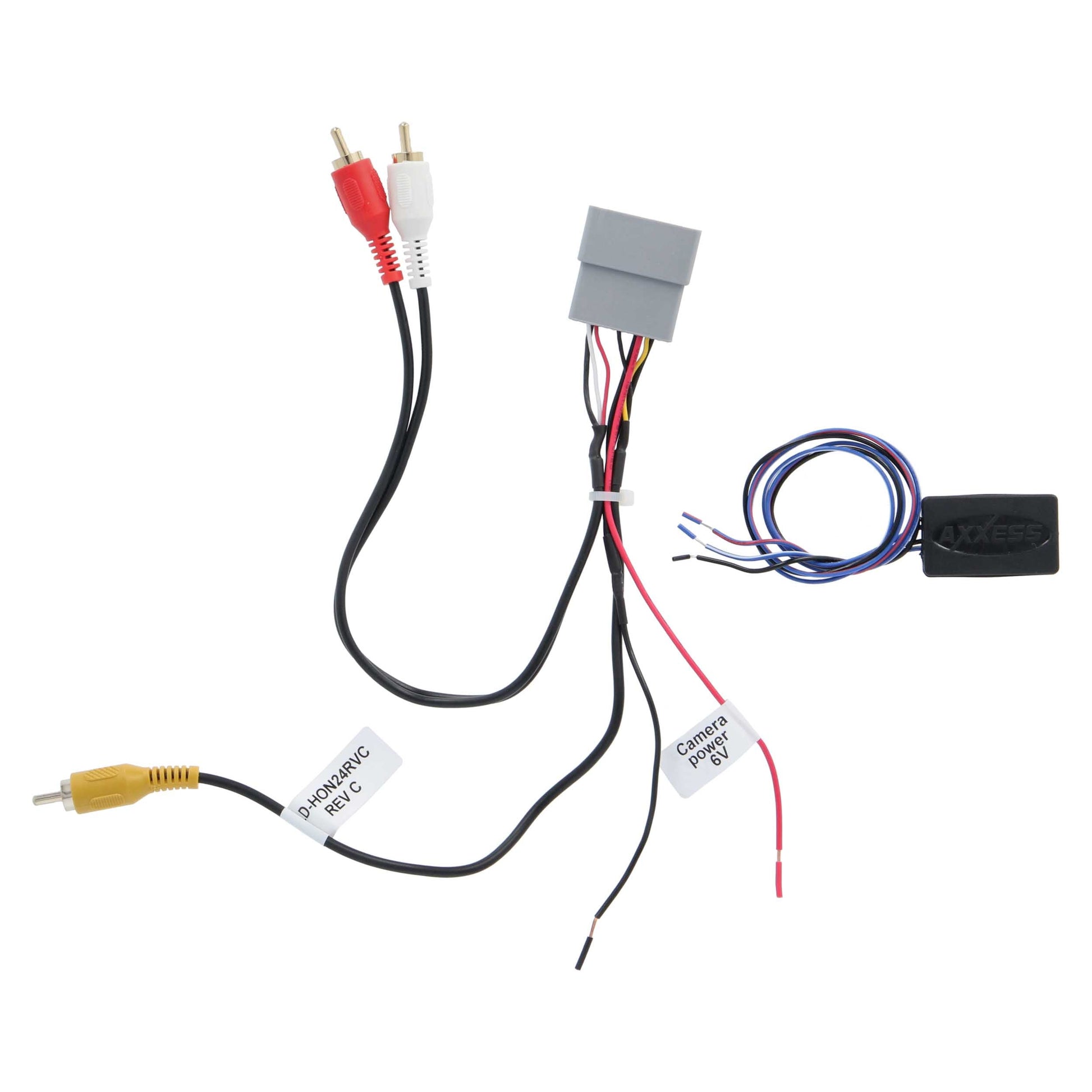

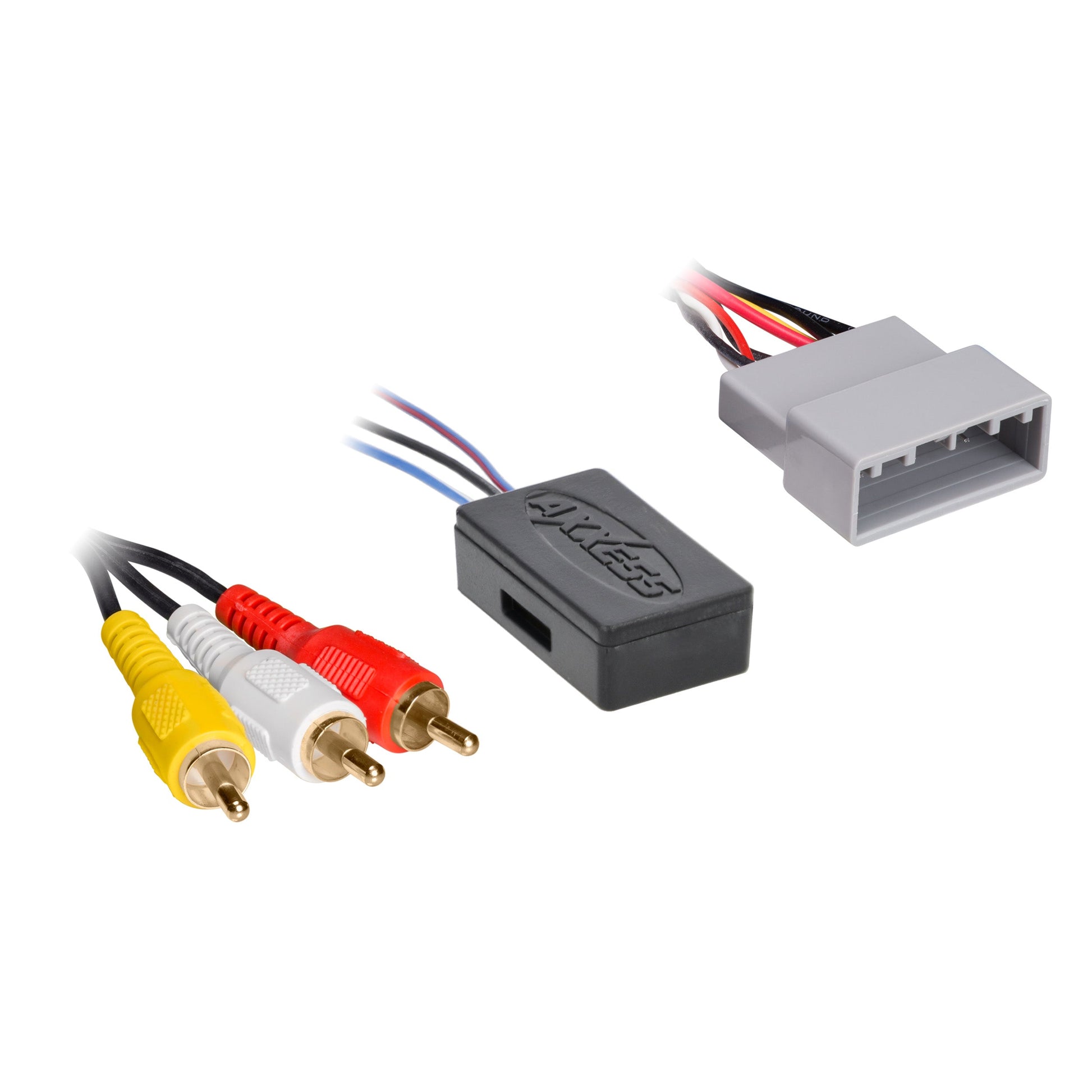

- Axxess AXBUCH6V-H24V backup camera retention harness
- 12-volt to 6-volt converter
Technical Specifications
- Brand: Axxess
- Model: AXBUCH6V-H24V
- Product Type: Backup camera retention harness
- Application: select Honda vehicles without touchscreen
- Compatibility Type: Vehicle-specific
- Camera Voltage Support: 6-volt factory camera support with included converter
Identifiers & Packaging
- MPN: AXBUCH6V-H24V
- UPC: 086429384211
- Sold As: Each
- Included Components: Backup camera retention harness and 12-volt to 6-volt converter
