Axxess AXBUCH-TYCAM16V Backup Camera Harness for Scion Toyota 2012-2015
Axxess AXBUCH-TYCAM16V Backup Camera Harness for Scion Toyota 2012-2015
Regular price
$52.99 USD
Regular price
Sale price
$52.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXBUCH-TYCAM16V is a factory backup camera retention harness for select Scion and Toyota vehicles. It helps keep the original backup camera usable after a compatible aftermarket radio is installed.
At a Glance
- Backup camera retention harness for select Scion and Toyota vehicles
- Retains the factory backup camera when installing a compatible aftermarket radio
- Includes 12-volt to 6-volt converter to supply proper camera voltage
- Vehicle-specific harnessing helps reduce hardwiring during radio replacement
System / Wiring Notes
- Designed for radio replacement applications where the factory camera operates on 6 volts
- Camera retention depends on factory radio type, factory camera equipment, and aftermarket radio camera input compatibility
- Some applications require navigation, non-navigation, display-radio, amplifier, or touchscreen conditions exactly as listed
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
Axxess backup-camera integration
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Toyota | 4-Runner | 2012-2013 | Without Amp; Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Avalon | 2013-2014 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Camry | 2012-2013 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Highlander | 2013 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Mirai | 2016-2019 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Prius | 2012-2015 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Prius PHV | 2012-2015 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Prius V | 2012-2014 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Rav4 | 2013-2014 | Before NOV 13'; Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Sequoia | 2013 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
| Toyota | Venza | 2013-2014 | Factory backup-camera system; Supersedes or replaces prior application part AX-TOYCAM1-6V |
Axxess radio replacement
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Scion | FRS | 2013-2015 | — |
| Scion | iQ | 2014-2015 | — |
| Scion | tC | 2014-2015 | — |
| Scion | xB | 2014-2015 | — |
| Scion | xD | 2014 | — |
| Toyota | 4-Runner | 2012-2013 | Without Amp |
| Toyota | Avalon | 2013-2014 | — |
| Toyota | Camry | 2012-2013 | — |
| Toyota | Highlander | 2013 | — |
| Toyota | Prius | 2012-2015 | — |
| Toyota | Prius PHV | 2012-2015 | — |
| Toyota | Prius V | 2012-2014 | — |
| Toyota | Rav4 | 2013-2014 | — |
| Toyota | Sequoia | 2013 | — |
| Toyota | Venza | 2013-2014 | — |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle fitment, factory radio type, camera equipment, and screen/navigation configuration before installation
- Aftermarket radio must have a compatible camera input for camera display after radio replacement
- Additional dash kit, radio harness, antenna adapter, or interface may be required for a complete installation
- Professional installation is recommended
What’s in the Box

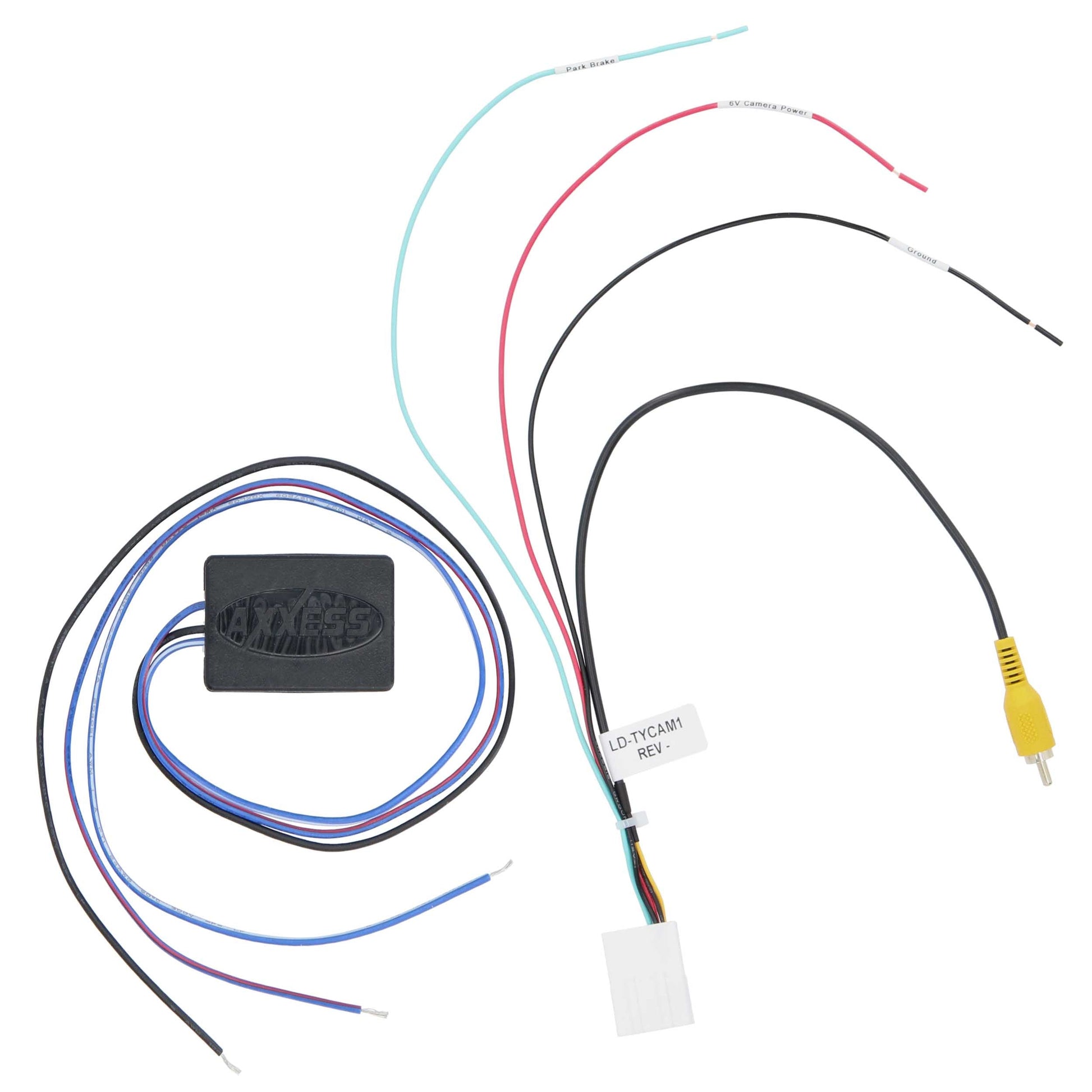

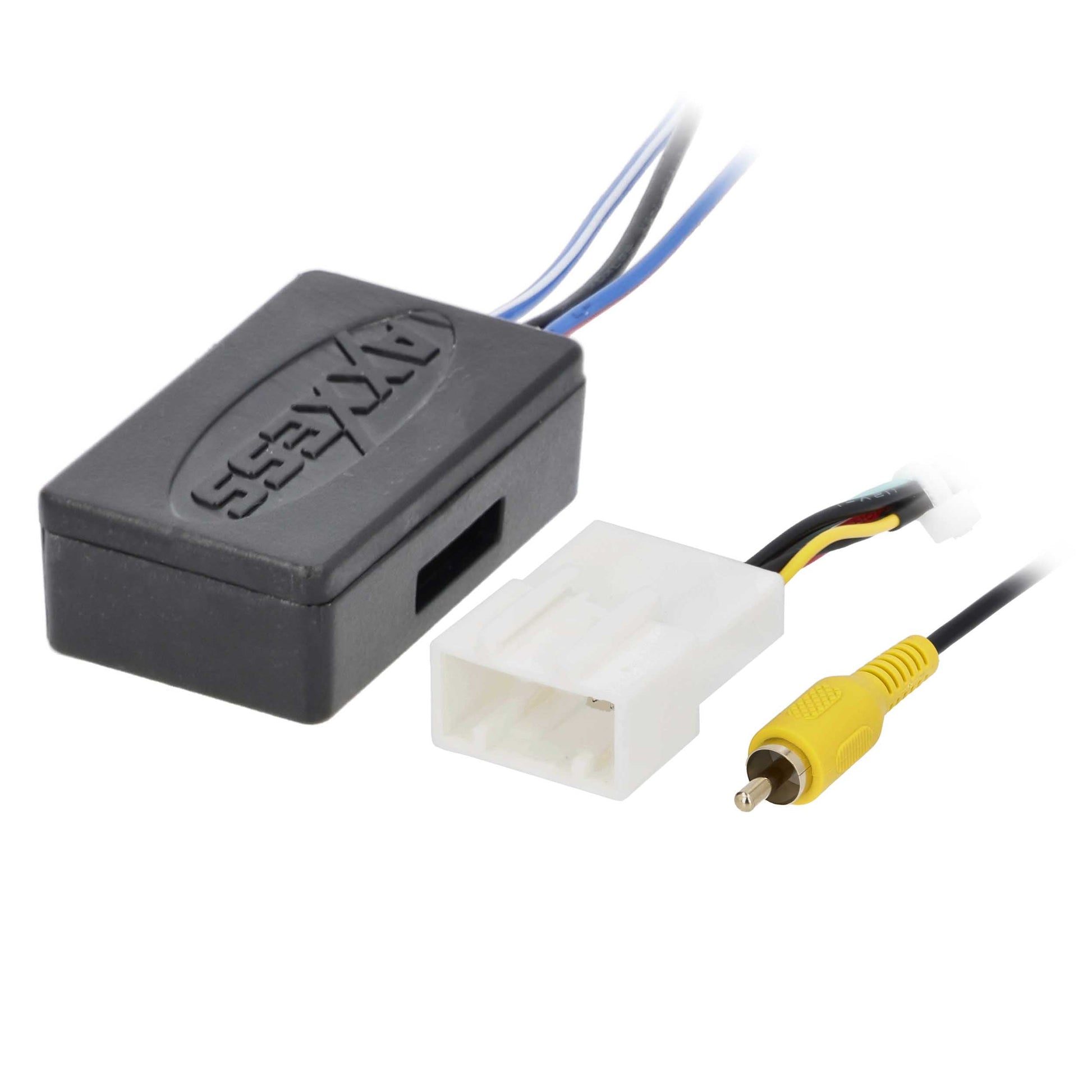

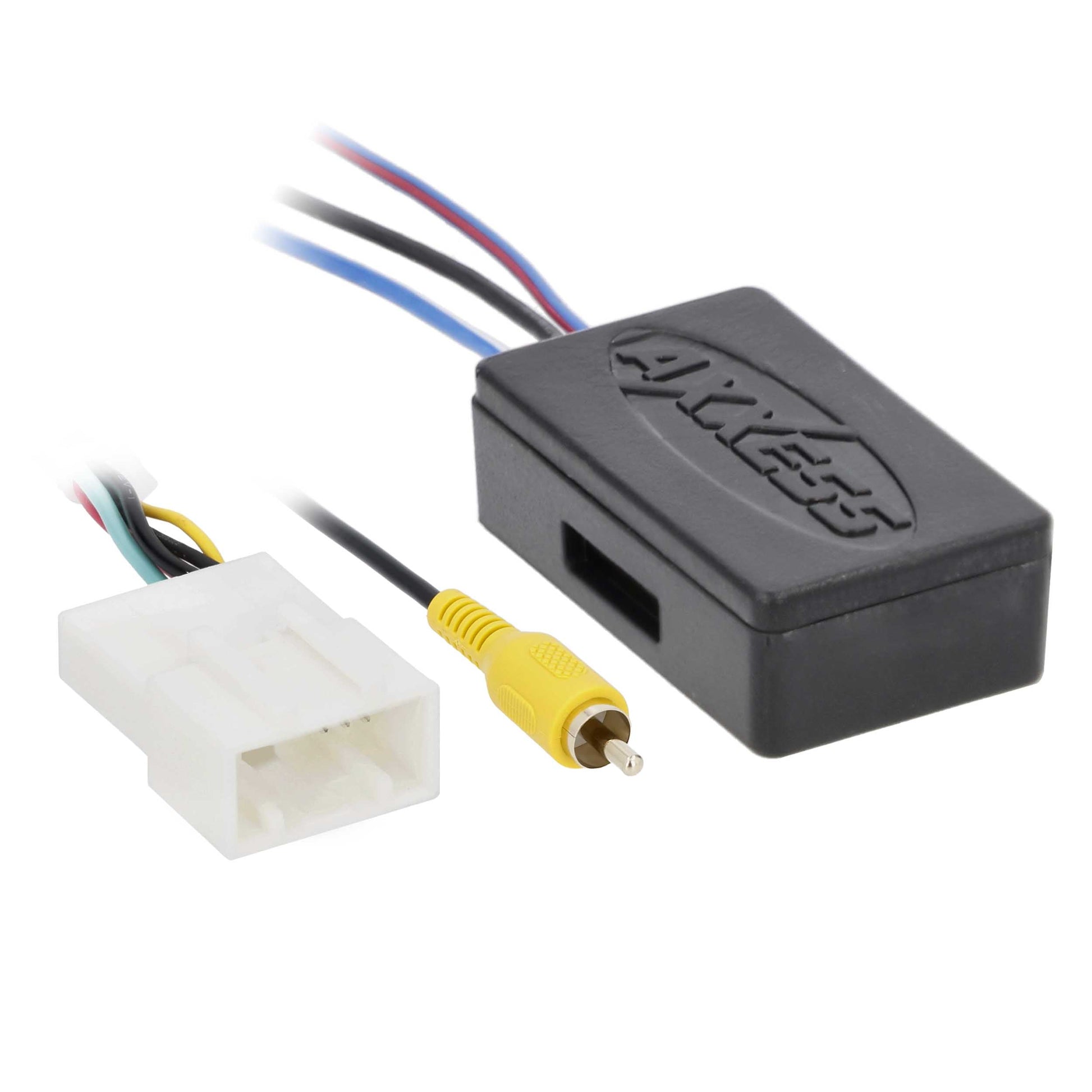

- Axxess AXBUCH-TYCAM16V backup camera retention harness
- 12-volt to 6-volt converter
Technical Specifications
- Brand: Axxess
- Model: AXBUCH-TYCAM16V
- Product Type: Backup camera retention harness
- Application: select Scion and Toyota vehicles
- Compatibility Type: Vehicle-specific
- Camera Voltage Support: 6-volt factory camera support with included converter
Identifiers & Packaging
- MPN: AXBUCH-TYCAM16V
- UPC: 086429440627
- Sold As: Each
- Included Components: Backup camera retention harness and 12-volt to 6-volt converter
