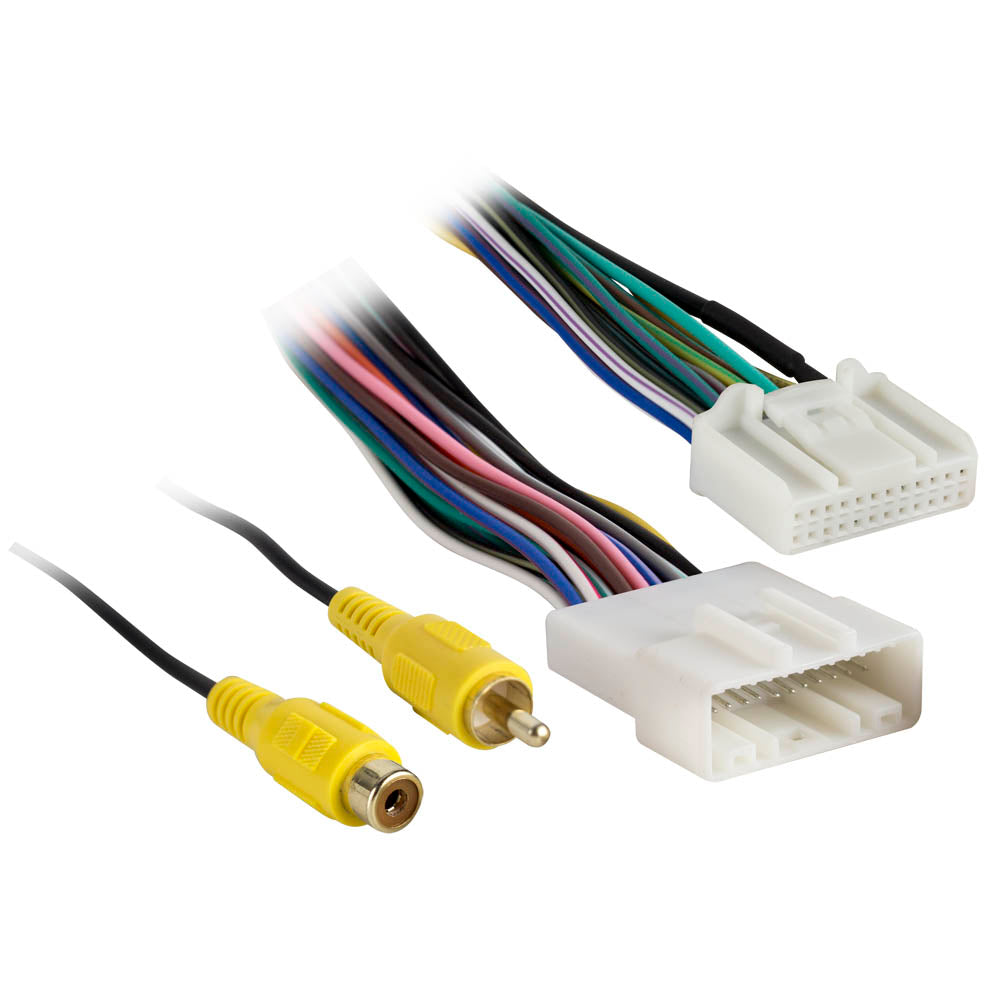

Axxess AXBUCH-T3 Backup Camera Retention Harness for Toyota 2012-2019
Axxess AXBUCH-T3 Backup Camera Retention Harness for Toyota 2012-2019
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXBUCH-T3 is a vehicle-specific backup camera retention harness for retaining the factory camera when replacing the original radio with an aftermarket radio. It connects the OEM camera signal to the aftermarket radio display so the factory reverse camera can continue to be used after the radio upgrade.
At a Glance
- Retains the factory backup camera when installing an aftermarket radio
- Displays the factory camera image on the aftermarket radio screen
- Vehicle-specific harness design for cleaner installation
- Helps reduce cutting or splicing of factory camera wiring
- Designed for use only on compatible factory camera-equipped vehicles
- Allows an aftermarket camera to be added to the factory screen for models with display and navigation radios where supported
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Toyota | 4-Runner | 2012 | Non-NAV |
| Toyota | 4-Runner | 2013-2019 | — |
| Toyota | 86 | 2017-2018 | — |
| Toyota | Avalon | 2015-2018 | — |
| Toyota | Camry | 2014-2016 | — |
| Toyota | Corolla | 2014-2019 | — |
| Toyota | Corolla iM | 2017-2018 | — |
| Toyota | Highlander | 2014-2019 | — |
| Toyota | Mirai | 2016-2019 | — |
| Toyota | Prius | 2016-2019 | — |
| Toyota | Prius C | 2015-2019 | — |
| Toyota | Prius Prime | 2017-2019 | Plus |
| Toyota | Prius V | 2015-2018 | — |
| Toyota | Rav4 | 2014-2018 | After NOV 13' |
| Toyota | Sequoia | 2014-2019 | — |
| Toyota | Sienna | 2015-2017 | — |
| Toyota | Tacoma | 2014-2019 | — |
| Toyota | Tundra | 2014-2019 | — |
| Toyota | Venza | 2015-2016 | — |
| Toyota | Yaris | 2018-2019 | — |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Designed for radio replacement applications with an aftermarket radio that has a compatible camera input
- Factory camera operation and guidelines vary by vehicle and radio configuration
- Some applications require a 12V-to-6V step-down converter; use only where specified by Axxess
- Professional installation is recommended for camera power, signal routing, and proper aftermarket radio setup
- Check the latest Metra / Axxess instructions before installation
What’s in the Box

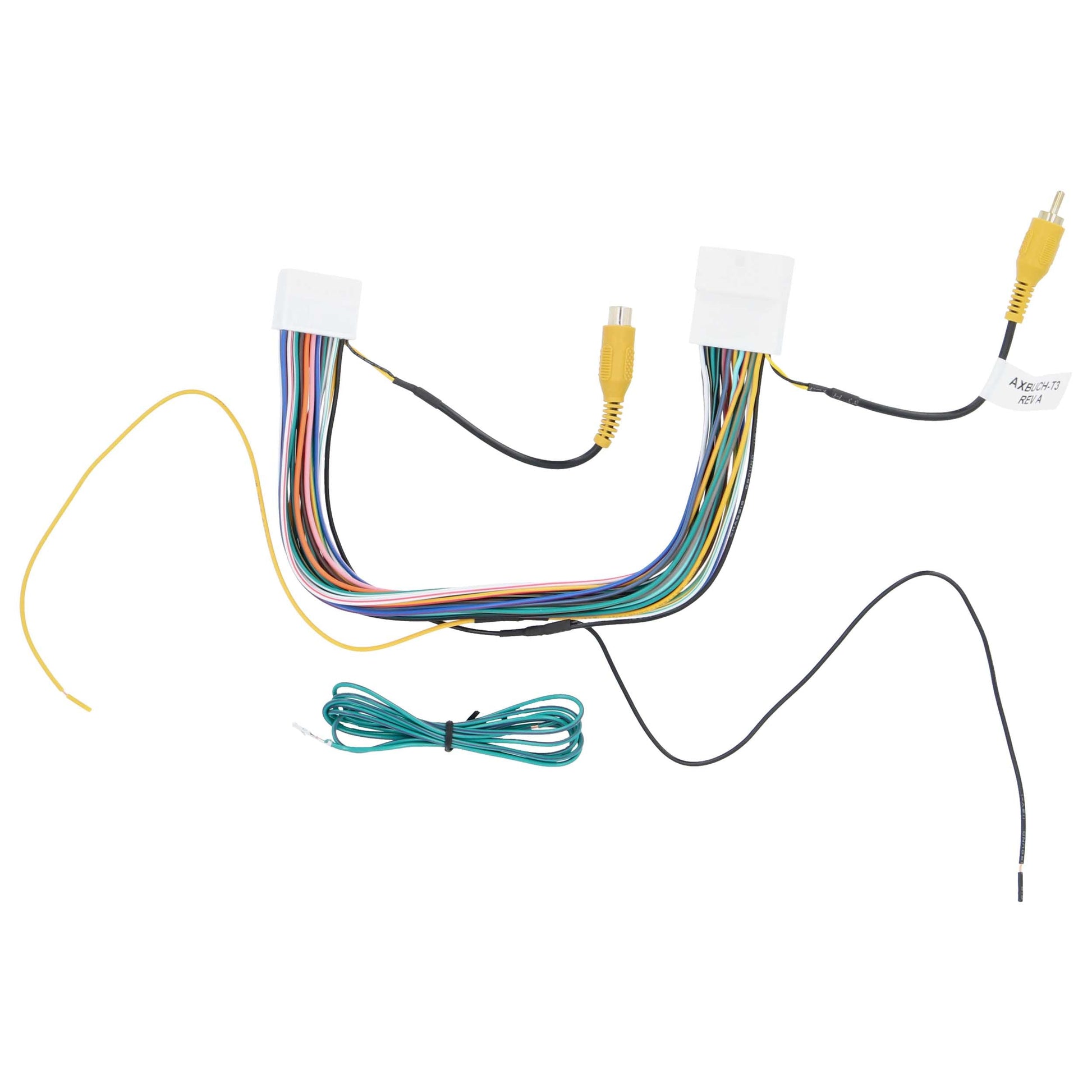

- Axxess AXBUCH-T3 backup camera retention harness
Technical Specifications
- Brand: Axxess
- Model: AXBUCH-T3
- Product Type: Vehicle-specific backup camera retention harness
- Application: select Toyota 2012-2019 vehicles
- Camera Function: Factory backup camera retention to aftermarket radio
- Radio Type: Aftermarket radio with compatible camera input
- Sold As: Each
Identifiers & Packaging
- MPN: AXBUCH-T3
- UPC: 086429386963
- Sold As: Each
- Included Components: Axxess AXBUCH-T3 backup camera retention harness
