Axxess AXAMP-FD1 6-Channel Amplifier Integration Interface for select 2006-2014 Ford applications
Axxess AXAMP-FD1 6-Channel Amplifier Integration Interface for select 2006-2014 Ford applications
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Axxess AXAMP-FD1 is a vehicle-specific 6-channel amplifier integration interface designed to help add aftermarket amplifiers to compatible factory-radio systems. It provides clean preamp-level output while retaining the original radio and supported vehicle functions, giving installers a cleaner path for factory-radio audio upgrades.
At a Glance
- Vehicle-specific amplifier integration interface for adding aftermarket amplifiers while retaining the factory radio

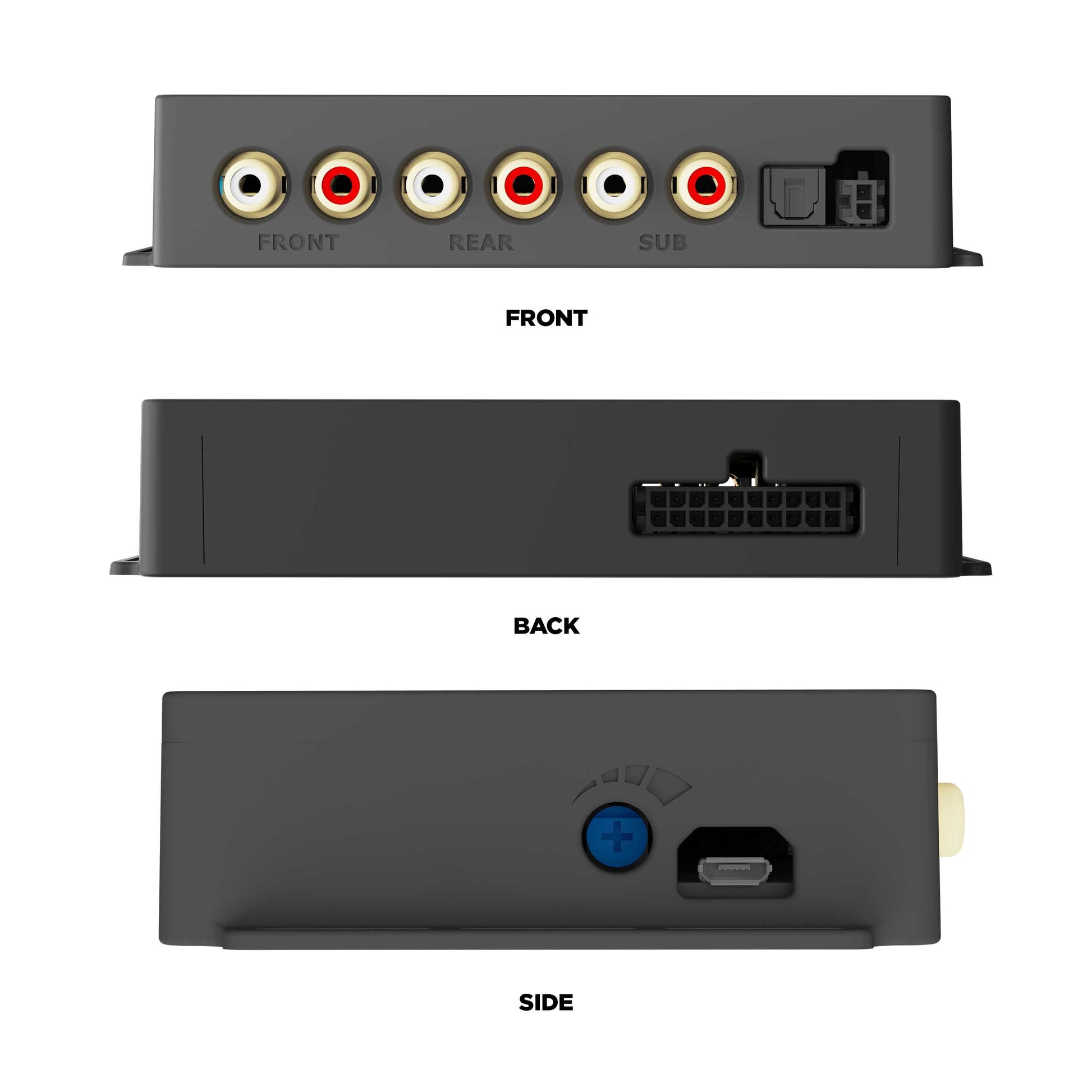

- Provides 6 channels of 5-volt RMS audio output
- Non-fading full-range output on channels 5 and 6
- Simple plug-and-play installation behind the radio on compatible vehicles
- No programming required
- Dual-colored LED feedback light
- 50-watt per channel input rating
- 250mA DC amp turn-on trigger
- 2-channel S/PDIF output for the front channels
- External bass knob included for output-level adjustment
- 1-year limited warranty
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Ford | Edge | 2007-2010 | Factory amplifier location: Passenger Side Rear, Above Wheel Well. |
| Ford | Escape | 2008-2012 | Factory amplifier location: Below Passenger's Seat. |
| Ford | Expedition | 2007-2014 | Non-Sony; Factory amplifier location: Center Console. |
| Ford | F-150 | 2006-2012 | Factory amplifier location: Driver Side Rear Floor, Behind Rear Seat. |
| Ford | Flex | 2009-2012 | Factory amplifier location: Passenger Side of Trunk Above Rear Wheel-Well. |
| Ford | Focus | 2008-2011 | Factory amplifier location: Driver's Side of Trunk. |
| Ford | Fusion | 2006-2012 | Factory amplifier location: Passenger Side of Trunk Above Rear Wheel-Well. |
| Ford | Mustang | 2006-2014 | Factory amplifier location: Luggage Compartment. |
| Ford | Taurus | 2008-2011 | Factory amplifier location: Luggage Compartment. |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Designed for behind-the-radio integration on compatible vehicles unless the current manufacturer instructions state otherwise
- Confirm factory audio system type before purchase; amplified, non-amplified, Bose, JBL, Sony, A2B, and other factory systems may require different interfaces
- Professional installation is strongly recommended for amplifier integration and system tuning
- Check the latest Metra / Axxess fit guide and instructions before installation

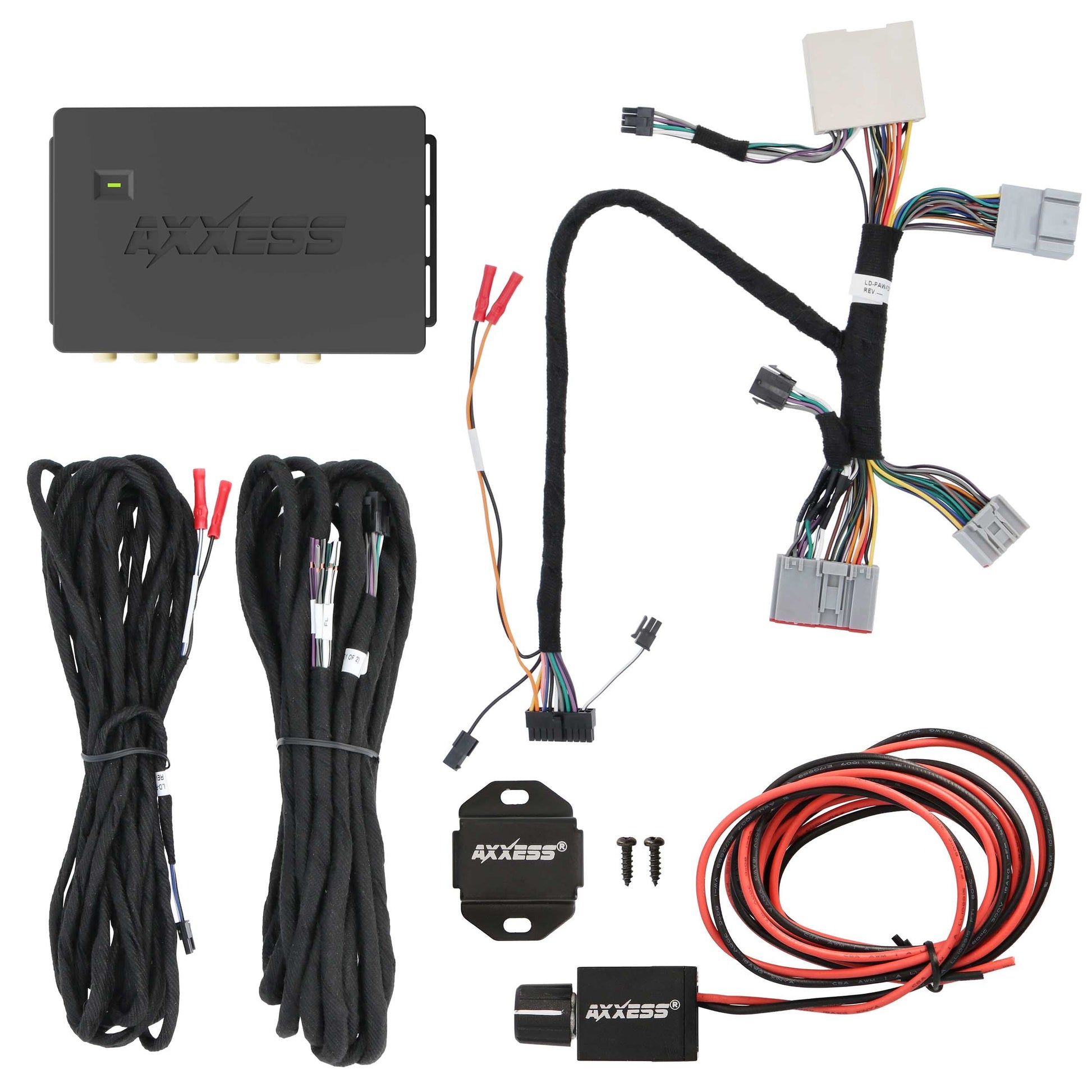

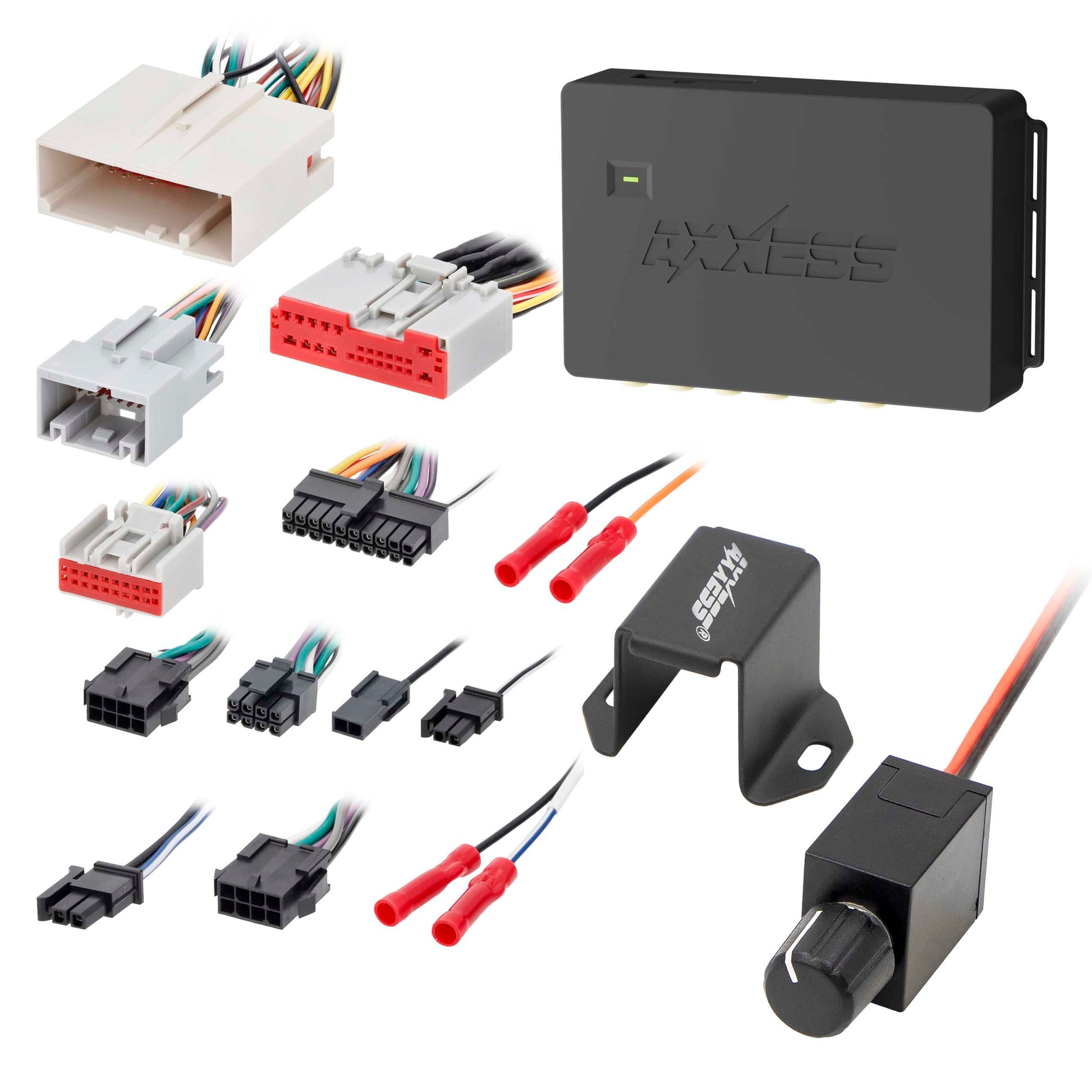

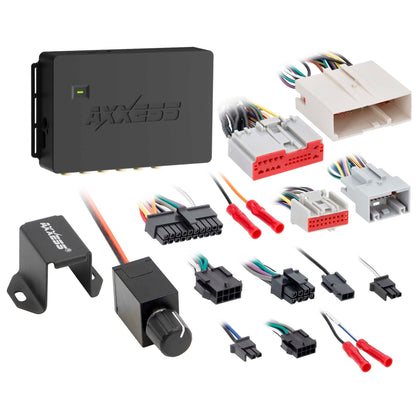

What’s in the Box
- Amplifier integration interface

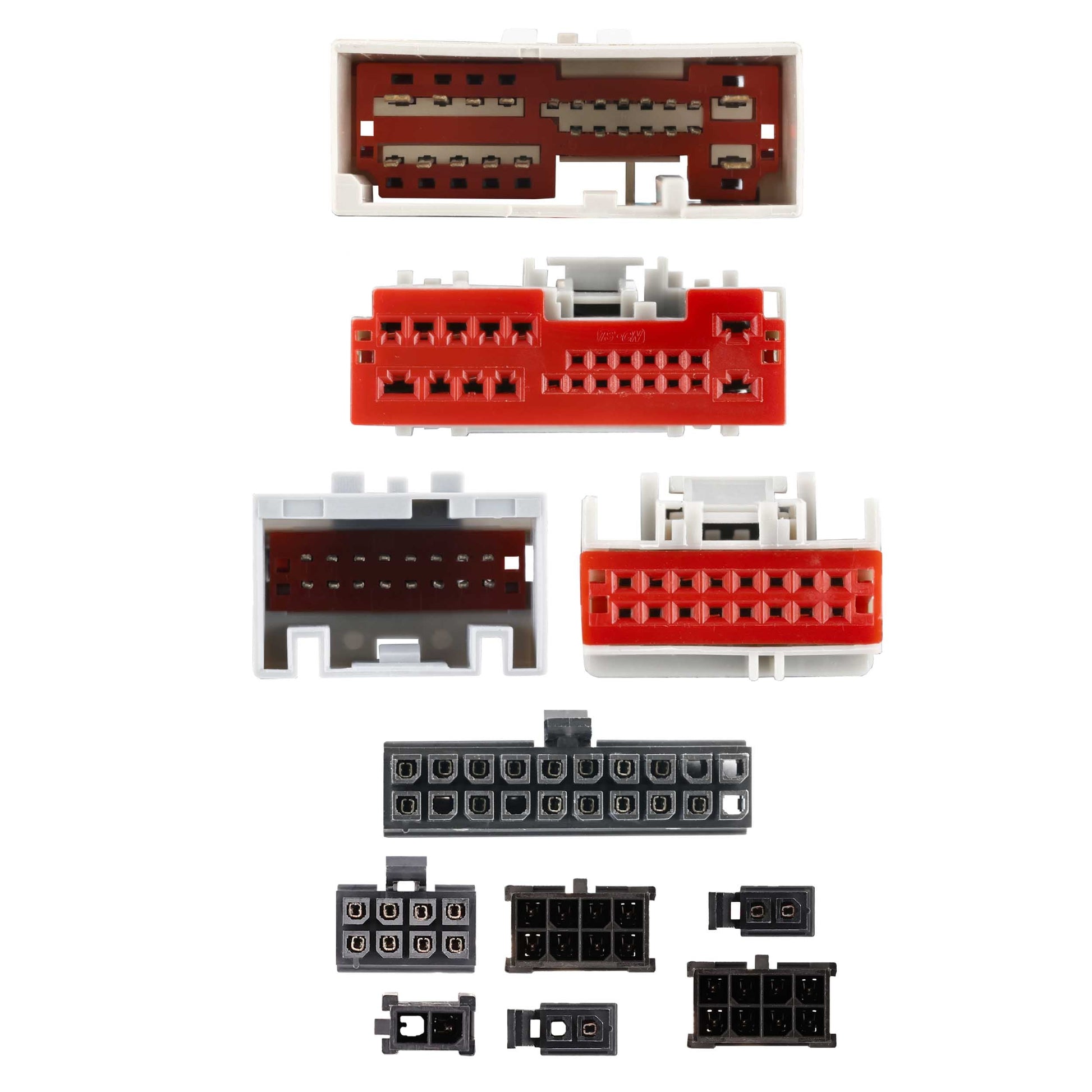

- Vehicle-specific T-harness or extension harnesses as supplied by Axxess
- Bass knob
- Instruction sheet
Technical Specifications
- Brand: Axxess
- Model: AXAMP-FD1
- Product Type: 6-channel amplifier integration interface
- Application: select 2006-2014 Ford applications
- Audio Output: 6 channels of 5-volt RMS audio
- Non-Fading Output: Channels 5 and 6
- Amp Turn-On Trigger: 250mA DC output
- Input Rating: 50 watts per channel
- Sold As: Each
Identifiers & Packaging
- MPN: AXAMP-FD1
- UPC: 086429440948
- Sold As: Each
- Included Components: Amplifier integration interface, Vehicle-specific T-harness or extension harnesses as supplied by Axxess, Bass knob, Instruction sheet
