Axxess AXAC-GM1 Camera Data Interface for Chevrolet and GMC IO5/IO6 2015-2020

Axxess AXAC-GM1 is a vehicle-specific camera data interface for compatible factory radio systems. It is designed to retain the factory backup camera while adding additional aftermarket camera inputs, using CAN bus communication to activate camera views from reverse, turn-signal, or configured manual triggers.

Key Features

• Retains the factory backup camera while adding aftermarket front and side camera inputs
• Up to 4 total camera inputs including supported factory camera functionality
• Includes AXAC camera interface and vehicle-specific harnessing
• Programmable 12-volt, 5-amp switched output configured through the Axxess Updater program
• Reverse trigger generated through CAN bus communication
• Turn signal trigger generated through CAN bus communication
• Four programmable camera control wires configured through the Axxess Updater program
• Rear Video Assistant option can keep a selected camera active
• Can also be manually controlled and used with an aftermarket radio
• VSS input and output
• Micro-B USB updatable

Vehicle Fitment / Application

select Chevrolet and GMC 2015-2020 vehicles with IO5 / IO6 8-inch MyLink touchscreen systems

Applications listed by Axxess include Chevrolet Camaro, Colorado, Equinox, Silverado, Silverado HD and Spark; and GMC Acadia, Canyon, Sierra, Sierra Limited, Sierra HD, Terrain and Yukon/Yukon XL with listed IO5 / IO6 8-inch MyLink touchscreen notes.

Important: AXAC camera interface fitment is application-dependent. Always verify year, make, model, factory radio code, screen size, camera equipment, and current Metra / Axxess fit guide before purchase or installation.

Installation Notes

• Designed for compatible factory radio systems where the factory display and camera path are retained
• Camera switching behavior is vehicle- and configuration-dependent
• Axxess Updater program may be required for configuration
• AXUSB-MCBL Micro-B to USB cable may be required for setup/update where listed by Axxess
• Professional installation is recommended for camera routing, trigger setup, and interface programming

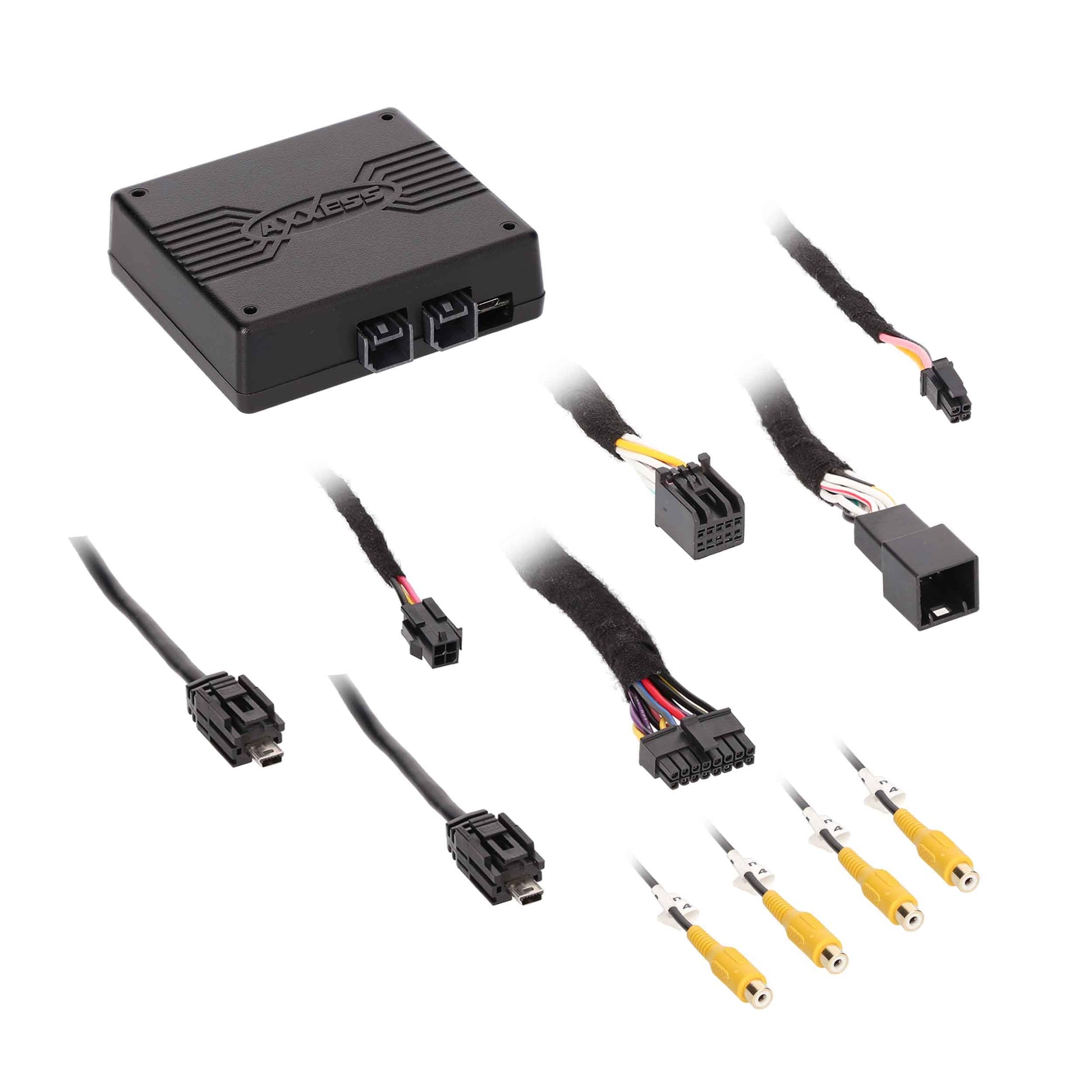

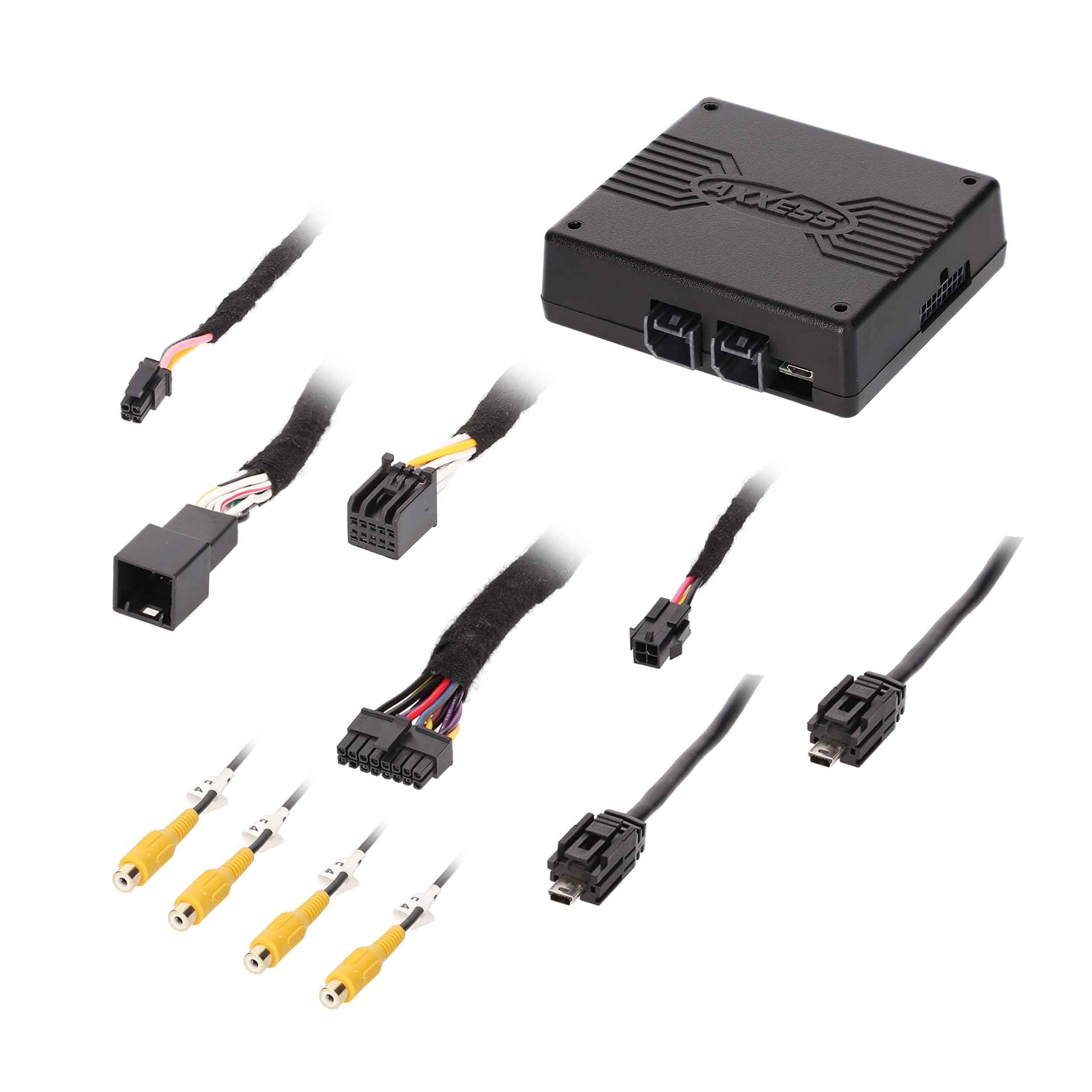

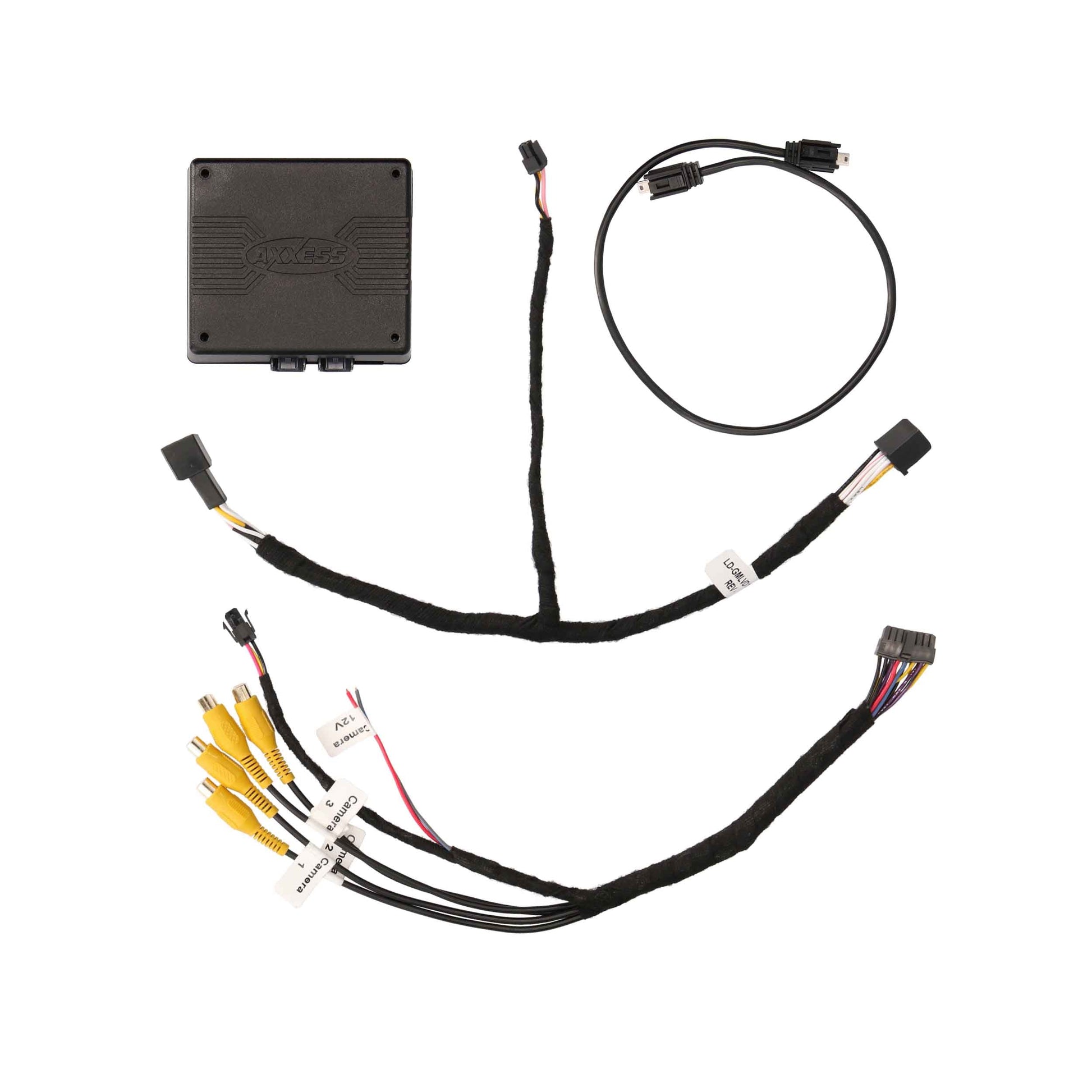

What’s in the Box

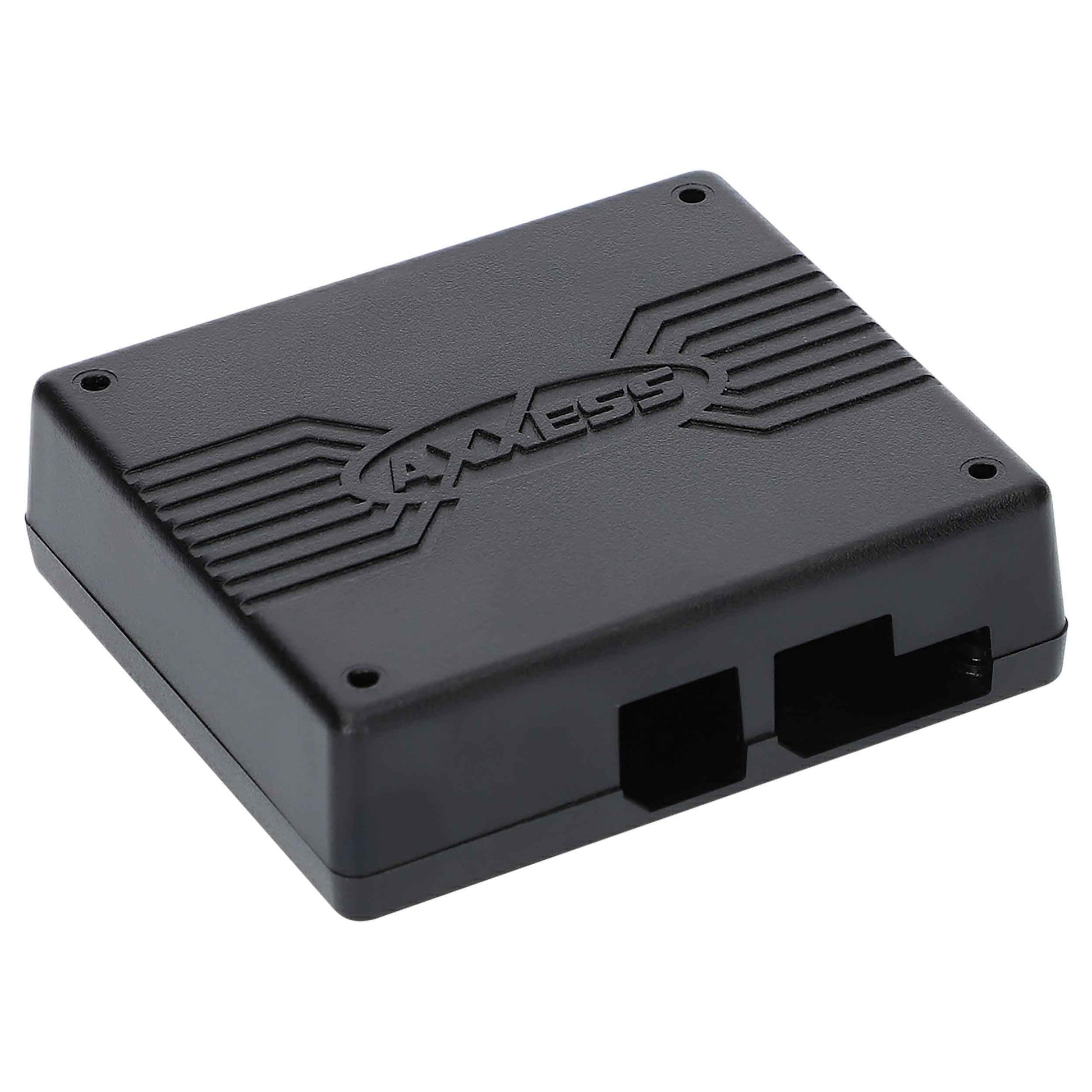

• Axxess AXAC-GM1 camera data interface

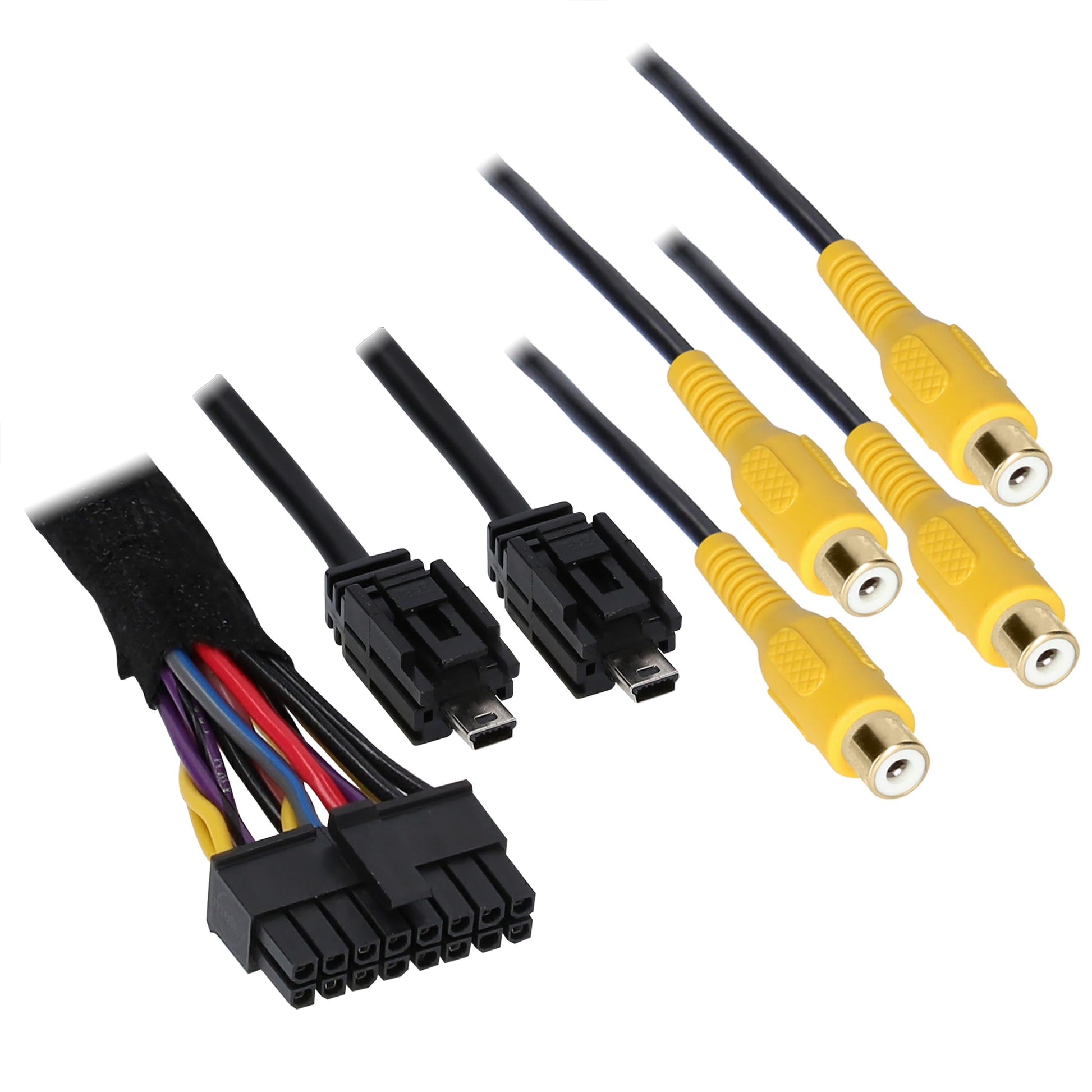

• Interface harness
• Two vehicle harnesses

Technical Specifications

• Brand: Axxess
• Model: AXAC-GM1
• Product Type: Vehicle-specific camera data interface
• Application: select Chevrolet and GMC 2015-2020 vehicles with IO5 / IO6 8-inch MyLink touchscreen systems
• Camera Inputs: Up to 4 total camera inputs including supported factory camera functionality
• Output: Programmable 12V 5A switched output
• Triggers: CAN bus reverse and turn signal trigger generation
• Update Port: Micro-B USB
• Sold As: Each

Identifiers & Packaging

• MPN: AXAC-GM1
• UPC: 086429400201
• Sold As: Each
• Included Components: Axxess AXAC-GM1 camera data interface, Interface harness, Two vehicle harnesses
