Axxess AXAC-CH8 Camera Data Interface for Jeep and Ram 2023-Up Uconnect

Axxess AXAC-CH8 is a vehicle-specific camera data interface for compatible factory radio systems. It is designed to retain the factory backup camera while adding additional aftermarket camera inputs, using CAN bus communication to activate camera views from reverse, turn-signal, or configured manual triggers.

Key Features

• Retains the factory backup camera while adding aftermarket front and side camera inputs
• Up to 4 total camera inputs including factory camera
• Includes AXAC camera interface and vehicle-specific harnessing
• Programmable 12-volt, 5-amp switched output configured through the Axxess Updater program
• Reverse trigger generated through CAN bus communication
• Turn signal trigger generated through CAN bus communication
• One programmable camera control wire configured through the Axxess Updater program
• Can also be manually controlled and used with an aftermarket radio
• VSS input and output
• Micro-B USB updatable

Vehicle Fitment / Application

select Jeep and Ram 2023-up vehicles with large Uconnect screens

Applications listed by Axxess include Jeep Wrangler JL/JT 2024-up with Uconnect and 12.3-inch screen, and Ram 1500 DT 2023-up with Uconnect and 12-inch screen where listed.

Important: AXAC camera interface fitment is application-dependent. Always verify year, make, model, factory radio code, screen size, camera equipment, and current Metra / Axxess fit guide before purchase or installation.

Installation Notes

• Designed for compatible factory radio systems where the factory display and camera path are retained
• Camera switching behavior is vehicle- and configuration-dependent
• Axxess Updater program may be required for configuration
• AXUSB-MCBL Micro-B to USB cable may be required for setup/update where listed by Axxess
• Professional installation is recommended for camera routing, trigger setup, and interface programming

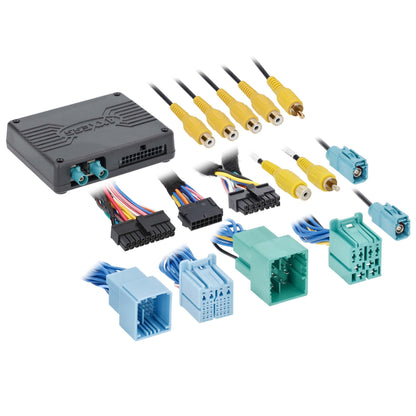

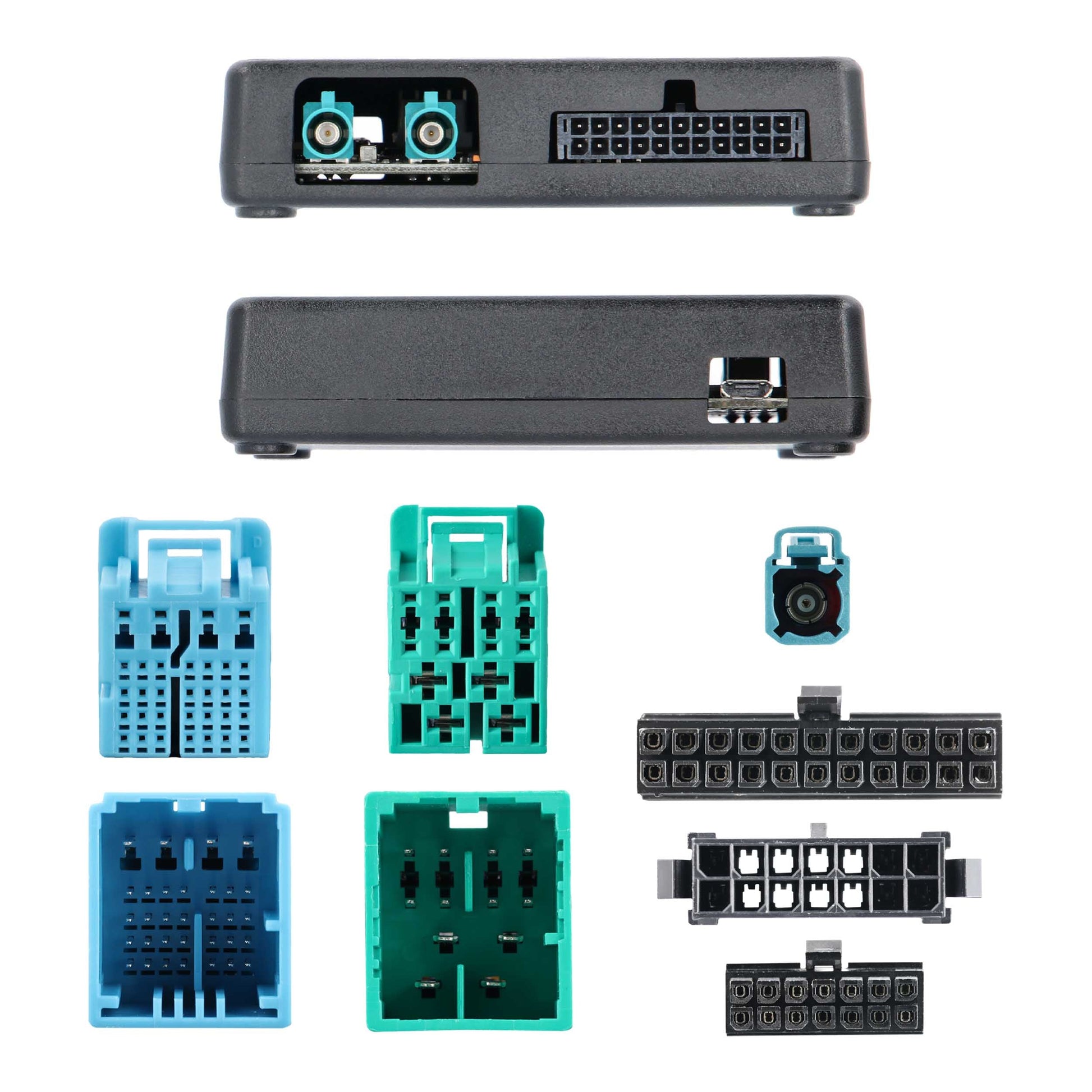

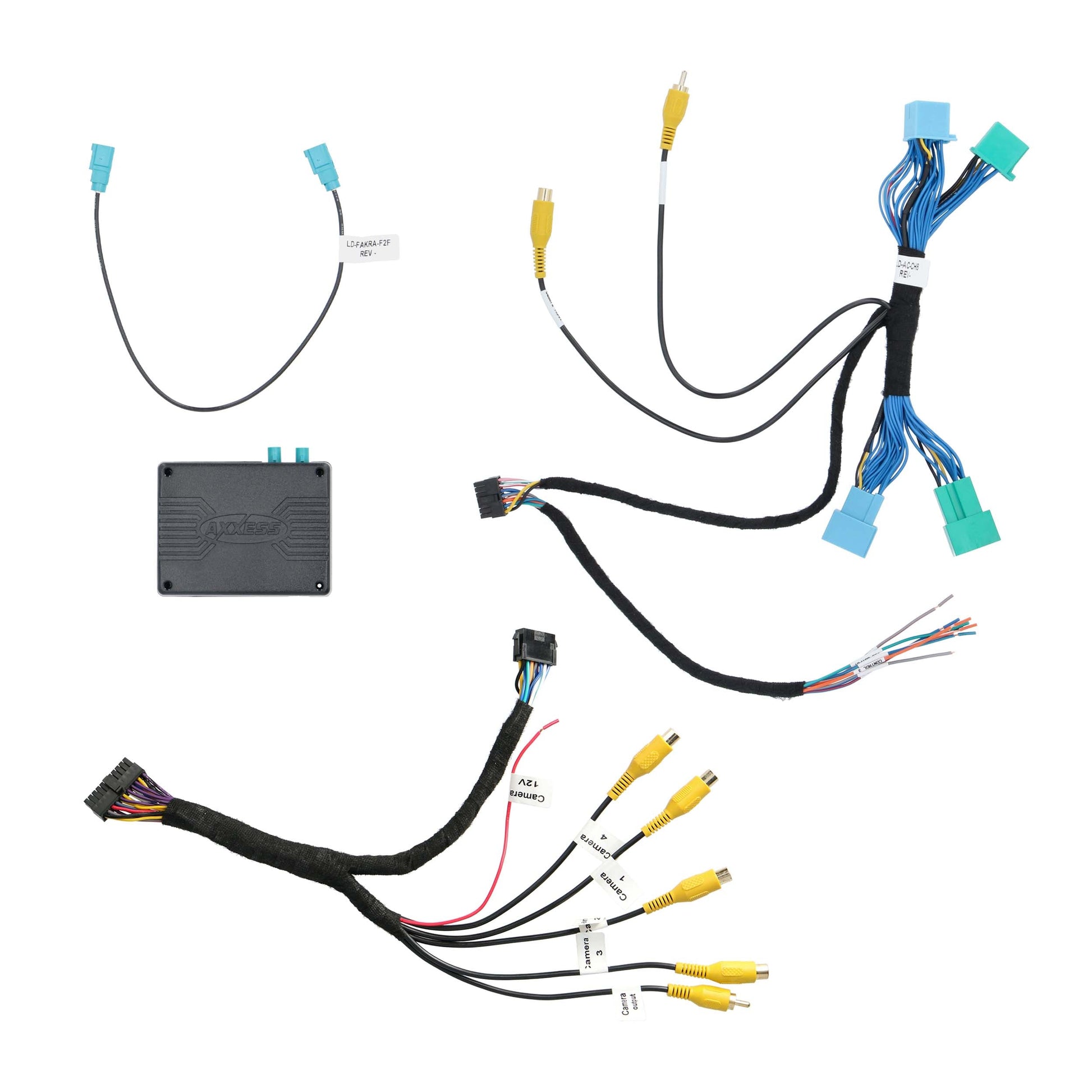

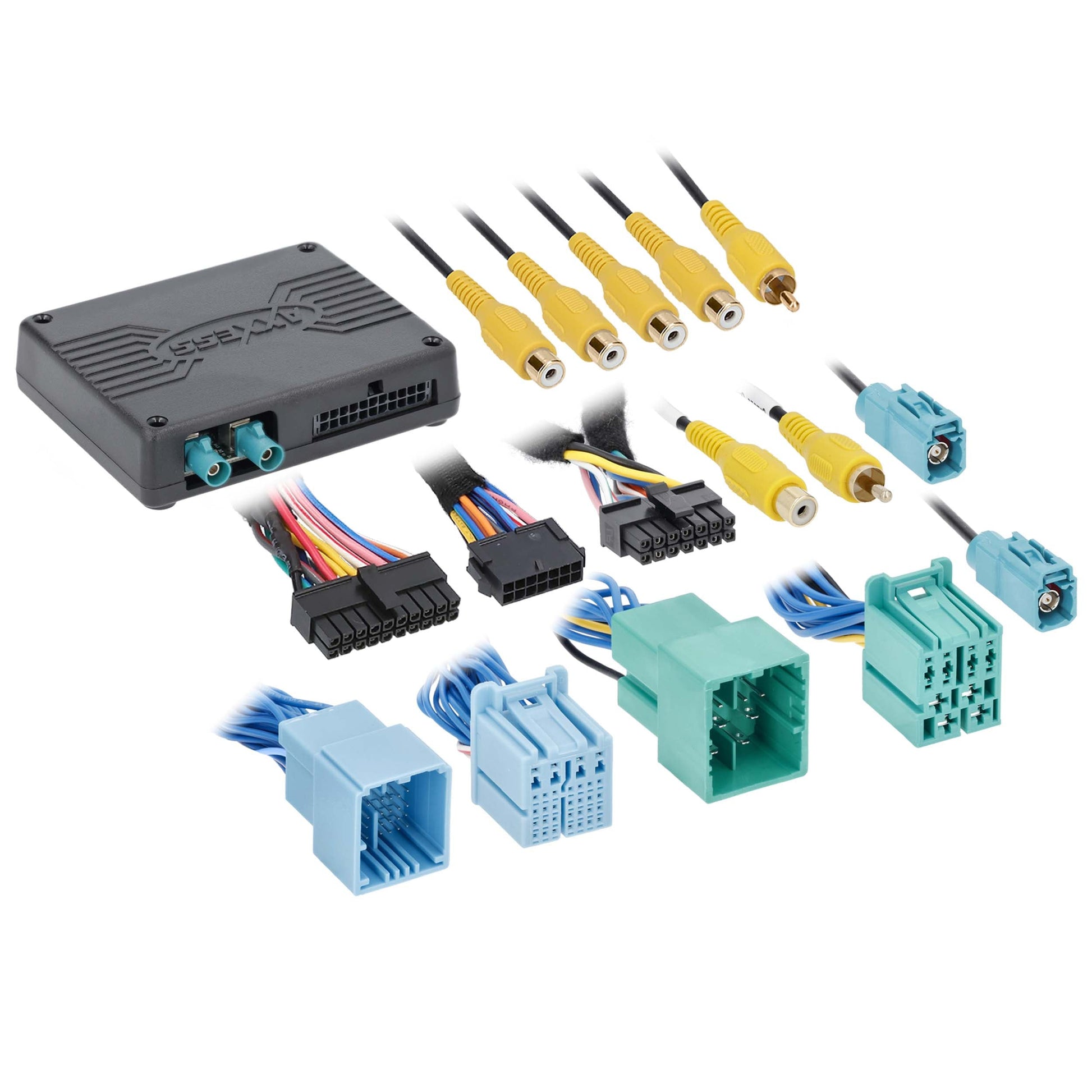

What’s in the Box

• Axxess AXAC-CH8 camera data interface
• Interface harness
• Vehicle harness

Technical Specifications

• Brand: Axxess
• Model: AXAC-CH8
• Product Type: Vehicle-specific camera data interface
• Application: select Jeep and Ram 2023-up vehicles with large Uconnect screens
• Camera Inputs: Up to 4 total camera inputs including factory camera
• Output: Programmable 12V 5A switched output
• Triggers: CAN bus reverse and turn signal trigger generation
• Update Port: Micro-B USB
• Sold As: Each

Identifiers & Packaging

• MPN: AXAC-CH8
• UPC: 086429441808
• Sold As: Each
• Included Components: Axxess AXAC-CH8 camera data interface, Interface harness, Vehicle harness
